Datavideo PTC-325GW 4K 12G-SDI/HDMI/NDI Auto Tracking PTZ Camera with 30x Optical Zoom - White

ITEM #: DV-PTC-325GW MFG #: PTC-325GW

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:

$3,399.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


PTC-325GW - Overview

The Datavideo PTC-325G is a 4K PTZ camera equipped with a 1/2.8-inch CMOS sensor, 30x optical zoom, and dual 4K 50/60p output via HDMI and 12G-SDI with YUV 4:2:2 color sampling. This setup delivers sharp, detailed images with accurate color reproduction, ideal for live events and professional broadcasts.The PTC-325G features built-in Auto Tracking to automatically follow the subject for hands-free operation. It supports NDI for low-latency video transmission over networks, making it suitable for live streaming and remote production. With dual power options (DC input and PoE) and advanced encoding, the PTC-325G ensures versatile performance. It supports dual streaming output to platforms like Facebook (RTMPS), YouTube, and dvCloud, and complies with the ONVIF Profile S standard for broad compatibility.With 12G-SDI connectivity, the PTC-325G allows you to connect to multiple devices in your workflow for maximum flexibility. All outputs are active simultaneously, ensuring seamless integration.

Datavideo PTZ cameras utilize high-quality Sony CMOS sensors to deliver exceptional image quality and reliability. Renowned for their performance in various lighting conditions, Sony CMOS sensors are widely used in broadcast, cinematic, and professional video cameras. Additionally, these sensors offer lower power consumption, which leads to reduced heat generation and a longer camera lifespan.

  • Specifications:

    • Video Format/Resolution:
      • HDMI:
        - 2160p60/59.94/50/30/29.97/25
        - 1080p60/59.94/50/30/29.97/25
        - 1080i60/59.94/50
        - 720p60/59.94/50
        - *2160p60/59.94/50 YUV 4:2:2
      • SDI:
        - 2160p 60/59.94/50/30/29.97/25
        - 1080p 60/59.94/50/30/29.97/25
        - 1080i 60/59.94/50
        - 720p 60/59.94/50
    • Image Sensor: Sony 1/2.8" CMOS
    • Effective Pixels (approx.): 8.46Mega Pixels
    • S/N Ratio: ≥55dB
    • Min. Illumination: 0.5 Lux @ (F1.8, AGC ON)
    • Electronic Shutter: 1/30s - 1/10000s
    • Zoom Ratio: 30x Optical, 16x Digital Zoom
    • Effective Zoom Ratio: 30x
    • Gamma Control: N/A
    • Iris Control: Auto/Manual
    • Digital Noise Reductions: 3D
    • On-Screen Display (OSD): English/Simplified Chinese/Traditional Chinese
    • White Balance: Auto, Indoor, Outdoor, OnePush, Manual, VAR
    • AGC/Gain Control: Yes
    • HDR/WDR: N/A
    • Mirror/Flip Image: Yes
    • Focus Mode: Auto/Manual
    • Panning/Tilting Range:
      • Pan: 300°
      • Tilt: +90° - -15°
    • Panning/Tilting Speed:
      • Pan: 0.876°/s~43°/s
      • Tilt: 0.693°/s ~21.32°/s
    • Preset: 255 Position
    • Focal Length: 30x, f = 4.5mm - 135mm, F1.8 - F4.7
    • Field of View (Horizontal, Wide): 62.3°
    • Image Compensation: Back light compensation

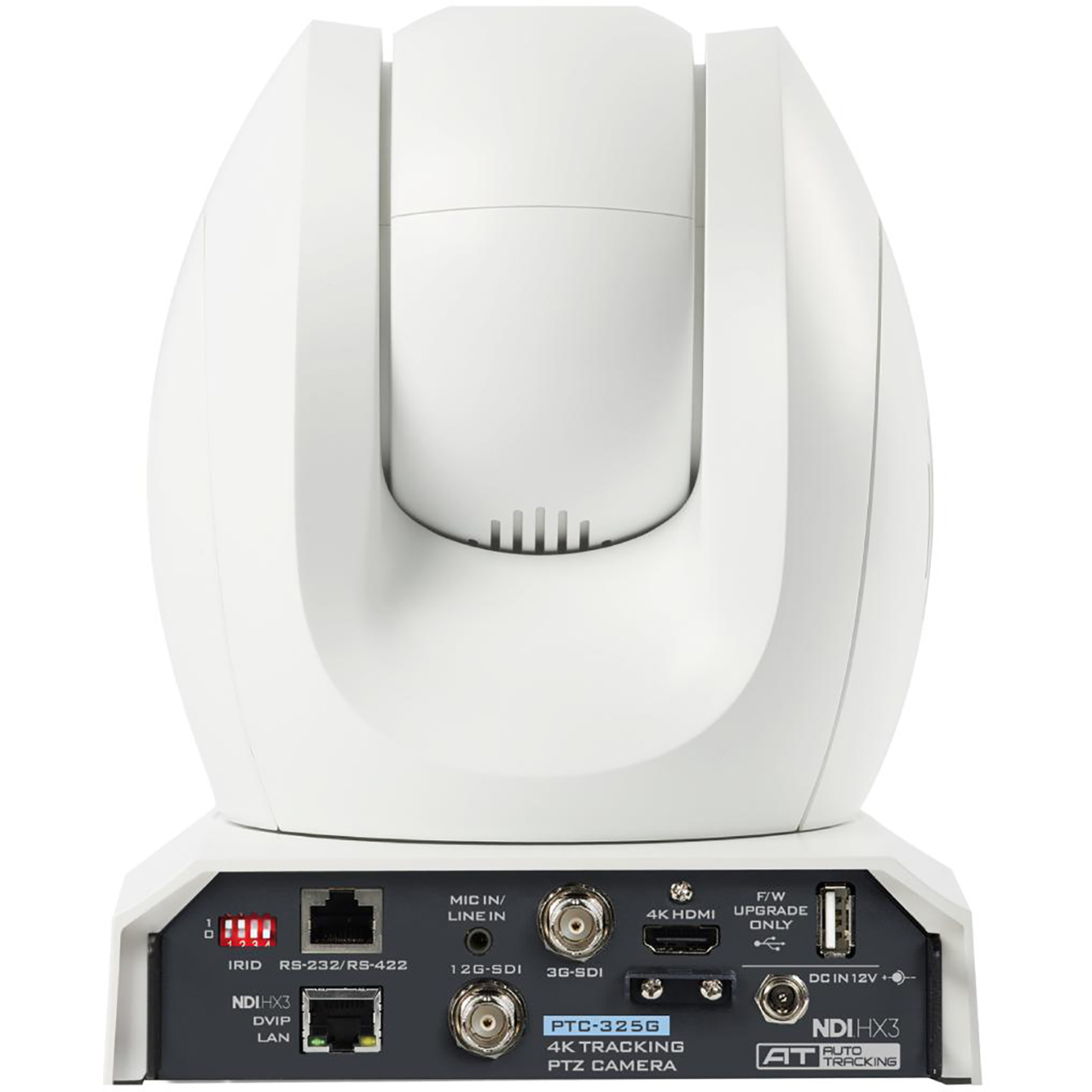

    • Video Output:
      1x HDMI 2.0
      1x 3G-SDI
      1x 12G-SDI
      1x 10/100/1000M RJ45 (PoE)
    • Audio Input:
      1x 3.5mm (mic in/line in)
      • Switch from Web UI
    • Tally LED: Yes
    • Lens Filter: N/A
    • Control Protocol: Pelco-D, Pelco-P, VISCA, VISCA over IP, DVIP, ONVIF, NDI
    • Remote Control Interface:
      • IR
      • Web GUI
      • RS-422/RS-232
      • DVIP
      • NDI
    • Video Compression Format: H.264/H.265/MJPEG
    • Audio Compression Format: AAC, G711
    • Audio Bitrate: 96Kbps, 128Kbps,256Kbps
    • HD IP Interface: ----
    • Streaming Protocols: RTSP, RTMP(S), ONVIF, Multicast, SRT, NDI|Hx3 (1080p)
    • First Stream Supported Resolution:
      • 3840x2160
      • 1920x1080
      • 1280x720
      • 1024x576
      • 960x540
      • 640x480
      • 640x360
    • Second Stream Supported Resolution:
      • 720x480
      • 640x360
      • 480x270
      • 320x240
    • Video Bitrate: 32Kbps - 50Mbps (Single Stream)
    • Video Bitrate Mode: VBR, CBR
    • Encoding Frame Rate:
      • 50Hz: 1 - 50fps
      • 60Hz: 1 - 60fps
    • POE: IEEE 802.3at
    • F/W Update: Via Web UI or USB 2.0
    • IR Control: Yes
    • Camera Control Unit:
      • RMC-2P
      • RMC-180 series
      • RMC-300 series
      • PTZ View Assist APP
    • Tripod Mount: 1/4"-20 UNC
    • Optional Accessories: WM-1/WM-10/WM-11
    • Color: Dark Blue/White
    • Dimension (DxWxH): 7.44" x 6.81" x 8.62" (189.08mm x 173mm x 219mm)
    • Weight: 5.73lbs (2.6kg)
    • Operating Temp. Range: 32°F - 104°F (0°C - 40°C)
    • Power: DC 12V/3A (26W)

  • Item Includes:

    • 1x PTC-325G product
    • 1x RMC-1AT IR remote controller
    • 1x Ceiling mount bracket-A
    • 1x Ceiling mount bracket -B
    • 6x Ceiling mount bracket screw M3*4mm
    • 1x DC 12V Power Adaptor
    • 1x Safety cable
