OCC DZ006TSLA9YP Buffered 6-Fiber Singlemode 9/125um Indoor/Outdoor Fiber Cable - Plenum Rated - Yellow - 1000 Foot

ITEM #: DZ006TSLA9YP1000 MFG #: DZ006TSLA9YP 1000FT

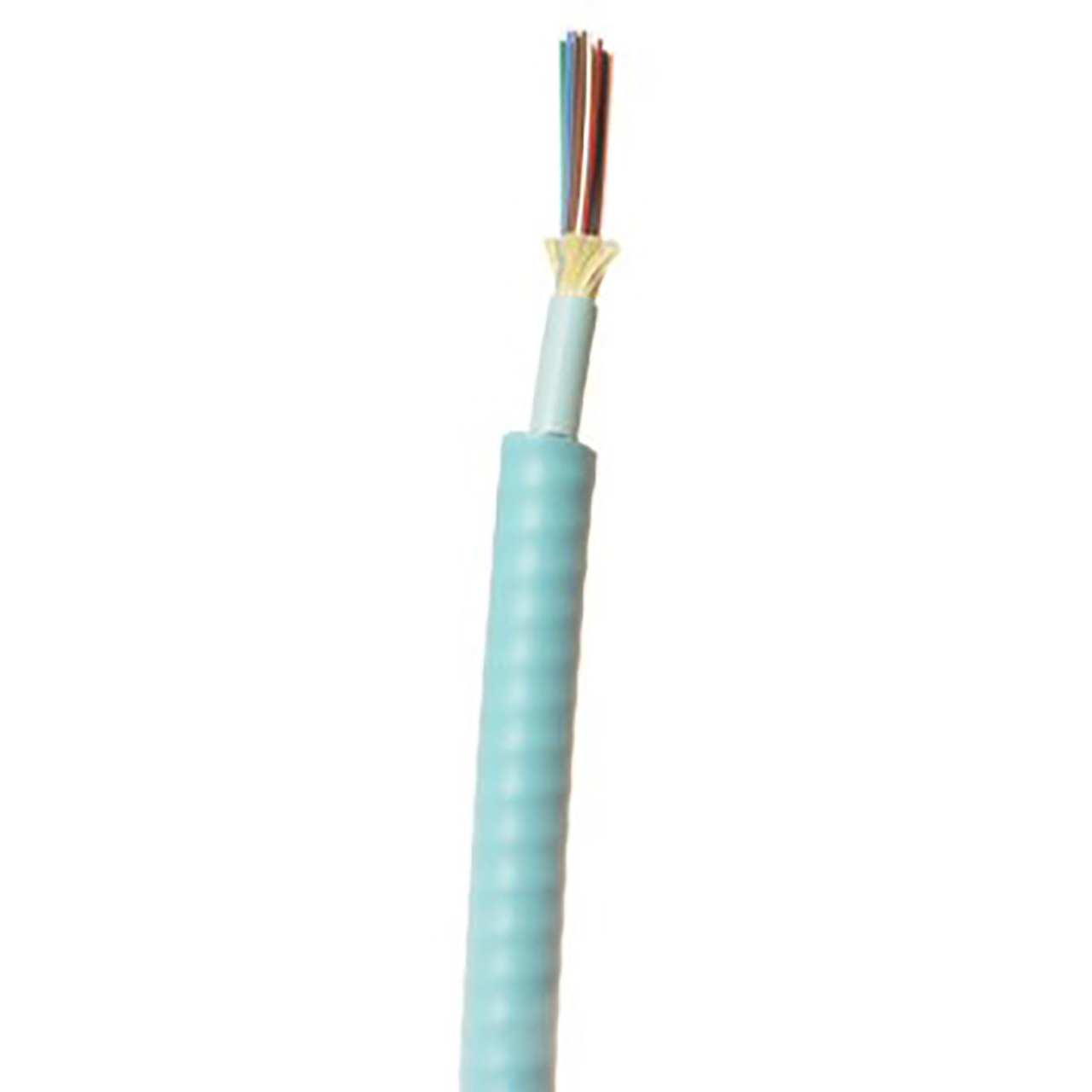

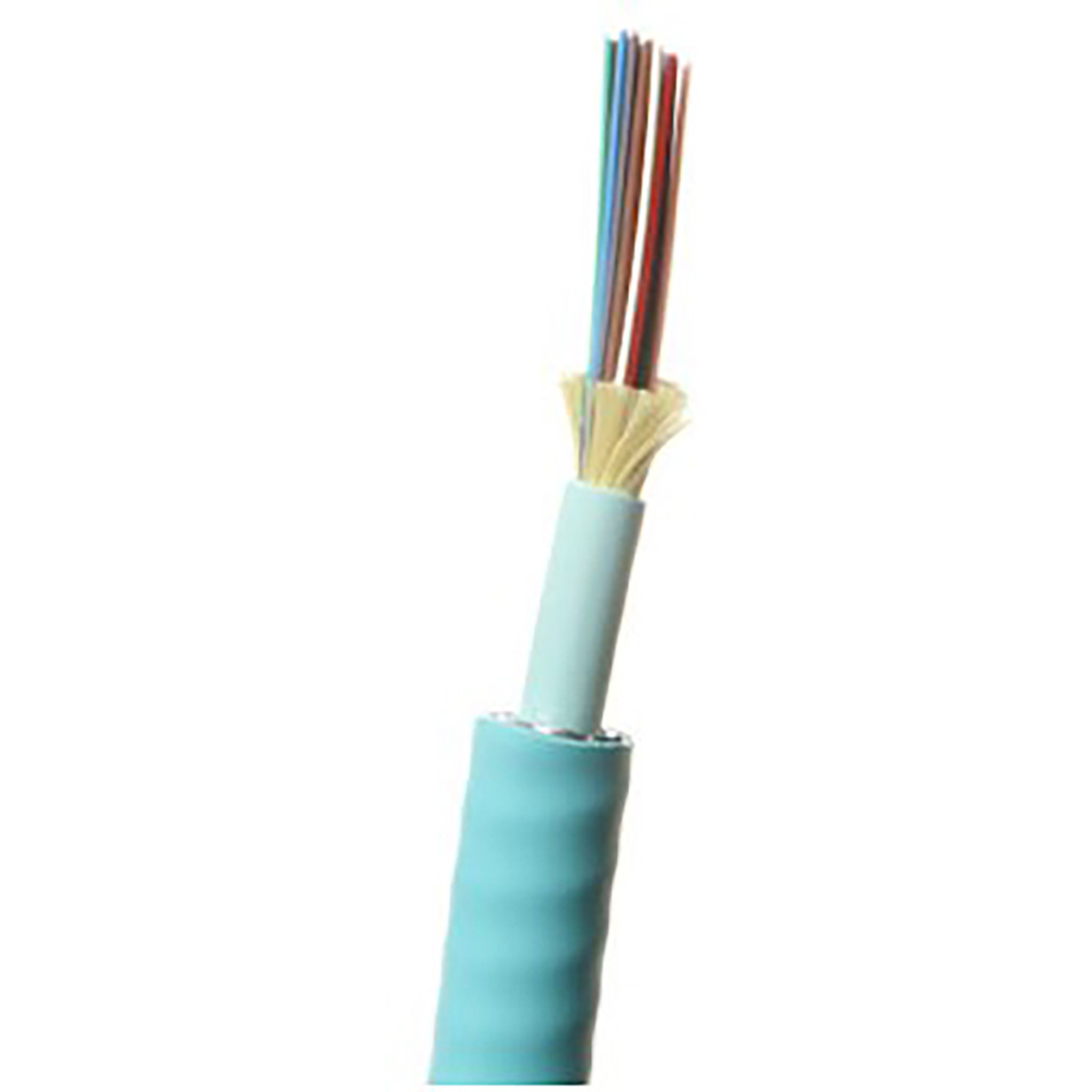

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$600.00

Our Price:

$540.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


DZ006TSLA9YP 1000FT - Overview

Bend Insensitive, Low Water Peak, Single-Mode ITU-T G.657.A1 andITU-T G.652.D

Offering the durability you expect from OCC, these Aluminum Interlocking Armored distribution cables provide all of the indispensable elements needed for Indoor and Indoor/Outdoor commercial applications while providing great value. Manufactured with Indoor/Outdoor grade low smoke PVC for plenum applications.

Applications include:
- Used in trunking, LAN and distribution applications where small size, lightweight, and versatile installation capability are required for ducts, plenums, and air handling spaces.
- Ideal configuration for a single termination point requiring multiple fibers.
- Aluminum interlocking armor with Low-Smoke PVC over-jacket.
- Interlocking armor can be easily removed leaving an intact plenum rated inner cable.
- Ideal for locations that require conduit for cable protection - Indoor/Outdoor plenum cables eliminate the need for costly cable transitions in different installation environments

Please Note: Images are for referrence only and do not represent actual product.

  • Features:

    • UL Listed in accordance with NEC section 770.179(a) for use in ducts, plenums and air-handling spaces Low-smoke PVC inner and outer jackets 2- to 24- fibers Cable materials are Indoor/Outdoor UL-Listed OFCP and also UV, water and fungus resistant High performance tight-buffered coating on each fiber for environmental and mechanical protection 900 æm buffer works well with both Xpress Ultra mechanical connectors and fusion splice pigtails Can be installed outside and in plenum or riser pathways inside, eliminating the need to transition cable types between environments.

  • Specifications:

    • Jacket Color: Yellow
    • Jacket Material: Indoor/Outdoor Low Smoke PVC
    • Buffer Material: Low Smoke PVC
    • Diameter: 0.50"
    • Weight: 95lbs
    • Minimum Bend Radius: 10.3" - 7.4"
    • Mechanical Performance: ICEA S-104-696
    • Flex Resistance: 25 cycles
    • Crush Resistance: 650 N/CM
    • Operating Temperature: -40°F - 158°F (-40°C - 70°C)
    • Storage Temperature: -40°F - 158°F (-40°C - 70°C)
    • Installation Temperature (actual temperature of cable): 32°F - 140°F (0°C - 60°C)
    • Flame Retardancy: UL Listed Type OFCP NFPA262 and FT6 (CSA C22.2 No. 232)
    • Core/Cladding Diameter: 9/125
    • Wavelength (nm): 1310/1550
    • Gigabit Ethernet Distance: 3.11mi (5km)


DZ006TSLA9YP 1000FT - Required Accessories
