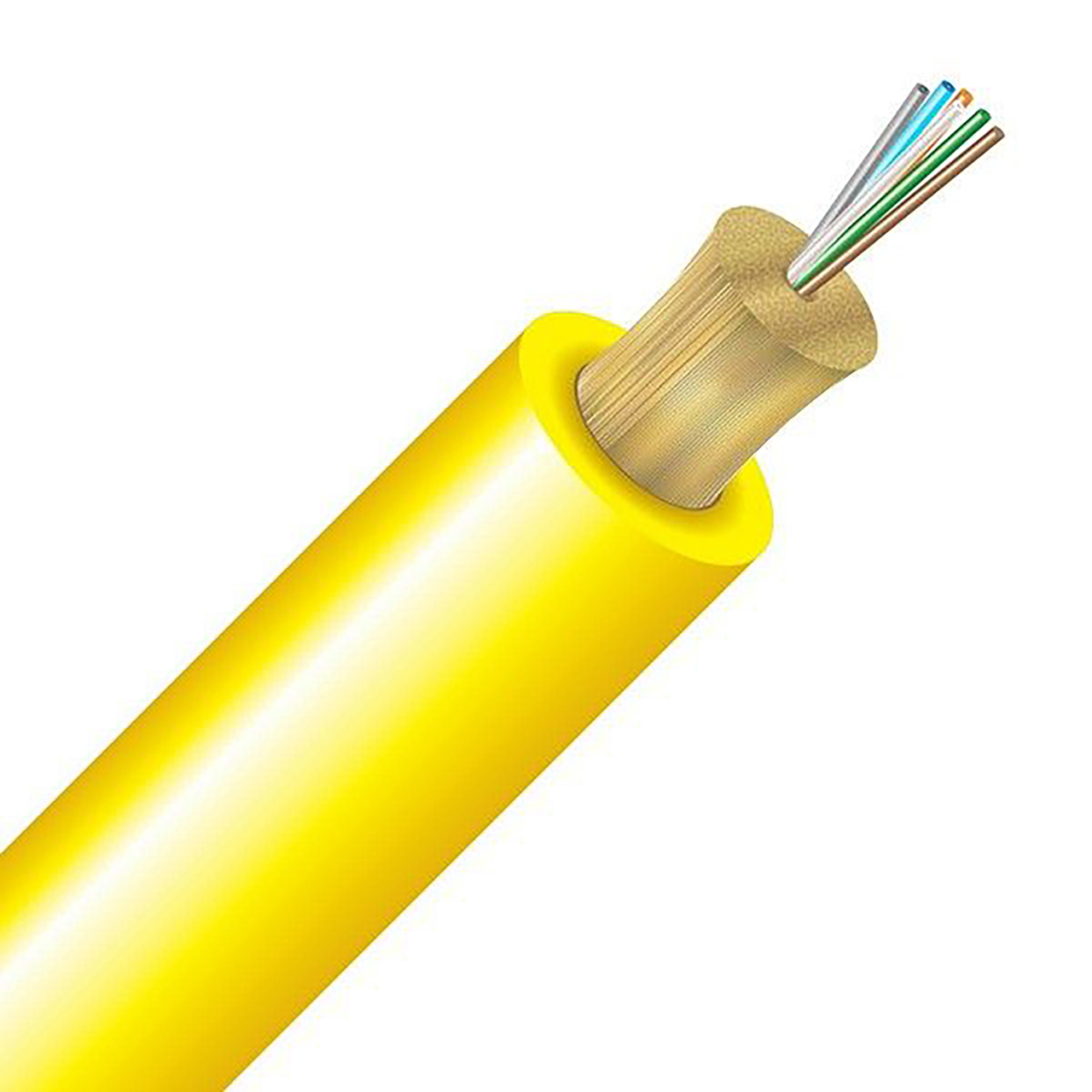

Cleerline 6D9125SMOS2R SSF 6 Strand OS2 Micro Distribution Indoor Riser-Rated Cable - 1000ft Spool

6D9125SMOS2R - Overview

• Features:

  • High mechanical strength, superior fatigue (Nd = 30)
  • Compatible with common connector systems for 50/125
  • Multimode
  • Up to 10,000x the bend longevity of traditional fiber
  • Integral SSF™ coating provides glass protection
  • Increased safety due to incredible bend insensitivity
  • Exclusive 250 μm Soft Peel acrylate


• Specifications:

  Fiber
  • Fiber Count: 6 Fiber
  • Type: 9/125 Single-mode 0S2
  • Coating: 250μm "Soft Peel" S-Type Coating
  • Color Coding: Per TIA/EIA 598C

    Jacket
  • Type: Plenum Rated PVC
  • Color: Yellow
  • Markings: Sequential Foot Markings
  • Strength Member: Aramid (Plenum + water blocking yarns)

    Physical Data
  • Storage Temperature Range: -40°F~176°F (-40°C~80°C)
  • Operating Temperature Range: -4°F~167°F (-20°C~75°C)
  • Max. Tensile Load (Installation): 225lb (102kgf)
  • Max. Tensile Load Long Term: (112lb (50kgf)
  • Min. Bend Radius, Unloaded: 1 x O.D.
  • Min. Bend Radius, Operation: 0.118" (3mm)
  • Cable Package: 1000' reel
  • Rating: FT6-Plenum
  • Crush Resistance (TIA/EIA 455-41A): 200lb/mm (100kgf/mm)
  • Impact Resistance (TIA/EIA 455-25B): 1500 impact cycles
  • Flexing @ 90°: 2000 flexing cycles


• Item Includes:

  • 1x Cleerline 6D9125SMOS2R fiber cable (1000')


• Warranty:

  • 5-Year Limited Warranty
