Eartec HUB9DMXD UltraLITE/HUB 9-Person Duplex Wireless Intercom System - 1 HUB/8 UltraLITE/1 Wired Max4G Double Headset

ITEM #: EAR-HUB9DMXD MFG #: HUB9DMXD

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$2,210.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    HUB9DMXD - Overview

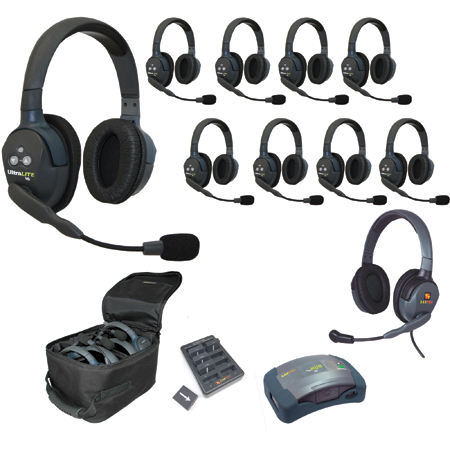

    The Eartec HUB9DMXD is a professional Full Duplex Wireless Intercom System for 9 people that need to communicate and work with their hands. This compact system features the HUB Mini base and 8 UltraLITE wireless headsets that utilize Digital Enhanced Cordless Technology (DECT) on the 1.9 GHz band. This provides professional, simultaneous wireless communication within a 1/4 mile range line-of-sight. The HUB is a revolutionary mini base station that expands the capacity of the UltraLITE linking up to 8 wireless headsets, with a wired headset jack to accommodate larger production crews. Weighing only 9 oz. the HUB can either be placed strategically "on location" or belt worn so your crew can remain in constant full duplex voice contact with the freedom of mobility. The UltraLITE headset provides breakthrough technology with all electronics, including the battery/circuit board/antennas being built right inside the earcup of the headset eliminating wires/belt-packs being exposed. The complete Eartec HUB-9DMXS includes 1 HUB mini-base/8 UltraLITE double headsets/1 WIRED Max4G single headset/ batteries/charger/adapter and carrying case.

    • Features:

      • Excellent performance - Range up to 1/4 mile
      • DECT Frequency - Digital 1900 MHz band is interference free
      • Li-Poly Batteries - Provide continuous 6 hr operation and are field replaceable
      • Adjustable Mic Boom - Rotates 270 degrees, worn on left or right ear
      • Auto Mute - Mute microphone simply by moving the boom to up position
      • Volume Control - Simple up / down push button adjustment
      • Portable Mini Duplex Repeater
      • Clip to waist for total team mobility
      • Protective Neoprene shell
      • Two channels or conference
      • Expandable to 16 users
      • DECT / Digital 1900 MHz band
      • Range up to ¼ mile
      • Dual Power Option Rechargeable Li Poly Battery 7 AC Adapter (Both incl.)
      • Integrated Volume Control
      • Dual Pin Headset Jack

    • Specifications:

      • UltraLITE
      • Standard: DECT 6.0 (Digital Enhanced Cordless Telecommunications)
      • Frequency: 1920 - 1930MHz (USA)
      • Euro Frequency: 1880 - 1900MHz (EURO)
      • Preferred Frequency (MHz): TX/RX: 1921.536 ~1928.448MHz
      • Tuning Range Receive (MHz): 1921.536 to 1928.448MHz
      • Maximum Transmit Power: 100mW
      • Usage Type: TDMA
      • Channel Tuning Step: 1.728MHz
      • Weight: 4 oz
      • Channel Bandwidth: 1.728 GHz
      • Modulation Type: GFSK
      • Transmission Speed: 1.152 Mbps (Baud Rate)
      • Duplexing: Time Division Duplex (TDD)
      • Speech Encoding: ADPCM / 32bit/s
      • RF Accessing: Time Division Multiple Access (TDMA)
      • Range: 400m in open space
      • Headset Power Supply: Rechargeable Lithium 3.7 V/ 800 mAh 3.0 Wh
      • Charger Power Supply: AC / adapter: INPUT 110-40Vac
      • Charge Time: 3 Hours
      • Operation Time: 5 Hours
      • Normal Condition of Use: 0 C to 40 C
      • Storage Temperature: -10 C to 50 C

        HUB
      • Standard: DECT 6.0 (Digital Enhanced Cordless Telecommunications)
      • Frequency: 1920 - 1930MHz (USA)
      • Euro Frequency: 1880 - 1900MHz (EURO)
      • Weight: 4 oz
      • Connector: 2.5mm 3.5mm plug-in
      • Dimensions: 5.5"w x 1.5"d x 3.75"h
      • Channel Bandwidth: 1.728 GHz
      • Modulation Type: GFSK
      • Transmission Speed: 1.152 Mbps (Baud Rate)
      • Duplexing: Time Division Duplex (TDD)
      • Speech Encoding: ADPCM / 32bit/s
      • RF Accessing: Time Division Multiple Access (TDMA)
      • Range: 400m in open space
      • Headset Power Supply: Rechargeable Lithium 3.7 V/ 800 mAh 3.0 Wh
      • Charger Power Supply: AC / adapter: INPUT 110-40Vac OUTPUT 5.0V - 1000mA
      • Charge Time: 3 Hours
      • Operation Time: 3 Hours
      • Normal Conditions of Use: 0 C to 40 C
      • Storage Temperature: -10 C to 50 C
