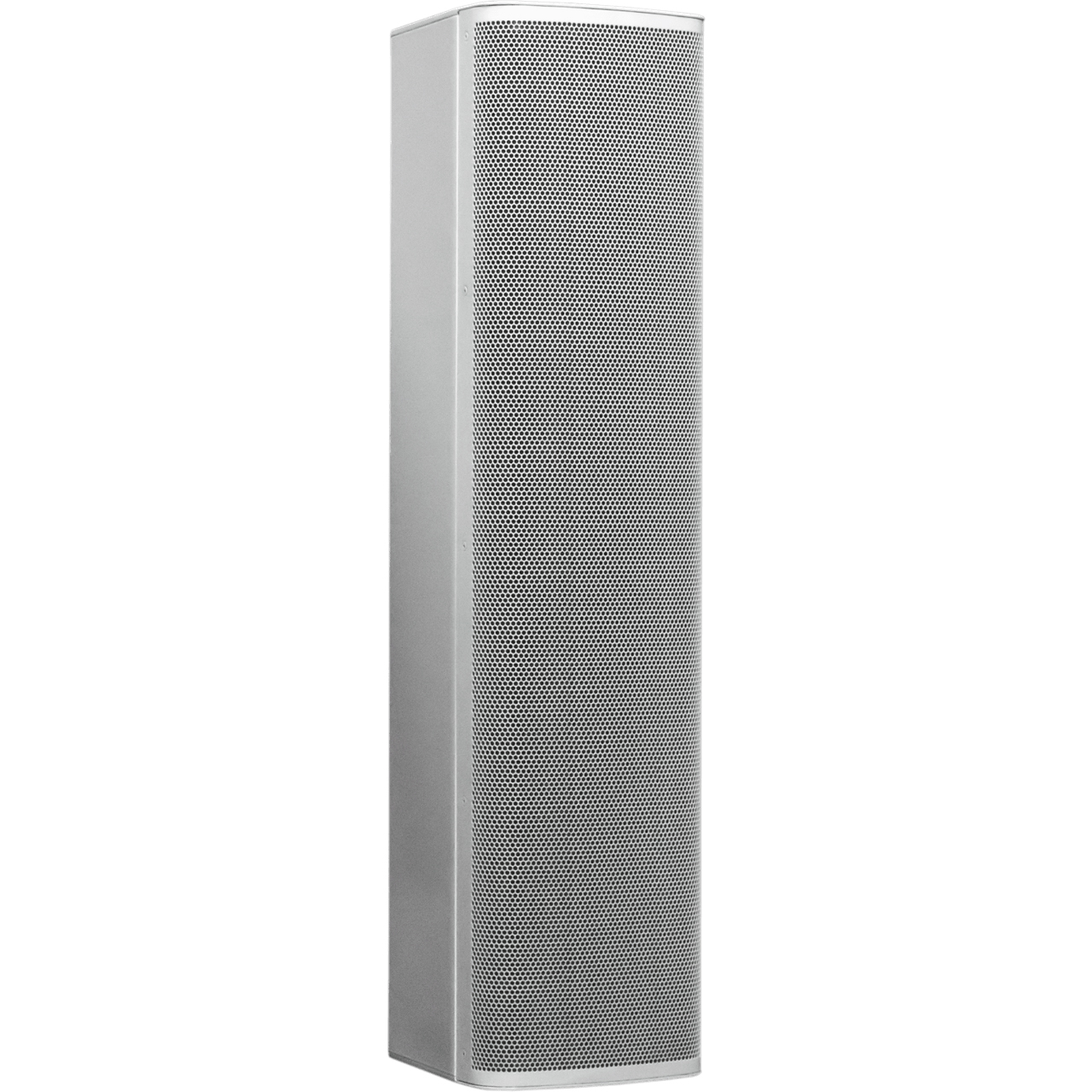

The EAW AC6 is an adaptive column loudspeaker fit for portable and installed applications whenever high-performance music amplification is required. Each AC6 is comprised of six 6" woofers and thirty 1" dome tweeters mounted to a CSA waveguide, individually amplified and processed for an unprecedented level of control and clarity. Adaptive technology allows vertical coverage to be perfectly customized to your venue across the entire 20kHz to 65Hz operating range resulting in even and musical coverage through the venue. A modular design approach provides redundancy and full serviceability from the front of the unit making AC6 the easiest to service column loudspeaker available. AC6 is designed to disappear visually while being rugged enough for portable use and carry an IP rating of IP54. All wiring is designed to be hidden behind the column and can be passed through to columns above or below it.
Weather Resistance:
When used with the optional input and output covers AC6s is rated at IP54 allowing it to be reliably used in unprotected outdoor locations. Steel mesh and foam behind the grill combine to keep water off the transducers and out of the electronics. Conformally coated circuit boards provide an additional layer of protection.

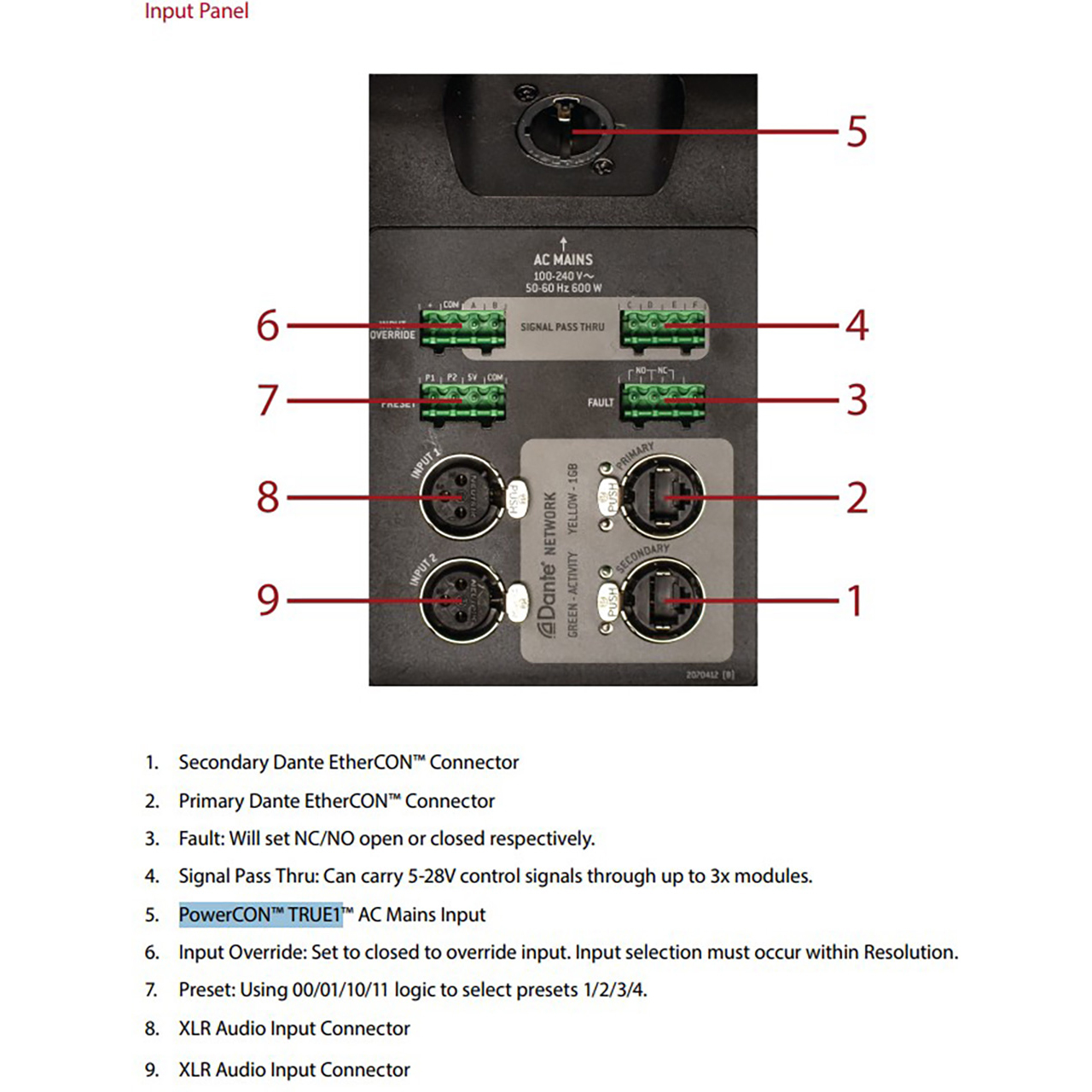

Input Connections:
Dante primary and secondary inputs with loop throughs simplifies high quality audio distribution to arrays of AC6 or other Dante enabled products. Two independent analog audio inputs with loop throughs provide input signal flexibility and fail-safe operation. AES/EBU digital audio input provides additional audio flexibility.

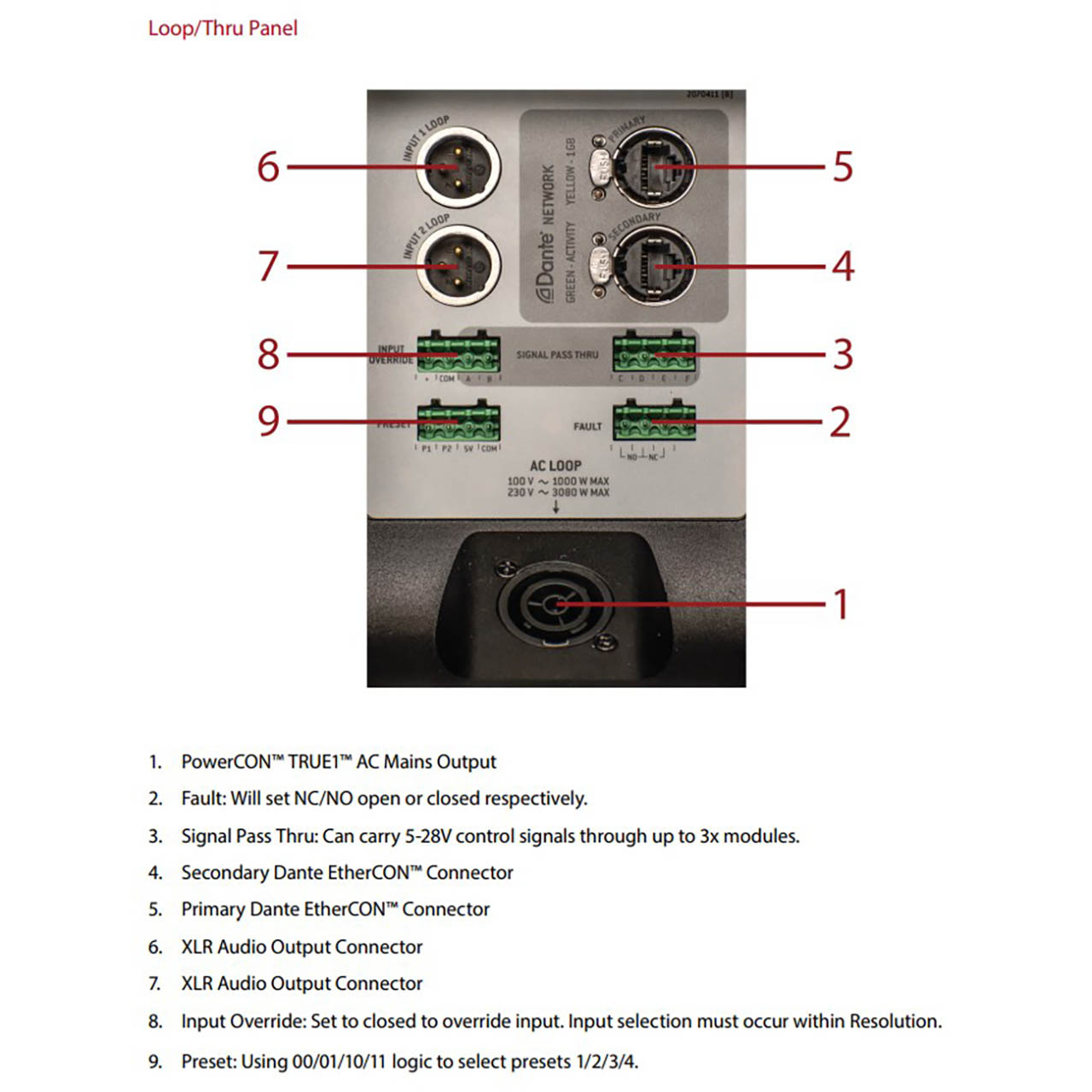

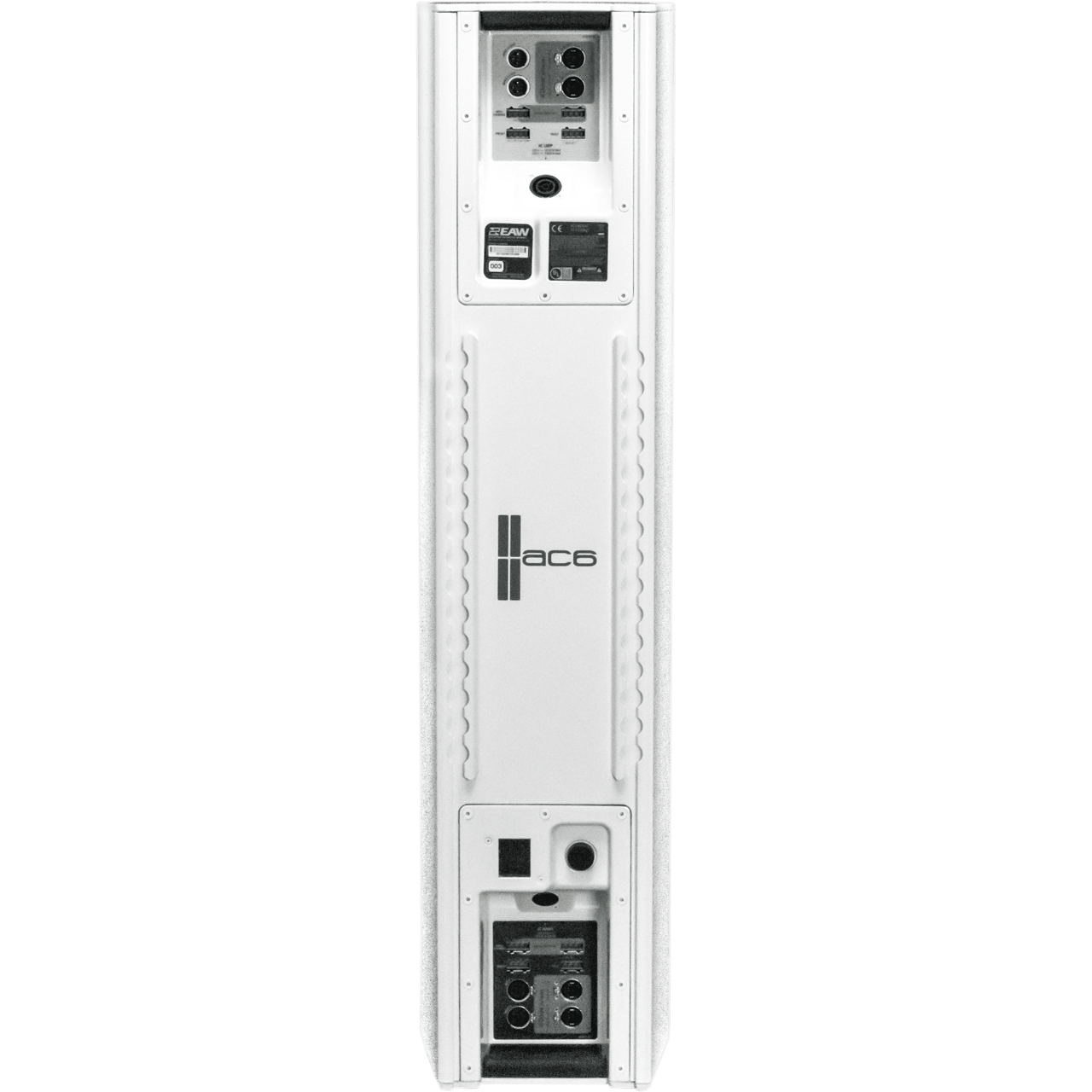

All audio, data, and power input connections are internally looped through to the top of the cabinet allowing for clean wiring when arrayed with other AC6.
