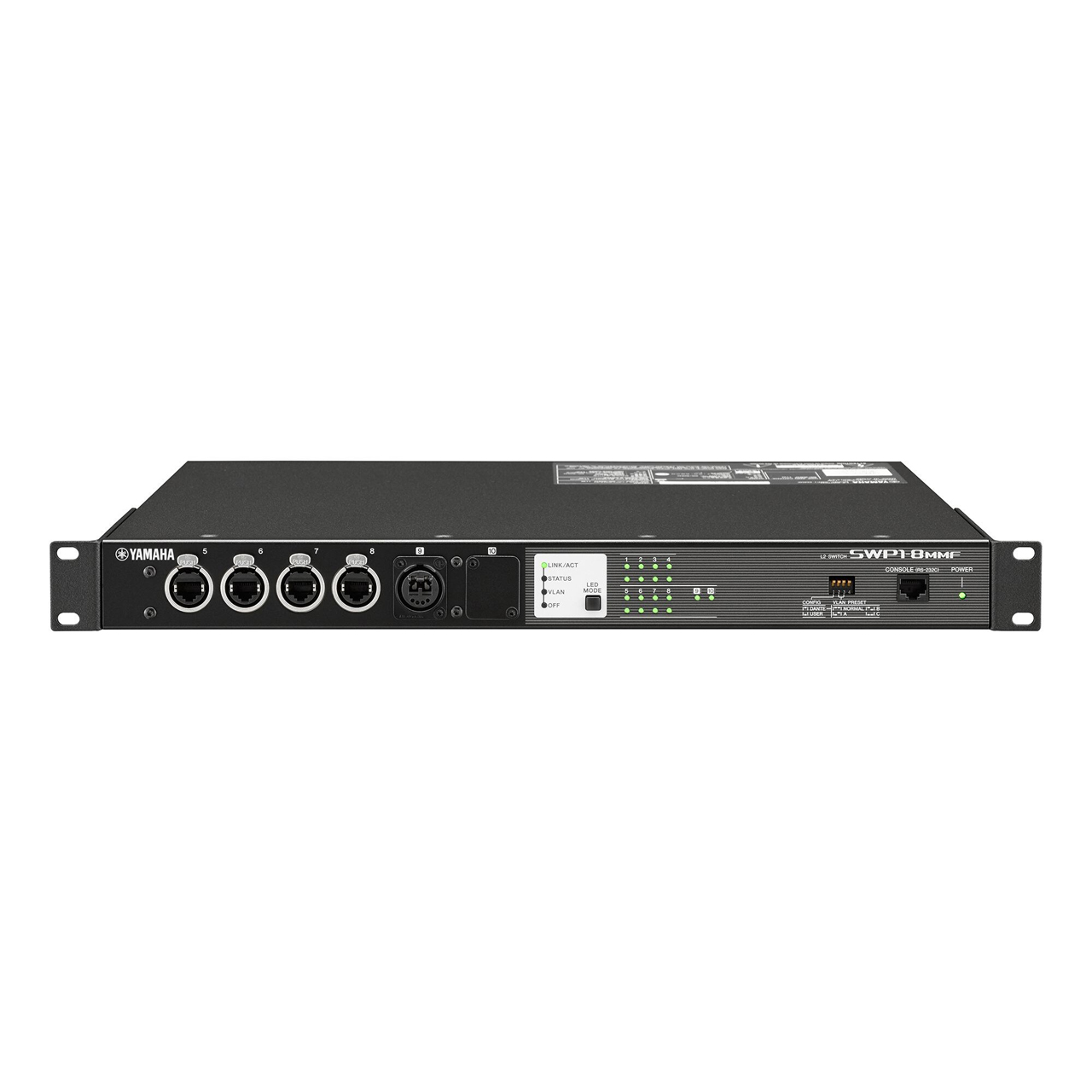

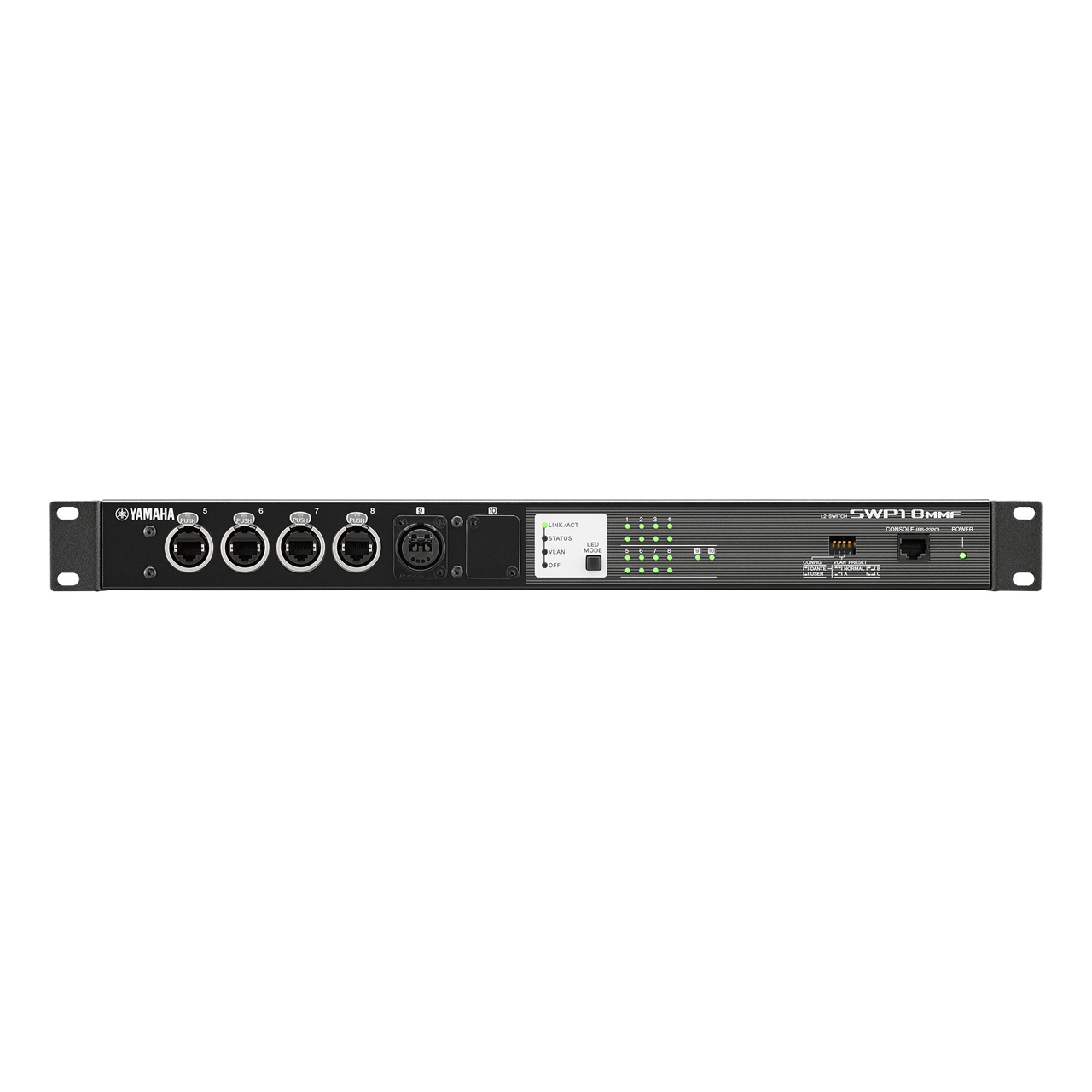

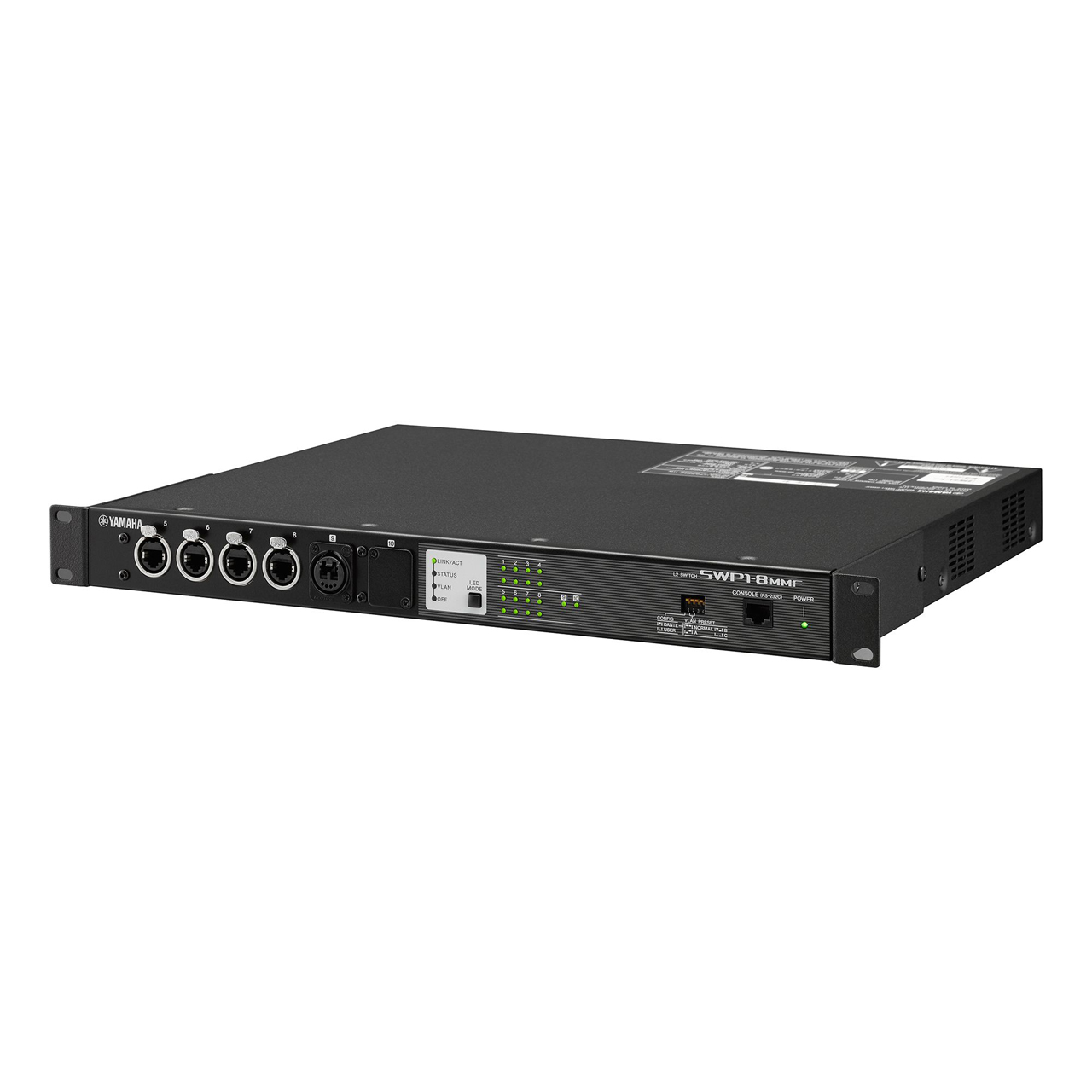

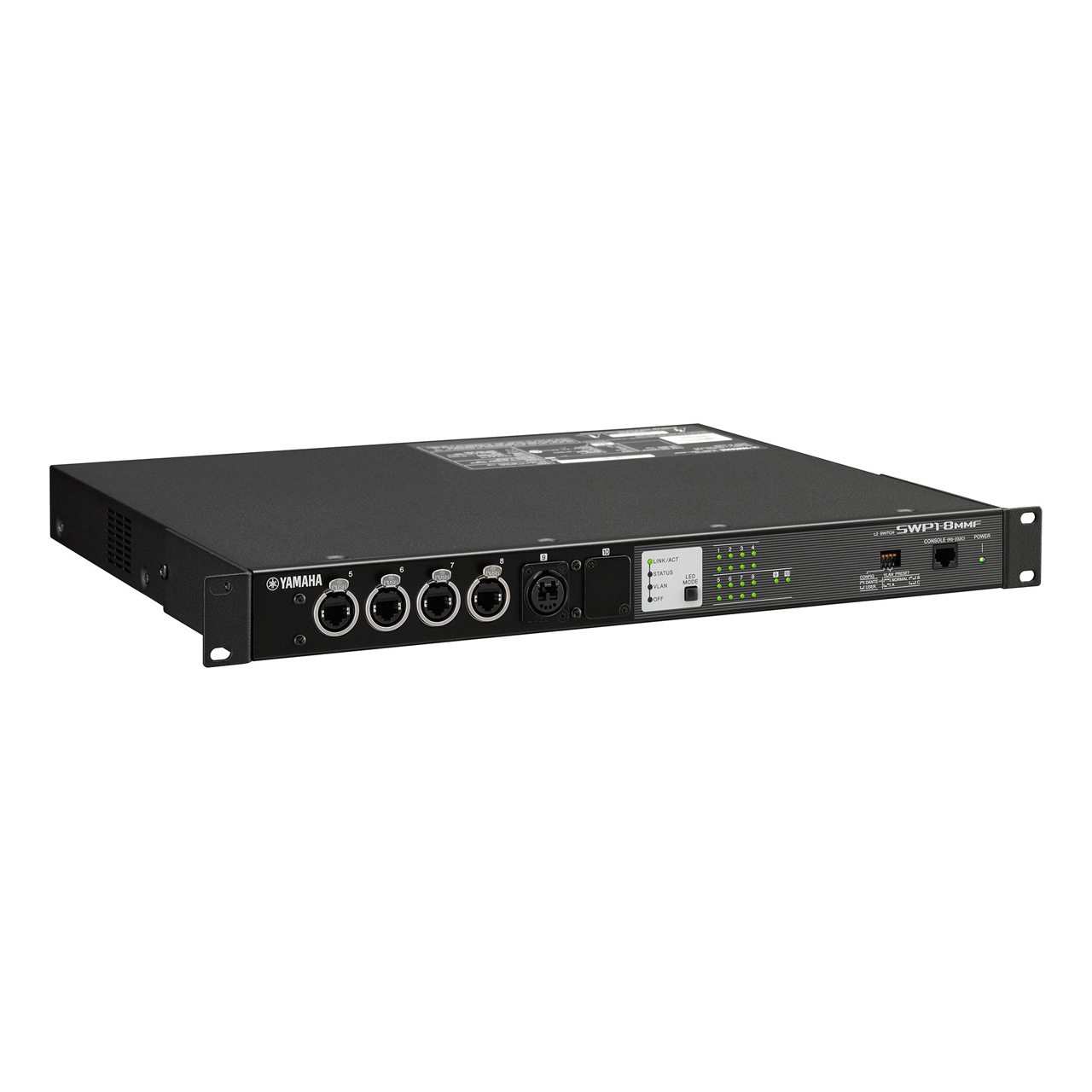

Yamaha SWP1-8MMF L2 Dante 8-Port EtherCON Network Switch with OpticalCON DUO Port and Option Slot

SWP1-8MMF - Overview

Yamaha Switches with Dante Optimization and Network Visibility

• Features:

  • DIP Switch Dante Optimization: Simple Dante networks are not difficult to set up and operate, but as network complexity grows the switches used need to be optimized for Dante operation in order to achieve maximum stability. Setting up QoS, IGMP Snooping, and other parameters on an intelligent switch can be a complex task, requiring specialized knowledge that is more the domain of IT technicians than audio engineers. The SWP1 series allows a Dante optimized setup to be recalled by simply flipping one DIP switch. No expertise or training is required.
  • 3 Preset VLAN Types: A truly efficient network should be able to handle multiple services simultaneously: Dante communication, StageMix and other smart device functions, computer software that allows digital mixer or power amplifier control, and perhaps more. But the more communication you combine on one network, the greater the chance for interference and problems. The use of virtual VLAN domains to isolate the various types of data is the ideal solution, but this type of setup also requires some IT expertise. The SWP1 series includes three VLAN presets that can be simply selected via a DIP switch. There's also a USER mode that allows fully customized VLAN setup.
  • Network Visibility: Effective Dante network management hinges on a range of parameters such as network traffic, switch status, and individual Dante device information. The dedicated Yamaha LAN Monitor application provides a comprehensive single-screen view of all necessary parameters when used with SWP1 series switches. We refer to this type of graphical overview as "network visbility." You can even take a snapshot of the normal network status and set an alarm to warn you if any of the parameters changes, so that problems can be identified and resolved quickly and easily. The Dante Controller application can also be launched from the Yamaha LAN Monitor with a single click, providing a total Dante network solution on a single computer.
  • etherCON Connectors for Live Sound Reliability: Reliability is essential in live sound applications. Nothing can be allowed to interrupt the show. Conventional network switches usually have RJ45 connectors to match the connectors on the computers to which they will be connected, but the SWP1 series features durable, reliable etherCON connectors that are directly compatible with the etherCON connectors on Yamaha CL/QL series consoles and other Dante capable devices.
  • Optical Fiber and Network Redundancy Support (option required for redundancy): The SWP1-8MMF and SWP1-16MMF include multi-mode fiber capable opticalCON connectors. Both models allow transmission over distances of up to 300 meters. The optional MMF-SWP1 optical fiber module can be added to allow two optical fiber cables to be run for redundant connection. Rapid spanning tree protocol (RSTP) is also supported for redundant connections.

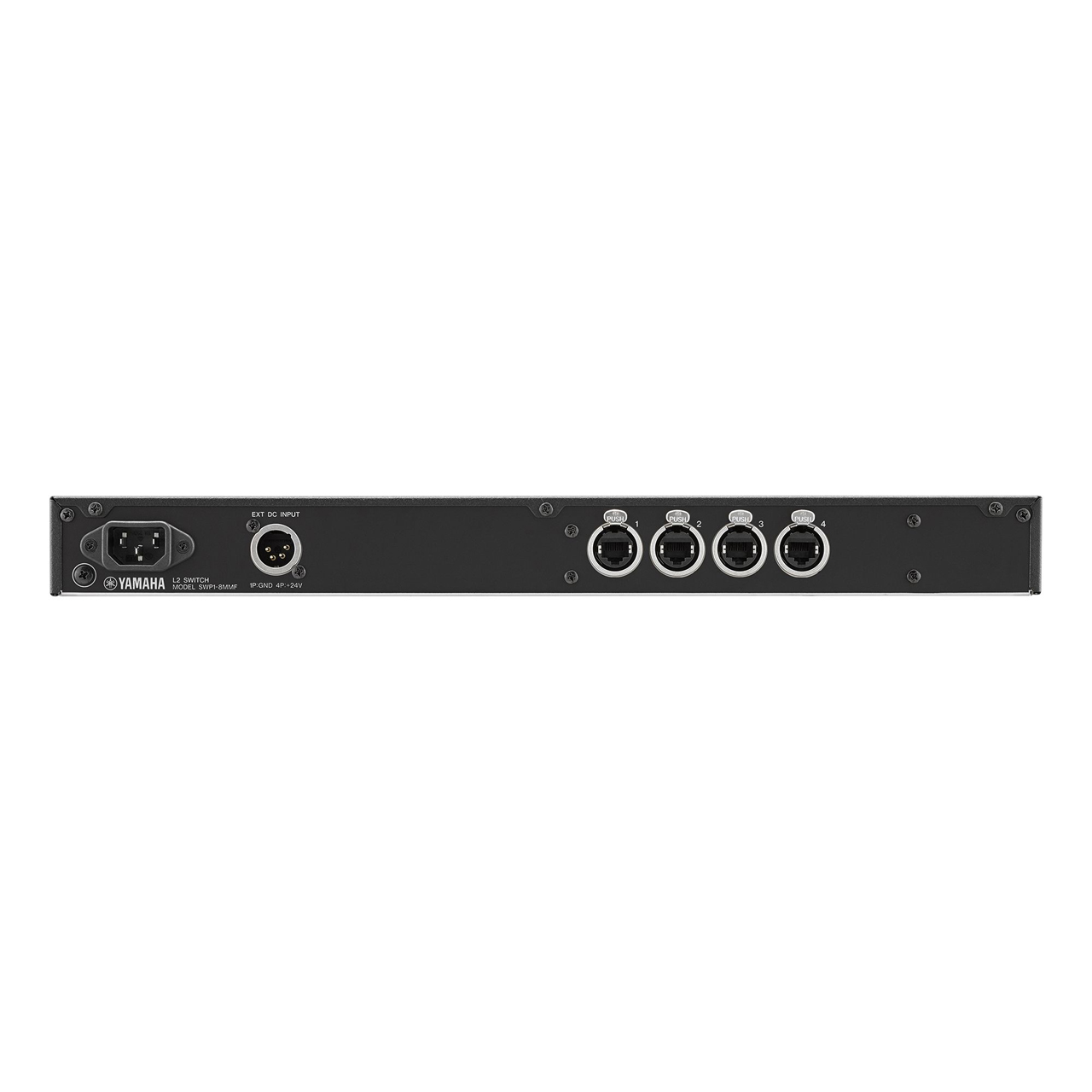

  • EXT DC INPUT for Power Supply Redundancy: SWP1 series switches include an XLR-4-32 type EXT DC INPUT connector in addition to the standard AC IN connector. +24V DC supplied to the EXT DC INPUT connector provides redundant power that can keep the device running if a problem occurs in the AC supply. For further reliability the AC connector is a locking type (V-Lock) that minimizes the possibility of accidental disconnection.


• Specifications:

  • Number of LAN Ports (1000BASE-T/100BASE-TX/10BASE-T, etherCON connector): 8
  • Number of SFP Ports (1000BASE-SX, opticalCON connector): 2 (1 optical module is installed as standard)
  • Console Port: 1 (RJ45)
  • Automatic Negotiation: Available
  • Auto MDI/MDI-X: Available
  • Switching Capacity: 20Gbit/s
  • Throughput: 15Mpps
  • Maximum Number of MAC Addresses: 16,384
  • Frame Buffer: 1024kB
  • VLAN: Port VLAN, Tag VLAN (IEEE802.1Q), Private VLAN
  • Maximum Number of VLANs: 256 (VLAN ID 1-4,094) *VLAN ID 1 is the default VLAN ID
  • IP Multicast: IGMP Snooping (v1/v2/v3)
  • QoS: 8 egress queues, Policy-based QoS, Remarking (CoS, ToS, DSCP), Scheduling (SP, WRR)
  • Flow Control: IEEE802.3x (Full-duplex), back pressure (Half-duplex)
  • Support Functions:
    - Storm control
    - HOL blocking prevention
    - Loop detection
    - ACL
    - SNMP agents
    - Link aggregation (IEEE 802.3ad LACP, Static)
    - Spanning tree (STP*, RSTP*, MSTP) *STP and RSTP are supported via downward compatibility of MSTP
    - Port mirroring
    - Port shutdown
    - Link speed down shift
    - Packet counter
    - Power saving mode (IEEE802.3az EEE; Disabled in DANTE mode)
    - DHCP client
    - Logging
    - Firmware download via TFTP/HTTP
    - Config file download via TFTP
  • DIP Switches: CONFIG, VLAN PRESET
  • Indicators: Front: POWER, LED MODEx4, PORTx8x2*, SFPx2 (*The LED MODE button allows the PORT lamps to be switched between indicating LINK/ACT-SPEED, STATUS, or VLAN)
  • Operating Temperature: 32°F - 104°F (0°C - 40°C)
  • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
  • Power Supply (AC IN inlet): AC100V-240V, 50/60Hz, Internal power supply (no power switch), Power supply inlet: locking type
  • Power Supply (EXT DC INPUT inlet): External power supply requirements: 24VDC±2V, 1A, XLR-4-32 type Connector
  • Maximum Power Consumption: 11W, 0.21A
  • Heat Dissipation: 9.5 kcal/h
  • Chassis: Metal case, no fan
  • Hazardous Substances Management: RoHS compliant
  • Dimensions: 14.25" x 18.9" x 1.73" (362mm x 480mm x 44mm)
  • Weight: 9.26lbs (4.2kg)


• Item Includes:

  • 1x Power cord
  • 1x Owner's manual


• Warranty:

  • 1 Year Limited Warranty


• GTIN:

  0889025100311
