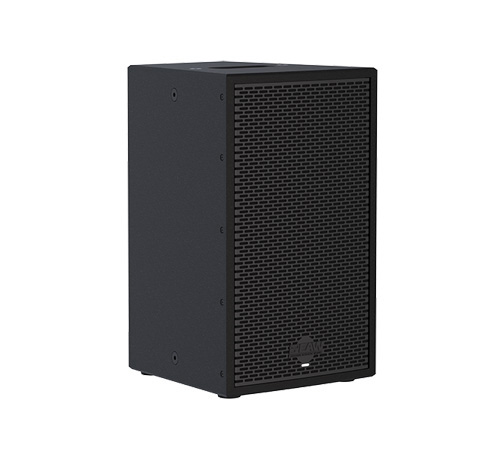

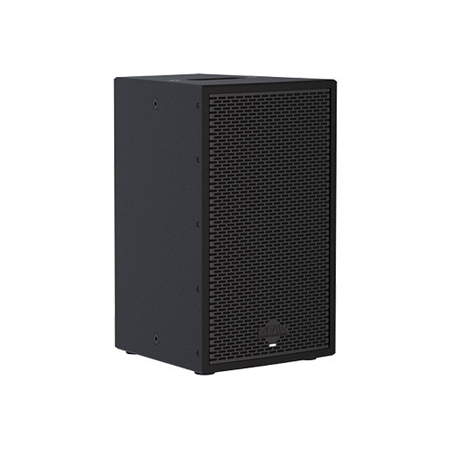

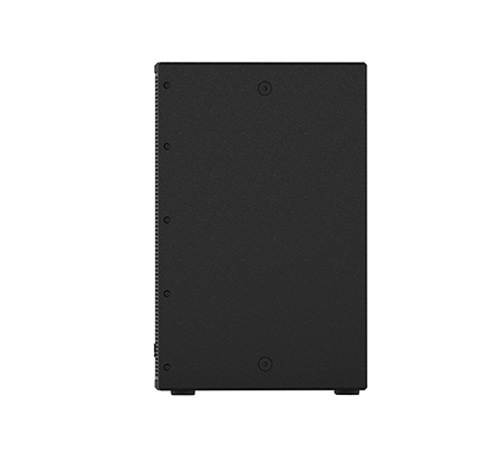

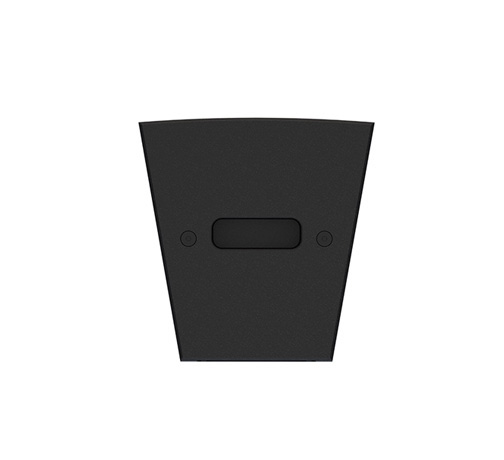

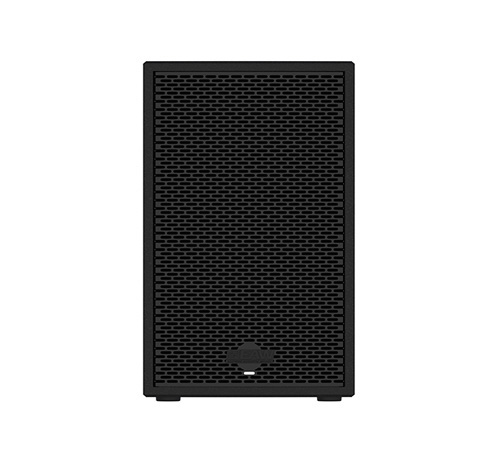

EAW Radius RSX126 2-Way Self-Powered Loudspeaker - 2 x 500W
  • EAW Radius RSX126 2-Way Self-Powered Loudspeaker - 2 x 500W
  • EAW Radius RSX126 2-Way Self-Powered Loudspeaker - 2 x 500W
  • EAW Radius RSX126 2-Way Self-Powered Loudspeaker - 2 x 500W
  • EAW Radius RSX126 2-Way Self-Powered Loudspeaker - 2 x 500W
  • EAW Radius RSX126 2-Way Self-Powered Loudspeaker - 2 x 500W

Questions? Ask a Markertek Expert:
800-522-2025 Email

EAW Radius RSX126 2-Way Self-Powered Loudspeaker - 2 x 500W

Manufacturer: Eastern Acoustic Works

Item #: EAW-RSX126   •   MFG #: RSX126




Our Price:$1,635.00

free ship


Availability:
More on the way, usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.



    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    Designed to streamline setup and deliver maximum results in minimum time, RADIUS couples unique and intelligent features with EAW's signature acoustical design to deliver solutions for rental firms and system integrators. The RSX126 features onboard bi-amplified electronics (500W RMS/ 1000W peak) featuring signature EAW DSP including Focusing and DynO for pristine impulse response. MK inspired constant directivity horn offers 60°x45° coverage and is rotatable for flexibility. EAWmosaic™ app provides total system optimization from anywhere in the venue, plus intuitive room design and prediction in a single, comprehensive application. With the proven sonic performance of EAW's acoustic design and DSP mastery plus full Dante integration across the line, RADIUS delivers an intelligent and flexible system to fit any budget.

    Perfect Applications Include:
    House of Worship
    Theatres, Auditorium and Performing Arts Centers
    Live Music Clubs
    Corporate AV Houses
    Live Production/Regional Rental Houses
    Dry Hire

    From the most compact 2-way JF systems through the celebrated 3-way KF systems upon which the company was established, EAW offers an extensive range of portable point source systems that are perfect for a wide variety of applications from fills to mains.

    All systems incorporate highly customized devices with a "no-holds-barred" approach to output capability and bandwidth in a vehicle and human friendly package. The portable point source grouping includes both conventional externally-powered systems and comprehensively integrated systems complete with on-board power, multi-stage processing and networked audio and control.


    • Features

      • Extremely approachable EAWmosaic™ iOS app delivers system prediction, control and monitoring from any location in the venue.
      • Proven EAW acoustical design and DSP including Focusing and DynO provides a pristine impulse response at all output levels.
      • Four pre-defined voicings provide a variety of tonal starting points.
      • Integrated Dante™ networking (with loop-thru) on all models including Analog redundancy capability.

    • Specifications

      • CONFIGURATION
      • Subsystem:
      • Transducer: LF - 1 x 12 in cone, 3 in voice coil; HF - 1 x 1 in exit, 1.7 in voice coil compression driver
      • Loading: LF - Vented; HF - Horn-loaded
      • Operating Mode:
      • Amplifier Channels: Bi-amp (LF/HF)
      • Signal Processing: DSP w/EAW Focusing™ and DynO™

        PERFORMANCE
      • Operating Range: 48 Hz to 20 kHz
      • Nominal Beamwidth: Horizontal 60°; Vertical 45°
      • Calculated Axial Output Limit (whole space SPL): Average: 130 dB (LF/HF); Peak: 136 dB (LF/HF)
      • Input Type: Electronically balanced
      • Max Input Level: 21dBu
      • Impedance: 20 kOhm (balanced)
      • Input Wiring: XLRF, Pin 1 chassis, pin 2 +, pin 3 - Separate loop-thru XLRM (for analog signal only)
      • Input Selection: Analog, Dante
      • Amplifiers & Processing (LF/HF) Type: Modified Class D (LF/HF)
      • Maximum Output: 500W (LF/HF)
      • Driver Protection: Integral DSP limiting (LF/HF)
      • AC Mains (nominal) Connector: Neutrik PowerCon
      • Input: 100 V to 240 V
      • Frequency: 50 Hz to 60 Hz
      • Power Consumption: Idle - 50 W
      • Peak Draw: 500 W

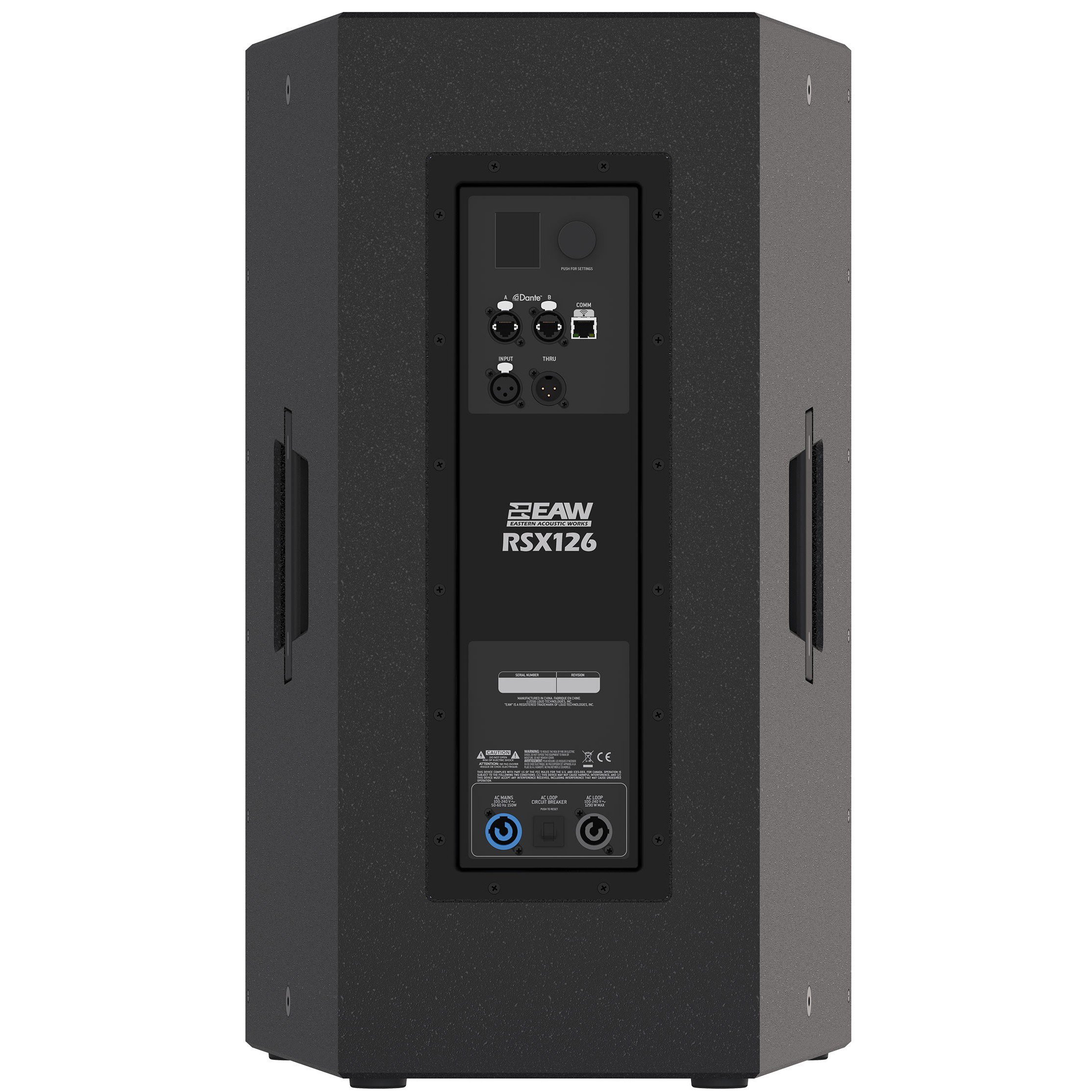

      • Controls/Communication Connections: 2x Neutrik etherCON, RJ-45
      • Protocols: Ethernet/Dante
      • Software: EAWmosaic™ (available on the App Store)
      • Indicators: LCD Screen on amplifier panel for UI, Logo LED (User-definable behavior)
      • User Controls: Push-button Rotary Encoder

        PHYSICAL
      • Dimensions (inches/millimeters):
      • Height: 27/683
      • Width: 16.3/414
      • Depth: 16.5/419
      • Weight (pounds/kilograms): 58.0/26.3
