Obsidian Control Systems NETRON DMX 10-3 10-Port DMX Splitter - XLR DMX - 3pin

ITEM #: ELAT-DMX10-3 MFG #: DMX003

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the ELAT-DMX10-3

DMX003 - Overview

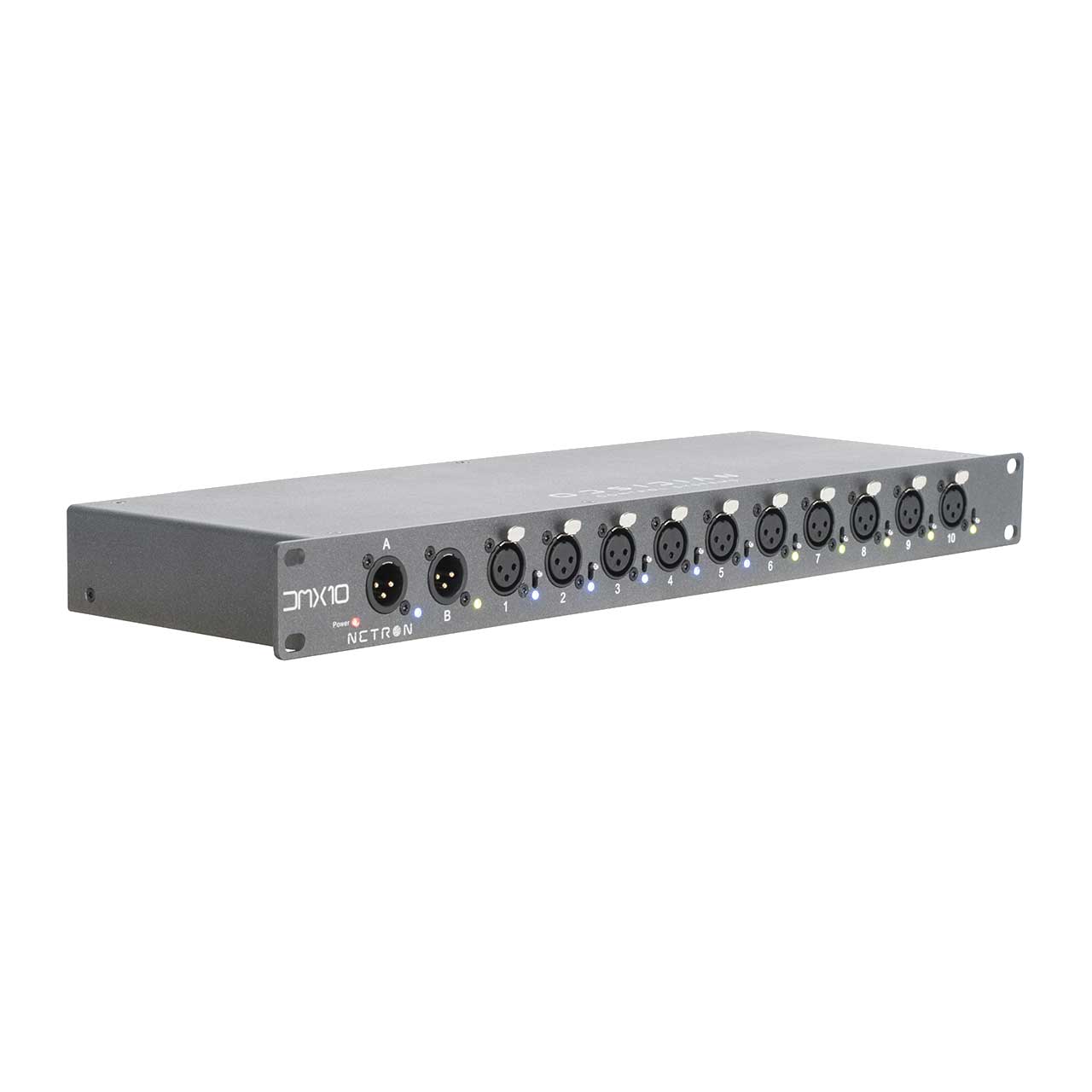

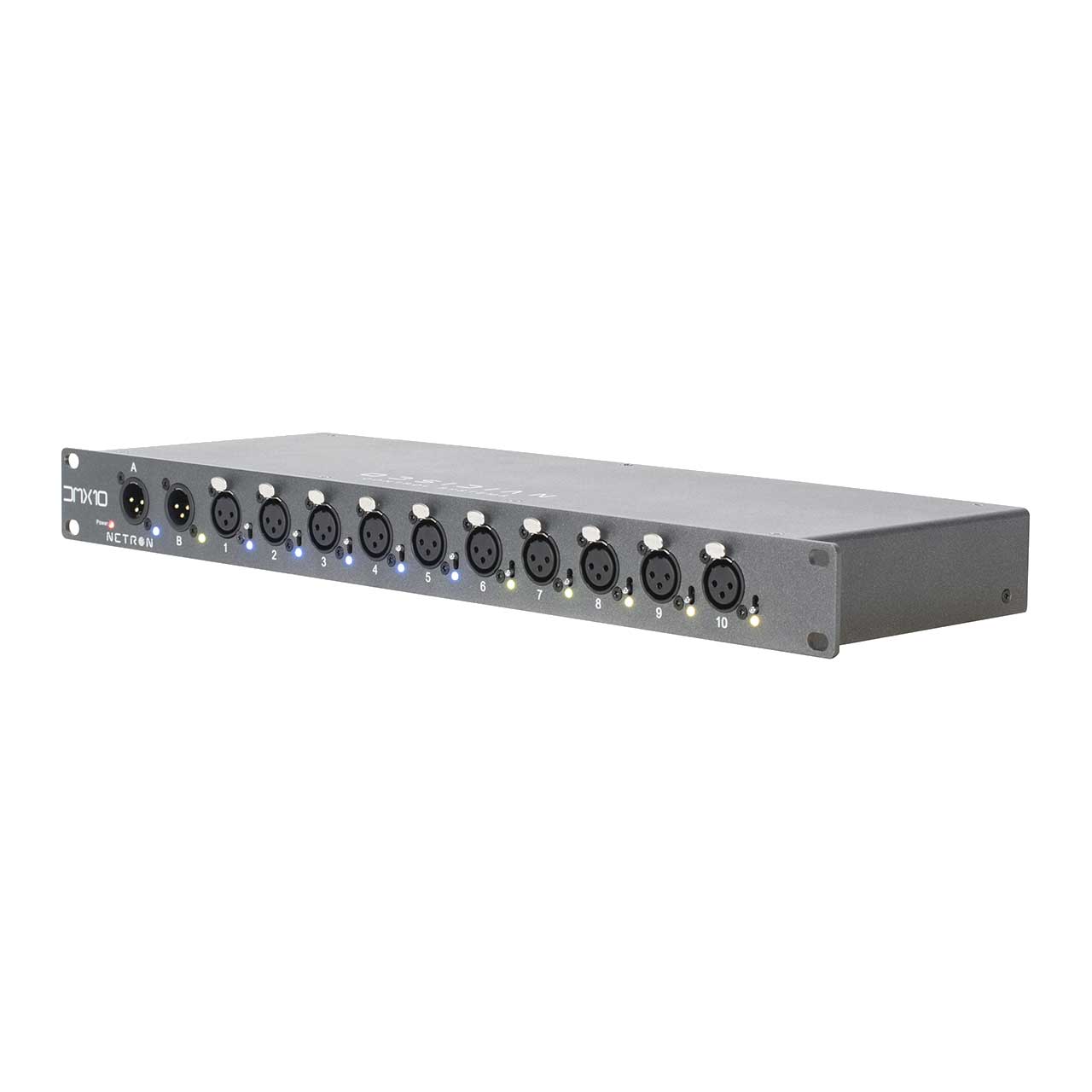

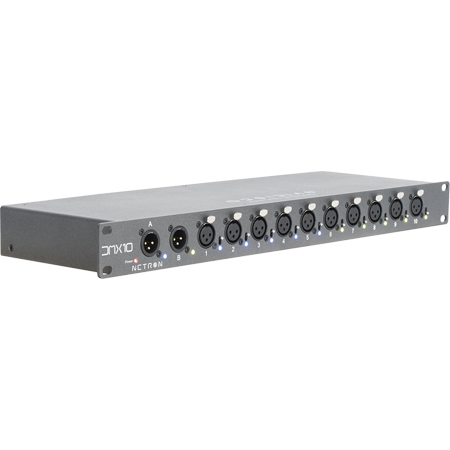

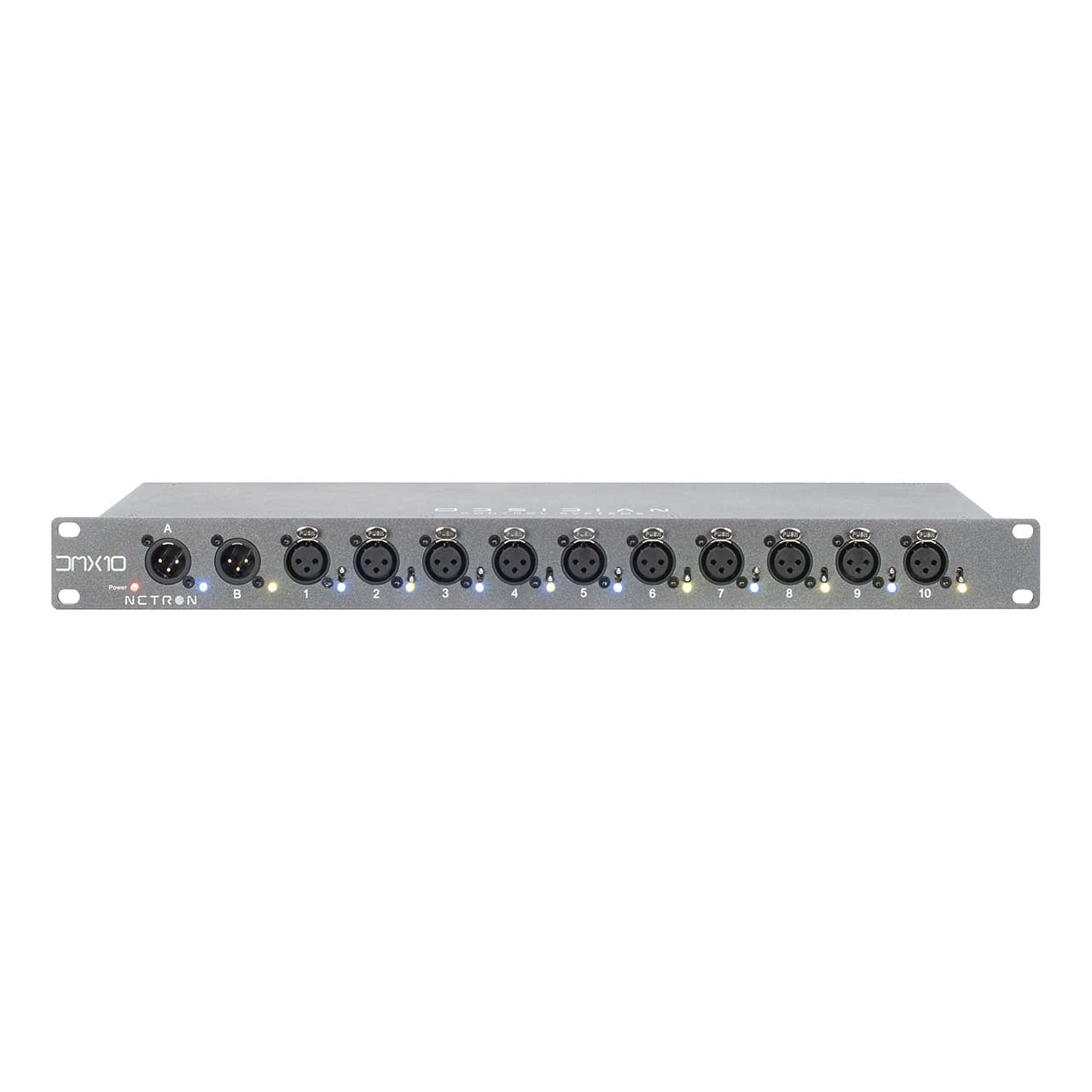

The Obsidian Control Systems NETRON DMX10-3 is a rackmount 10-port DMX Splitter with dual inputs and freely assignable 3pin XLR DMX outputs. Utilizing long life toggle switches every port is routed to either the A or B input, providing flexibility to accommodate any situation. The NETRON DMX10 is made from a rugged metal chassis featuring impact resistant paint and a lightweight yet solid construction. The DMX10 is ideally suited for installations and touring applications that do not require RDM communication and is available in 5 and 3pin XLR configurations.

  • Features:

    • Dual A/B 3pin XLR DMX Input
    • 10 isolated 3pin XLR DMX Outputs
    • A/B routing per output port
    • LED feedback for In/Out/A/B/Power
    • Industrial strength powder-coated finish
    • Lightweight and rugged rackmount housing

  • Specifications:

    • Connections
    • Front:2x 3pin DMX Input; 10x 3pin Opto-I

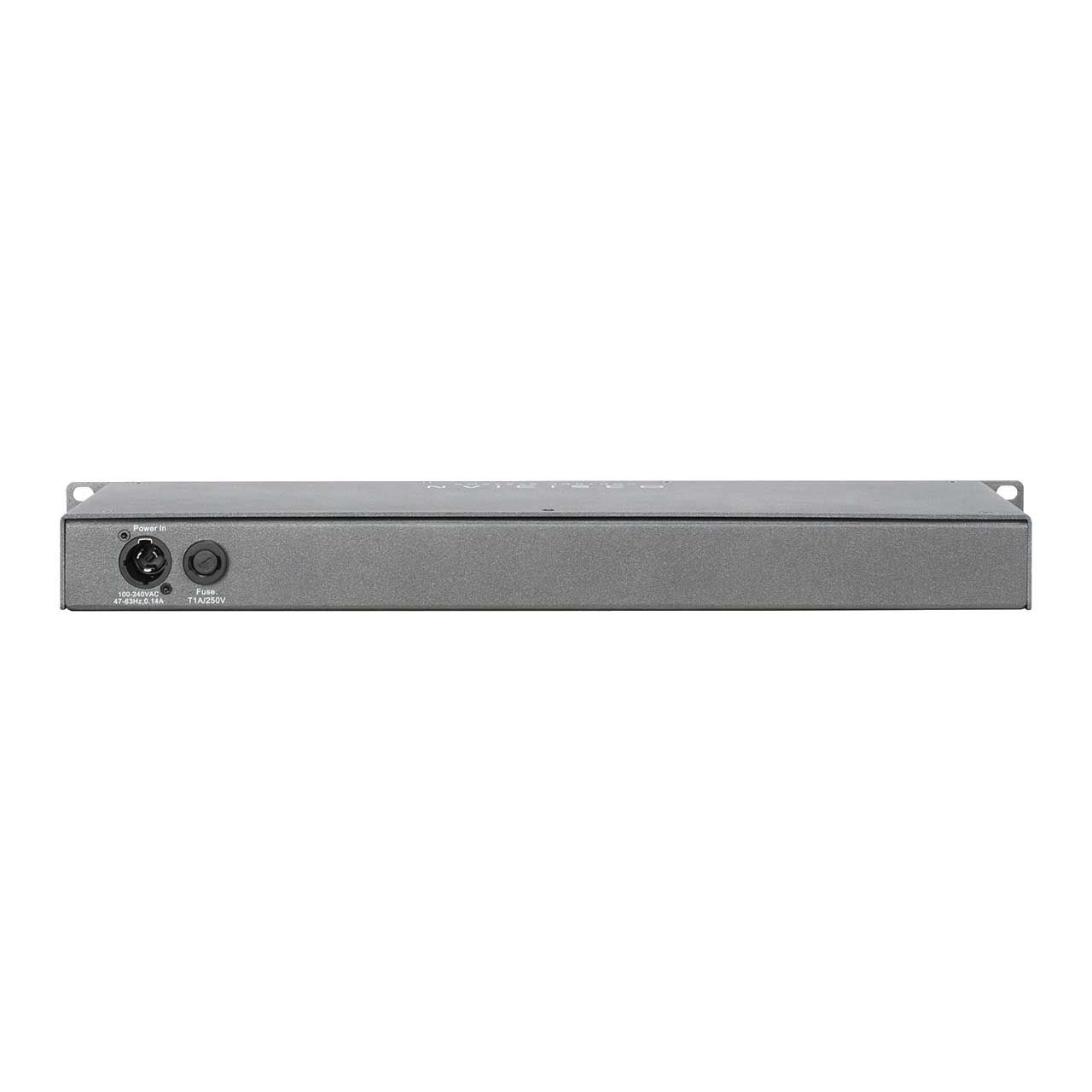

    • Back: Locking Power In

      Electrical
    • 100-240 V nominal, 50/60 Hz

      Physical
    • Dimensions: 19 x 6.1 x 1.7" (482.0 x 155.9 x 44.0mm)
    • Weight: 3.31lbs (1.50 kg)

      Approvals / Ratings
    • cETLus / CE / UKCA / IP20 (pending)

  • Item Includes:

    • 1x 59.05ft (1.5m Locking power cable - EU or US version)

  • Warranty:

    • 2 Year

  • GTIN:

    0810008262733
