Elation Professional FUZE MAX PROFILE Full Spectrum RGBMA LED Framing Profile Fixture - 800W

ITEM #: ELAT-FUZEMXPROF MFG #: FUZ546

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$9,900.00

Our Price:

$7,920.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    FUZ546 - Overview

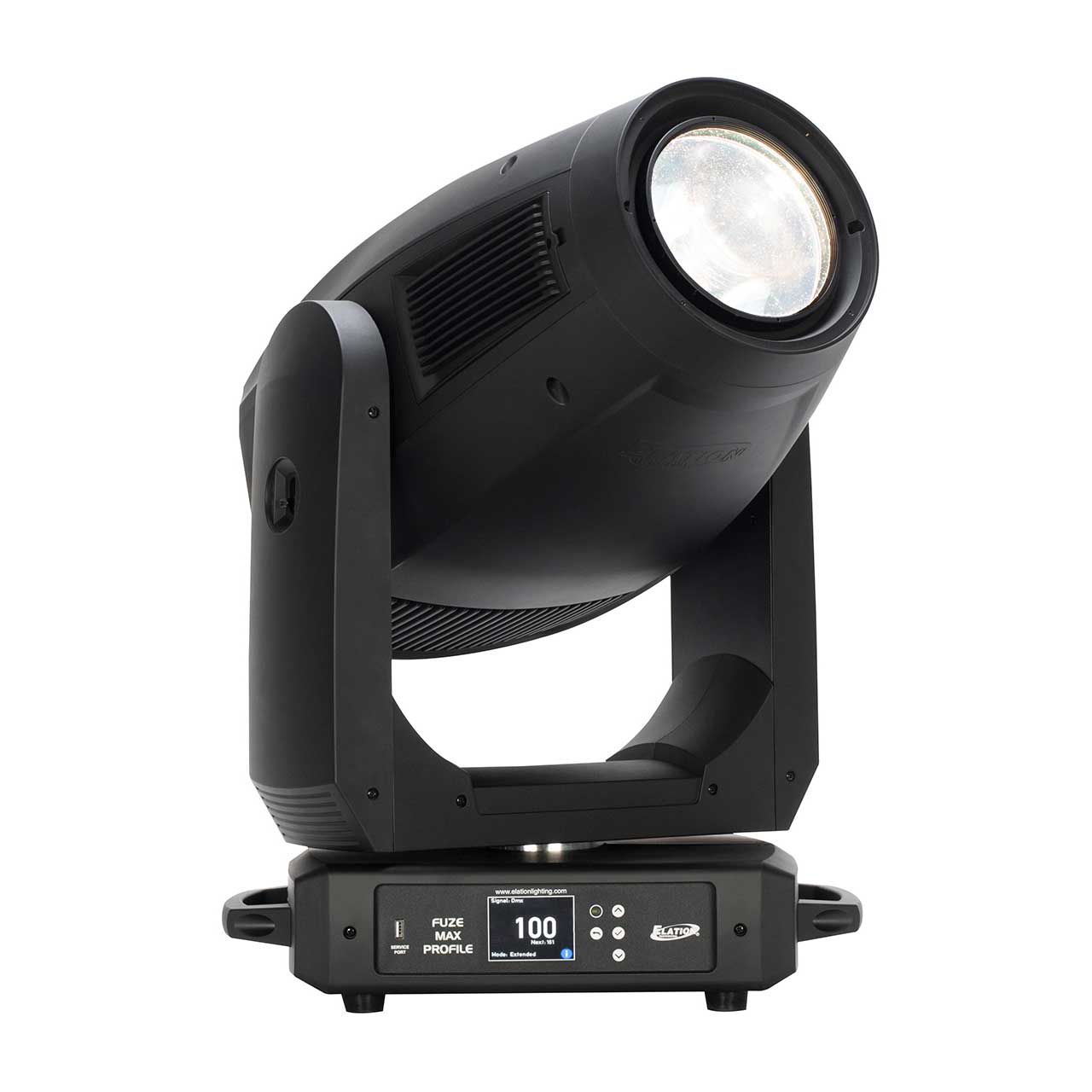

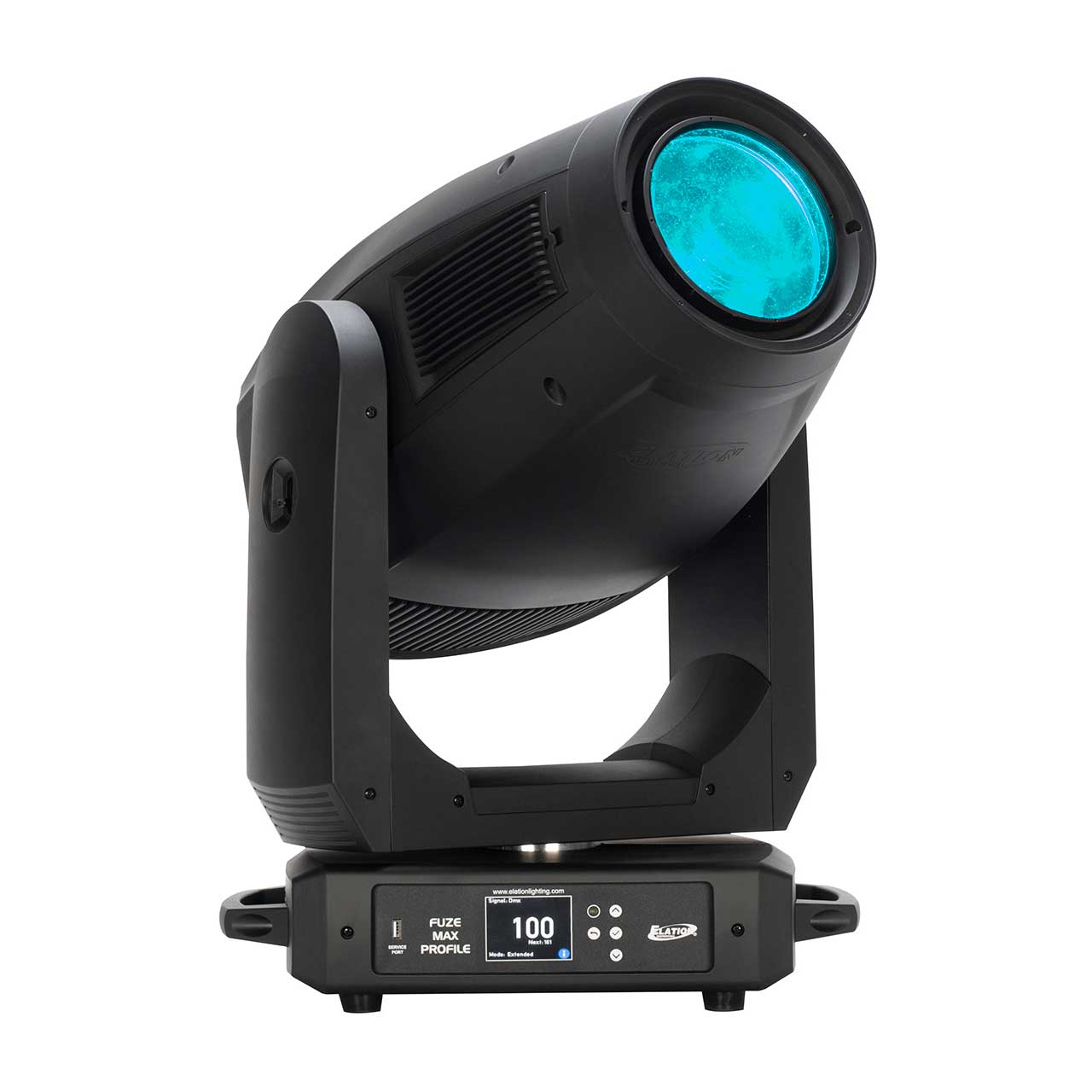

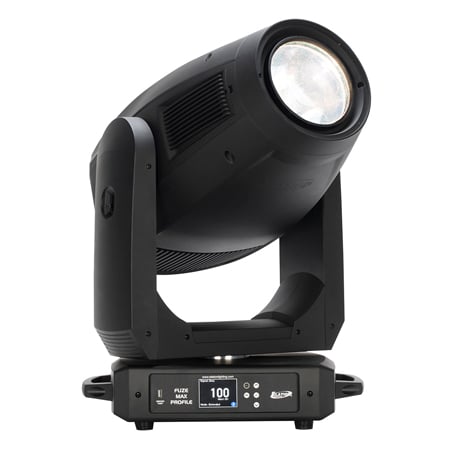

    The Elation Professional FUZE MAX PROFILE™ is a full spectrum automated LED framing fixture designed for theater, television and a wide array of other precision lighting applications. The 92 CRI engine utilizes an 800W 5-color homogenized LED array consisting of Red, Green, Blue, Mint, and Amber sources. The carefully tuned LEDs ensure accurate color reproduction and dynamic whites while delivering a powerful output of over 21,000 lumens. Virtual color temperature, Magenta / Green adjustment plus CMY emulation provide the designer with immediate access to the impressive LED color array.

    The FUZE MAX PROFILE is designed for any application where fully automated framing fixture with outstanding and compelling color range and quality is required. A rotating gobo wheel, fixed gobo wheel, animation wheel, dual frost, prism and iris round out its comprehensive feature set in this quiet and extremely powerful automated framing fixture.

    • Features:

      • Full Spectrum 800W RGBMA LED Engine
      • Precise dynamic whites from 2400 - 8500K
      • Instant color changes, Natural color transitions
      • Rich and intense primary colors
      • Rotating and Fixed Gobos plus Animation Wheel
      • Full Blackout Framing System
      • Iris, Prism, and Dual Frost
      • Wide Zoom Range from 7° to 53°
      • Large 140mm front aperture

    • Specifications:

      • Control / Connections
      • 4 DMX Channel Modes (RGBMA 40/61) (CMY 38/57)
      • 16-bit Pan, Tilt, and Dimming Control
      • DMX Adjustable LED Frequency
      • DMX, RDM, Art-NET, sACN Protocol Support
      • 4 Button Touch Control Panel
      • Full Color 180° Reversible LCD Menu Display
      • 16 Bit Resolution Adjustable Movement
      • 5pin DMX In/Out
      • Locking Ethernet In/Out
      • IP65 Locking Power In
      • With Wired Digital Communication Network

        Size / Weight
      • Length: 18.19" (462mm)
      • Width: 21.26" (540mm)
      • Width with Snoot: 23.2" (590mm)
      • Vertical Height: 28.3" (719mm)
      • Vertical Height with Snoot: 30.4" (771mm)
      • Weight: 76.3 lbs (34.6kg)

        Electrical / Thermal
      • AC 100-240V - 50/60Hz
      • 1126W Max Power Consumption
      • 14°F to 113°F (-10°C to 45°C)
      • BTU/hr (+/- 10%) 3839.66

    • Item Includes:

      • 1x FUZE Max Profile 800W Full Spectrum RGBMA LED Framing Profile Fixture

    • Warranty:

      • 2 Year

    • GTIN:

      0810008263020
