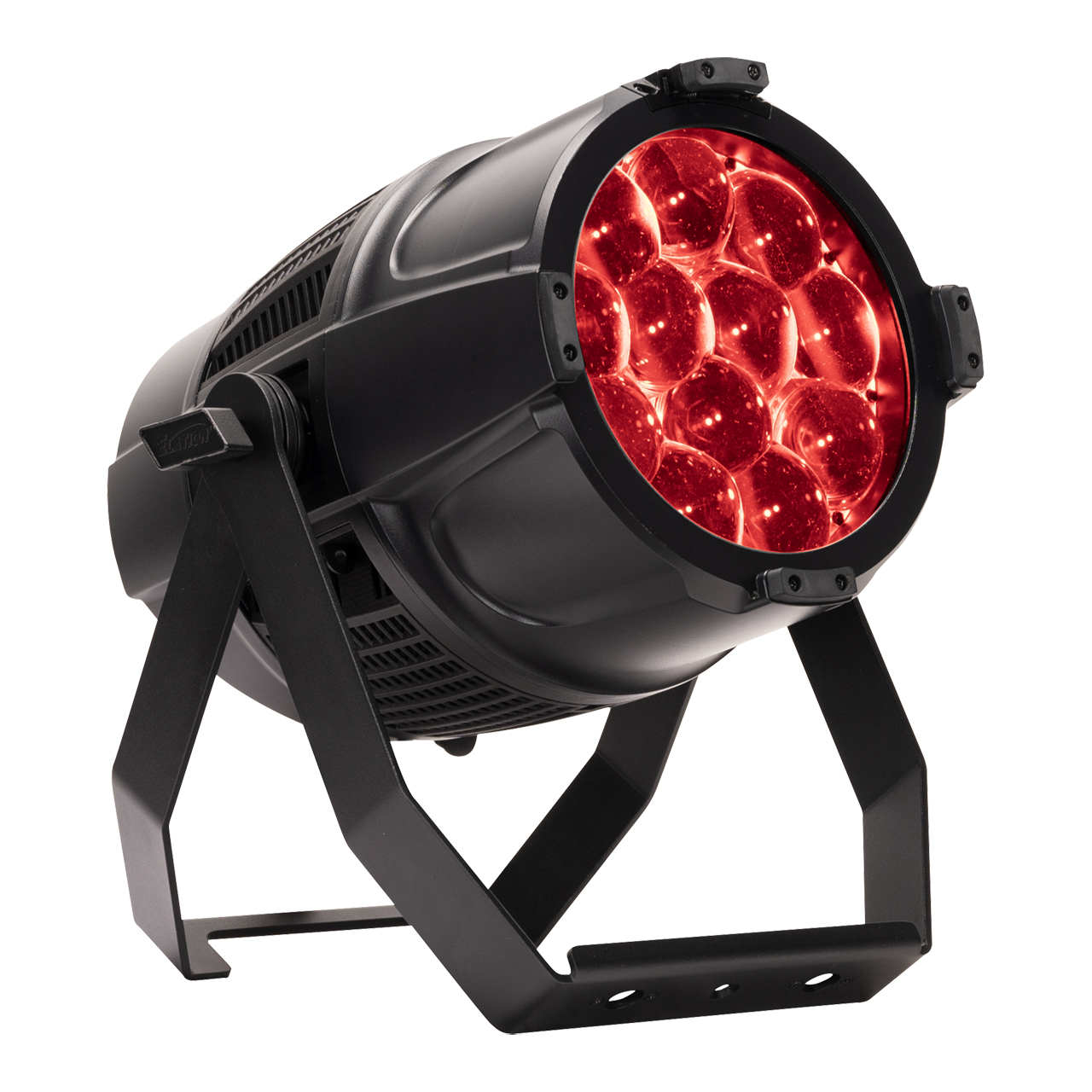

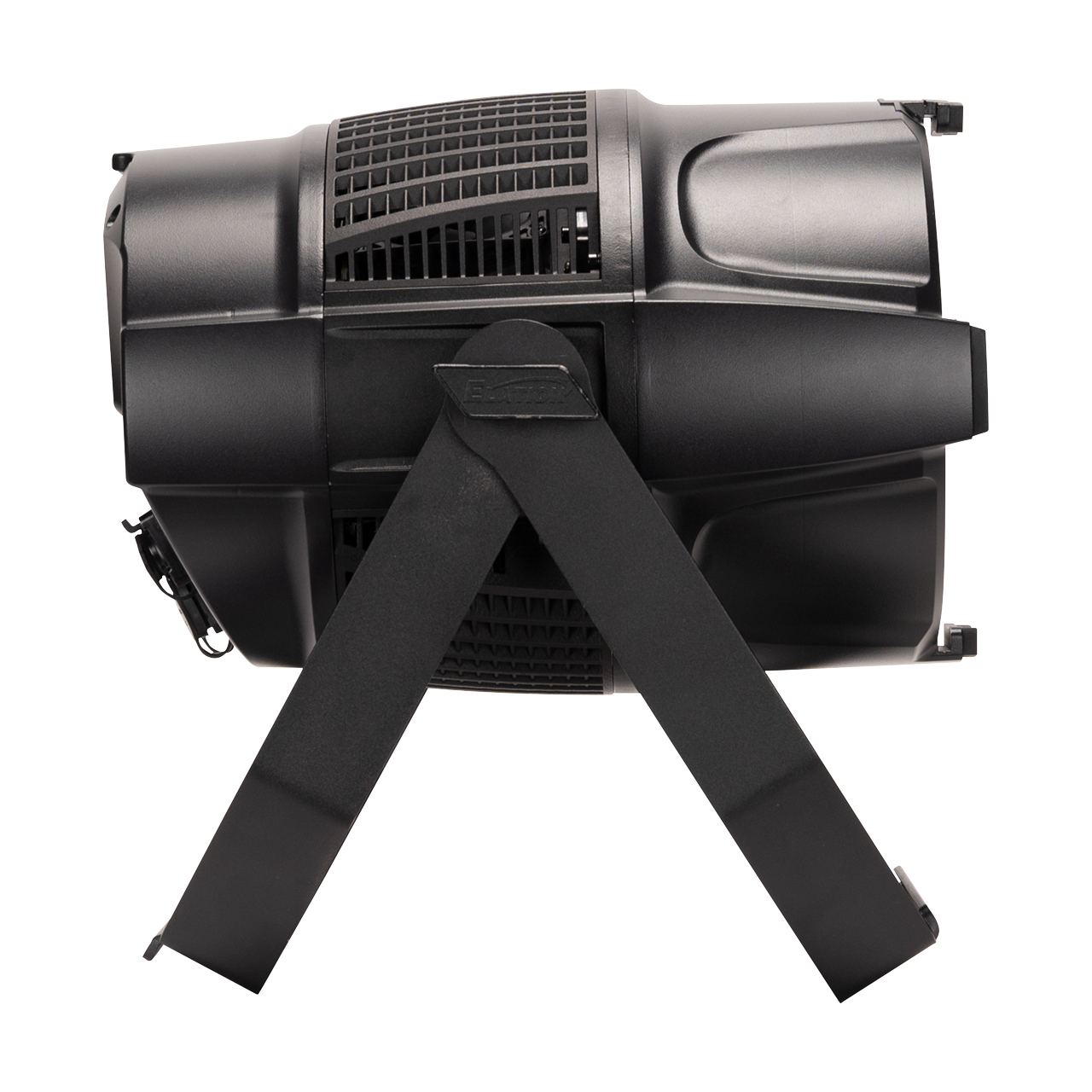

Elation Limelight Par L 12x 60W RGBL LED PAR Fixture with Zoom - IP65 Rated

ITEM #: ELAT-LIME-PAR-L MFG #: LLP312

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$1,980.00

Our Price:

$1,584.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


LLP312 - Overview

The Elation LIMELIGHT PAR L is a full-sized and robust LED fixture that offers a high quality of light and high output with its RGBL engine and efficient zoom lens optic. It’s IP65 rating allows it to be used in any environment, indoors or out.

The LIMELIGHT PAR L engine features (12) 60W RGBL LED’s, capable of producing 7000+ lumens, provides high output for saturated color mixing, and the wide color spectrum and high CRI needed for the quality of light that key and fill light applications require. The newly designed optical system allows for a highly homogenized output with even color and light distribution throughout the beam. The fixture also features a wide zoom range from 5° to 42&Deg;. The smooth and responsive effect provides a well-defined narrow beam for mid-air effects and long throw distances as well as a wide and even wash coverage at shorter distances. The LEDs can be controlled in two separate zones for additional eye candy effects. To expand the control capabilities on the LIMELIGHT PAR L, precise color temperature control via a dedicated variable CCT control channel has been integrated. A CMY emulation mode has also been added for users that are more familiar with that color mixing system. Furthermore, an integrated library of calibrated color presets that match the most popular gel filters has been included.

The IP65 housing includes an integrated gel frame holder that can accommodate optional accessories. The dual yoke design allows the fixture to be mounted on the floor or it can be easily rigged to hang with a c-clamp or by using the included omega bracket receiver. The LIMELIGHT PAR L is the ideal solution for Touring Applications, Theme Parks, Live Events, Theater, Houses of Worship and Cruise ships.

  • Features:

    • 12 60W RGBL LED Array
    • 7000+ Lumens, (TBD) CRI
    • 5°- 42° Beam Angle
    • Smooth 16-bit Selectable Dimming Modes and Curves
    • Remote LED Refresh Rate
    • Flicker Free Operation for TV and Film
    • IP65 Rated

  • Specifications:

    • Source
    • 12x 60W RGBL LEDs
    • 30,000 Hour Average LED Life

      Photometric Data
    • 7000+ Total Lumen Output
    • Zoom Range 5° - 42°
    • Beam Angle: 5° - 42°
    • Field Angle: 8° - 60°

      Effects:
    • Dual Zone LED Control
    • Electronic Dimmer and Strobe
    • Variable 16-bit Dimming Modes and Curves

      Color
    • RGBL Color Array
    • CMY Emulation
    • Variable CCT 2700K - 8500K
    • Virtual Gel Swatch Book

      Control/Connections
    • 7 DMX Channel Modes (4ch/13ch/16ch/14ch/18ch/18ch/26ch)
    • Manual and DMX Controlled Dimmer and Color
    • 4 Button Control Panel, LED Display
    • Aria x2 Wireless Device Management
    • RDM (Remote Device Management)
    • 5pin DMX and IP65 Locking Power Cable In/Out

      Size/Weight
    • Length: 13.6 In (346mm)
    • Width: 13.4 In (341mm)
    • Vertical Height: 17.8 In (451mm)
    • Weight: 22.05 lbs. (10kg)

      Electrical/Thermal
    • AC 100-240V - 50/60Hz
    • 570W Max Power Consumption
    • Power Thru Capacity: @110V: 2 Units; @240V: 6 Units
    • 5°F to 113°F (-15°C to 45°C)
    • BTU/hr (+/- 10%) 1943.7

      Approvals/Ratings
    • CE | UL | IP65c | FCC | UKCA

  • Item Includes:

    • 1x IP65 Locking Power Cable
    • 1x Safety Cable

  • Warranty:

    • 2 Year Warranty

  • GTIN:

    0810008264553
