Elation Professional NXS671 Obsidian NX SYNC SMPTE to MIDI Timecode Converter

NXS671 - Overview

• Features:

  • The NX SYNC is a powerful USB device that allows SMPTE Timecode to be input directly into any ONYX console or PC system. It is also a generic MIDI Timecode device for any Windows 10 or MAC system.

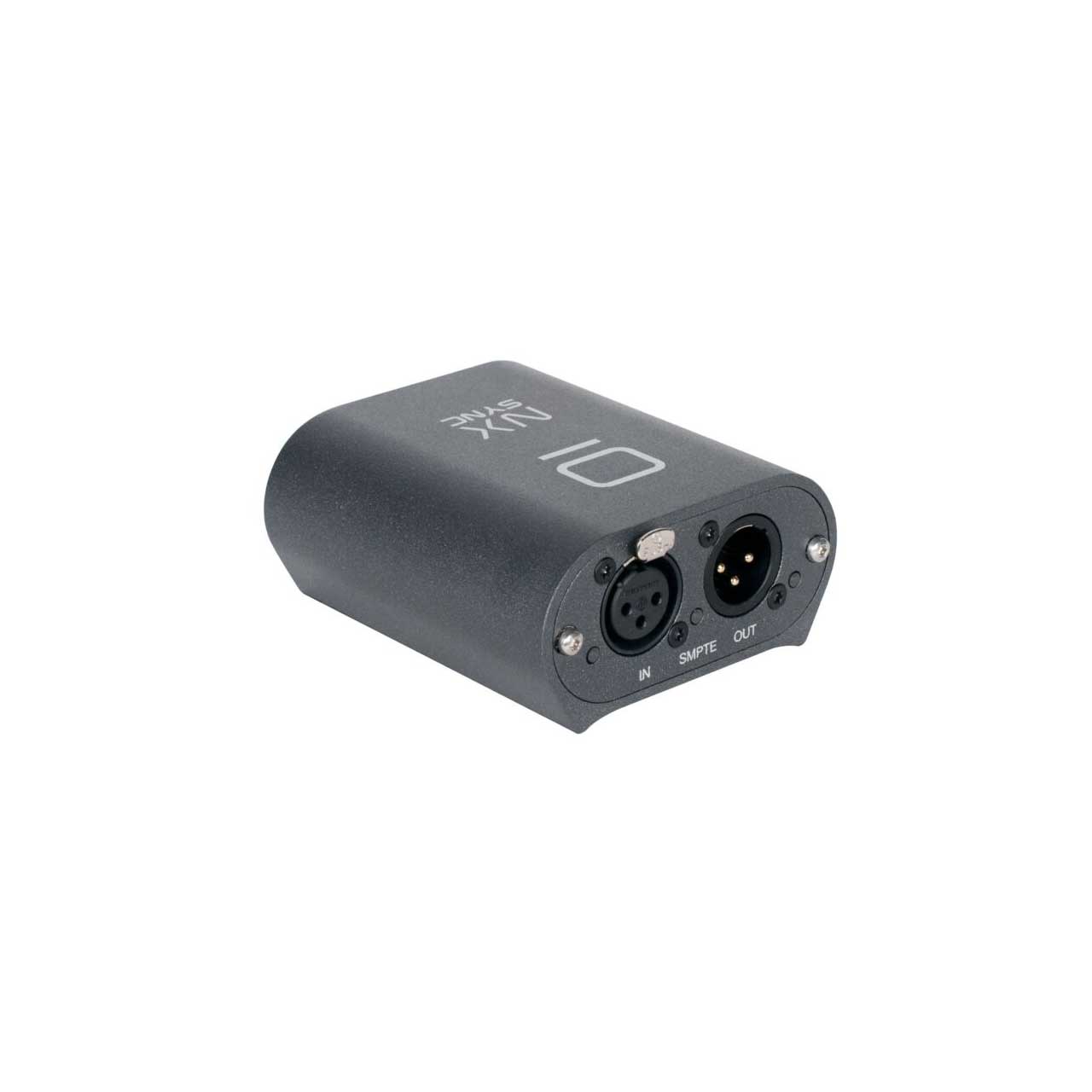

    NX SYNC provides two 3-pin XLR connectors for Timecode In/Out, supporting SMPTE @ 24, 25, 29.97 and 30 frames per second. It can be connected to any USB port on a PC or ONYX console.
    NX SYNC allows the ONYX software to read Linear Timecode (LTC) signals for perfect cue synchronization with external devices like sound or video playback systems.


• Specifications:

  • Timecode In: 3-pin locking XLR, female
  • Timecode Out: 3-pin locking XLR, male

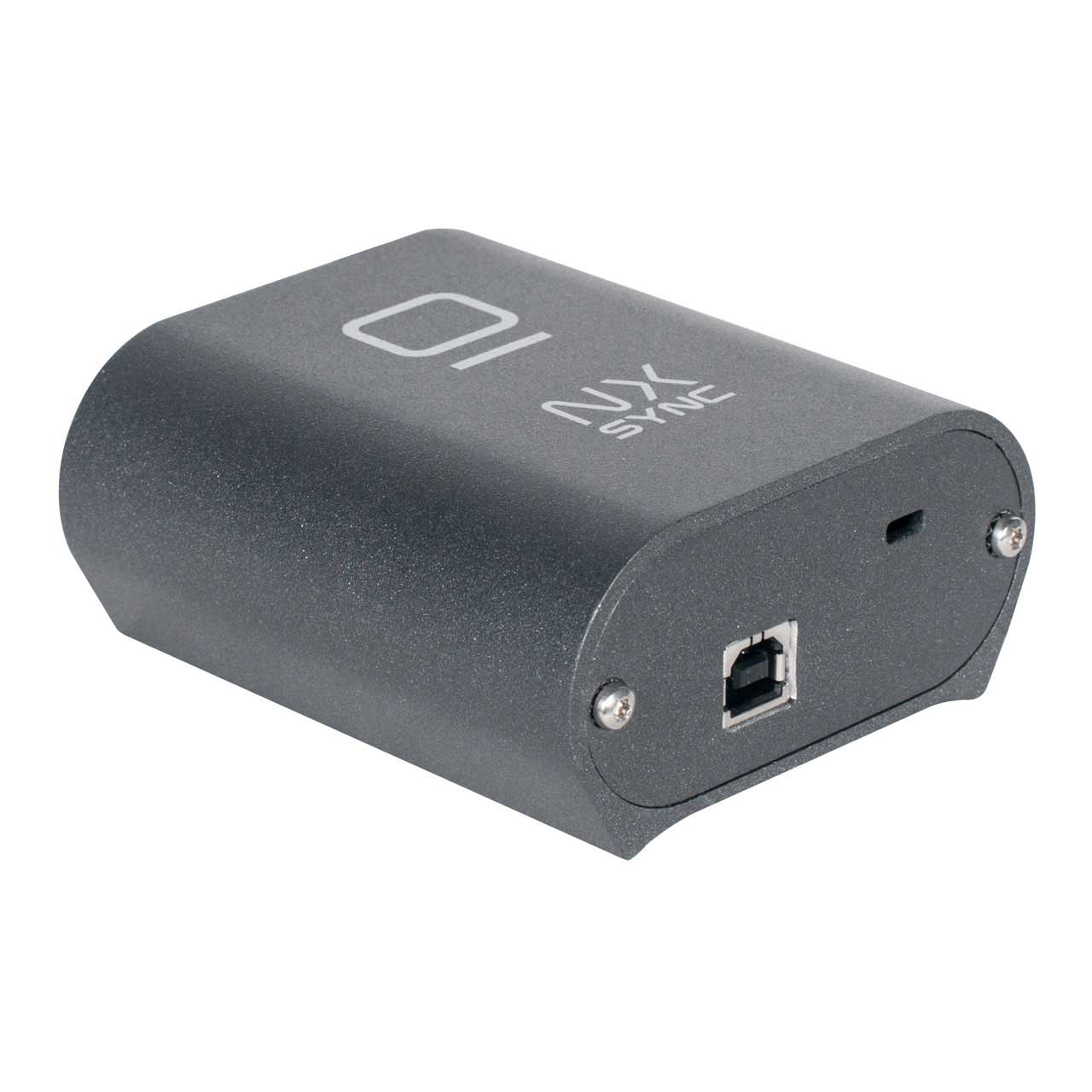

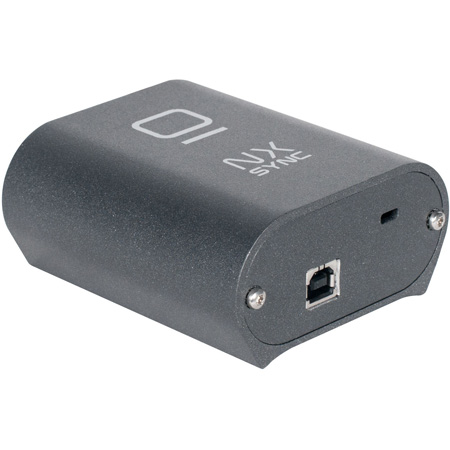

  • USB In: USB 2.0 B
  • SMPTE (LTC): 24, 25, 29.97 and 30 frame/sec.
  • Operating System: Windows 10, MAC OS 10.13 or higher
  • Length: 92 mm (3.7 in.)
  • Width: 82 mm (3.3 in.)
  • Height: 41mm (1.7 in.)
  • Weight: 245g (0.6 lbs.)
  • Electrical: 5V over US


• Item Includes:

  • 1x NXS671 NX SYNC SMPTE to MIDI Timecode Converter

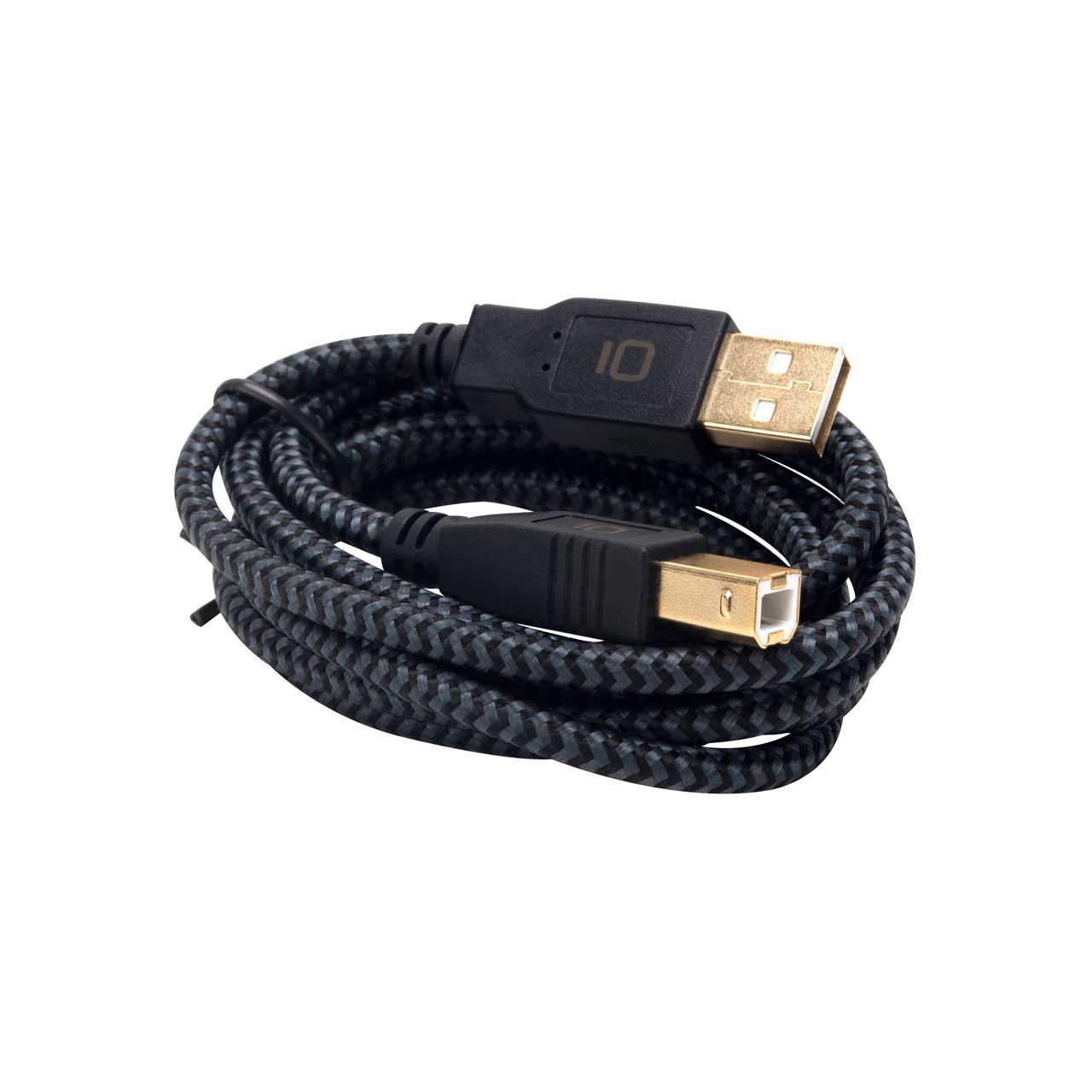

  • 1x Obsidian Hi-Speed USB Cable


• Warranty:

  • 2 Year


• GTIN:

  0810008261620
