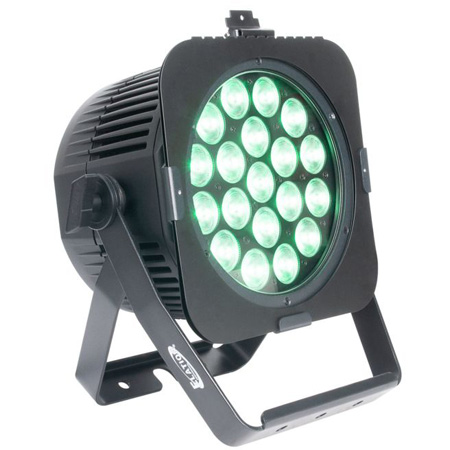

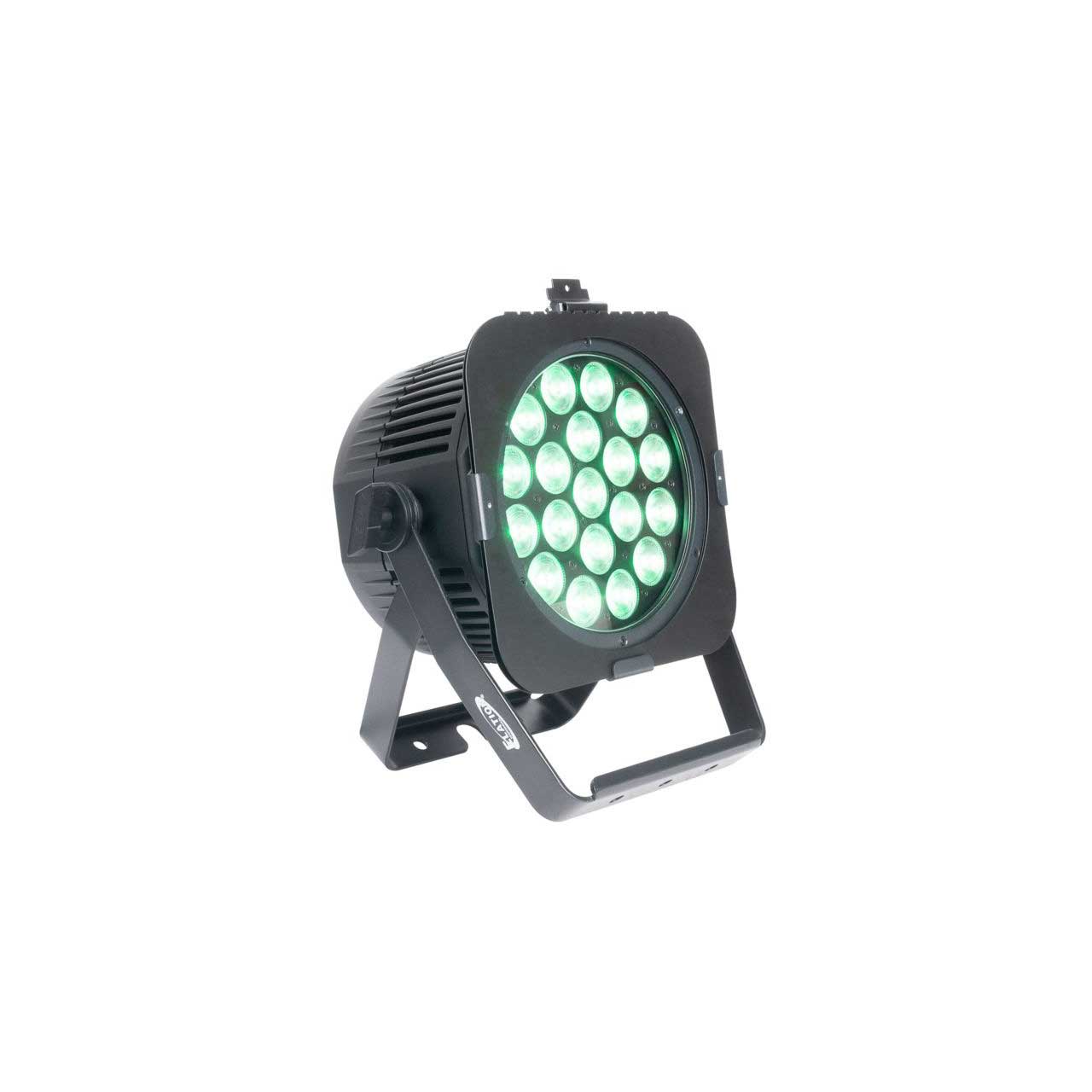

Elation Professional SEV019 SEVEN PAR 19IP IP65 Outdoor Rated Seven Color Par Wash Luminaire

SEV019 - Overview

• Features:

  • IP65 Outdoor Rated Seven Color Par Wash Luminaire
  • (19) 25W 7-in-1 RGBAW + Lime + UV (395nm) LEDs
  • 5,100 Total Output Lumens | 90CRI
  • Individual Hue, Saturation, and Intensity Control
  • RGB + Seven Color 3 Channel DMX Mode
  • Smooth Color Mixing
  • 12 Internal Programs with Speed and Fade Control
  • 64 Unique 7-Color Macros
  • Selectable Dimming Curve Modes
  • Adjustable LED Refresh Rate + Gamma Brightness
  • Flicker Free Operation for TV and FILM
  • DMX and RDM Protocol Support

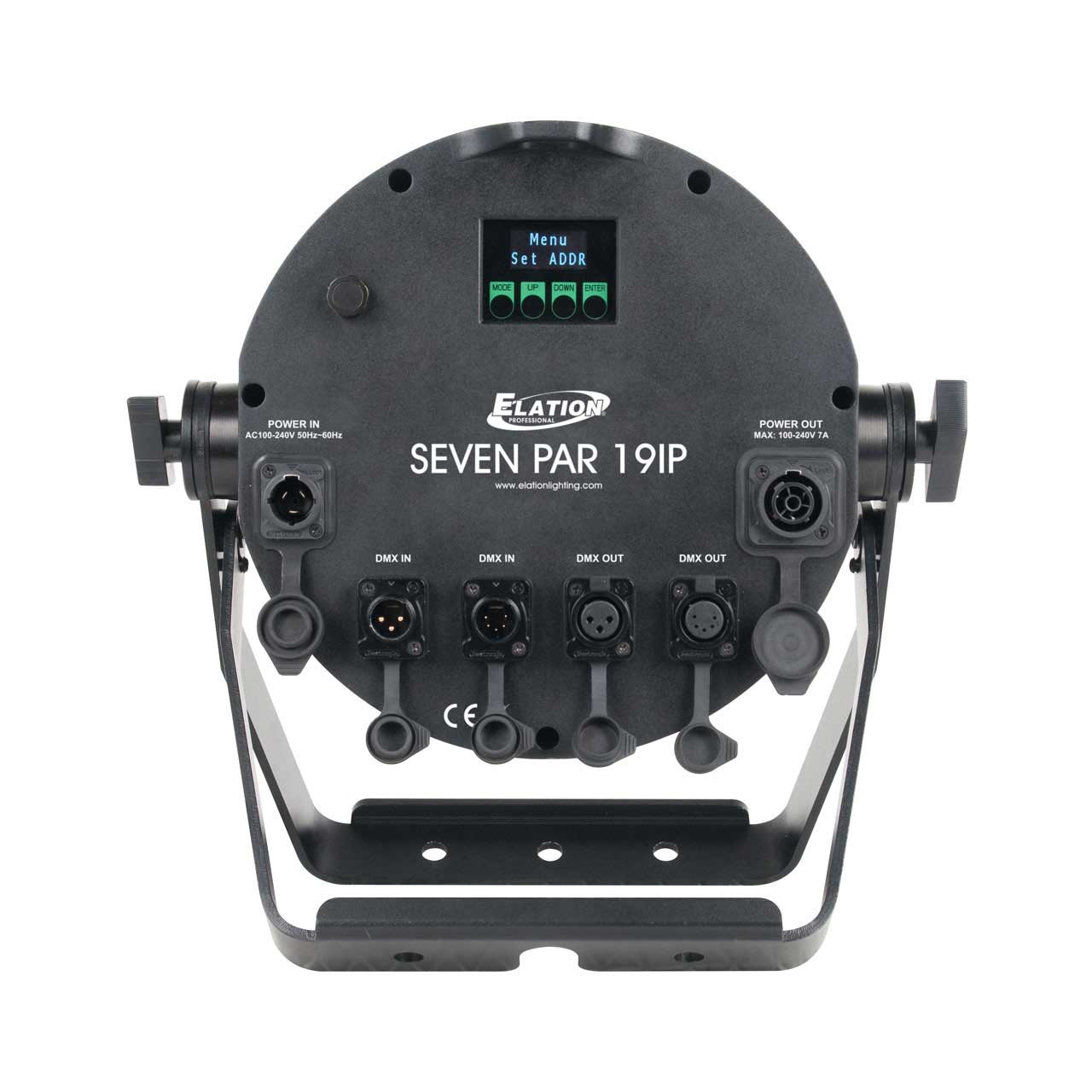

  • IP65 Rated 5pin XLR and Power In/Out

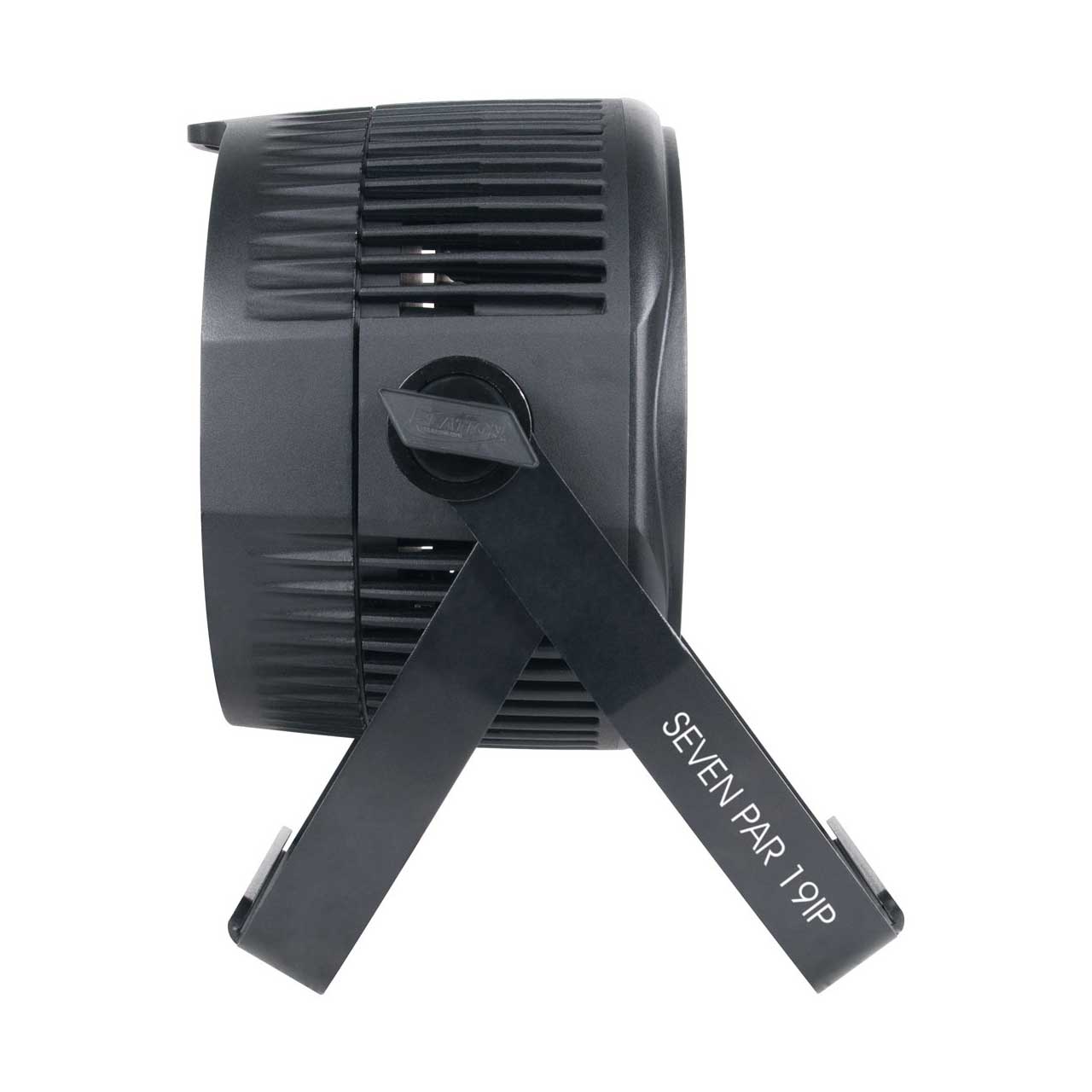

  • Dual Adjustable Yoke / Floor Stand
  • Multiple Unit Power Linking
  • Rugged Powder Coated Die-Cast Aluminum Exterior
  • Gel Frame and Gel Frame Holder Included
  • Optional 4-Leaf Barn Door Available


• Specifications:

  • Source
  • (19) 25W 7-IN-1 RGBAW + Lime + UV (395nm) LEDs
  • 50,000 Hour Average LED Life*
  • *May vary depending on several factors including but not limited to:
  • Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

    Photometric Data
  • 5,100 Total Lumen Output | 90CRI
  • 10,551 LUX 981 FC @6.6' (2m) (Full ON)

    Effects
  • Individual Hue, Saturation, and Intensity Control
  • RGB + Seven Color 3 Channel DMX Mode
  • 12 Internal Program Macros with Speed and Fade Control
  • 64 Unique 7-Color Macros
  • Selectable Dimming Curve Effects

    Color
  • RGBAW + Lime + UV (395nm)

    Control / Connections
  • (7) DMX Channel Modes (15 total channels)
  • DMX and Manual Control
  • 4 Button Control Panel
  • 180° Reversible OLED Menu Display
  • Adjustable Refresh Rate (900-28,800 (Hz)
  • Adjustable Gamma Brightness (2.0, 2.2, 2.4, 2.8)
  • RDM (Remote Device Management) Protocol Support
  • IP Rated 5pin DMX and Power In/Out
  • With Wired Digital Communication Network

    Size / Weight
  • Length: 14.0" (357mm)
  • Width: 14.6" (371mm)
  • Vertical Height: 11.2" (284mm)
  • Weight: 25.0 lbs. (11.3kg)

    Gel Frame
  • Length: 12" (305mm)
  • Vertical Height: 12" (305mm)
  • Inner Diameter: 9" (229mm)

    Electrical / Thermal
  • AC 100-240V - 50/60Hz
  • 500W Max Power Consumption
  • 5°F to 113°F (-15°C to 45°C)

    Approvals / Ratings
  • CE | IP65


• Item Includes:

  • 1x Elation Professional SEVEN PAR 19IP
  • 1x Power Cable


• Warranty:

  • 2 year


• GTIN:

  0837874006902
