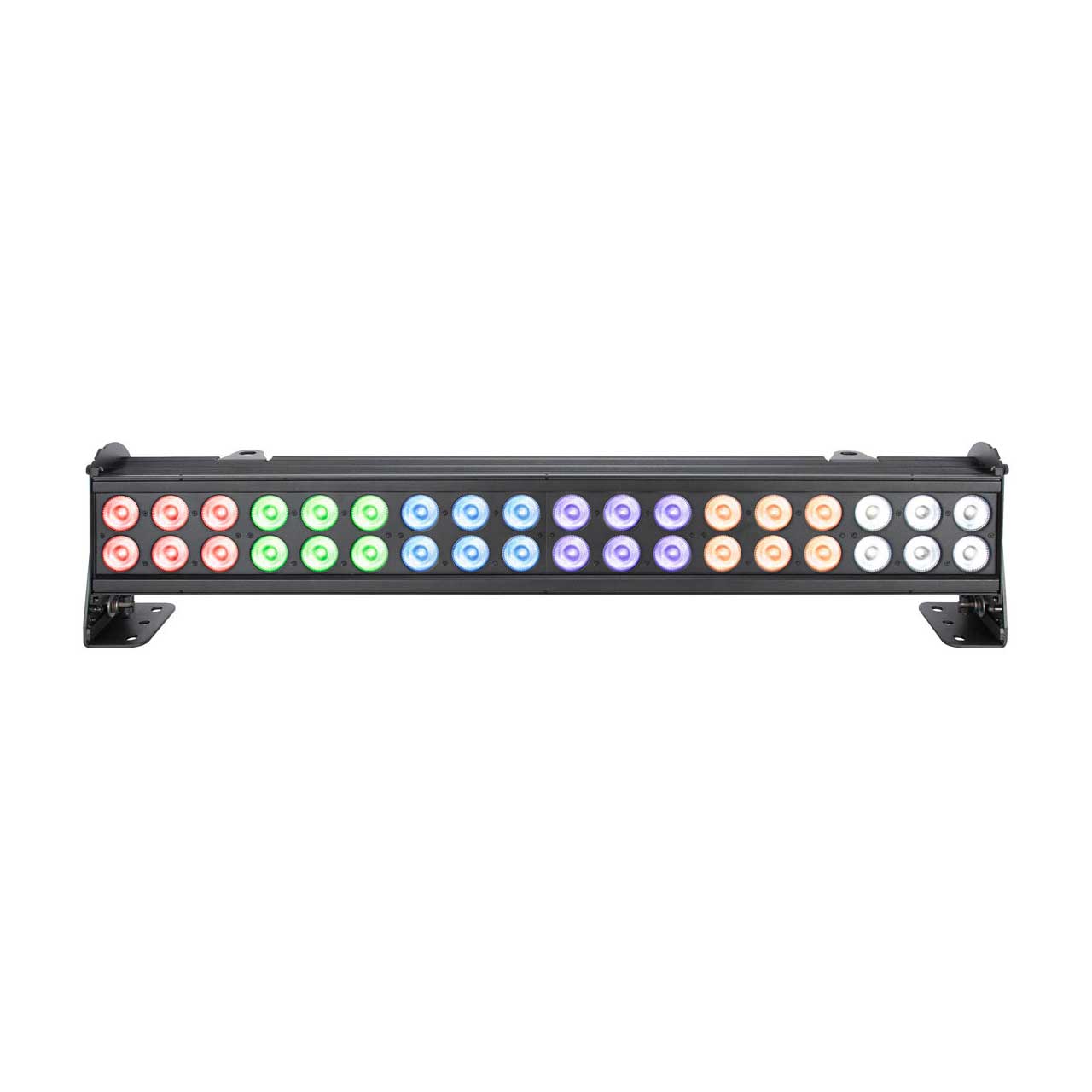

Elation Professional SEV042 SEVEN Batten 42 3.5 Foot (1m) Seven Color Batten Wash Luminaire

SEV042 - Overview

• Features:

  • 3.5 Foot (1m) Seven Color Batten Wash Luminaire
  • (36) 25W 7-in-1 RGBAW + Lime + UV (395nm) LEDs
  • Individual Hue, Saturation, and Intensity Control
  • Special RGB SEVEN 3 Channel Mode (RGB + Dynamic White, Amber, Lime, UV)
  • 6 Pixel Mapping Zones with Pixel Flip Mode
  • Smooth Color Mixing, Internal Programs with Speed and Fade Control
  • 64 Unique 7-Color Macros
  • Selectable 16-bit Dimming Curve Modes
  • Adjustable LED Refresh Rate + Gamma Brightness
  • Flicker Free Operation for TV and FILM
  • Art-Net, Kling-Net, and RDM Protocol Support

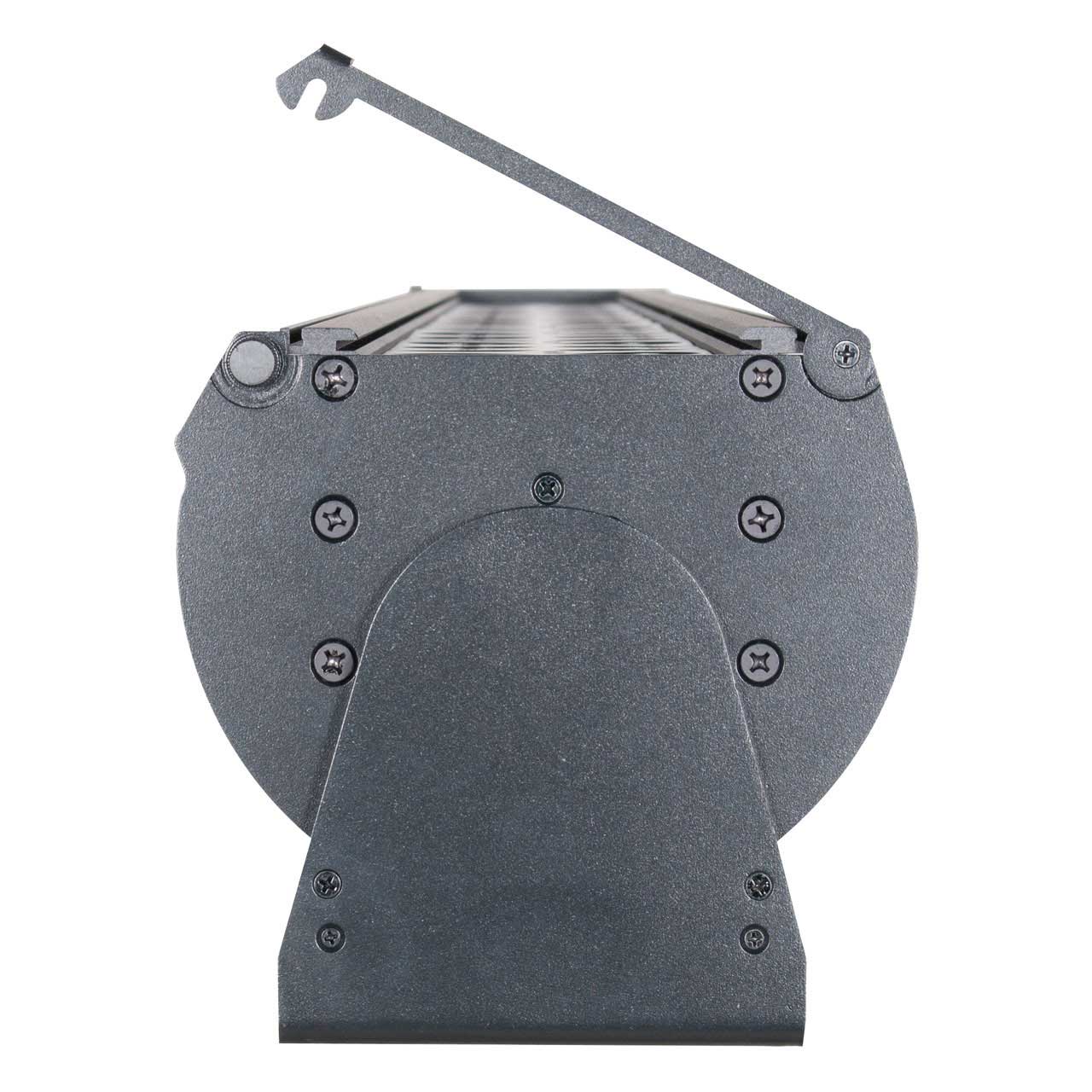

  • Dual 220° Manual Tilt Adjustable Mounting Brackets
  • Rugged Powder Coated Die-Cast Aluminum Exterior

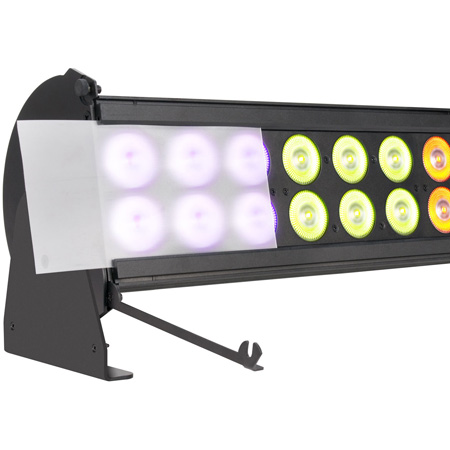

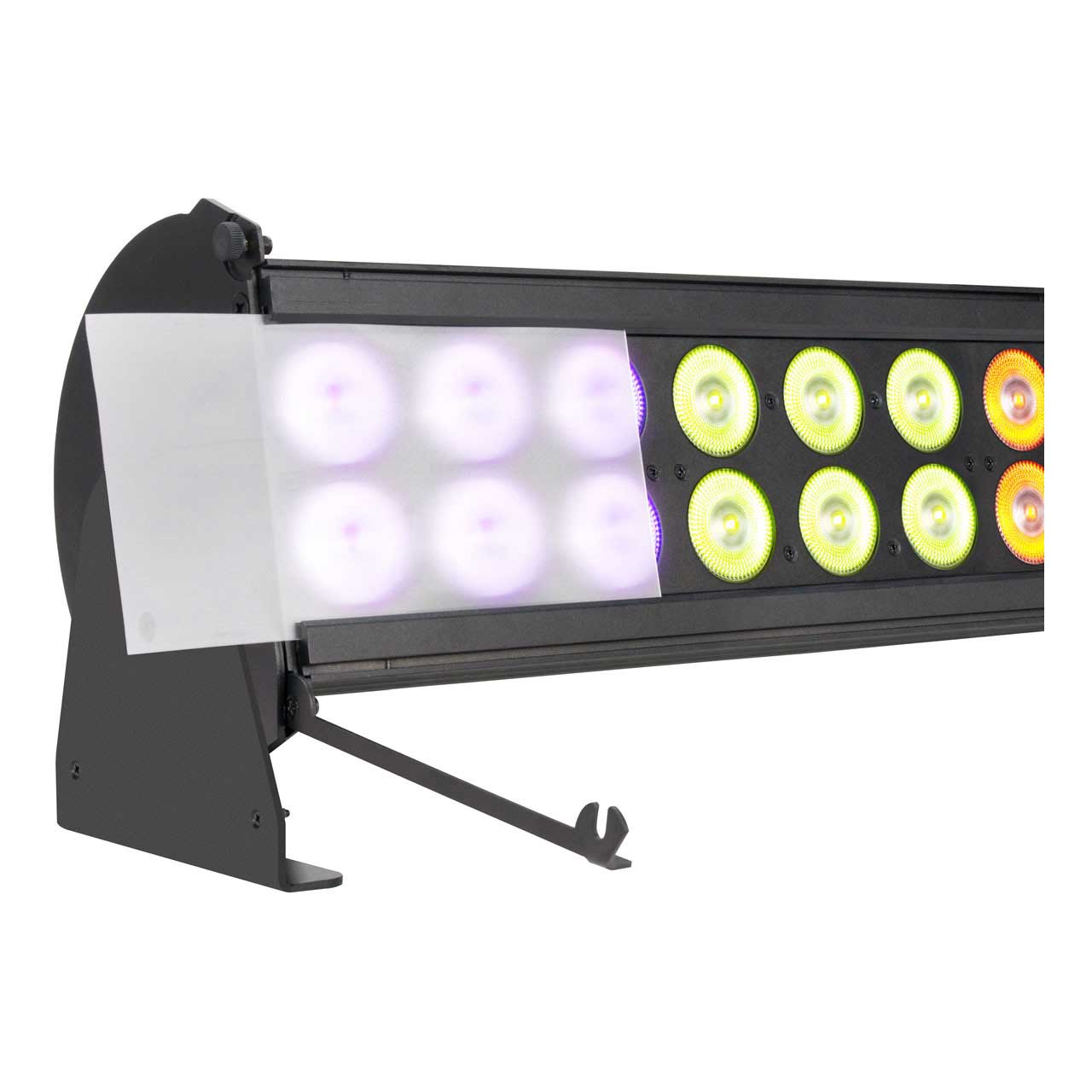

  • Integrated Gel / Frost Filter Slot


• Specifications:

  • Source
  • (36) 25W 7-IN-1 RGBAW + Lime + UV LEDs
  • 50,000 Hour Average LED Life*
  • *May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

    Effects
  • Individual Hue, Saturation, and Intensity Control
  • Special RGB SEVEN 3 Channel DMX Mode (RGB + Dynamic White, Amber, Lime, UV)
  • 6 Pixel Mapping Zones with Pixel Flip Mode
  • 12 Internal Program Macros with Speed and Fade Control
  • 64 Unique 7-Color Macros
  • Selectable 16-bit Dimming Curve Mode

    Color
  • RGBAW + Lime + UV (395nm)

    Control / Connections
  • 10 DMX Channel Modes (50 total channels)
  • DMX and Manual Control
  • 4 Button Control Panel
  • 180° Reversible OLED Menu Display
  • Adjustable Refresh Rate (900-28,800 (Hz)
  • Adjustable Gamma Brightness (2.0, 2.2, 2.4, 2.8)
  • Art-Net, Kling-Net, and RDM Remote Device Management) Protocol Support

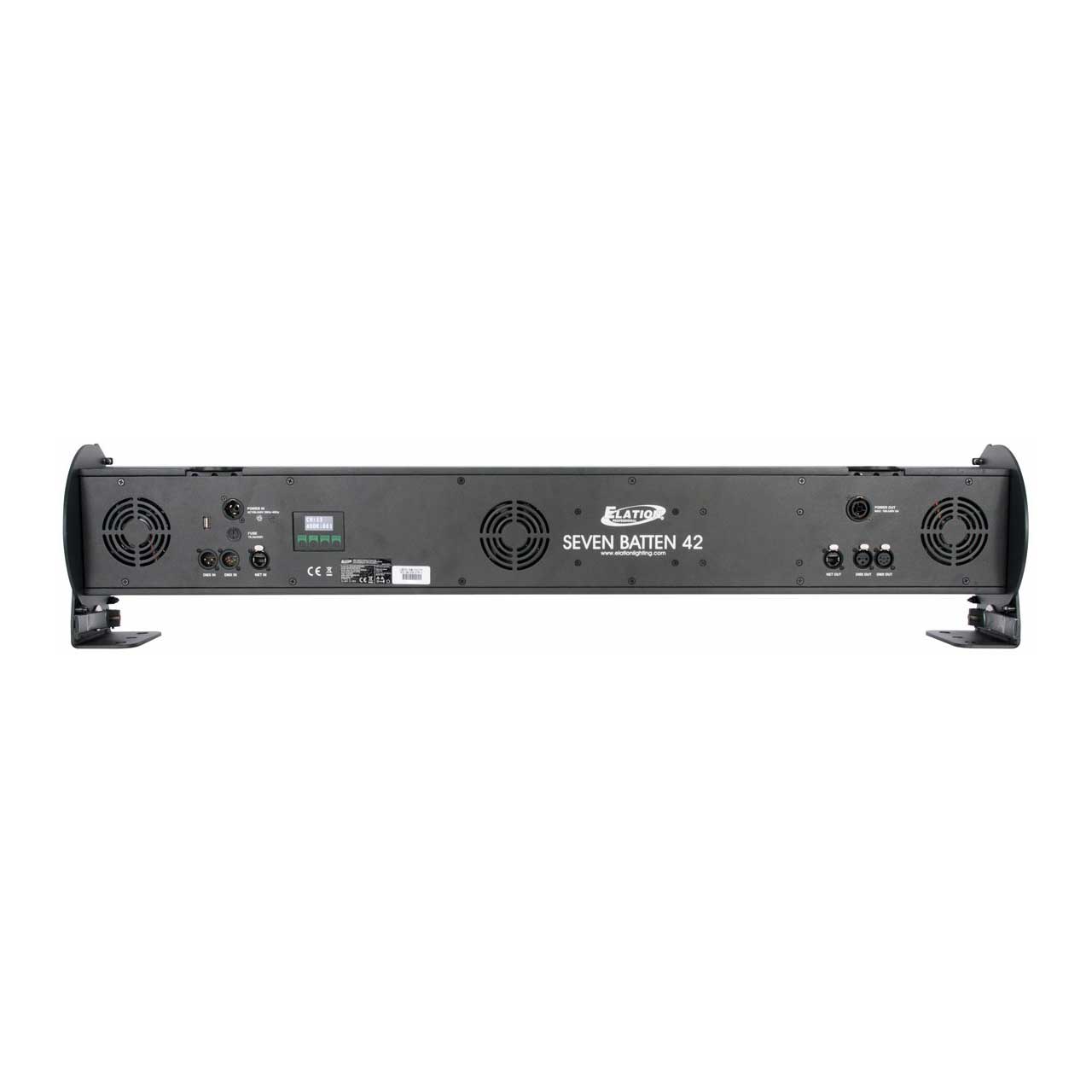

  • 3/5pin DMX, RJ45 etherCON, and Power In/Out
  • With Wired Digital Communication Network

    Size / Weight
  • Length: 42.0" (1066.8mm)
  • Width: 4.5" (114.3mm)
  • Vertical Height: 9.0" (228.6mm)
  • Weight: 39.0 lbs. (17.7kg)

    Electrical / Thermal
  • AC 100-240V - 50/60Hz
  • 614W Max Power Consumption
  • 5°F to 113°F (-15°C to 45°C)

    Approvals / Ratings
  • CE | cETLus | IP20


• Item Includes:

  • 1x Elation Professional SEVEN Batten 42
  • 1x Power Cable


• Warranty:

  • 2 year


• GTIN:

  0837874008425
