Elation Professional SEV072 SEVEN Batten 72 6 Foot (1.8m) Seven Color Batten Wash Luminaire

ITEM #: ELAT-SEV072 MFG #: SEV072

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$4,500.00

Our Price:

$3,600.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
  • Shipment of this item is subject to a separate oversized-package carrier surcharge.


SEV072 - Overview

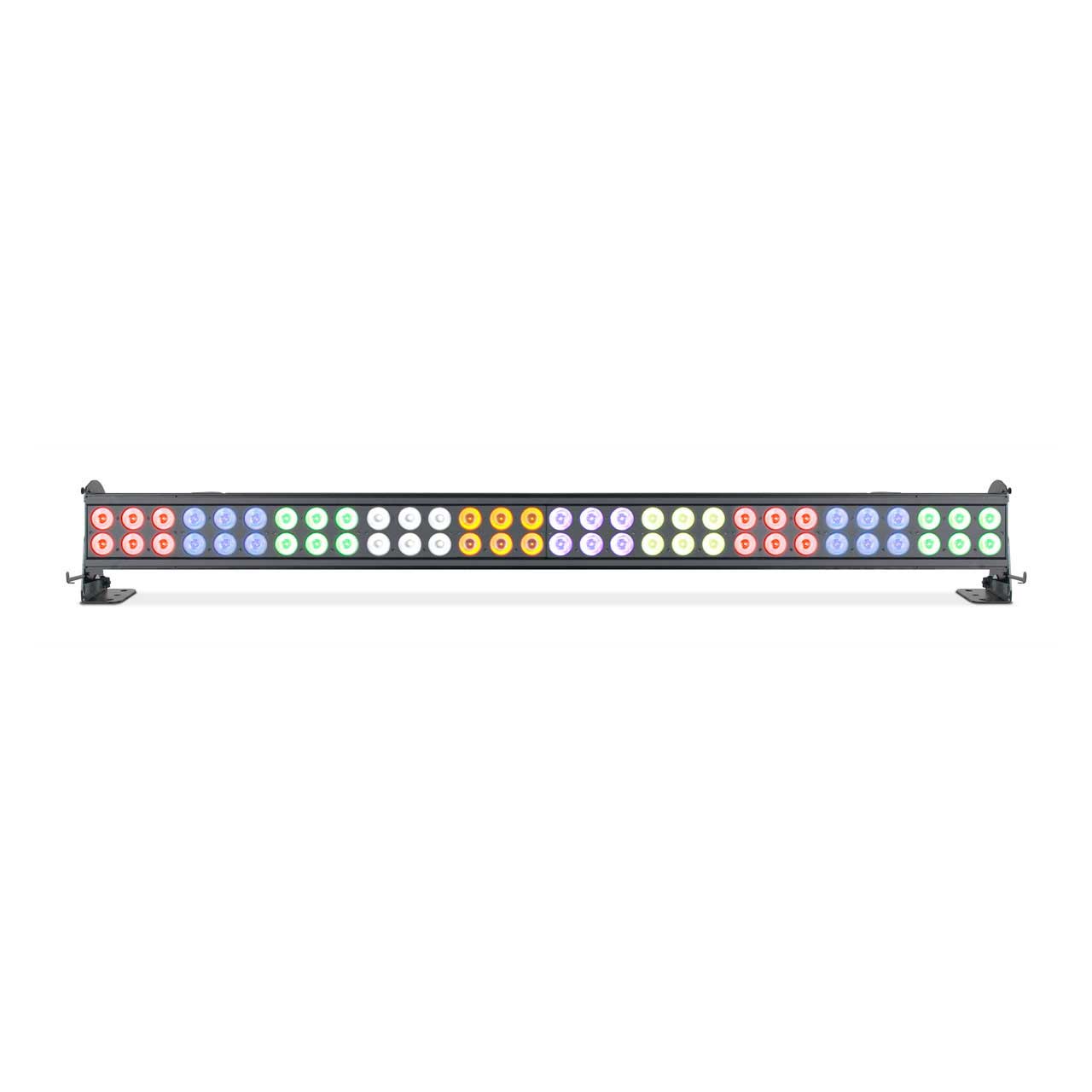

The Elation Professional SEVEN Batten 72™ is a seven color 6 foot (1.8m) long batten wash luminaire with (60) 25W 7-in-1 RGBAW + Lime + UV (395nm) LEDs. Features include individual hue, saturation, and intensity control, special RGB SEVEN 3 channel mode (RGB + dynamic white, amber, lime, and UV), 10 pixel mapping zones with pixel flip mode, smooth color mixing, 12 internal programs with speed and fade control, 64 unique 7-color macros, selectable dimming curve modes, adjustable LED refresh rate and gamma brightness for flicker free operation for TV and FILM, DMX Art-Net, Kling-Net, and RDM (Remote Device Management) protocol support, 3/5pin DMX, RJ45 etherCON, and power in/out connections, dual 220° manual tilt adjustable mounting brackets, OLED menu display with a 4-button control panel, a multi-voltage universal auto switching power supply (100-240v), a rugged powder coated die-cast aluminum exterior, and an integrated gel / frost filter slot.

  • Features:

    • 6 Foot (1.8m) Seven Color Batten Wash Luminaire
    • (60) 25W 7-in-1 RGBAW + Lime + UV (395nm) LEDs
    • Individual Hue, Saturation, and Intensity Control
    • Special RGB SEVEN 3 Channel Mode (RGB + Dynamic White, Amber, Lime, UV)
    • 10 Pixel Mapping Zones with Pixel Flip Mode
    • Smooth Color Mixing, Internal Programs with Speed and Fade Control
    • 64 Unique 7-Color Macros
    • Selectable 16-bit Dimming Curve Modes
    • Adjustable LED Refresh Rate + Gamma Brightness
    • Flicker Free Operation for TV and FILM
    • Art-Net, Kling-Net, and RDM Protocol Support

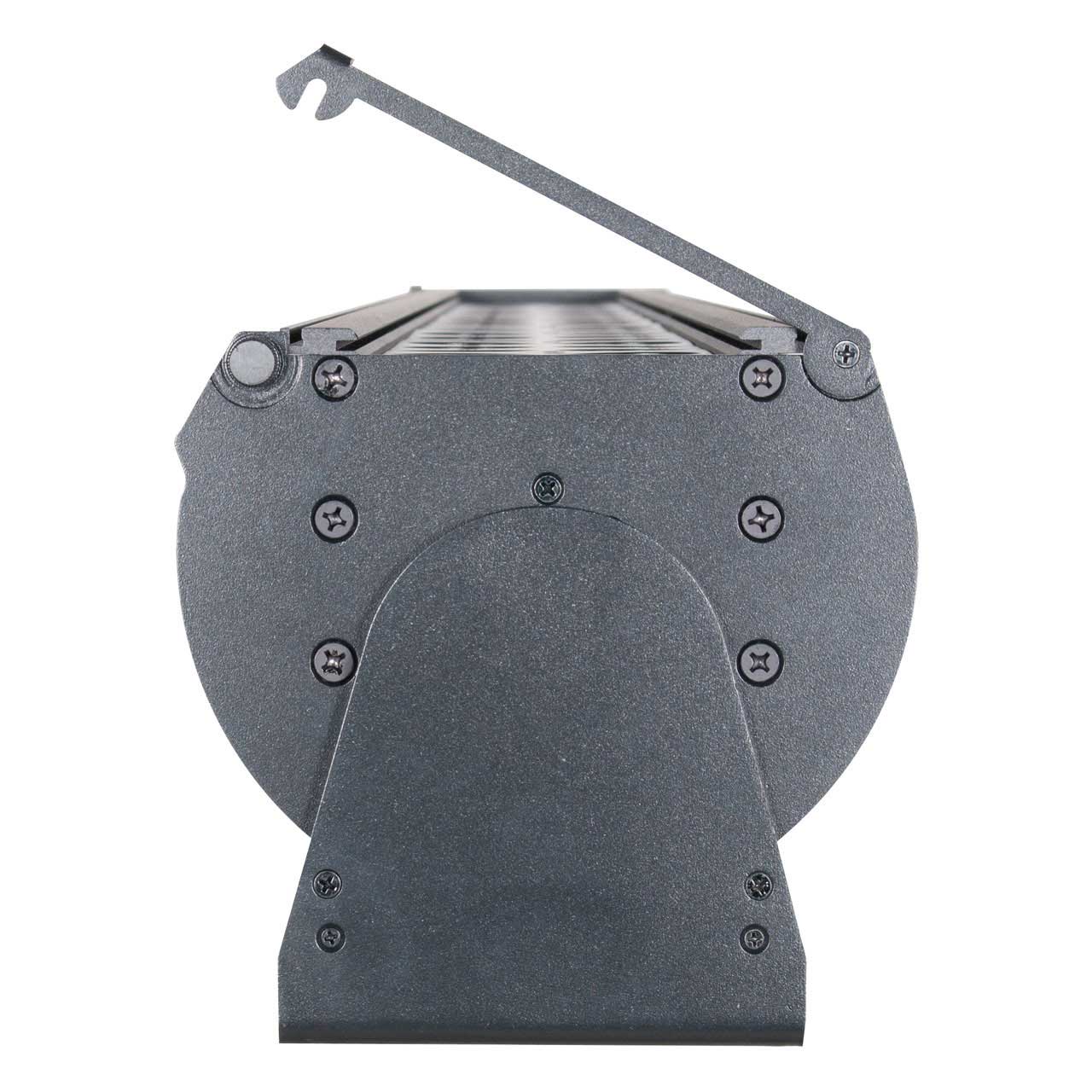

    • 220° Manual Tilt Adjustable Mounting Brackets
    • Rugged Powder Coated Die-Cast Aluminum Exterior

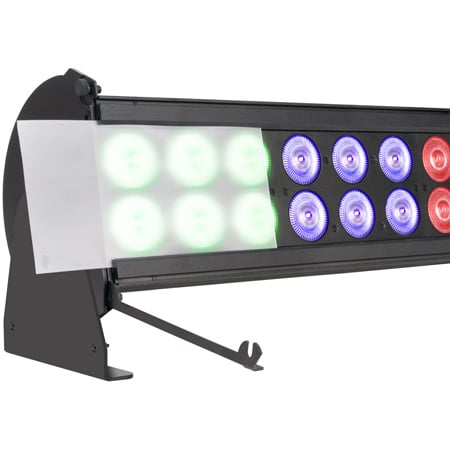

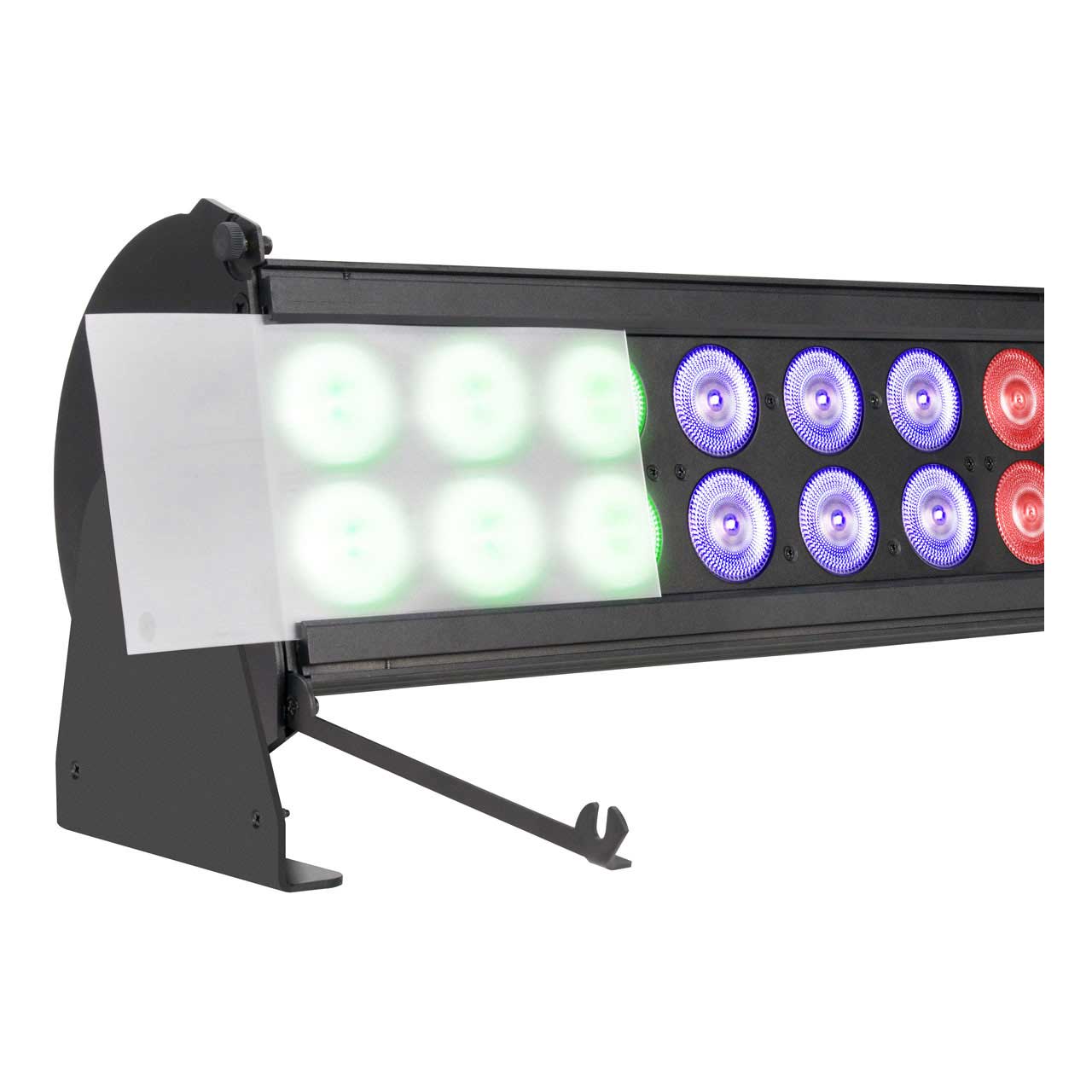

    • Integrated Gel / Frost Filter Slot

  • Specifications:

    • Source
    • (60) 25W 7-IN-1 RGBAW + Lime + UV LEDs
    • 50,000 Hour Average LED Life*
    • *May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

      Effects
    • Individual Hue, Saturation, and Intensity Control
    • Special RGB SEVEN 3 Channel DMX Mode (RGB + Dynamic White, Amber, Lime, UV)
    • 10 Pixel Mapping Zones with Pixel Flip Mode
    • 12 Internal Program Macros with Speed and Fade Control
    • 64 Unique 7-Color Macros
    • Selectable 16-bit Dimming Curve Mode

      Color
    • RGBAW + Lime + UV (395nm)

      Control / Connections
    • 10 DMX Channel Modes (78 total channels)
    • DMX and Manual Control
    • 4 Button Control Panel
    • 180° Reversible OLED Menu Display
    • Adjustable Refresh Rate (900-28,800 (Hz)
    • Adjustable Gamma Brightness (2.0, 2.2, 2.4, 2.8)
    • Art-Net, Kling-Net, and RDM) Protocol Support

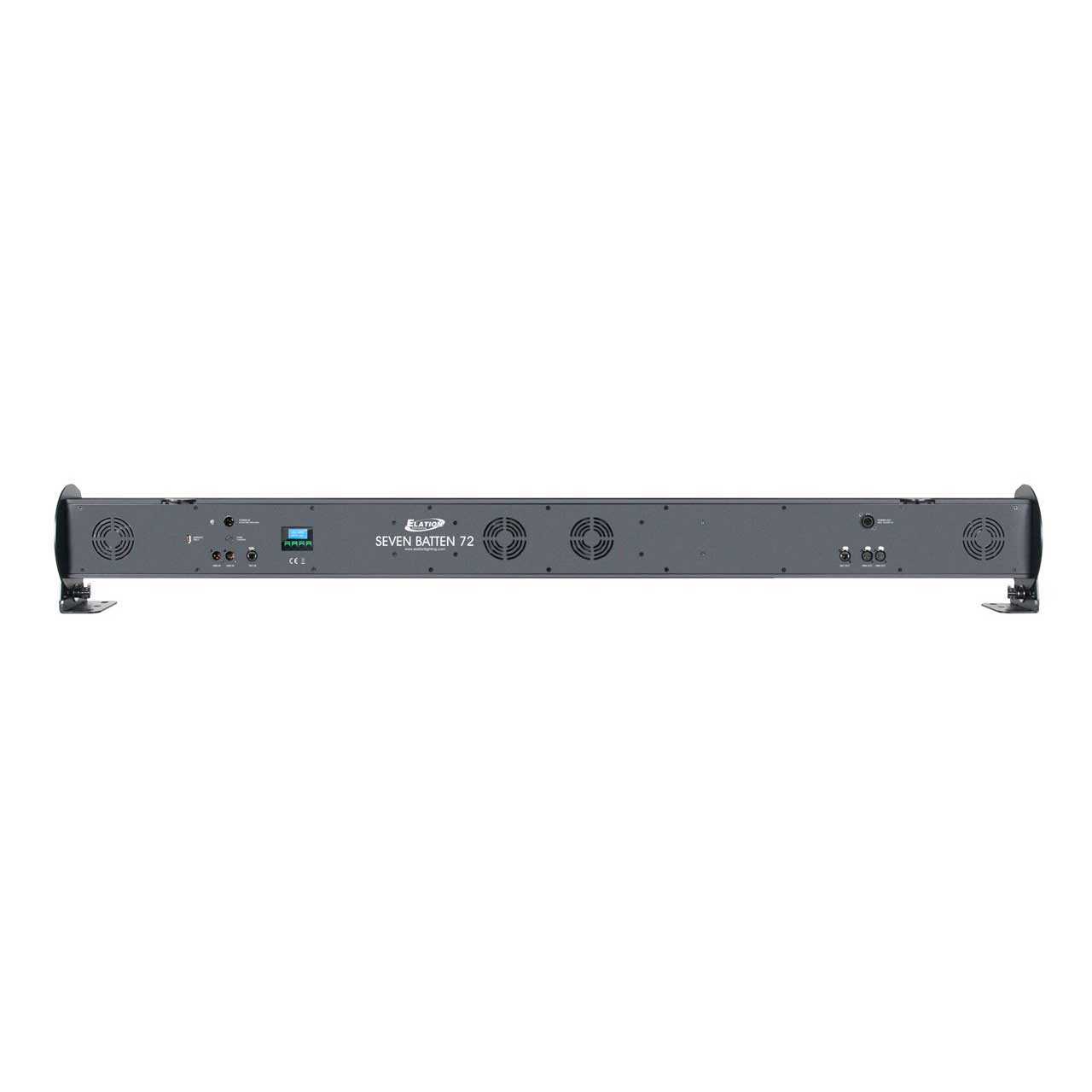

    • 3/5pin DMX, RJ45 etherCON, and Power In/Out
    • With Wired Digital Communication Network

      Size / Weight
    • Length: 72.0" (1828.8mm)
    • Width: 4.5" (114.3mm)
    • Vertical Height: 9.0" (228.6mm)
    • Weight: 58.0 lbs. (26.3kg)

      Electrical / Thermal
    • AC 100-240V - 50/60Hz
    • 1000W Max Power Consumption
    • 5°F to 113°F (-15°C to 45°C)

      Approvals / Ratings
    • CE | cETLus | IP20

  • Item Includes:

    • 1x Elation Professional SEVEN Batten 72
    • 1x Power Cable

  • Warranty:

    • 2 year

  • GTIN:

    0837874006919
