    SOCO-BI-M-5 - Overview

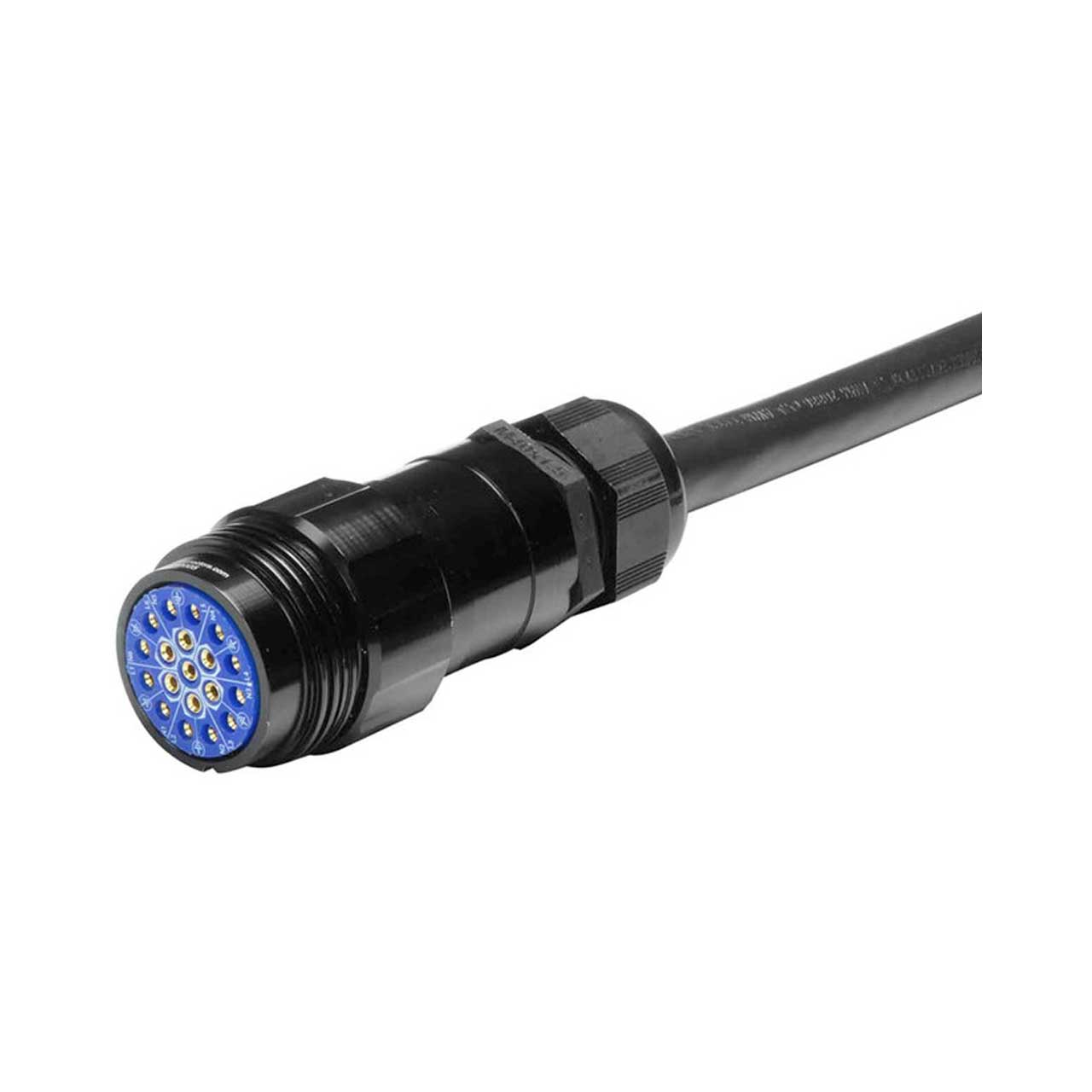

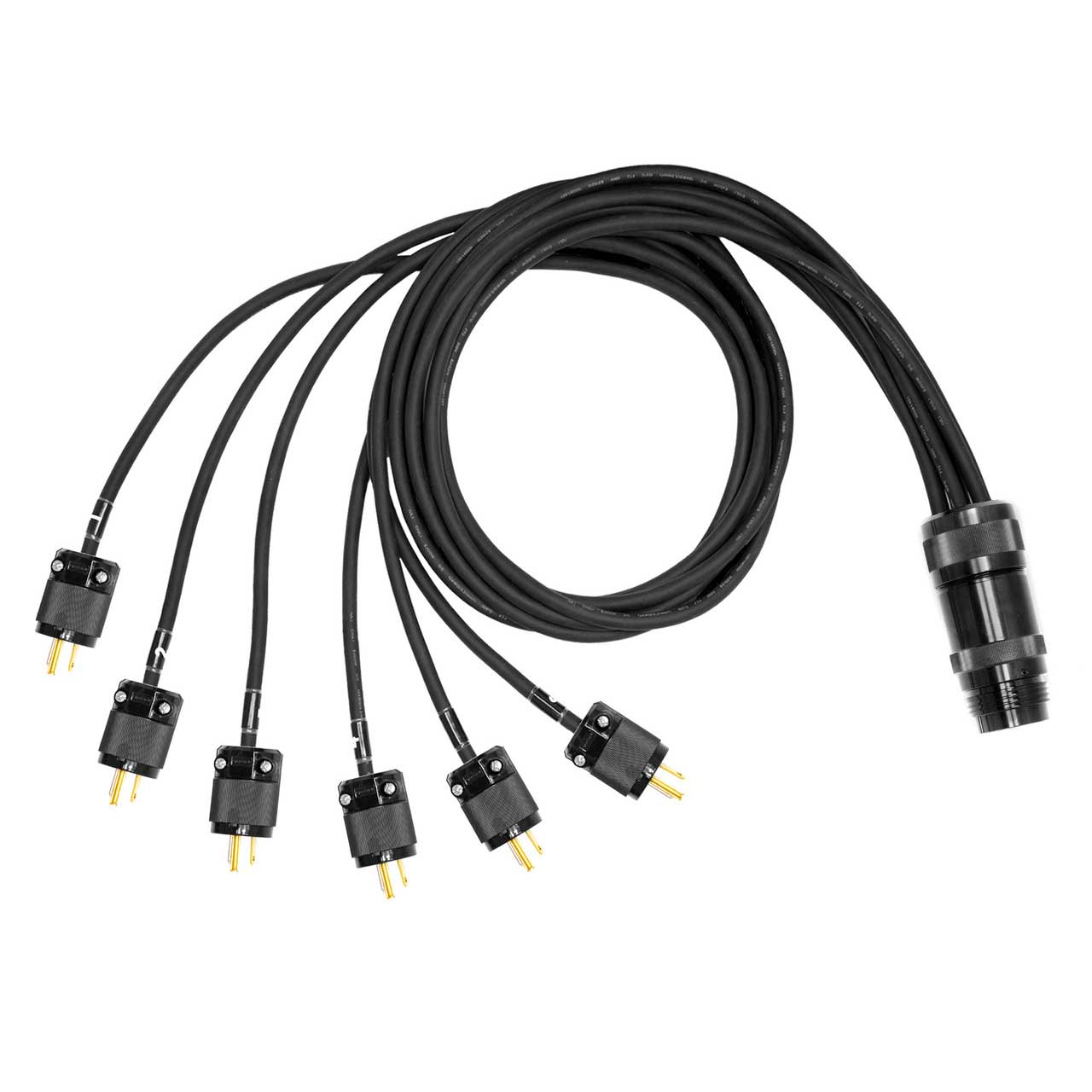

    The SOCO-BI-M-5 is an Elite Core Audio Lighting Power SOCAPEX Female Break-in Cable terminated with 6 Edison Male plugs, 5 Feet in length. It's rated for Indoor and outdoor use and resists oil, solvents, water, flame, ozone and abrasion.

    Elite Core's SOCO Lighting Power Break-in Cables are hand-built by skilled technicians in thier facility in Greenbrier, Arkansas, USA. A good power cable is an ABSOLUTE MUST HAVE ITEM on any stage across the world. This SOCO cable comes with an Edison male breakout and the Elite Core FOREVER WARRANTY*.

    Every detail - the cable construction, the connector choice, the shrink tube, the testing, and the packaging, are each carefully chosen to create the finest stage and touring power cable available.

    • Features:

      • 12/3 300-Volt CU Black Flexible Portable Power SJEOOW Cord
      • TPE (Thermoplastic Elastomer) Insulation
      • Indoor and outdoor use
      • Resists oil, solvents, water, flame, ozone and abrasion
      • Highly flexible with good tensile strength, elongation and aging characteristics
      • UL listed and CSA certified

    • Specifications:

      • UL Approved to UL1977 Standard
      • Amphenol Socapex SL419 Compatible
      • 9 Pin connectors are all rated 25A
      • Multi-point Gold Plated Contacts
      • Integral Insulation Sleeves
      • M40 metric cable glands for multicore socapex cable pinout (bush sizes 10-32mm)
      • Socapex Breakout Wire sizes from 12 to 14 AWG (1.5-2.5mm)
      • IP67 ingress protection when mated
      • Temperature Rating -55°C to +125°C
      • Voltage Rating 600 VAC, 700 VDC max
      • FMLB Earth contacts
      • ROHS Compliant

    • Item Includes:

      • 1x Elite Core Audio SOCO-BI-M-5 SOCO Flexible Lighting Power Break-in Cable - Edison Male - 5 Feet

    • Warranty:

      • The Elite Core FOREVER WARRANTY for Hand-Built cables covers all defects in material and workmanship of products manufactured by Elite Core.
      • *Forever Warranty excludes:
      • Damage caused by accident, misuse, abuse, or neglect.
      • Damage occuring during shipment.
      • Damage resulting from failure to follow instructions contained in your instruction manual.
      • Damage resulting from the performance of repairs by someone not authorized by Elite Core
