Ensemble Designs BrightEye 24 SDI to Analog Converter and Disembedder

ITEM #: ENDE-BE24 MFG #: BE24

  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
free ship

List Price:

$1,300.00

Our Price:

$1,235.00

Availability: Ships Factory Direct, Typically in 3-10 Days
iAvailability Description Popup


    BE24 - Overview

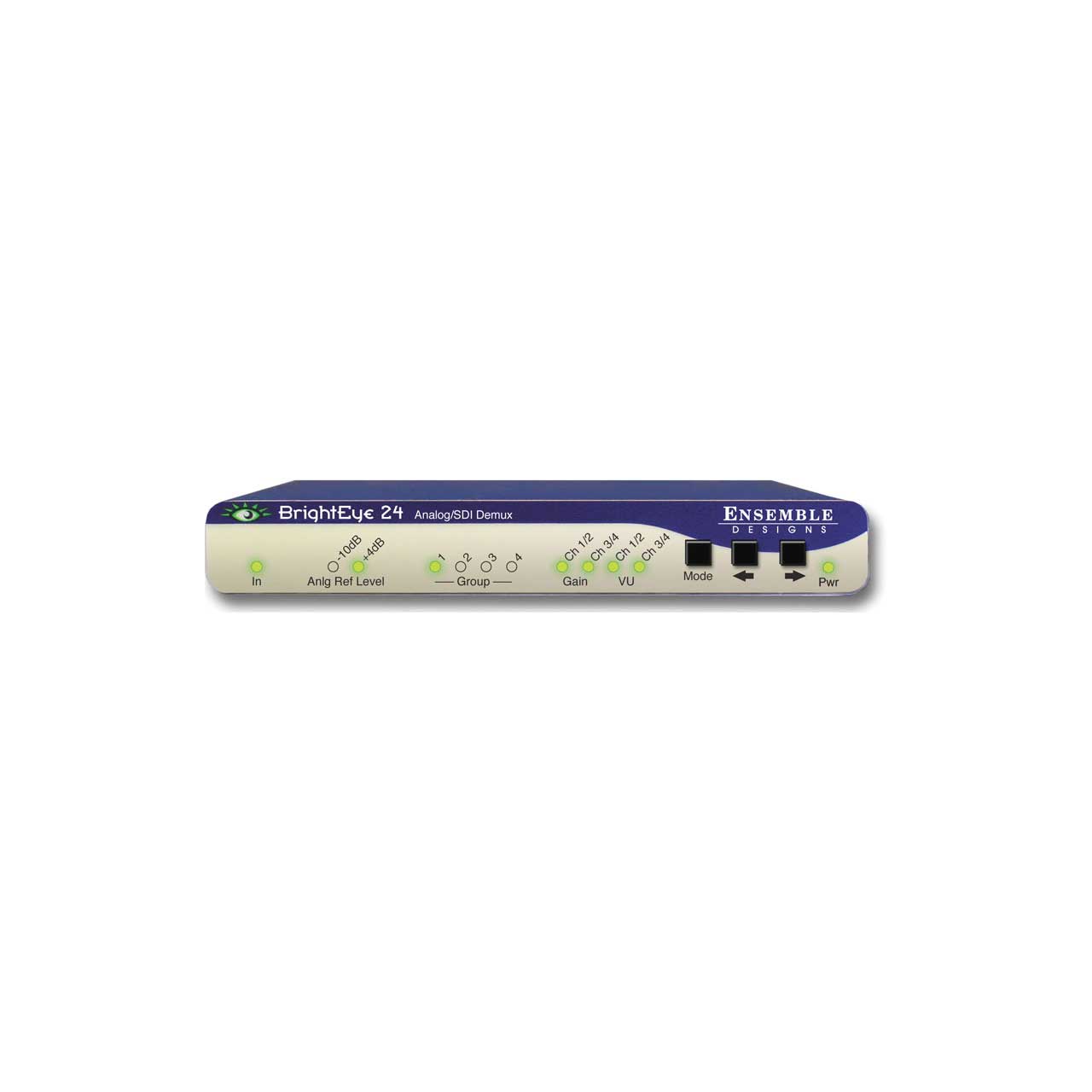

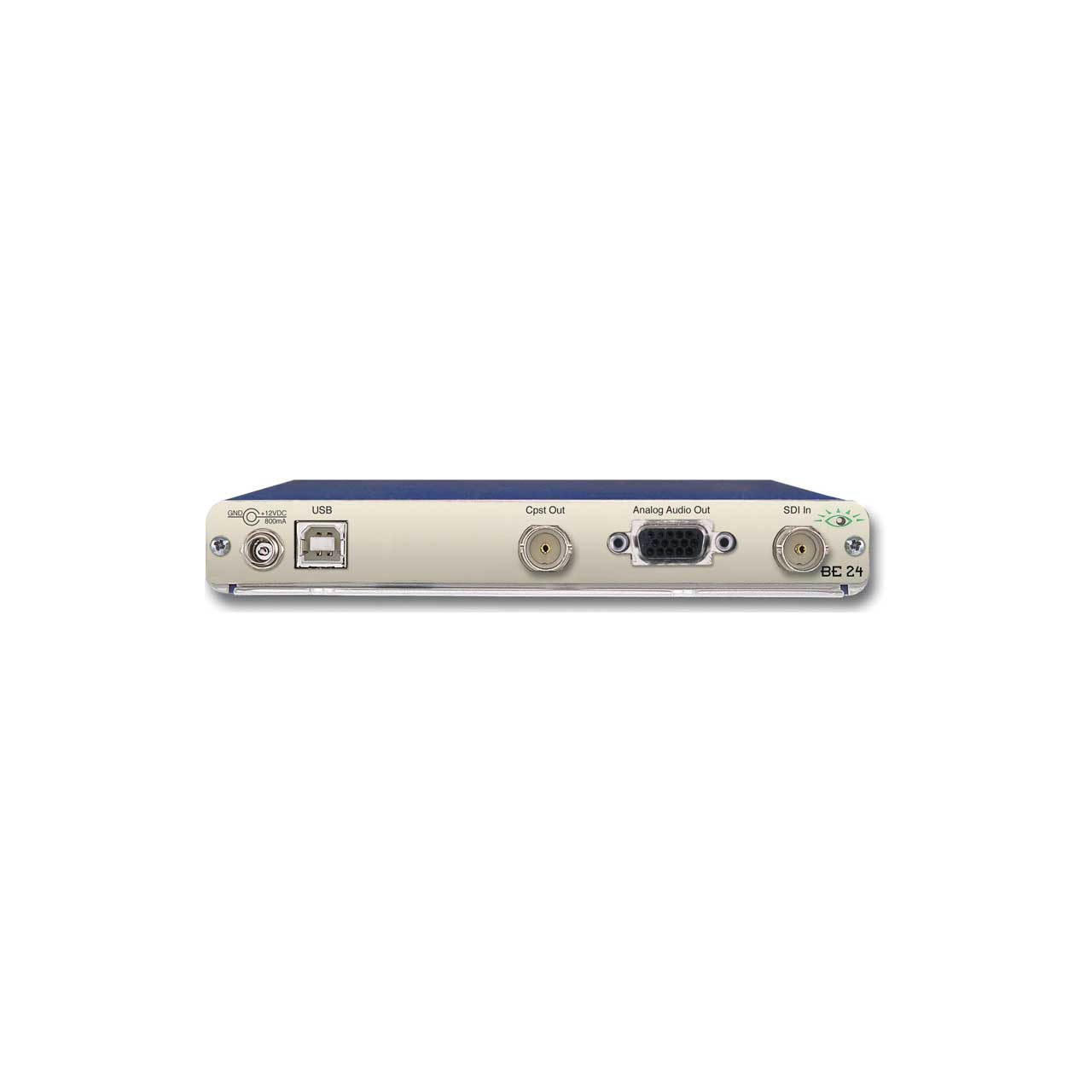

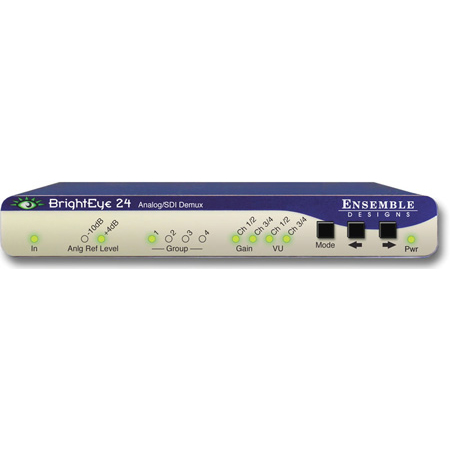

    BrightEye 24 is both a disembedder (demultiplexer) and a digital to analog video converter. The incoming serial digital video signal is converted to an analog composite output. Audio signals present in the incoming digital video signal are extracted and delivered as four channels of analog audio.

    Audio mixing, level adjustments, and channel shuffling are accessed through BrightEye PC. Audio group selection is also made through BrightEye PC. A variety of audio connectors and adapters are available for integrating BrightEye 24 to any type of system. Use BrightEye 24 in desktop and broadcast applications.

    Power supply is included.

    • Features:

      • Use with servers, VTRs and workstations
      • Disembedder and converter
      • Embedded SDI input
      • Analog audio output
      • Composite video output

    • Specifications:

      • Video Input
      • Number One
      • Signal Type 270 Mb/s SD Serial Digital
      • (SMPTE 259M)
      • Impedance 75 U
      • Return Loss >15 dB
      • Max Cable Length 300 meters
      • Automatic Input Cable Equalization

        Video Output
      • Number One
      • Type NTSC or PAL Composite
      • Standard follows input
      • Delay < 1 Sec to SDI path
      • Impedance 75 U
      • Return Loss >40 dB
      • Output DC <50 mV

        SDI to Analog Performance
      • Bit Resolution 10 bit output reconstruction
      • 2 x oversampling
      • Signal to Noise >65 dB
      • Frequency Response ± 0.1 dB, 0 to 5.5 MHz
      • K Factor <1%
      • Differential Phase <1 degree
      • Differential Gain <1%

        Analog Audio Outputs
      • Number Four
      • Type Balanced, transformerless
      • Delay < 250 Sec to audio I/O
      • Impedance 30 U
      • Maximum Output Level 24 dBu
      • Resolution 24 bits, 128 x oversampled
      • Reference Level -10 dBu or +4 dBu
      • Frequency Response ±0.1 dB, 20 Hz to 20 KHz
      • Crosstalk <106 dB
      • Dynamic Range >106 dB

        General Specifications
      • Size 5.63" W x 0.8" H x 5.98" D
      • (143 mm x 21 mm x 152 mm)
      • including connectors and flange
      • Weight 1 lb
      • Power 12 volts, 4 watts
      • (100-230 VAC modular power supply)
      • Temperature Range 0 to 40° C ambient (all specs met)
      • Relative Humidity 0 to 95%, non-condensing
      • Altitude 0 to 10,000 ft.
