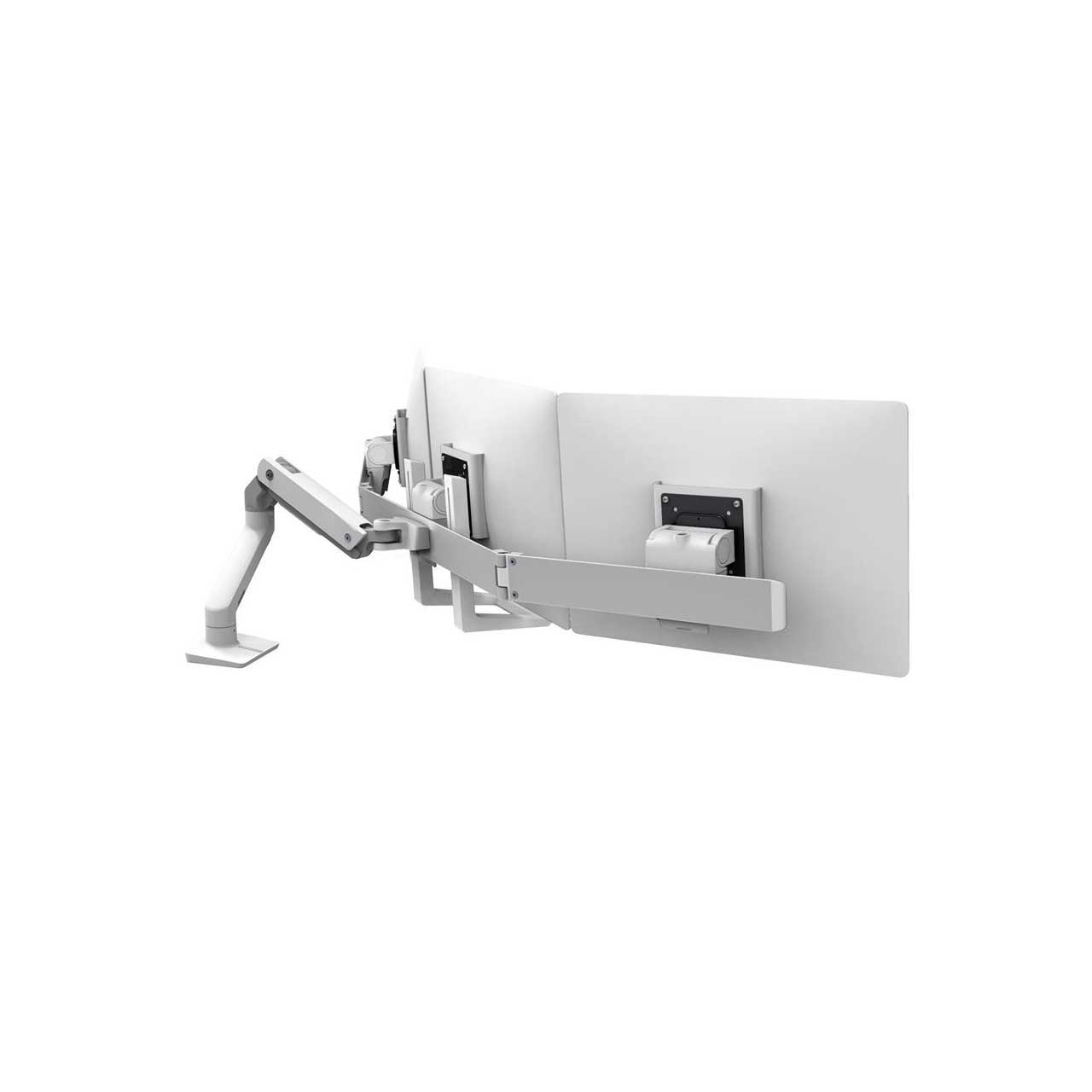

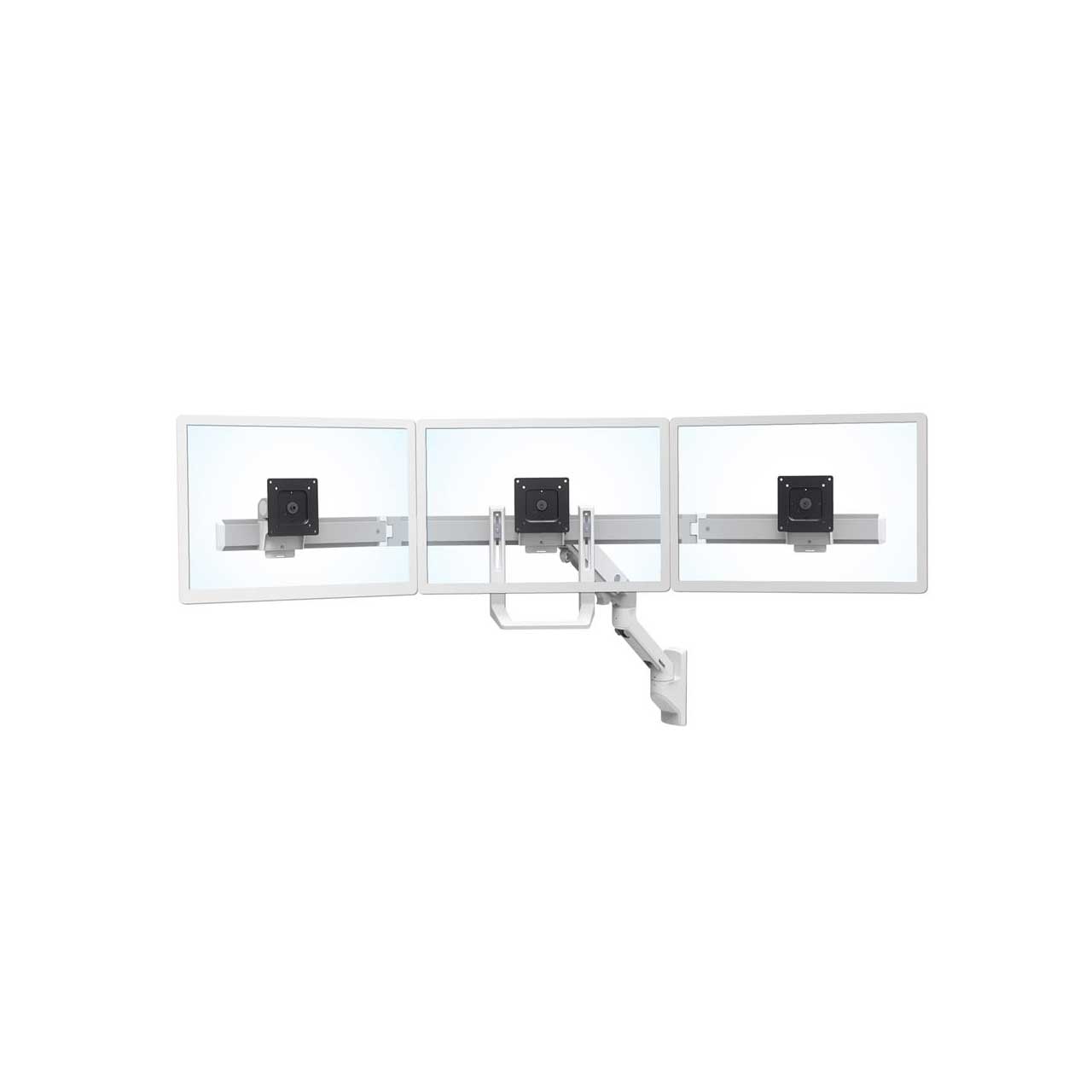

Ergotron 98-009-216 HX Triple Monitor Bow Kit - Allows Single HX Desk Arm to hold 3 Monitors - White

98-009-216 - Overview

• Features:

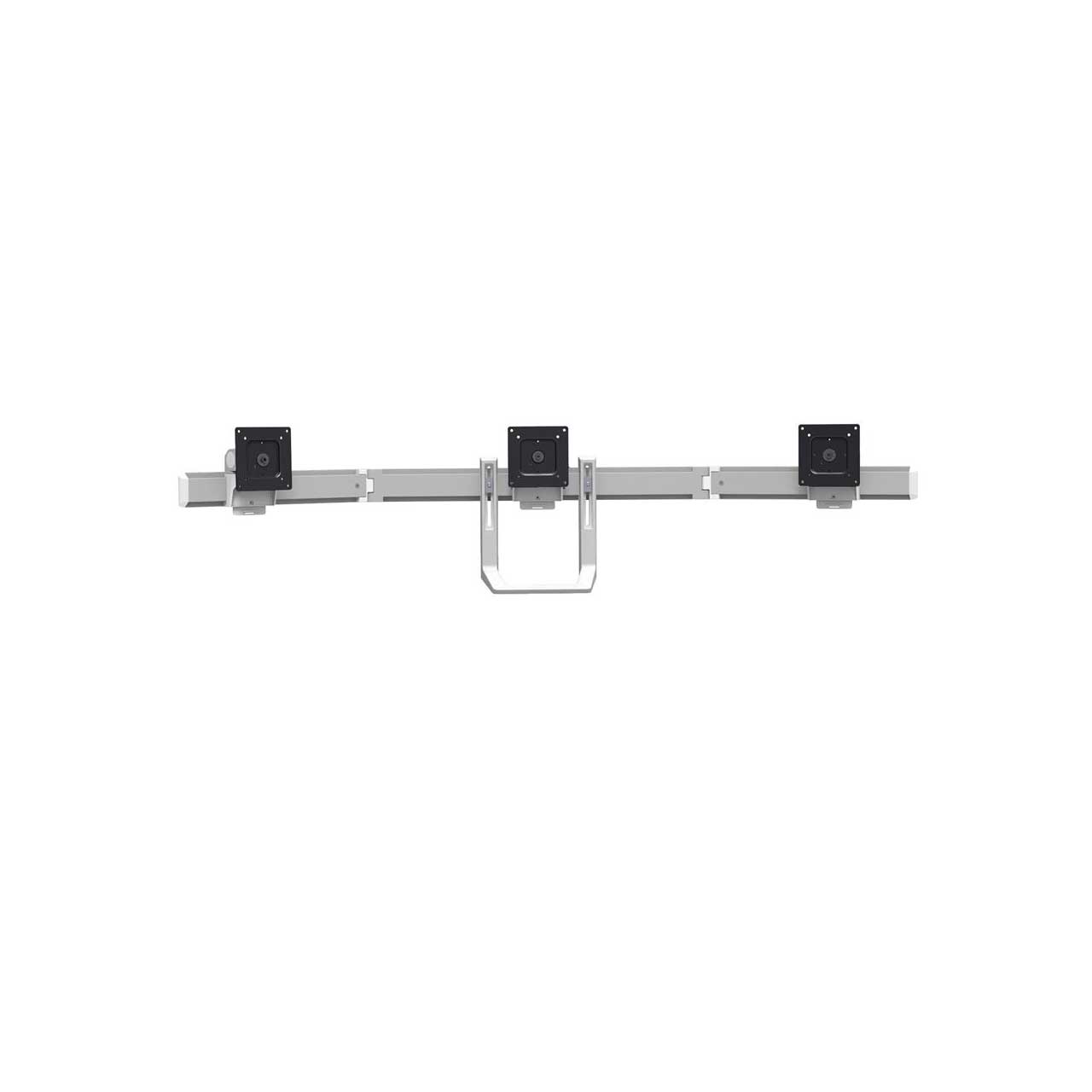

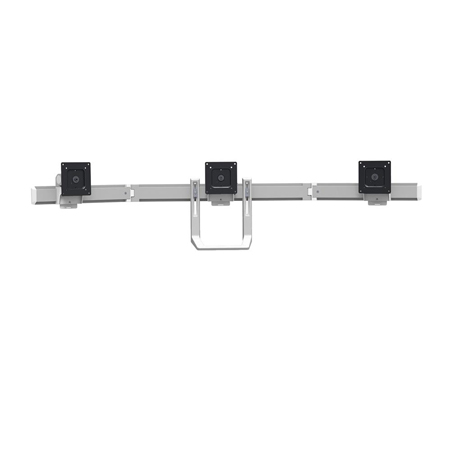

  • Includes 3 monitor pivots, triple hinged bow, handle
  • Streamline cable management that routes cables under arm, within extension, and neatly across bow
  • Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
  • Weight Capacity: Individual LCD weight = 2.0-10.2 lbs (1.0-4.6 kg) per monitor. Total LCD weight = 6.0-30.6 lbs (3.0-13.8 kg)

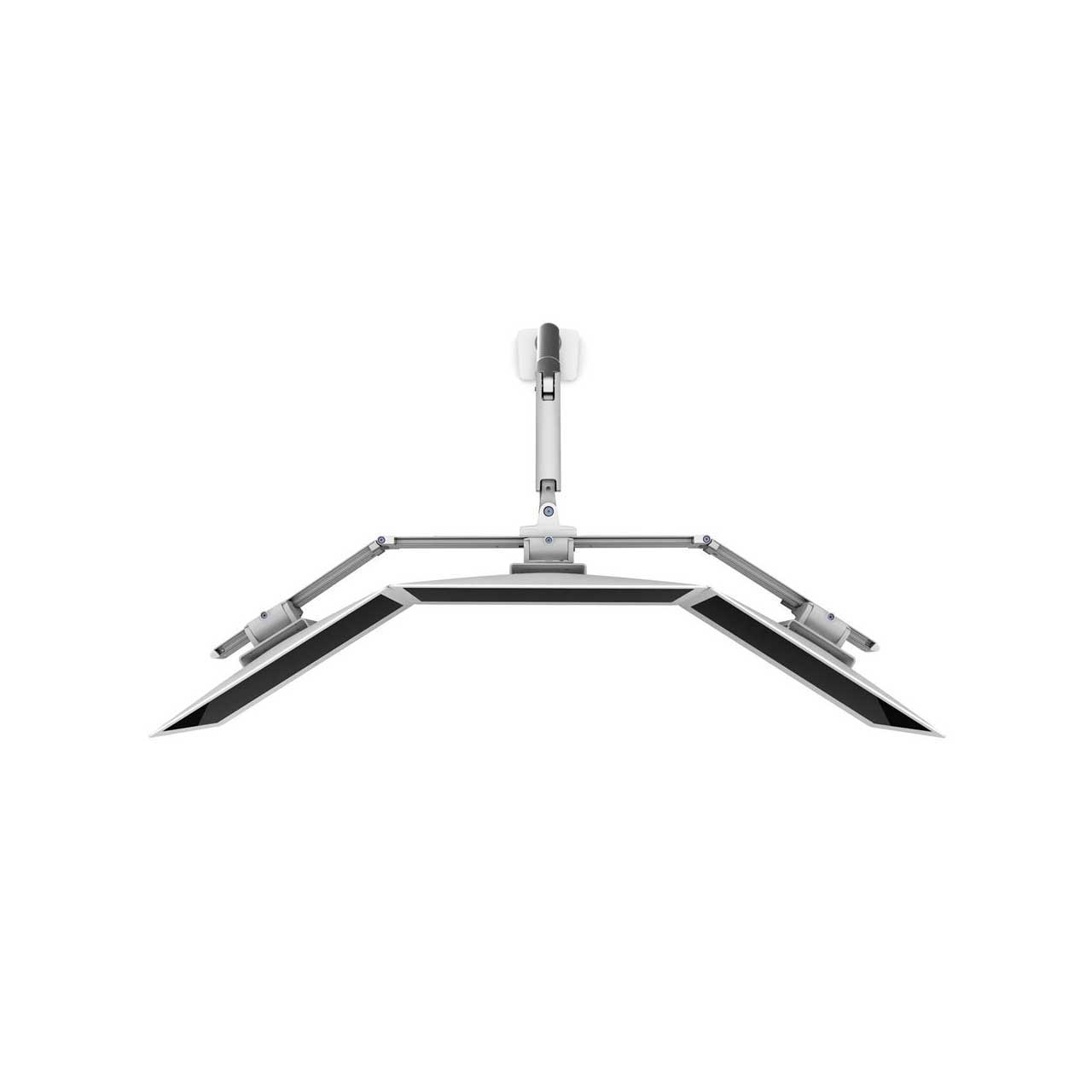

  • Hinge bow pivots 40° inward and 90° outward
  • Up to 24.5" (60 cm) extended reach and 11.5" (29.2 cm) vertical height adjustment
  • Tilt Range: 70° backward, 5° forward
  • Pivots feature quick install and release
  • Maximum outside width of each display is 26" (66 cm). This means the bow can typically handle diagonal screen sizes up to 26"
  • Portrait/landscape rotation with lockout


• Specifications:

  • Screen: ≤26"
  • Capacity: 6-30.6 lbs (2.7-13.9 kg)
  • Tilt: 75° (Tilt Range: 70° backward, 5° forward)
  • Pan: 180°
  • Rotation: 360°
  • Vesa: MIS-D


• Warranty:

  • 10 Years


• GTIN:

  0698833054835
