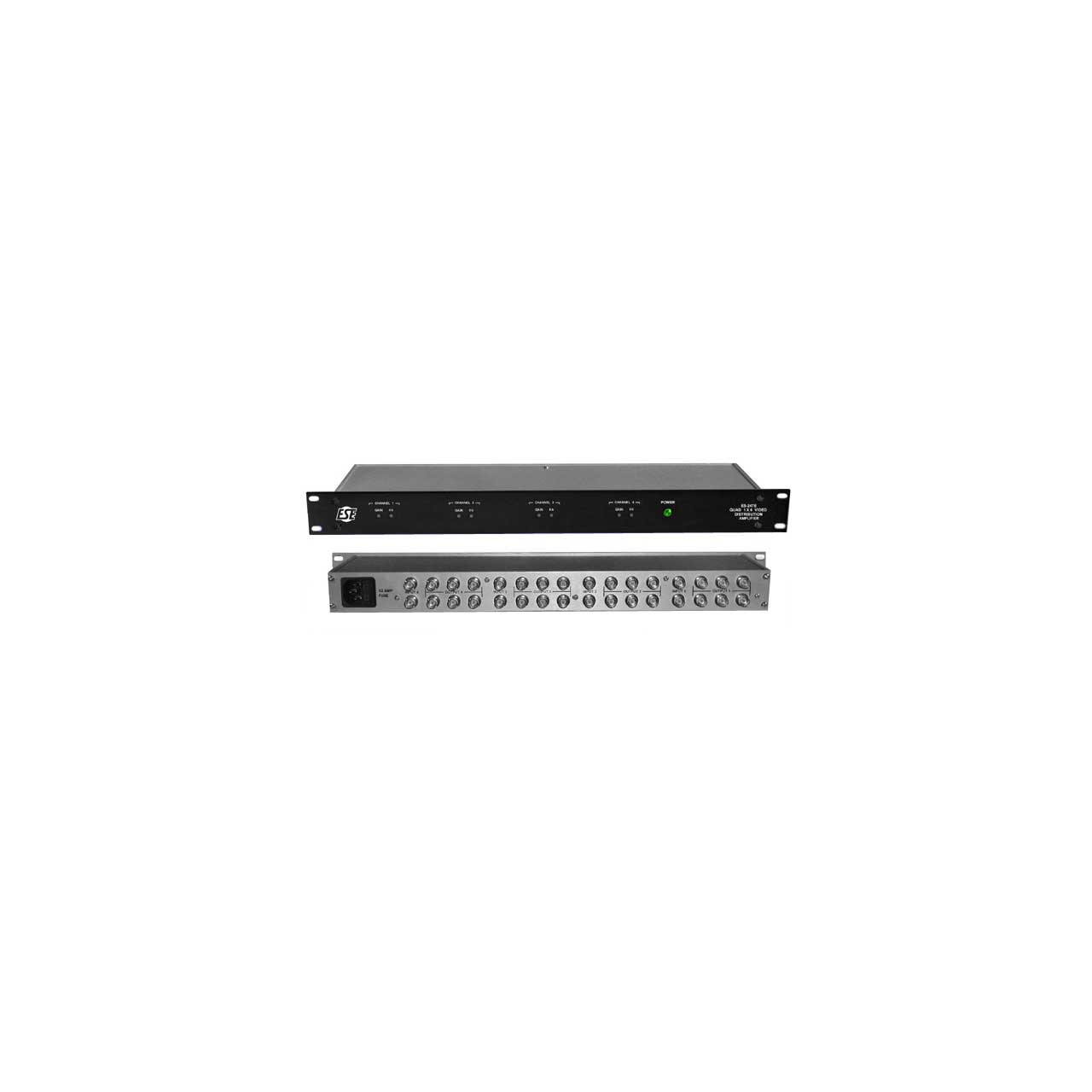

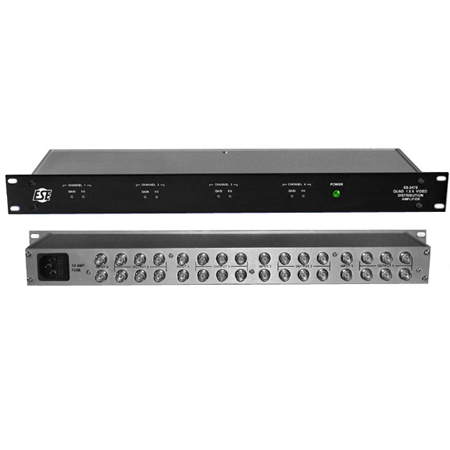

ESE ES 247E Quad 1x6 Rack Mount Composite Video DA 1 RU w/ BNC Connectors - Black Faceplate

ITEM #: ES-247E-BK MFG #: ES 247E/B

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$510.00

Our Price:

$484.95

Availability: In Stock
iAvailability Description Popup


    ES 247E/B - Overview

    Quad 1x6 Video DA 1 Rack Space (Black)

    Provides four independent 1x6 Video DA's in a single rack-mount enclosure. Each DA has loop-thru inputs and six isolated outputs, all accessible via BNC connectors. Screwdriver-adjustable Gain and Equalization controls are provided on the front of the case. Up to 1000 feet of cable may be compensated by adjusting the EQ trimmer. The Gain control provides an overall signal level adjustment of - 2 to +3 db. When the input is not looped thru to other equipment, a 75 ohm terminator should be used on the free input connector. Unused outputs need not be terminated.

    Product Options:

    Clear Clear Anodized Front Panel
    J 220 VAC/50 Hz Operation: The unit is configured to operate from 220 VAC line voltage. 117 VAC 50/60 Hz is standard.
    UL/ UL" Approved Power Supply: The unit is supplied with a UL/CSA approved wall mount power supply.

    • Features:

      • Four Independent Amplifier Channels BNC connectors Loop-thru video input 6 isolated outputs per channel (75 ohm) 10 MHz frequency response Gain & HF Equalization controls Single-rack Height Enclosure 220-240 VAC (110-120 VAC is standard) & UL options available Various Options available: J, P(1), UL, W(1)

    • Specifications:

      • Input: 1 Vpp
      • Source: 75 Ohm
      • Response: 10 Hz - 10 MHz, +/-1dB
      • Equalization: 1000' of RG-59
      • Gain: -2dB to +3dB
      • S/N Ratio: 62dB
      • Output Isolation: 45dB
      • Differential Gain: <.2%
      • Differential Phase: < .2 degrees
      • Propagation Delay: 5 ns
      • Gain Controls: Four (one per input)
      • Output Level: 1 Vpp
      • Connectors: BNC
      • Enclosure: Rack Mount
      • Dimensions:1.75" x 19" x 5"
      • Electrical: 117 VAC, 50/60 Hz
      • Power Required: 10 Watts
      • Options:Clear J, UL
