ESE DV-228 3G/HD/SD SDI Reclocking Distribution Amplifier 1x8
    Questions? Ask a Markertek Expert:
    800-522-2025 Email

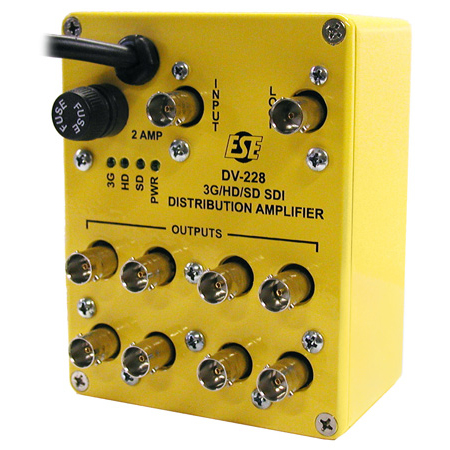

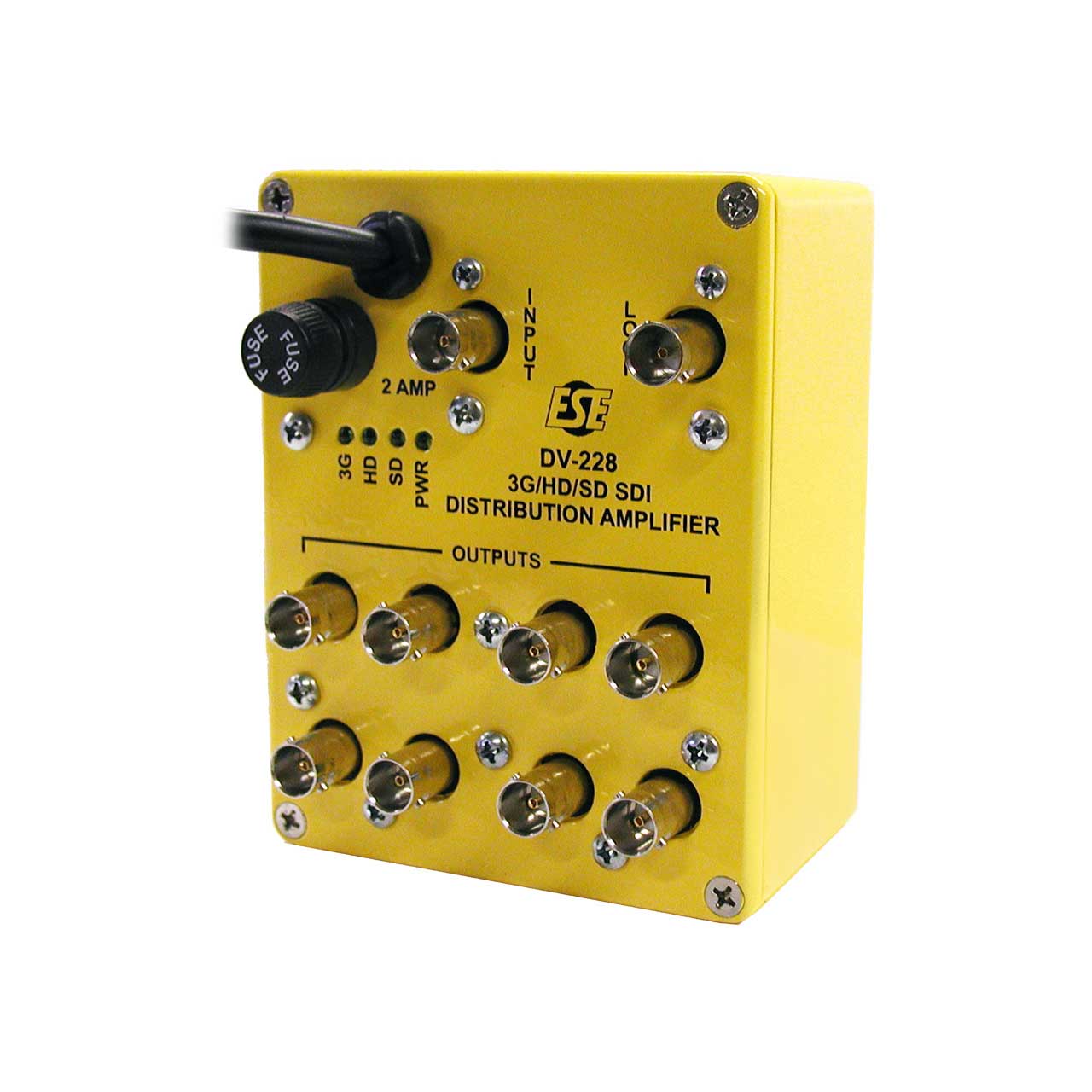

    ESE DV-228 3G/HD/SD SDI Reclocking Distribution Amplifier 1x8

    Manufacturer: ESE

    Item #: ESE-DV-228   •   MFG #: DV-228


    List Price:$795.00
    Our Price:$749.45

    free ship
    Availability: Direct Ship From Manufacturer
    Item ships directly from the manufacturer. Normal delivery time is 2-7 business days and is subject to manufacturer availability. Need it sooner? Call 800-522-2025, or email Customer Service for expedited delivery options.
    • Special Order Item: non-cancelable, non-returnable, non-refundable.
    • 2 - 7 Day Normal Delivery Time - Faster Shipping Options at Checkout or Call Us.



    The DV-228 is an SDI digital video (3G, HD & SD) 1 x 8 Distribution Amplifier. The unit features high-performance & low-cost and is able to distribute 3Gb/s, 1.5Gb/s & 270Mb/s data rates. The DV-228 automatically detects the data rate and then re-clocks and equalizes the signal. The Distribution Amplifier can equalize 400m @ 270Mb/s, 200m @ 1.5Gb/s and 140m @ 3Gb/s of 1694A coax cable. A non-reclocked loop output is also provided. An external power supply is not required as the DV-228 is completely self-contained requiring only 90-264 VAC, 50/60 Hz to operate. The small diecast enclosure can be easily placed behind an equipment rack.

    • Features

      • 8 Reclocked Outputs (BNC)
      • 1 Non-Reclocked Loop Output (BNC)
      • 270Mb/s, 1.5Gb/s, 3Gb/s
      • Reclocking & Equalization
      • Automatic Input Rate Detection
      • Reclocking Bypass Switch (internal)
      • DVB-ASI compliant at 270 Mb/s
      • 90-264 VAC, 50/60 Hz Power
      • DC Option -DV-228/DC
    • Product Options

      • DC 12 VDC Input: Allows the unit to be operated exclusively from a +5 to +17 VDC source.
      • UL "UL" Approved Power Supply: The unit is supplied with a UL/CSA approved wall mount power supply.
