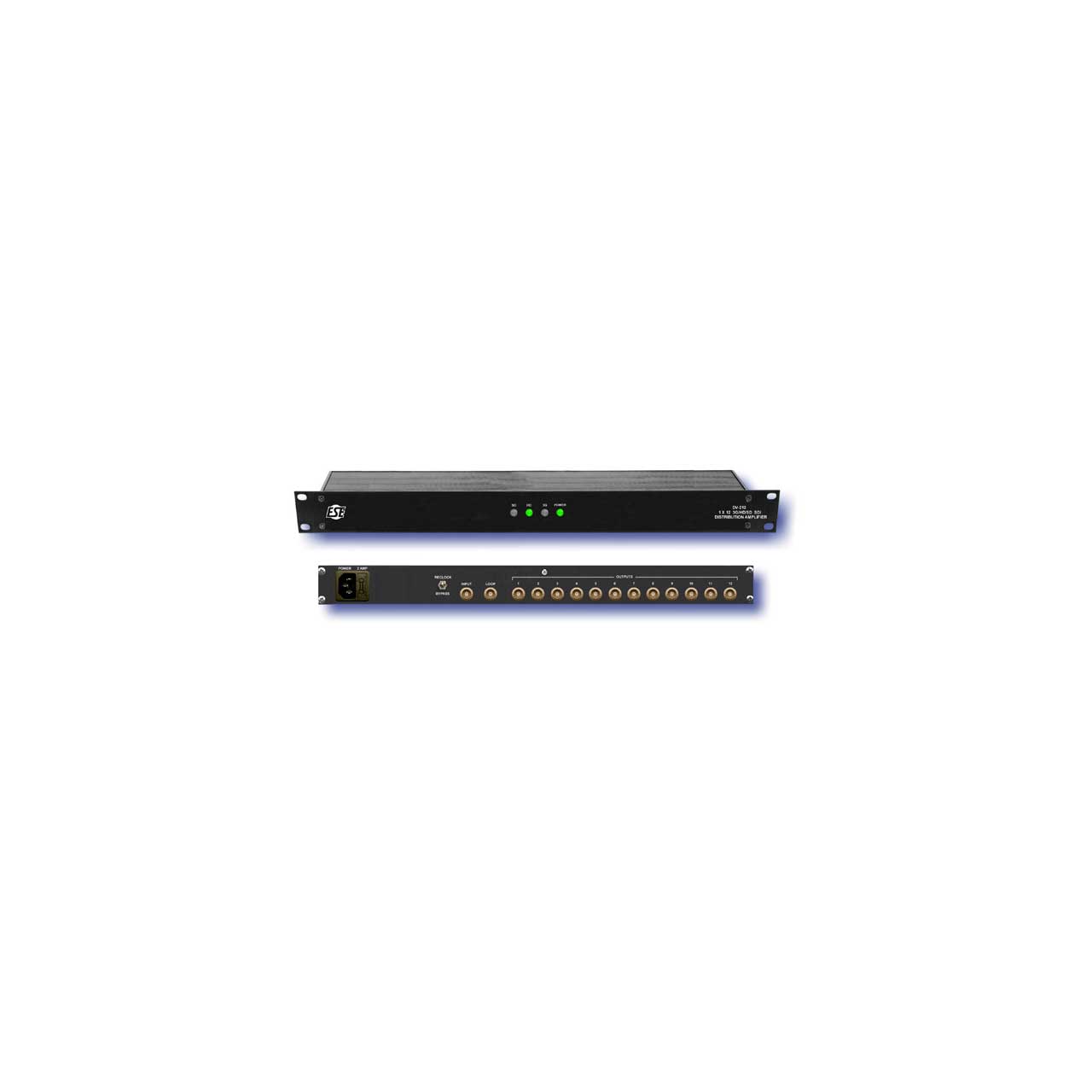

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$895.00

Our Price:

$850.49

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    DV-212 - Overview

    1x12 3G/HD/SD SDI Digital Video Distribution Amplifier

    The DV-212 is an SDI digital video (3G, HD & SD) 1 x 12 Distribution Amplifier. The unit features high-performance & low-cost and is able to distribute 3Gb/s, 1.5Gb/s & 270Mb/s data rates. The DV-212 automatically detects the data rate and then re-clocks and equalizes the signal. The Distribution Amplifier can equalize 400m @ 270Mb/s, 200m @ 1.5Gb/s and 140m @ 3Gb/s of 1694A coax cable. A non-reclocked loop output is also provided. An external power supply is not required as the DV-212 is completely self-contained requiring only 117VAC or 220VAC (option J) to operate.

    • Features:

      • 12 Reclocked Outputs (BNC)
      • 1 Non-Reclocked Loop Output (BNC)
      • 270Mb/s, 1.5Gb/s, 3Gb/s
      • Reclocking & Equalization
      • Automatic Input Rate Detection
      • Reclocking Bypass Switch (rear)
      • 1 unit high Rackmount
      • DVB-ASI compliant at 270 Mb/s
      • 117 VAC (standard) or 220 VAC (option 'J')
        DV-212 Options
      • DC: DC Operation: Requires the unit to be powered from a DC source exclusively, typically +12 to +35 VDC.
      • UL: "UL" Approved Power Supply: The unit is supplied with a UL/CSA approved wall mount power supply.

    • Specifications:

      • POWER: 110 - 120 VAC, 50 - 60 Hz, 5 Watts maximum
      • 85 - 264 VAC, 47 - 63 Hz, 15 W maximum (DV-212)
      • MECHANICAL: Desktop Enclosure 1.6" H x 7" W x 5" D (DV-201)
      • Die Cast Box 4.7" H x 3.7" W x 2.2" D (DV-207)
      • Die Cast Box 7.4" H x 4.7" W x 2.2" D (DV-208)
      • Rackmount Enclosure 1.75" H x 19" W x 4.8" D (DV-212)
      • VIDEO STANDARDS: SMPTE 259M-C, SMPTE 292M and SMPTE 424M compliant
      • VIDEO INPUT: 1 BNC
      • LOOP THROUGH: 1 BNC (DV-207, DV-208 & DV-212 only)
      • CABLE EQUALIZATION: 2.97Gb/s: 140m @ 0.3UI (Belden 1694A cable)
      • 1.485 Gb/s: 200m @ 0.3UI (Belden 1694A cable)
      • 270 Mb/s: 400m (Belden 1694A cable)
      • VIDEO OUTPUTS: 12 BNCs
      • OPTIONS: DC, UL
