Electro-Voice EVOLVE30M (F.01U.366.319) Portable Column System - US - Black

ITEM #: EV-F-01U-366-319 MFG #: F-01U-366-319

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$2,623.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    F-01U-366-319 - Overview

    The Electro-Voice F-01U-366-319 is designed to deliver a significant step up in all-around performance for a column system in its size/price category. It includes an eight-channel digital mixer, studio-quality onboard effects, and remote control of all audio, effects and mix functions via the next-generation Electro-Voice QuickSmart Mobile application.

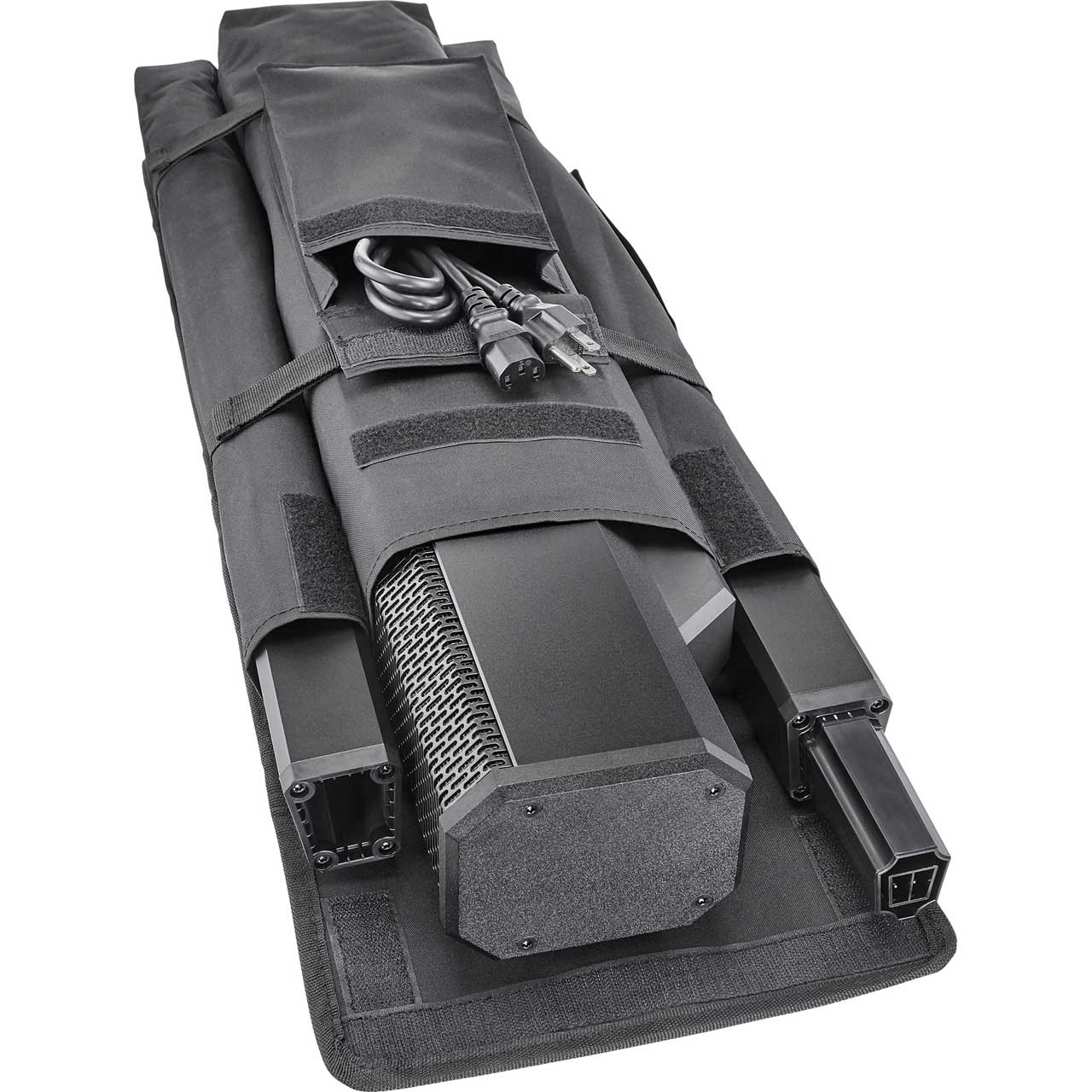

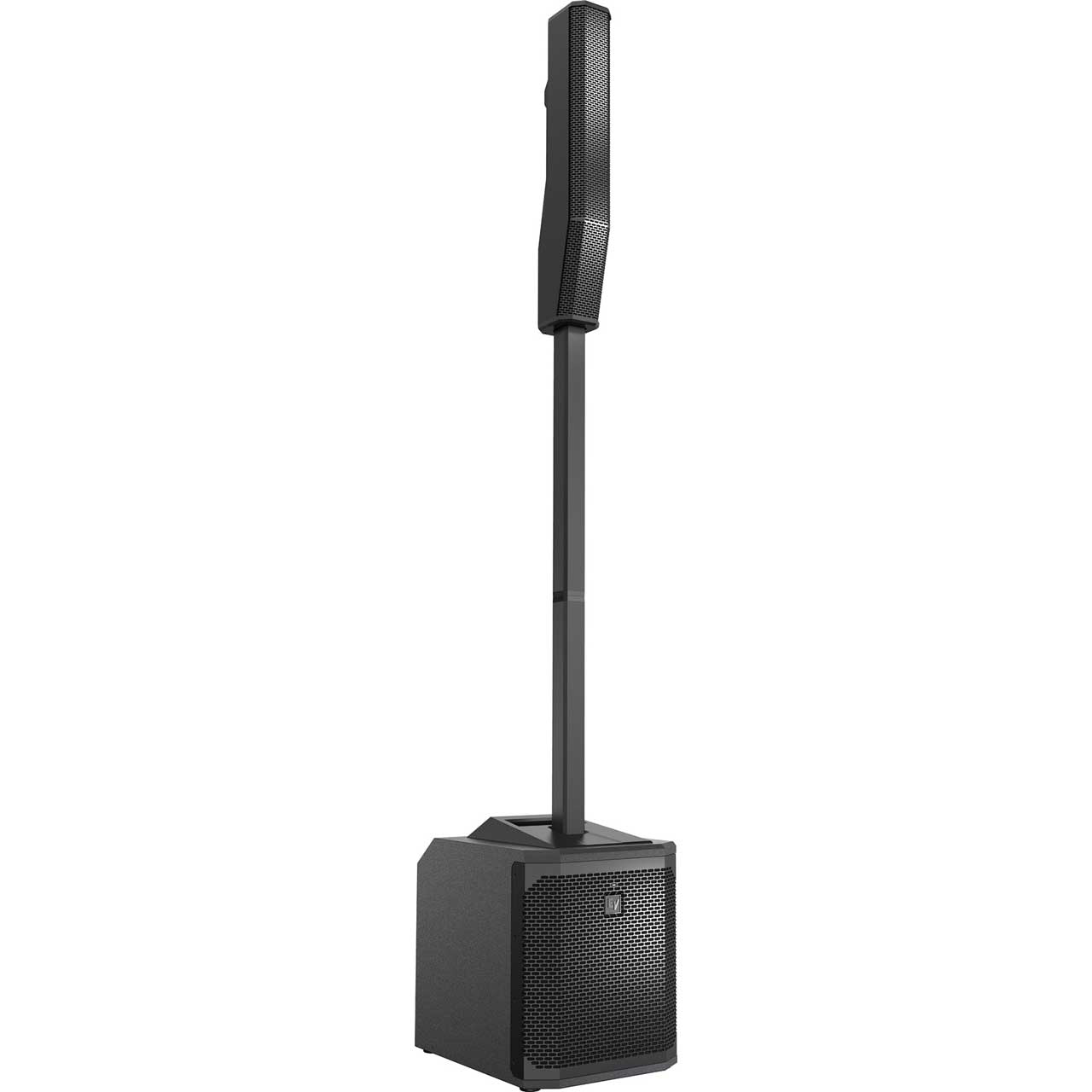

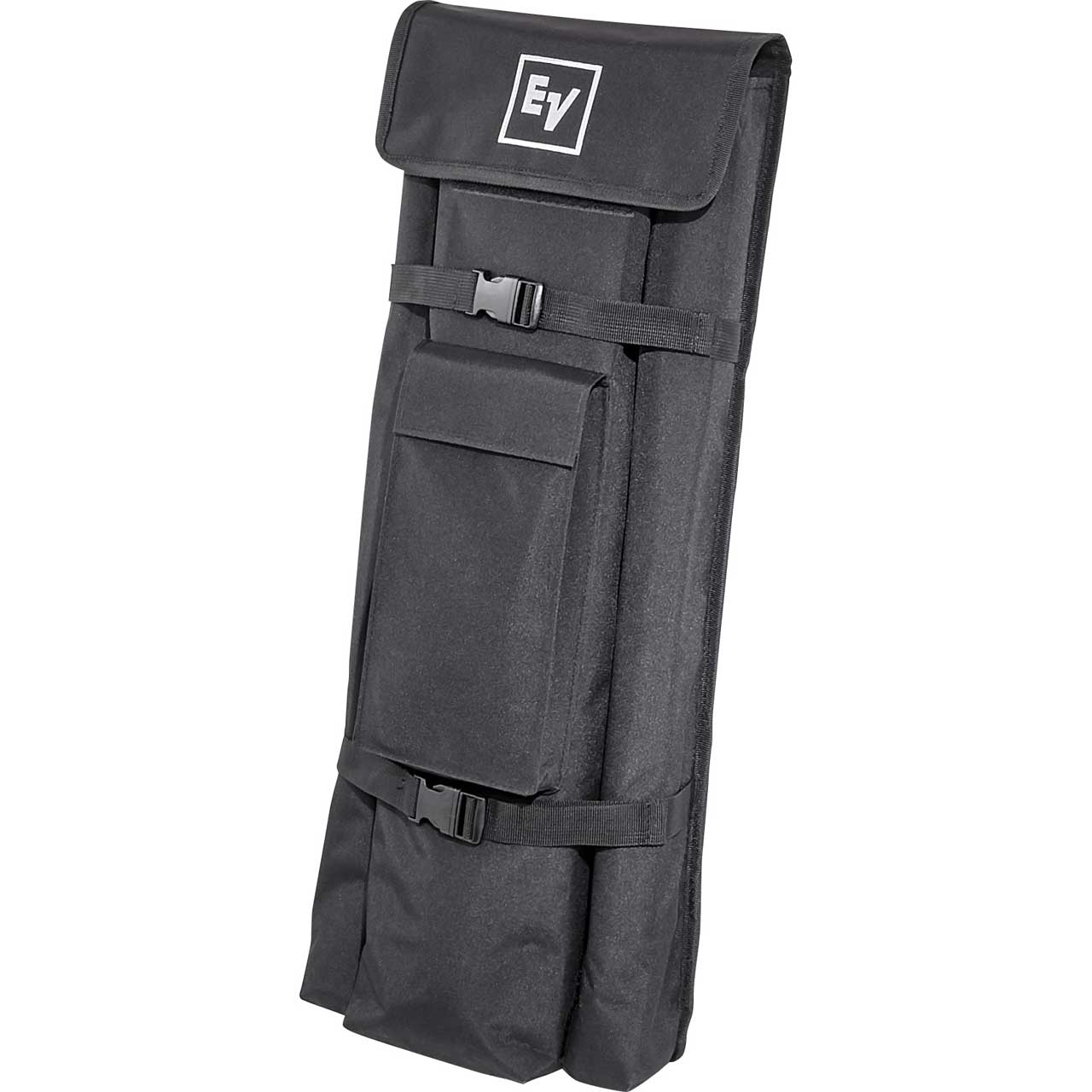

    The system includes a speaker array, a two-piece pole connector, an array and pole backpack carry case, and a powered subwoofer - all made to pack up and assemble quickly, look great on stage, and withstand real-world wear and tear.

    All this makes it an outstanding choice for solo musicians/performers and smaller musical groups and venues - or any application that needs an easy-to-use, highly portable and lightweight system with extraordinary connectivity, control, coverage and output relative to its footprint.

    For events such as weddings, the mixer allows the same system to support the various mics and inputs required for participants, musicians, and background music during the day, all with plenty of power to fill the dance floor for a DJ set or live performance in the evening.

    Refined industrial design, professional-grade EV-engineered components and premium build quality - super-quick setup and single-trip portability in a system that looks as good as it sounds

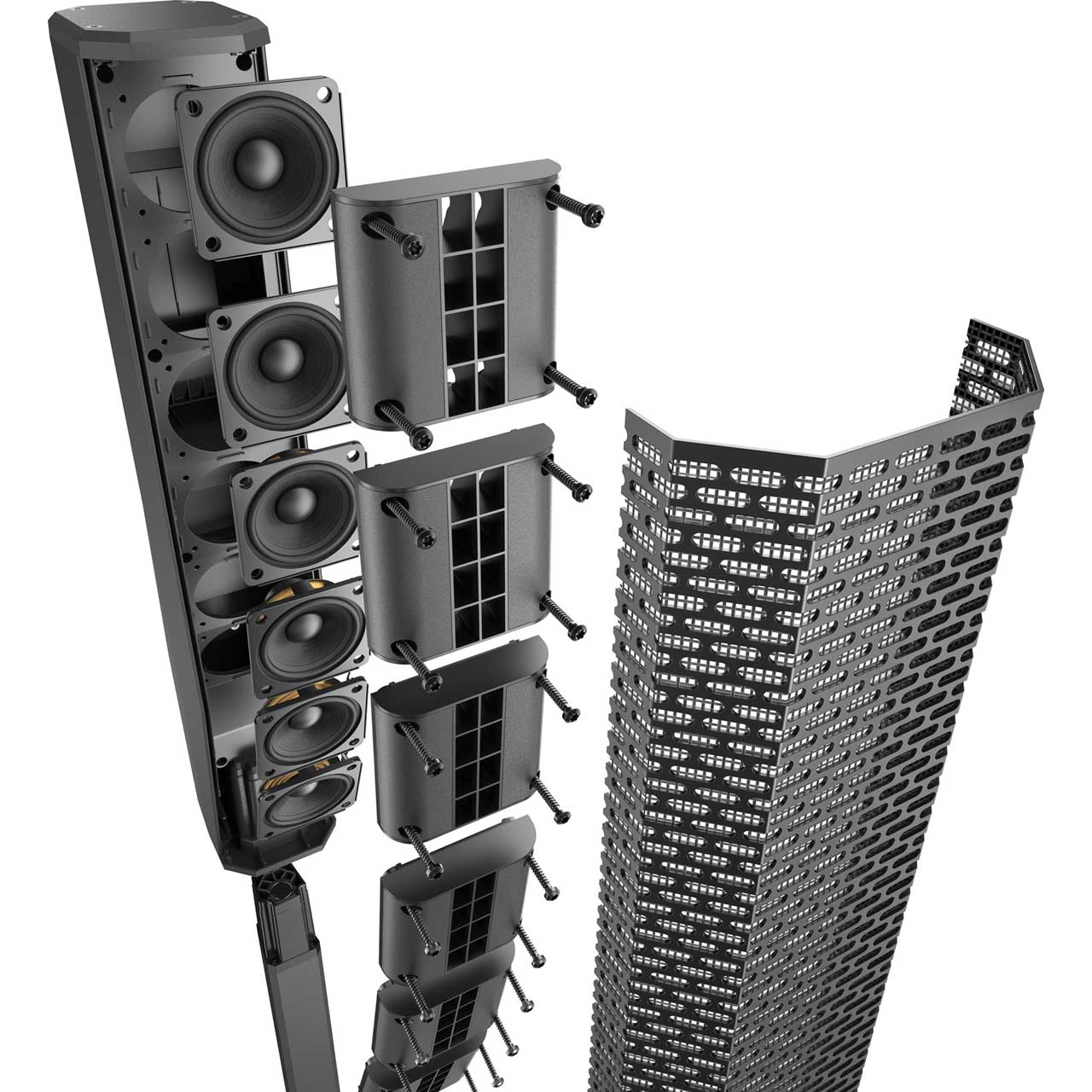

    All set the EVOLVE 30M apart from other systems at its price point. The full-range column array and its six lightweight 2.8" neodymium drivers provide ultra-wide 120° coverage via proprietary waveguides; array-formed 40° asymmetrical vertical coverage ensures acoustic output is directed towards both sitting and standing audience members. The array enclosure is constructed from a durable composite material and incorporates an ergonomic aluminum handle. It is acoustically optimized using four tuning ports hidden out of sight on the rear of the enclosure.

    A 10" subwoofer is housed in a 15 mm wood enclosure with a high-efficiency laminar-flow vent design, for enhanced rigidity and acoustical performance. The array and sub are connected via a two-piece symmetrical aluminum pole with internal wiring and magnetically assisted latching. An advanced Class-D amplifier provides up to 1000 W of power: 500 W to the subwoofer and 500 W to the column array. The speakers are protected by a black powder-coated 18-gauge steel grille. Combined, these elements generate a genuinely impressive performance-to-size ratio in an elegant form factor that looks as good as it sounds.

    Industry-leading QuickSmart DSP - optimize every detail of your sound via the control panel or via the app from across the room
    QuickSmart DSP allows navigation of system parameters via an LCD with single-knob control, as well as multiple options for signal routing and inputs. Functions include four presets (Music, Live, Speech, Club), three-band system EQ (low, mid, high), seven-band graphic EQ (in Mixer mode), five user-programmable presets (Store and Recall settings), phantom power, visual monitoring of limiter status, input level control and meters, and a master volume control to optimize gain structure.

    All of the above audio functions can also be controlled via the QuickSmart Mobile app - precisely adjust your system's sound from across the room, hearing what the audience hears. The fully configurable app has an intuitive, easy-to-read user interface and utilizes Bluetooth* Low Energy (BTLE) technology for the adjustment and monitoring of all parameters of up to six EVOLVE 30M systems simultaneously. EVOLVE 30M offers simple or sophisticated operation according to application, making great sound easy for users of all levels.

    • Features:

      • Mix your show like a pro
      • Optimize every detail of your sound
      • Room-filling coverage
      • Super-quick setup
      • Single-trip portability

    • Specifications:

      • Frequency response (-3 dB): 51 Hz to 20 KHz
      • Frequency range (-10 dB): 45 Hz to 20 KHz
      • Maximum SPL: 123 dB
      • Coverage (H x V): 120° x 40°
      • Amplifier rating: 1000 W
      • LF channel rating: 500 W
      • HF channel rating: 500 W
      • Crossover frequency: 200 Hz

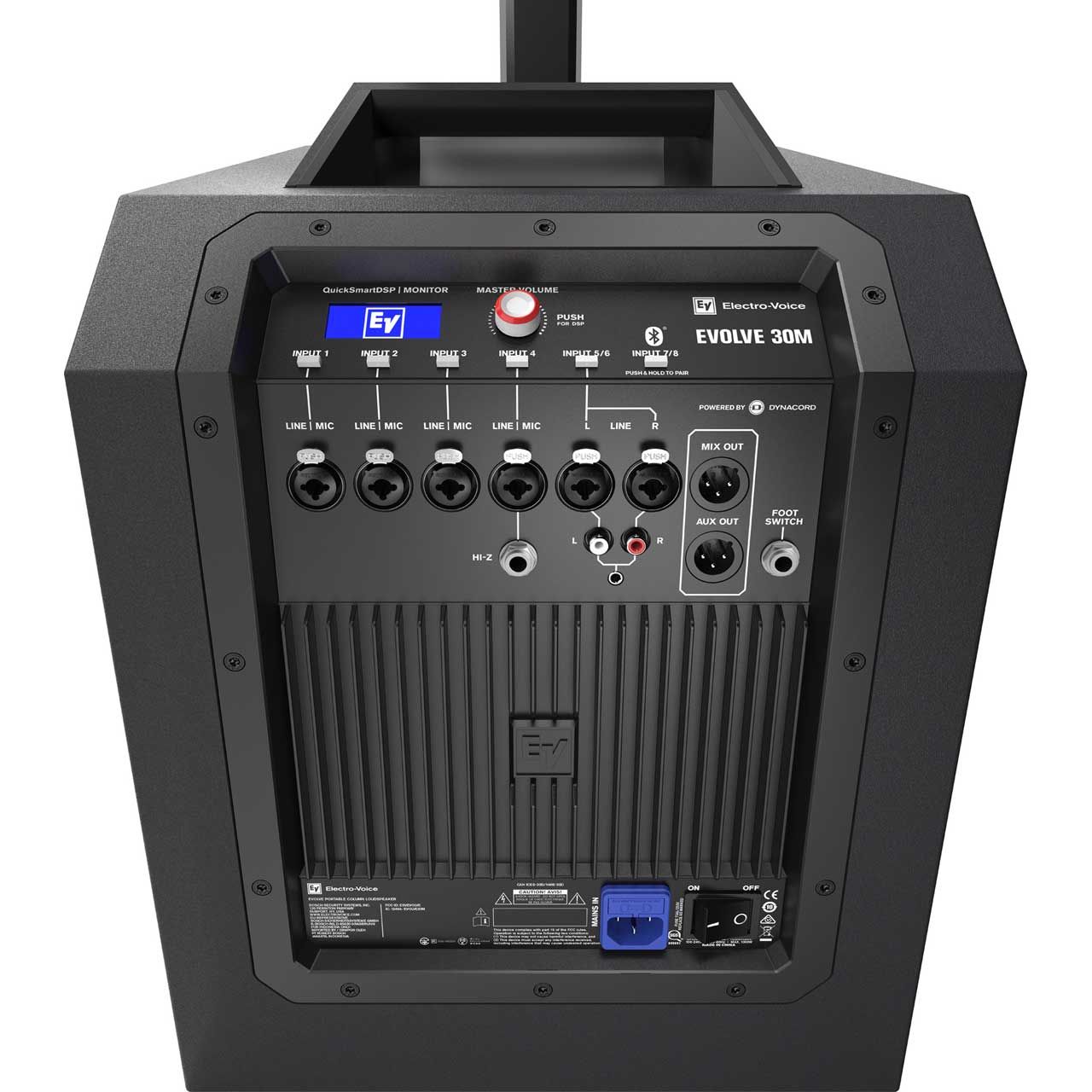

      • Connectors:
        4x XLR/TRS Combo Jack Line / Mic Input
        1x 1/4" TRS HI-Z input
        2x XLR/TRS Combo Jack for Stereo Line Input
        1x Stereo RCA Input
        1x 3.5 mm Stereo Input
        1x Wireless Stereo Bluetooth® Audio Input
        1x 1/4" Foot Switch Input
        1x XLR MIX OUT Output
        1x XLR AUX OUT Output
      • Enclosure:
        Sub: 15 mm plywood
        Column: Composite
        Pole: Aluminum
        Grille: Steel with black or white powder coat
        Color: Black or white
      • Dimensions (HxWxD):
        Sub: 17.6 x 13.1 x 17" (448 x 332 x 432mm)
        Column: 24.4 x 3.7 x 6.2" (620 x 95 x 157mm)
        Pole (2 pcs): 23.6 x 1.9 x 2.2" (600 x 48 x 55mm)
      • Net weight:
        Sub: 34.9Lbs (15.8kg)
        Column: 6.0 lb (2.7kg)
        Pole (2 pcs): 3.1Lbs (1.4kg)
        Bag for column and pole: 1.9 (0.85kg)
        Shipping weight: 53.4Lbs (24.2kg)
      • Power consumption: 100-240V AC, 50-60Hz, 1.5-0.6 A

    • GTIN:

      0800549950299
