Electro-Voice EVF-215S G2 Dual 15-Inch Indoor Subwoofer - Black

ITEM #: EV-F01U417988 MFG #: F.01U.417.988

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$3,333.00

Our Price:

$2,899.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Shipped truck freight.


F.01U.417.988 - Overview

Introducing the long-anticipated second-generation of EVF loudspeaker from Electro-Voice. EV's most versatile pointsource lines for short to medium-throw applications launched in 2008 is now updated to perform even better in all point-source projects.

From mid-sized stadiums, performing arts spaces, and theaters, to high-SPL music venues or houses of worship, EVF G2 has been fully redesigned with modern components and processing to elevate the quality of an installation at a better value than ever before.

While EVF G2 inherit external dimensions from its 1st generation equivalent, every other aspect has been redesigned from scratch for better performance. Completely new in-house EV transducers, low-loss crossovers, EV's highest performance HF horns ever, flat-phase FIR presets with <10ms of system latency, new ergonomic wiring input panels, and so on.

Every detail of each model has been carefully considered to deliver not just a light refresh but a reimagining of how much performance is possible from a two-way loudspeaker at this price class.

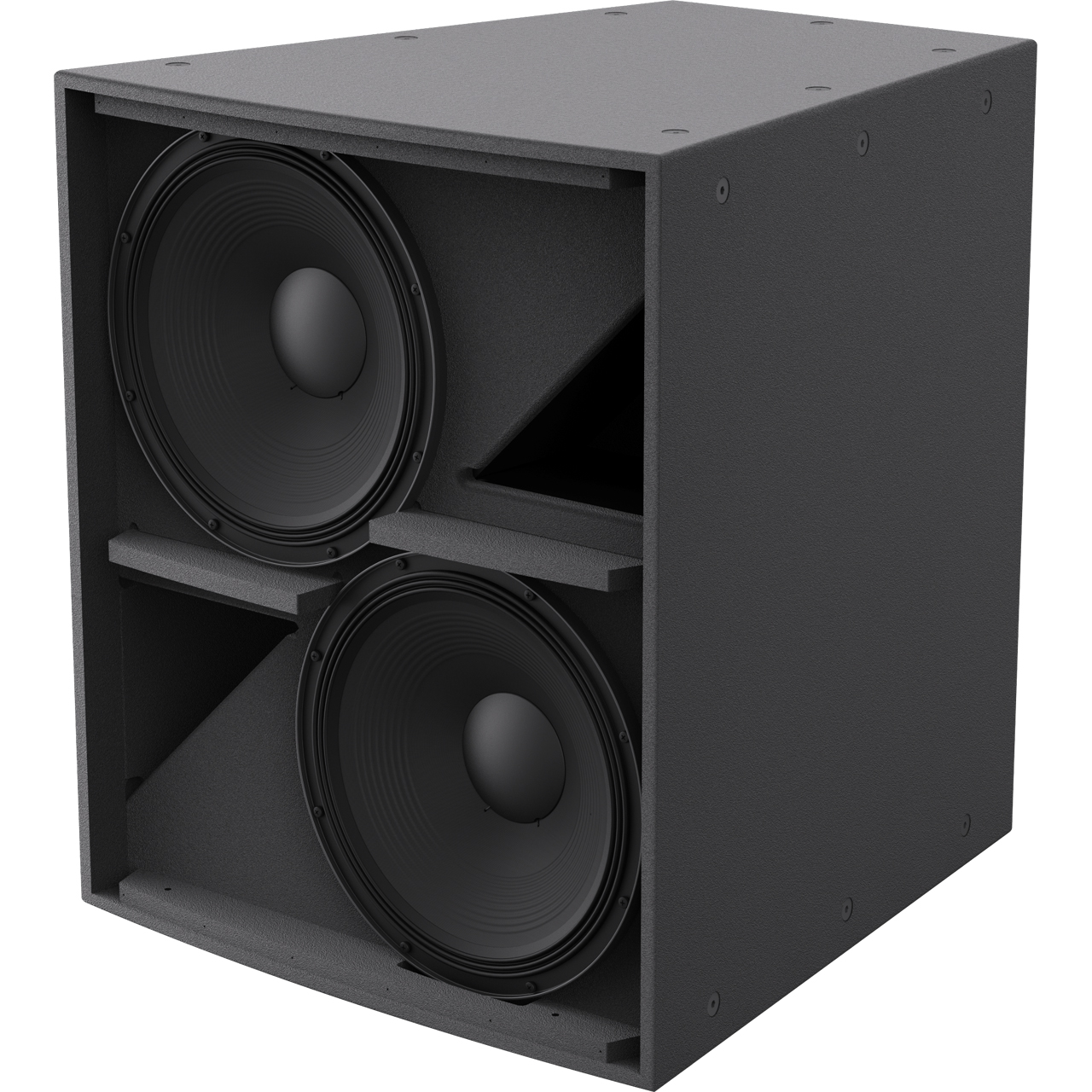

The EVF-215S G2 is an upgraded version of the previous generation subwoofer, including all-new EV drivers and a low-frequency extension that goes down to 32Hz. Provided in black and white colors, EVF-215S G2 offers four dual 15" subwoofers certified to IP55. This water and dust protection is valid with the moisture resistant cover installed and a minimum 5° down tilt. Fully weatherized models are also able to handle full exposure to the elements, including high salt marine environments.

The new single-step polyurea paint provides a consistent, higher performance exterior across multiple product families. The brand new white paint offers reliable UV performance and bright RAL9003 color.

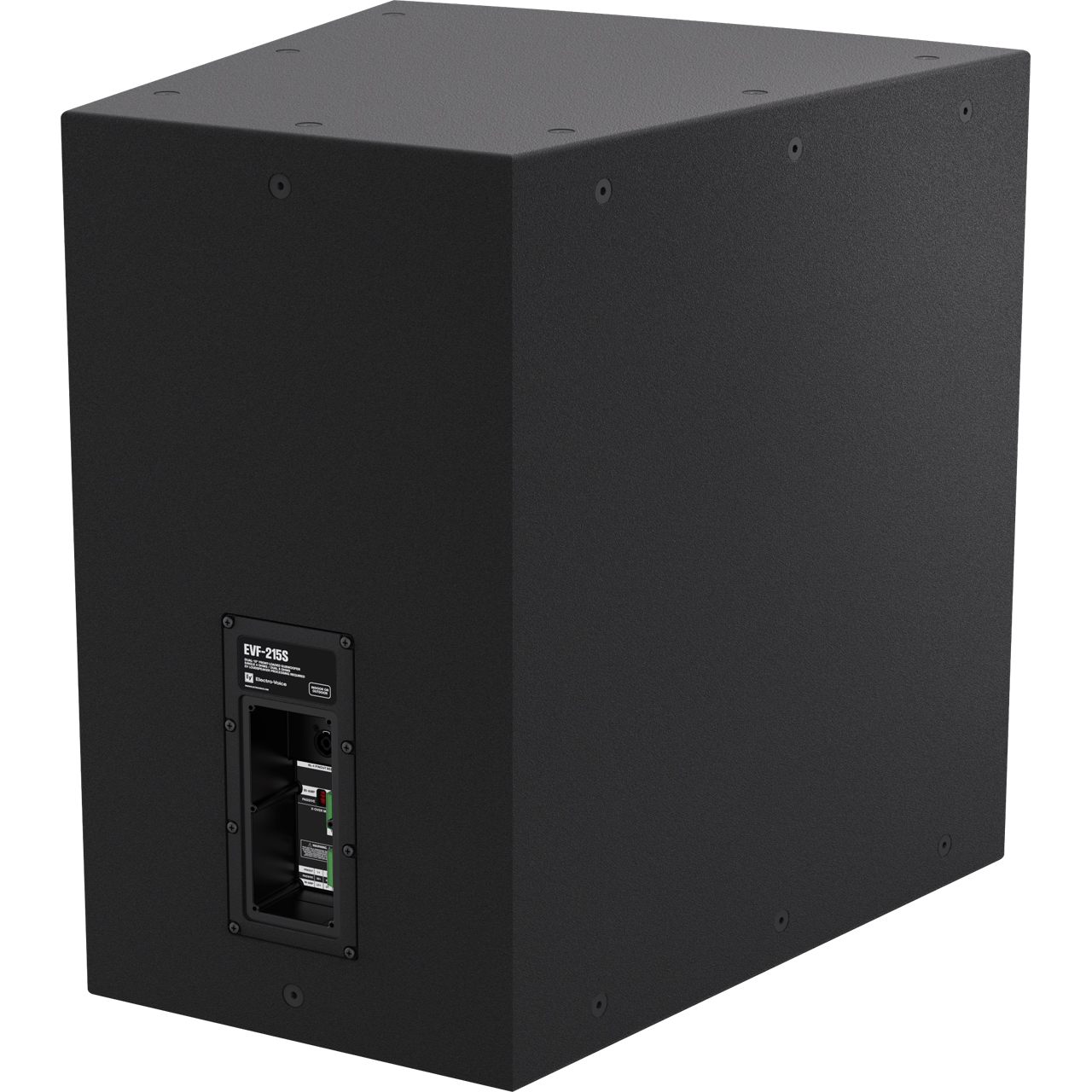

Suspension options include eyebolts and rigging kits. Four Omni-mount points on the rear of the enclosure also provide on-cabinet mounting option for compatible accessories.

  • Features:

    • New EV transducers and low-loss crossover, nextgen low latency FIR presets
    • Indoor and outdoor (FW) options available

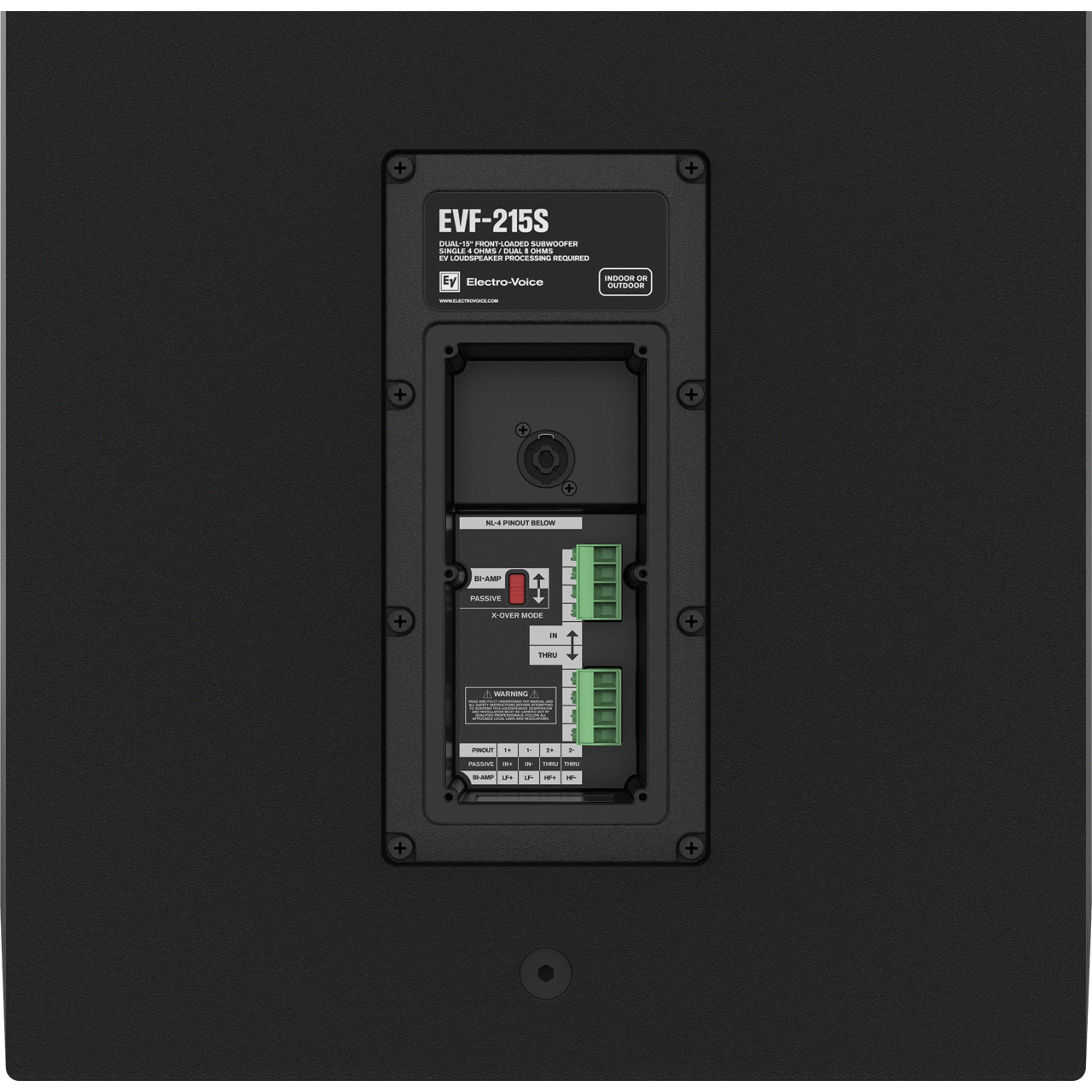

    • Removable Euroblock connections and built-in NL4-connection, and new mounting option for fullrange models

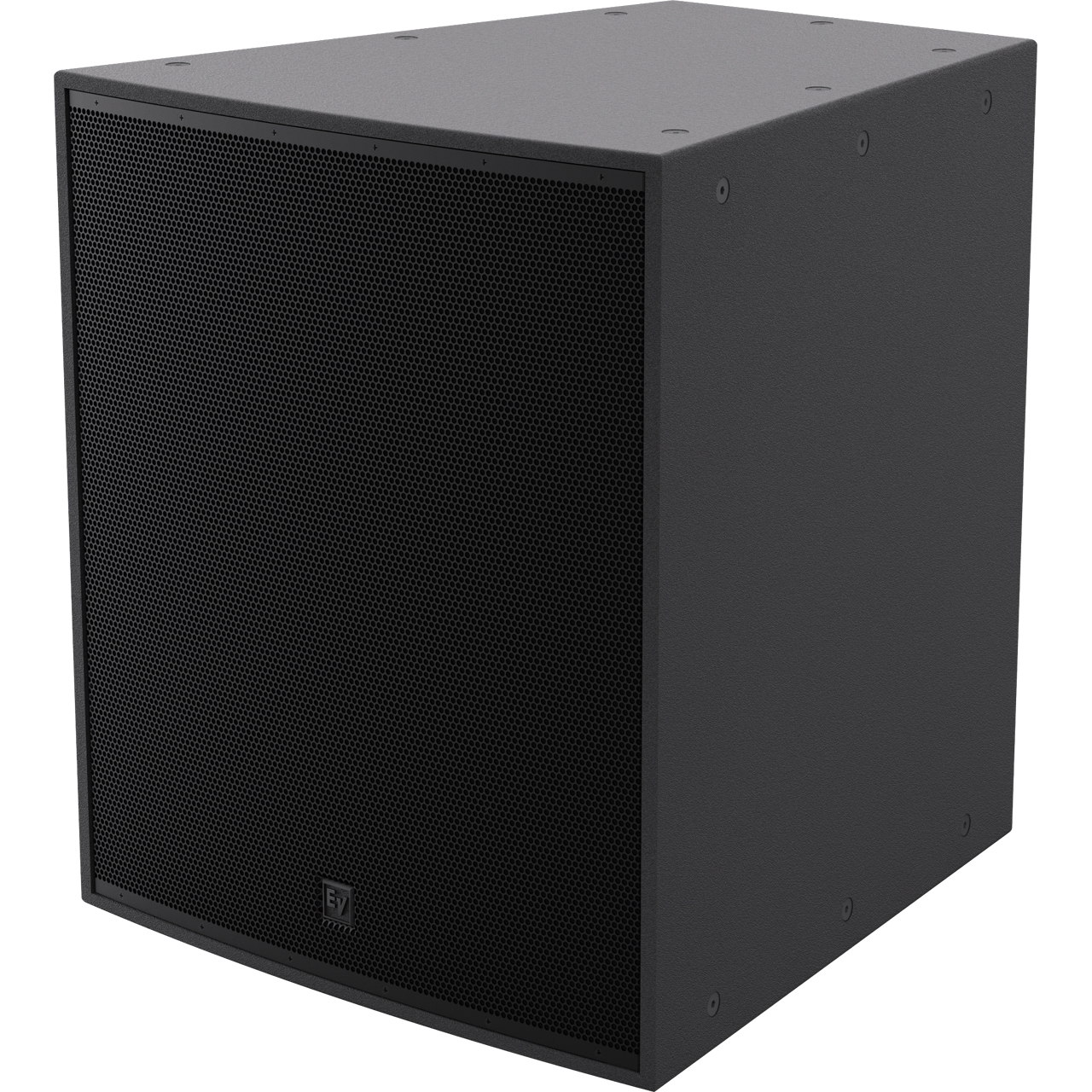

    • Updated grille design withstands high-SPLs while wet, and is fully front-serviceable

  • Specifications:

    • Frequency Response (-3dB)1: 38Hz - 100Hz
    • Frequency Range (-10 dB)1: 32Hz - 140Hz
    • AES75 Linear SPL2: 126dB
    • AES75 Peak SPL2: 137dB
    • Nominal Coverage: 360°
    • Power Handling (continuous): 800W
    • Power Handling (program): 1600W
    • Peak Input Voltage: 130V
    • Nominal Impedance3:
    • Nominal Impedance4:
    • Minimum Impedance3: 3.4Ω
    • Minimum Impedance4: 6.8Ω
    • Preset High-Pass: 32Hz
    • Connector Type: 10 AWG Euroblock, NL4
    • Suspension Points: 28x M10 rigging points
    • IP Rating5: IP55
    • Operating Temperature: -4°F - 122°F(-20°C - 50°C)
    • Storage Temperature: -40°F - 140°F (-40°C - 60°C)
    • Color: Black (RAL9005)
    • Dimensions (HxWxD): 30.3" x 26.5" x 28.6" (769mm x 674mm x 726mm)
    • Weight: 152lbs (69kg)
    • Shipping Weight: 203.5lbs (92.5kg)
    • Included Hardware: Dual gland nut cover plate

      1: 100 Hz preset, measured in full-space (4π)
      2: Half space, measured per AES75-2023
      3: Parallel
      4: Dual
      5: Only FW models in outdoor, wet, or salty environments
