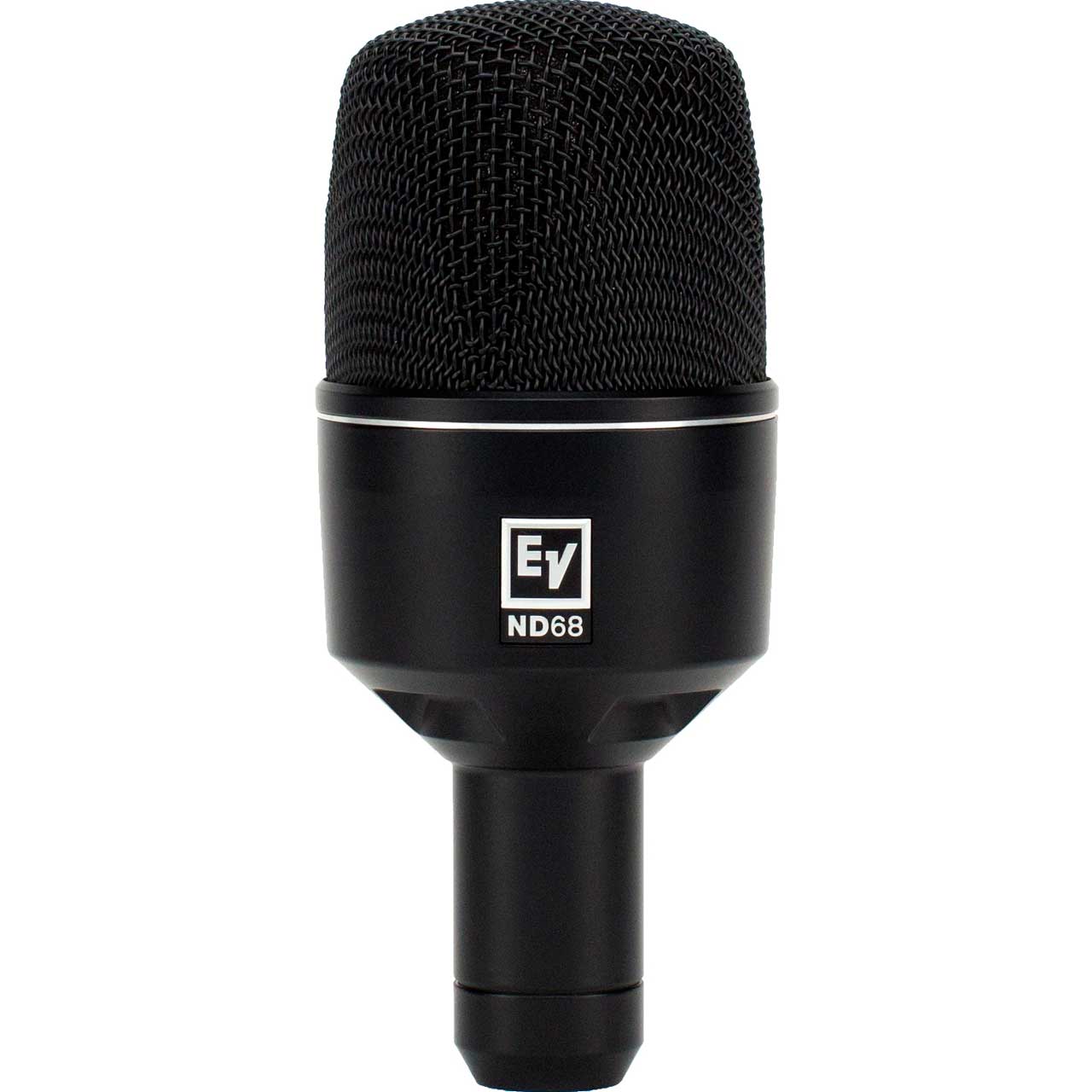

Electro-Voice ND68 Supercardioid Kick Drum Microphone

ITEM #: EV-ND68 MFG #: ND68

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$225.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    ND68 - Overview

    The ND Series instrument models are an excellent choice for both live sound and studio work. Three dynamic models and one small-diaphragm condenser model are available, each optimized for their applications by polar pattern, capsule voicing and mechanical design.

    The ND68 supercardioid, dynamic kick drum microphone is voiced to deliver a powerful kick drum sound with little or no additional equalization required. Offering extended low frequency response and extremely high sound pressure level handling, it is also highly effective when used on other bass instruments.

    Each ND Series model is equipped with features that are unique to both its price point and its particular application - all designed to offer superior sound quality, acoustic control and robustness. At the heart of the new dynamic models is a new large-diaphragm capsule design which takes the technology of the original N/Dym capsule to new levels of sonic performance. Vocalists can select a specific ND Series model to provide optimal results according to venue size and/or stage volume. Sound engineers and musicians will benefit from an easy set-up due to innovative mechanical solutions that solve typical instrument mic placement challenges. The series features dent-resistant Memraflex grilles, humbucking coils to guard against EMF noise and shock-mounted capsules to minimize handling noise.

    • Features:

      • Humbucking coil guards against line hum: Use with confidence near speaker cabinets and EMF-generating equipment racks
      • Memraflex grille resists denting: Durable tight-mesh grilles withstand extraordinarily rough treatment
      • Voiced for kick drums: Gives you tight lows, relaxed mids and snappy highs
      • Extended low frequency response: Captures and delivers the deep low end necessary for kick drums and other low frequency instruments like bass guitar cabinets and large toms
      • Extremely high SPL handling capability: Manages close miking of high SPL transients and RMS wave fronts up to 144 dB SPL

    • Specifications:

      • Audio Frequency Response: 20 - 11,000
      • Case Material: Die cast zinc
      • Connector Type: 3-pin XLR
      • Diameter (Max): 2.39"
      • Element: Dynamic
      • Finish: Black polyurethane paint
      • Impedance, Low-Z balanced: 150 Ω
      • Maximum SPL: > 140 dB
      • Mic Type: Instrument
      • Open Circuit Voltage: 0.8 mV/Pascal
      • Polar Pattern: Supercardioid
      • Power Requirement: Passive
      • Wired/Wireless: Wired
      • Height: 5.63"
      • Weight Net: 0.87

    • Item Includes:

      • ND68 microphone
      • Stand clamp
      • Carry case

    • GTIN:

      0800549806299
