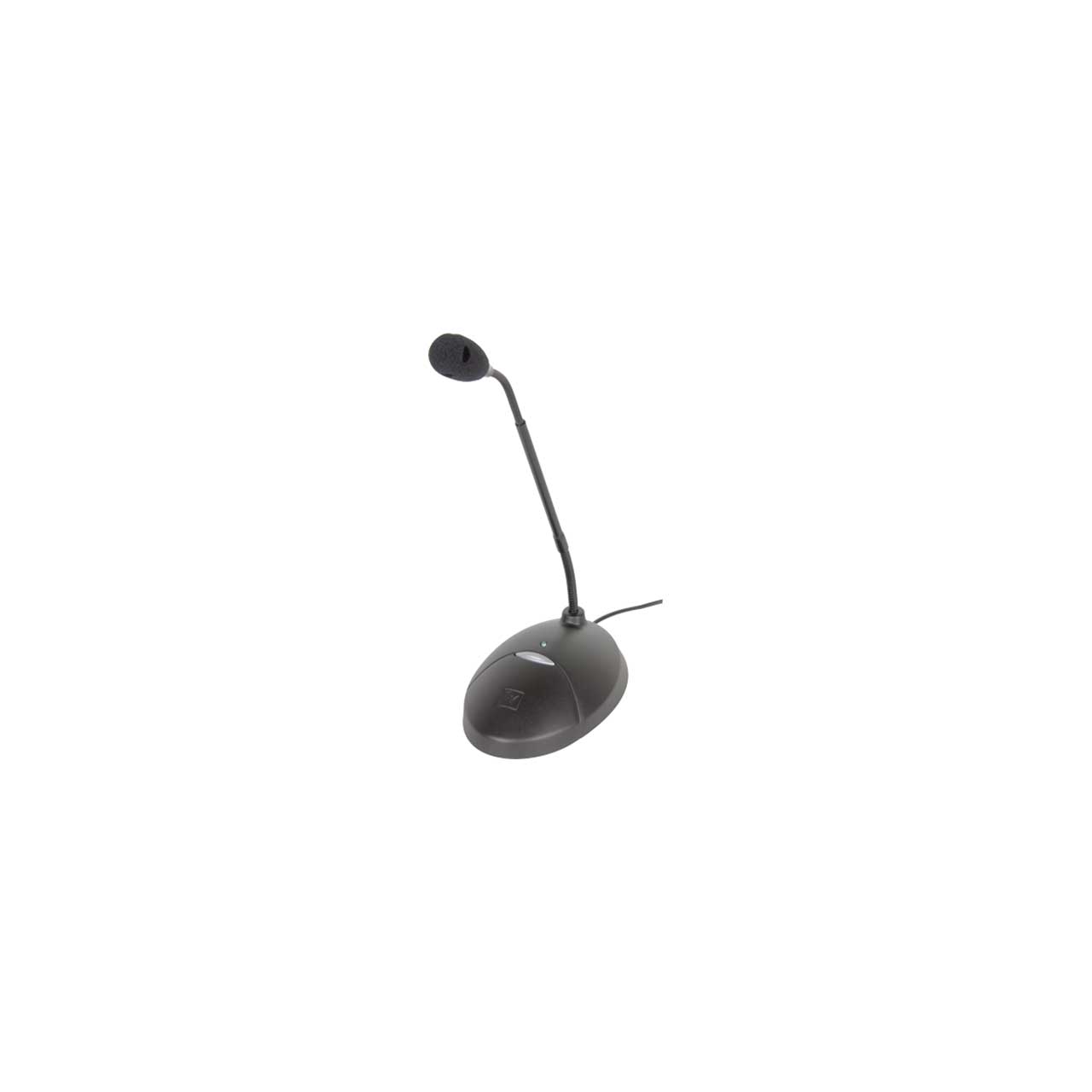

Electro-Voice PC Desktop-18RD PolarChoice Series - Multi-Pattern Desk Microphone with Automatic Mixer Logic

ITEM #: EV-PCDESKTOP18RD MFG #: F.01U.164.301

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the EV-PCDESKTOP18RD

F.01U.164.301 - Overview

The Electro-Voice PC Desktop-18RD is a high quality desk microphone that can be used with both standard and automatic mixers.

The PC Desktop-18RD features the exclusive EV PolarChoice miniature multi-pattern gooseneck microphone. The multipattern versatility of the PolarChoice microphone makes it a true "problem solver". With one non-directional and 3 directional
polar patterns available, the PolarChoice microphone is ideal for virtually any installation. The PC Desktop-18RD also includesa switchable high pass filter that helps reduce any vibration induced noise pickup.

The PC Desktop-18RD features a large push button mute switch that has a much better "feel" than membrane switches. The
mute button can be configured for push-on / push-off, push-to-talk, or push-to-mute function. Switch programming is easily
accomplished without disassembling the microphone. A switch on the bottom quickly converts the PC Desktop-18RD to automatic mixer mode. In this mode, audio is always on.

  • Features:

    • Easy switching between omni, cardioid, supercardioid, or hypercardioid patterns
    • Mute switch with LED can be programmed as either push on/off or push-to-mute
    • Smooth, uniform frequency response in all patterns
    • Extended low-frequency response and switchable high-pass filter
    • Sturdy steel base

  • Specifications:

    • Connector Type: 3-pin XLR
    • Height: 13.54" (344mm)
    • Width: 4.49" (114mm)
    • Depth: 7.01" (178mm)
    • Frequency Response (-3 dB): 50 - 20,000 Hz
    • Weight Net: 24.34oz (690g)
    • Family: PolarChoice
    • Polar Pattern: Omni, Cardioid, S-cardioid & H-cardioid
    • Wired/Wireless: Wired
    • Mic Type: Gooseneck
    • Diameter (Max): 0.25" (6.4mm)
    • Element: Dual condenser (back-electret)
    • Impedance, Low-Z balanced: 200Ω
    • Open Circuit Voltage: 5.6mV/Pascal
    • Case Material: Steel
    • Finish: Non-reflective camera black
    • Power Requirement: 12 - 52 VDC
