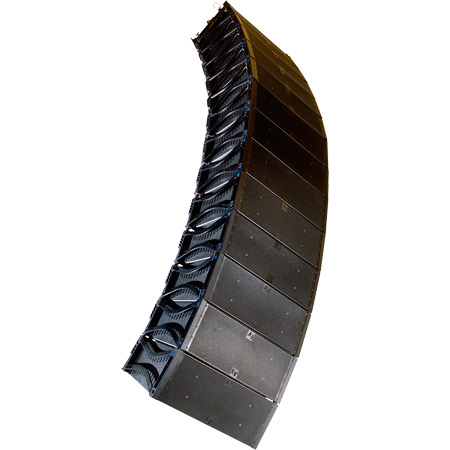

EV XLC127DVX 3-way Compact Line Array
  • EV XLC127DVX 3-way Compact Line Array
  • EV XLC127DVX 3-way Compact Line Array
Questions? Ask a Markertek Expert:
800-522-2025 Email

EV XLC127DVX 3-way Compact Line Array

Manufacturer: Electro-Voice

Item #: EV-XLC127DVX   •   MFG #: XLC127DVX


List Price:$6,209.00
Our Price:$5,970.00

no free ship
Availability: Direct Ship From Manufacturer
Item ships directly from the manufacturer. Normal delivery time is 2-7 business days and is subject to manufacturer availability. Need it sooner? Call 800-522-2025, or email Customer Service for expedited delivery options.
  • Drop-shipped (normal delivery time 2-7 business days) shipping truck freight. (Sales tax may apply)



The XLC family is designed to provide the highest quality performance for a variety of applications. It is comprised of two full range systems; XLC127DVX (120° line-array element), XLC907DVX (90° line-array element), and two subwoofers; XLC118, XLC215. The XLC127DVX uses a DVX3121, two DVN2065 neodymium midrange transducers, and two ND6 high frequency transducers. The DVX3121 is a high performance low frequency transducer with forced air, directional voice coil cooling for high power and efficiency. The suspension and magnetic circuit were optimized for long, linear travel to provide low distortion and greater LF extension in a lightweight transducer. The DVN2065 transducer utilizes neodymium to provide very high output with lightweight and lower distortion. The 3-Way design is comprised of; a 12" vented LF, 2 x 6.5" MF transducers on a 120° horizontal waveguide, and 2 x 3" HF transducers combining through Hydras on a 120° x 7° waveguide. It can be used in tri-amp mode, or bi-amp 3 -way using the optional sophisticated internal 24 dB/octave passive MF to HF network. The asymmetrical box design was optimized to produce a symmetrical polar pattern with a uniform power response. Designed for use in groups of four or more the XLC127DVX delivers predictability and control. Combined with an advanced integrated rigging system, one-man installations are a reality. XLC systems can also be ground stacked. Ideal for applications ranging from live reinforcement to performing arts venues to houses of worship, to sports facilities, XLC can deliver unprecedented performance, particularly in difficult
acoustical environments. LAPS modeling software provides quick, accurate results for array configurations and rigging information.

  • Features

    • Accurate vertical control & coverage
    • Compact, lightweight modules
    • True three-way design
    • Tri-amp operation; bi-amp operation with optional mid-high crossover
    • Quik-Rig fast and simple integrated rigging
    • Supported by LAPS II array design software
  • Specifications

    • Chassis Size 304.8 mm (12")
    • Color Black
    • Environmental Specs IEC 529 IP24, MIL STD 810
    • Input Connections 2 Neutrik NL8
    • Peak SPL @ 10m 130 dB 4 Box Array @ 10 Meters
    • Speaker Type Fullrange, Line-array, Three-way
    • Frequency Response (-3 dB) 65 - 16,000 Hz
    • Frequency Response (-10 dB) 54 - 17,000 Hz
    • Internal Crossover No
    • Sensitivity 1 W/1 m 95 LF/101 MB/111 HF dB Single Box @ 1 Meter
    • Max. SPL/1m (calc) 128/132/139 HF dB Single Box @ 1 Meter
    • Coverage (Nominal -6 dB) H 120 Ý

Add Accessories for your XLC127DVX:
