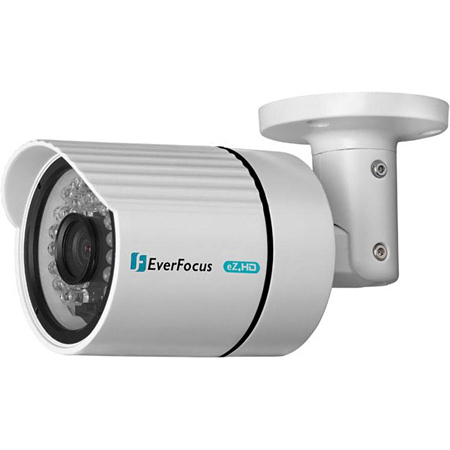

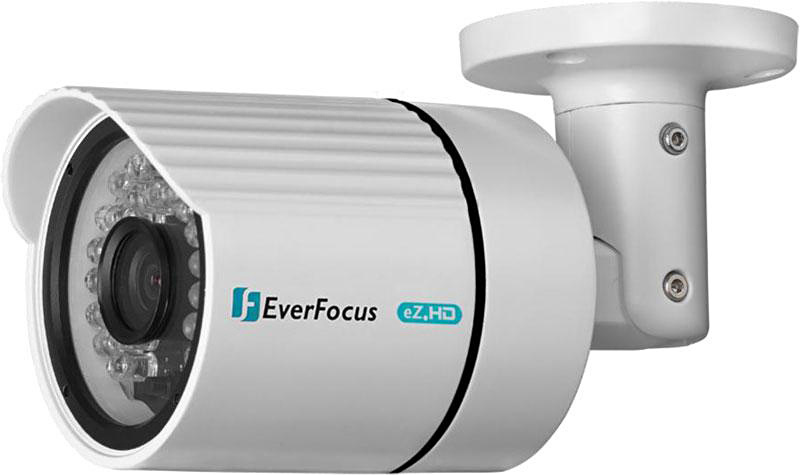

EverFocus ECZ930F 1080p Full HD True Day/Night Outdoor IR Bullet Camera

ITEM #: EVF-ECZ930F MFG #: ECZ930F

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the EVF-ECZ930F

ECZ930F - Overview

The EverFocus eZ.HD Series ECZ930F provides incredible performance in bright light or low light, and the resolution listed in the specification from the actual camera you install. To take full advantage of the amazing resolution available from this advanced imaging technology, the EverFocus eZ.HD Series ECZ930F uses a fixed lens together with 1/2.9" SONY 2.24M pixels CMOS to deliver 1080p high resolution, 30 LEDs with range of 15m/50ft., together with a useable native low light sensitivity of 0 lux without using digital slow shutter. The camera truly provides optimized images without compromising 1080p high resolution. The Digital Wide Dynamic Range function provides clear color images in the most challenging of bright or unbalanced lighting conditions. The true day/night IR enhances images in low light environments with guaranteed ZERO ghosting.

The ECZ930F camera is equipped with an IP66 weather resistant housing and a 3-axis rotation mechanical design that delivers wall or ceiling mounting flexibility. The camera also features 3.6mm/6mm lens which provides astounding image quality, a full suite of OSD Menu and DSP functions controllable at the camera (3DNR to save DVR HDD space, privacy masking, mirroring, and much more). This is the camera that you have been waiting for to create analog CCTV systems that produce astounding image clarity in a wide range of outdoor applications at the widest range of light levels. The ECZ930F supports both NTSC and PAL scanning systems, which can be switched via OSD.

  • Features:

    • 1080p Full HD with high flexibility and performance for astounding image
    • 1/2.9" Sony 2.24MP CMOS sensor, delivering amazing high sensitivity
    • Astounding image quality from the 3.6mm / 6mm lens
    • Extended IR range of up to 15m / 50ft. with 30 LEDs (Depending on scene IR reflectivity)
    • D-WDR to improve the visibility under high contrast scene
    • 3D-Noise Reduction ensures less blurry moving subjects, vivid and high SN ratio images even under low light environments
    • Supports 1080p, 720p & 960H analog signal output, which can be easily switched using
    • OSD Joystick
    • The flexible angle viewing with its 3-Axis rotation design allows wall or ceiling mounting
    • Internal wire system with anti-cut bracket
    • Supports ceiling mount and wall mount
    • eZ Controller function: Control camera OSD settings and PTZ operation directly from DVR end

  • Specifications:

    • Camera Feature
    • Horizontal Resolution: 1080p
    • Image Sensor: 1/2.9" Sony 2.24MP CMOS
    • Video Format: NTSC / PAL (Can be switched via OSD)
    • Image Pixels: 1920 (H) x 1080 (V)
    • Scanning System: Progressive Scan
    • Optical Zoom: N/A
    • Lens: 3.6mm / 6mm fixed lens
    • Sensitivity: 0 Lux with IR On
    • Shutter Time: Auto / Manual (x30 ~ 1/50,000) / FLK
      Video
    • Video Output: BNC 1Vp-p, 75Ω
    • S/N Ratio: > 48 dB (AGC OFF)
    • Gamma Correction: 0.45
    • AGC: 0 ~ 15 Levels
    • AWB: Yes
    • BLC: Off / BLC / HS BLC Selectable
    • HLC: N/A
      Function
    • White Balance: ATW / AWC-SET / Indoor / Outdoor / Manual / AWB
    • DNR: 2DNR / 3DNR, Off
    • WDR: On / Off / Auto
    • Digital Zoom: N/A
    • Privacy Mask: Off / On for 4 selectable zones
    • Motion Detection: Off / On for 4 selectable zones
    • OSD Menu: English / Simplified Chinese / Traditional Chinese / German / French / Italian / Spanish / Polish / Russian / Portuguese / Netherlands / Turkish
    • Mirror: Off / Mirror / V-Flip / Rotate
    • UTC Function: Supported
    • Defog: Off / Auto
      General
    • IR LED (units): 30 Units
    • IR Distance: Up to 15m / 50ft. (Depending on scene IR reflectivity)
    • Sync. Mode: Internal
    • Water Resistant: IP66 Weather Resistant
    • Vandal Proof: N/A
    • Power Source: 12VDC
    • Power Consumption: 3W max.
    • Operating Temperature: -10°C ~ 50°C / 14°F ~ 122°F
    • Humidity: Less than 80%
    • Dimensions: 166.7 x 66 x 66mm / 6.56" x 2.6" x 2.6"
    • Weight: 400g / 0.88lb
    • Certificates: CE, FCC, RoHS
