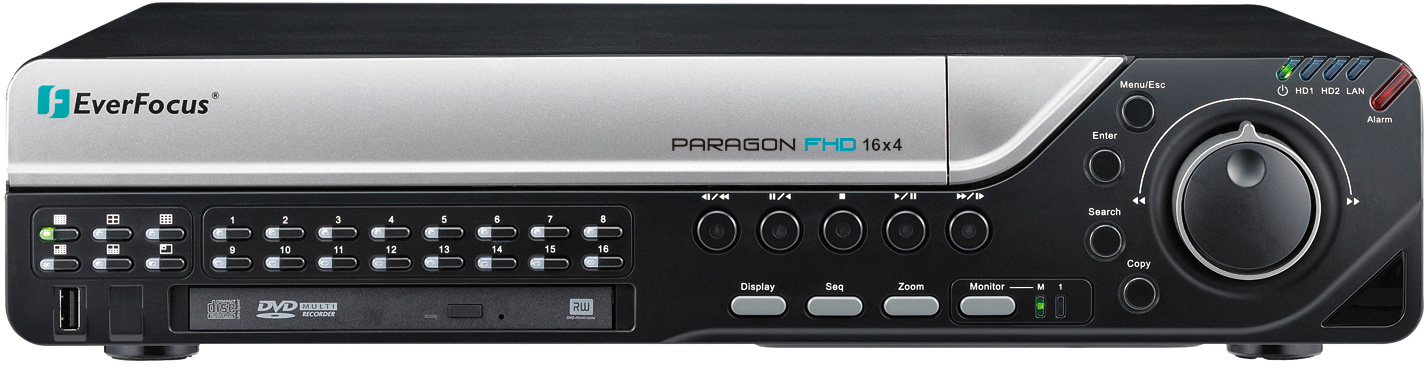

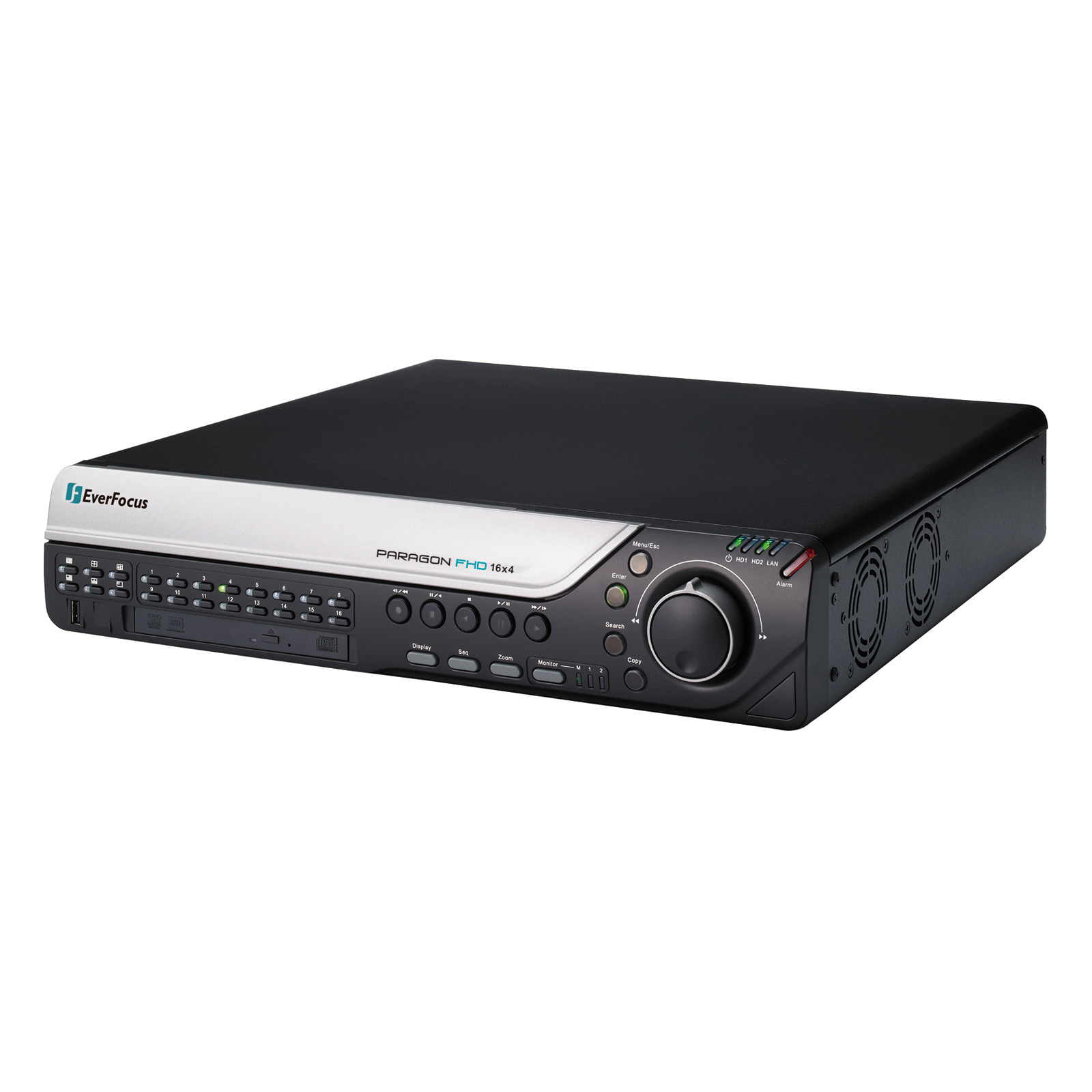

EverFocus PARAGON FHD 16×4 is our new eZ.HD series DVR, which adopts the latest Analog HD technology, permitting it to deliver excellent 1080p full HD quality images that are far superior to traditional analog CCTV. The eZ.HD series is easy to install and can integrate with the existing CCTV systems without re-cabling, so this new eZ.HD 1080p full HD video surveillance system will definitely be your best cost-effective solution.
The PARAGON FHD 16×4 DVR supports 16-channel analog video inputs with resolution ranging from D1, 960H, 720p to 1080p full HD and also features triple streams for live view, playback and recording. It can record and play back up to 480 (NTSC) / 400 (PAL) frames per second at all resolutions. In addition, this new series DVR supports both standard coaxial and UTP (Unshielded Twisted Pair) cable, allowing for long-distance transmission of full HD images with zero video latency.

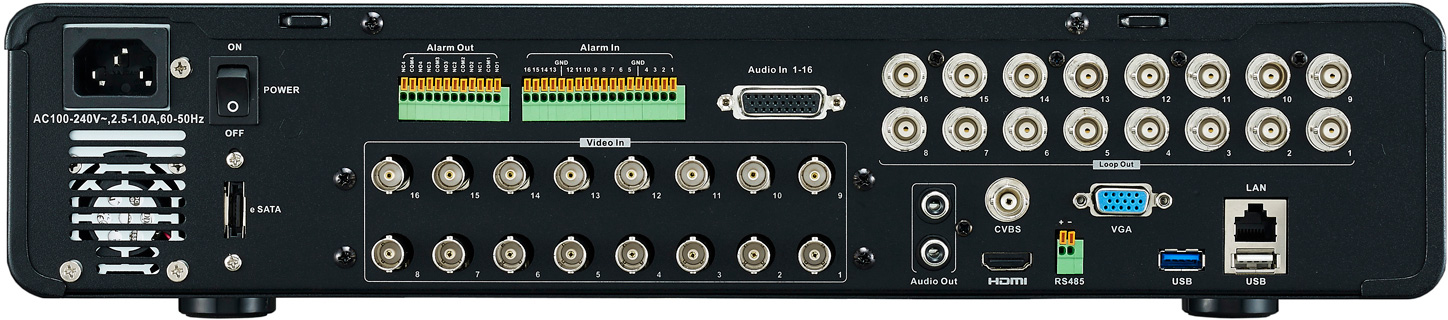

This model is designed with a high-performance hardware which has 3 video outputs (HDMI, VGA and BNC) for local monitoring, 16 video looping outputs, audio in/out, alarm in/out, RS-485 serial interface, 3 USB interfaces and 1 RJ45 (10/100) Ethernet interface. The PARAGON FHD 16×4 can also be expanded up to 5 SATA devices (4 SATA HDDs and 1 eSATA), ensuring large capacity of the eZ.HD full HD video recordings. Users can easily operate the machine using a USB mouse or via the front panel buttons and jog-dial/shuttle wheel.
Note: TVI / CVI / HD-SDI cameras are not supported.
