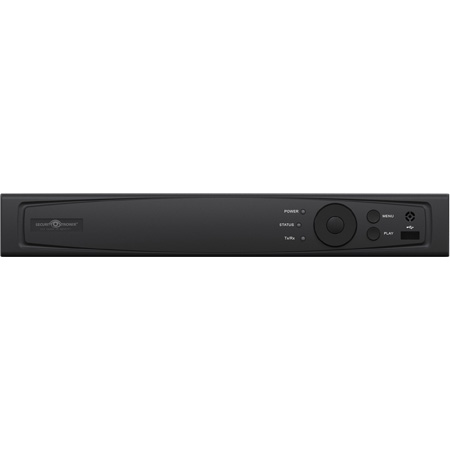

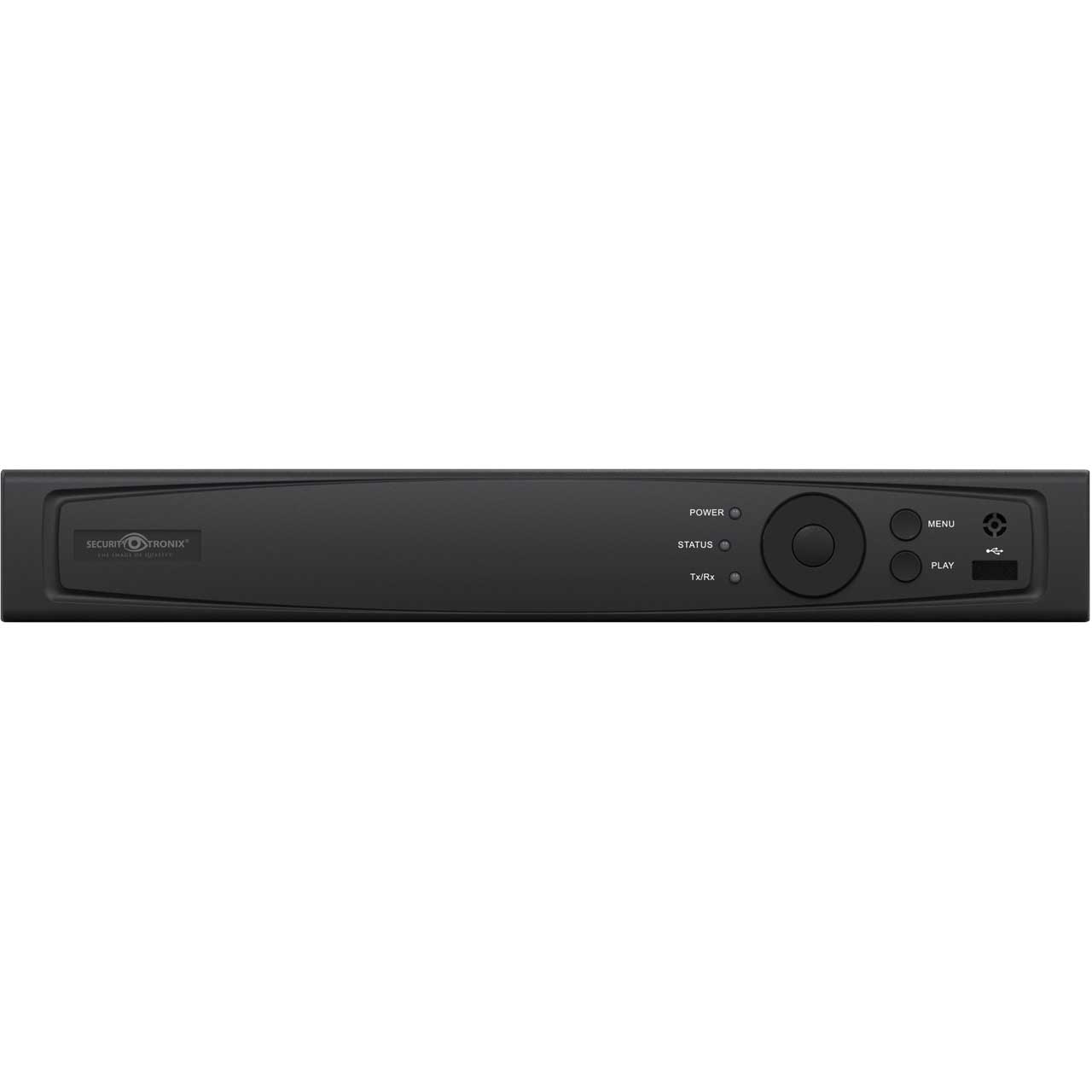

SecurityTronix ST-HDC4 4-CH Digital Video Recorder Supports HD-TVI/CVI/AHD/Analog & 1 IP Camera

ITEM #: SCT-ST-HDC4 MFG #: ST-HDC4

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$109.95

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    ST-HDC4 - Overview

    SecurityTronix ST-HDC4 DVRs support HD over Coax (TVI, CVI, AHD), IP and Analog cameras. These recorders allow you to easily upgrade legacy analog systems to HD without the need to replace the coax cable infrastructure or all of the analog cameras at once. They support 1080p camera resolutions, can transmit video signal over coax greater distances, are easy to install and affordable.

    • Features:

      • Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input
      • Up to 2-CH 4 MP IP cameras input (ST-HDC4 & ST-HDC8)
      • Long distance transmission over UTP and coaxial cable
      • H.265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub­stream of analog cameras
      • H.265+ can be enabled to improve encoding efficiency and reduce data storage costs
      • Full channel recording at up to 4 MP lite resolution
      • Simultaneous HDMI/VGA outputs
      • HDMI/VGA output at up to 1920 x 1080p resolution for ST­HDC4 and ST­HDC8? up to 4K (3840 x 2160) resolution for ST­HDC16
      • One-key recording configurable
      • All camera grid view recording allows all camera feeds to be recorded in grid view on a single channel
      • Supports real time 1080p lite resolution mode
      • Up to 4/8/16-CH synchronous playback at 1080p resolution
      • Smart search for efficient playback
      • Supports the 3rd party cloud storage (Dropbox/Google Drive/Microsoft OneDrive)
      • One SATA interface (up to 6 TB per HDD) provided for ST-HDC4 / ST-HDC8; two SATA interfaces provided for ST-HDC16
      • One RJ45 10M/100Mbps self-adaptive network interface for ST-HDC4 / ST-HDC8 and one RJ45 10M/100M/1000Mbps self­adaptive network interface for the ST­HDC16
      • P2P & DDNS (Dynamic Domain Name System)
      • Supports multiple VCA (Video Content Analytics) events for both analog and smart IP cameras
      • ST-HDC4 & ST-HDC8 support 4-CH line crossing detection and intrusion detection; ST-HDC16 supports 4-CH line crossing detection and intrusion detection, and 1­ch sudden scene change detection
      • VQD (Video Quality Diagnostics)
      • Supports PTZ control
      • Central management software

    • Specifications:

      • Video/Audio Input
      • Video Compression: H.265+/H.265/H.264+/H.264
      • Analog video Input: 4-CH - BNC interface (1.0 Vp-p, 75Ω), supporting coaxitron connection
      • HDTVI Input:
        4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
        Note: The 3 MP signal input is only available for channel 1 of the ST-HDC4, for channel 1/2 of the ST-HDC8, and for channel 1/2/3/4 of the ST-HDC16.
      • AHD Input: 4 MP, 1080p25, 1080p30, 720p25, 720p30
      • HDCVI Input: 1080p25, 1080p30, 720p25, 720p30
      • CVBS Input: PAL/NTSC
      • IP video Input: 1-CH, Up to 4 MP resolution, Supports H.265+/H.265/H.264+/H.264 IP cameras
      • Audio Compression: G.711u
      • Audio Input: 1-CH, RCA (2.0 Vp-p, 1KΩ)

        Video/Audio Output
      • CVBS Output: 1-CH, BNC (1.0 Vp-p, 75Ω), resolution: PAL: 704 x 576, NTSC: 704 x 480
      • HDMI/VGA Output: HDMI: 1-CH, 4K (3840 x 2160)/30Hz, 2K (2560 x 1440)/60Hz, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
      • Encoding Resolution:
        When 1080p Lite mode not enabled: 4 MP lite/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
        When 1080p Lite mode enabled:
      • 4 MP lite/3 MP/1080p lite/720p lite/WD1/4CIF/VGA/CIF
      • Frame Rate - Main Stream - When 1080p Lite mode not enabled:
        For 4 MP Stream Access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
        For 3 MP Stream Access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps
        For 1080p Stream Access: 1080p@15fps; 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
        For 720p Stream Access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
      • Frame Rate - Main Stream - When 1080p Lite mode enabled:
        4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
        Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
      • Video Bit Rate: 32 Kbps to 6 Mbps
      • Audio Output: 1-CH, RCA (Linear, 1KΩ)
      • Audio Bit Rate: 64 Kbps
      • Dual Stream: Supported
      • Stream Type: Video, Video & Audio
      • Synchronous Playback: 4-CH

        Network Management
      • Remote Connections: 32
      • Network Protocols: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF

        Hard Disk
      • SATA: 1 SATA interface
      • Capacity: Up to 6TB capacity for each disk

        External Interface
      • Two-way audio Input: 1-CH, RCA (2.0 Vp-p, 1 KΩ) (using the 1st audio input)
      • Network Interface: 1, RJ45 10M/100M self-adaptive Ethernet interface
      • USB Interface: 2x USB 2.0
      • Serial Interface: RS-485 (half-duplex)

        General
      • Power Supply: 12 VDC
      • Consumption (without HDD): <6W
      • Operating Temperature: 14° to 131°F (-10° to 55°C)
      • Operating Humidity: 10 to 90%
      • Dimensions (WxDxH): 12.4 x 9.5 x 1.8" (315 x 242 x 45mm)
      • Weight (without HDD): 2.6Lbs (1.16kg)
