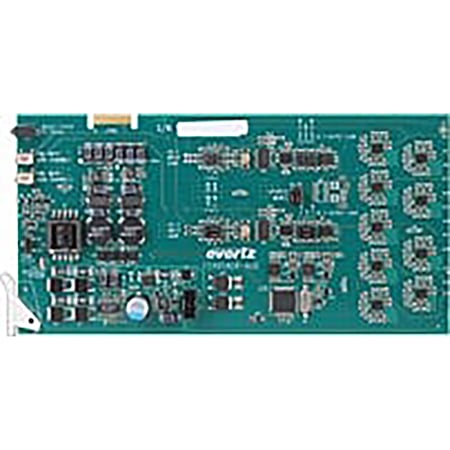

Evertz 400ADA-AUD 1x9 Analog Audio Distribution Amplifier Module For The 400FR

400ADA-AUD - Overview

• Features:

  • Differential and single ended input (automatic single ended to differential conversion)
  • High impedance inputs
  • Low impedance inputs
  • Wide gain adjustment range
  • High common mode range and common mode rejection ratio
  • Very high SNR
  • Very low THD+N
  • Module status/Local fault
  • Power supply status


• Specifications:

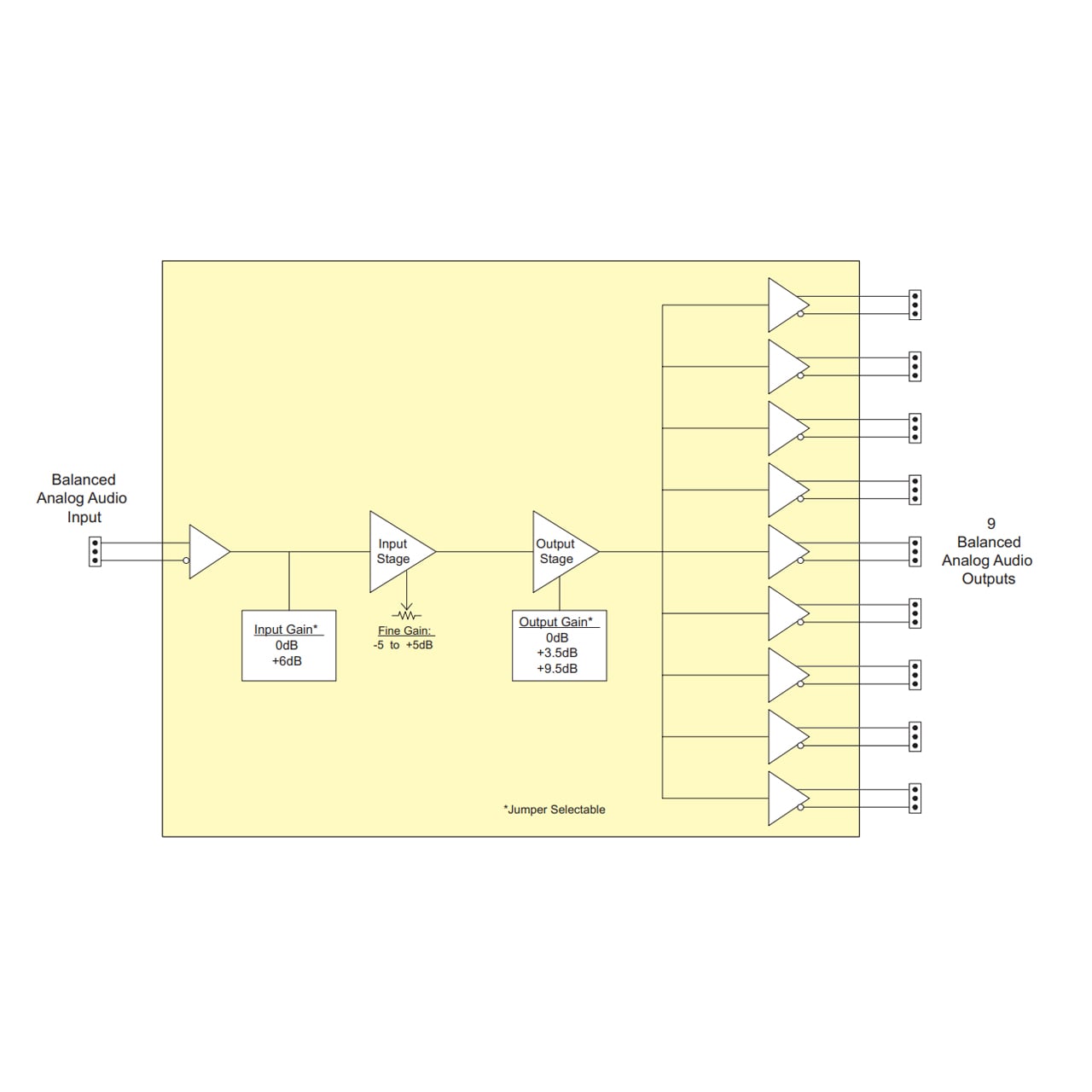

  Analog Audio Input
  • Standards: Any analog audio signal
  • Number of Inputs: 1x (Balanced of Single ended)
  • Connector: 3-pin removable terminal strip
  • Input Step Gain: 0dB or +6dB (configurable with jumpers)
  • Fine Gain Control: -5dB - +5dB (card edge pot adjustable)
  • Maximum Input Level:
    - 0dB Input Gain: +34dBu
    - +6dB Input Gain: +28dBu
  • Common Mode Rejection: > 105dB @ 60Hz
  • Common Mode Range:
    - 0dB Input Gain: > ±22V
    - +6dB Input Gain: > ±7V
  • Input Impedance:
    - 0dB Input Gain: 44kΩ
    - +6dB Input Gain: 26kΩ

    Analog Audio Output
  • Number of Outputs: 9x
  • Connector: 3-pin removable terminal strips
  • Output Step Gain: 0dB, 3.5dB or 9.5dB (configurable with jumpers)
  • Max. Output Level:
    - +28dBu across hi-impedance load
    - +24dBu into 600Ω load
  • Output Impedance: 66Ω
  • Freq. Response: ±0.03dB, 20Hz - 20kHz
  • THD+N: 0.001% 20Hz - 20kHz @ 28dBu, unweighted RMS
  • Output Isolation: > 100dB @ 1kHz, 100dB @ 20kHz

    Electrical
  • Voltage: +12V DC
  • Power: 3.6W
  • EMI/RFI: Complies with FCC Part 15, Class A EU EMC Directive

    Physical
  • Number of Slots: 1x


• Item Includes:

  • 1x 400ADA-AUD 1x9 Analog Audio Distribution Amplifier


• Warranty:

  • 1 Year Limited Warranty
