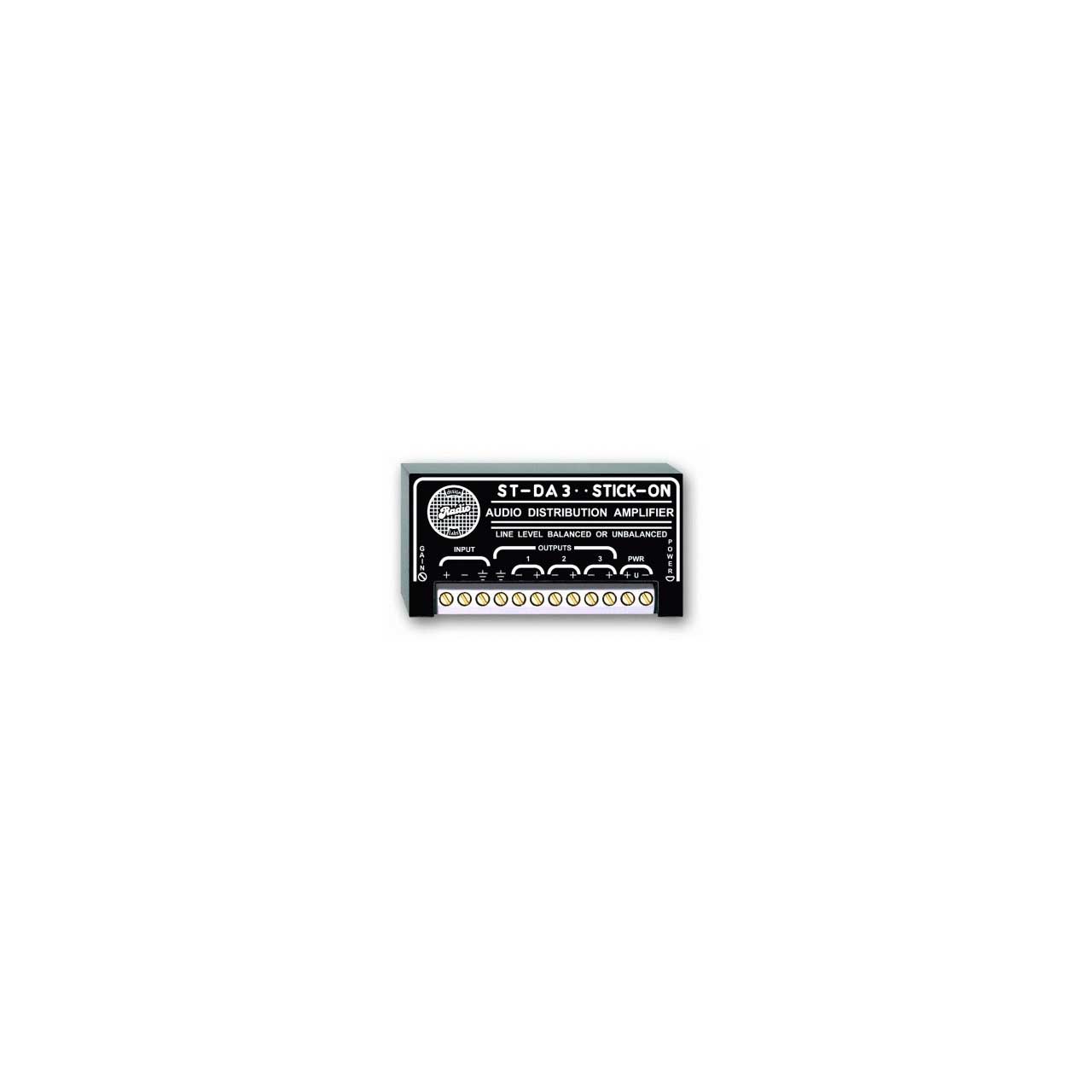

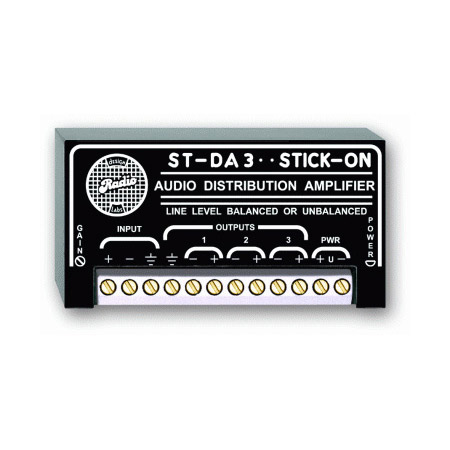

RDL ST-DA3 Line Level Distribution Amplifier - 1x3

ITEM #: ST-DA3 MFG #: ST-DA3

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$268.52

Our Price:

$201.39

Availability: In Stock
iAvailability Description Popup


    ST-DA3 - Overview

    The RDL ST-DA3 gives you the advantages of an audio distribution amplifier PLUS you can put it where you need it. The ST-DA3 allows bridging of any audio line, adjusting the gain, and driving up to three high or low impedance, balanced or unbalanced loads. The ST-DA3's wideband circuitry produces the unsurpassed pure clarity, low-distortion and low-noise for which RDL products are known.

    The ST-DA3 features RDL's SupplyFlex power input configuration. The module will operate directly from floating 24 Vdc or bipolar dc power. If a jumper is connected between the PWR minus terminal and any module ground, the module power becomes ground-referenced.

    • Features:

      • Audio Distribution with up to 3 Outputs
      • Balanced or Unbalanced Input and Outputs
      • Bridge an Audio Line for Local Distribution
      • Distribution with Impedance Conversion
      • Distribution with Gain or Loss
      • Inputs and Outputs RF-Protected
      • 1x3 Mono or Use Two Units for Stereo
      • RDL SupplyFlex Power Input Configuration

    • Specifications:

      • Input: 20 kΩ balanced or unbalanced
      • Input Signal: -15 dBV to +21 dBu (for +4 dBu output)
      • Maximum Input Level: +24 dBu
      • Outputs (3): 150 Ω balanced or 75 Ω unbalanced

        Output Signal
      • Balanced: +4 dBu nominal balanced;
      • Unbalanced: 6 dB below balanced line level
      • Maximum Output Level: +25 dBu
      • Frequency Response: 10 Hz to 100 kHz (± 0.05 dB)
      • THD+N: < 0.002% (unity gain)
      • IMD: < 0.003% (unity gain)
      • Noise below +4 dBu: < -98 dB (unity gain)
      • Headroom: > 20 dB (above +4 dBu)
      • Gain: Unity ± 17 dB (adjustable)
      • CMRR: > 60 dB (50 Hz to 120 Hz)
      • Power Requirement: GROUND-REFERENCED or FLOATING, 24 Vdc @ 70 mA
      • Package Type: Cardboard Box
      • Package Dimensions: 2 x 2 x 4 in.
      • Shipping Weight: 0.2 lbs.
      • WEEE weight: 0.145 lbs.

    • GTIN:

      0813721011022
