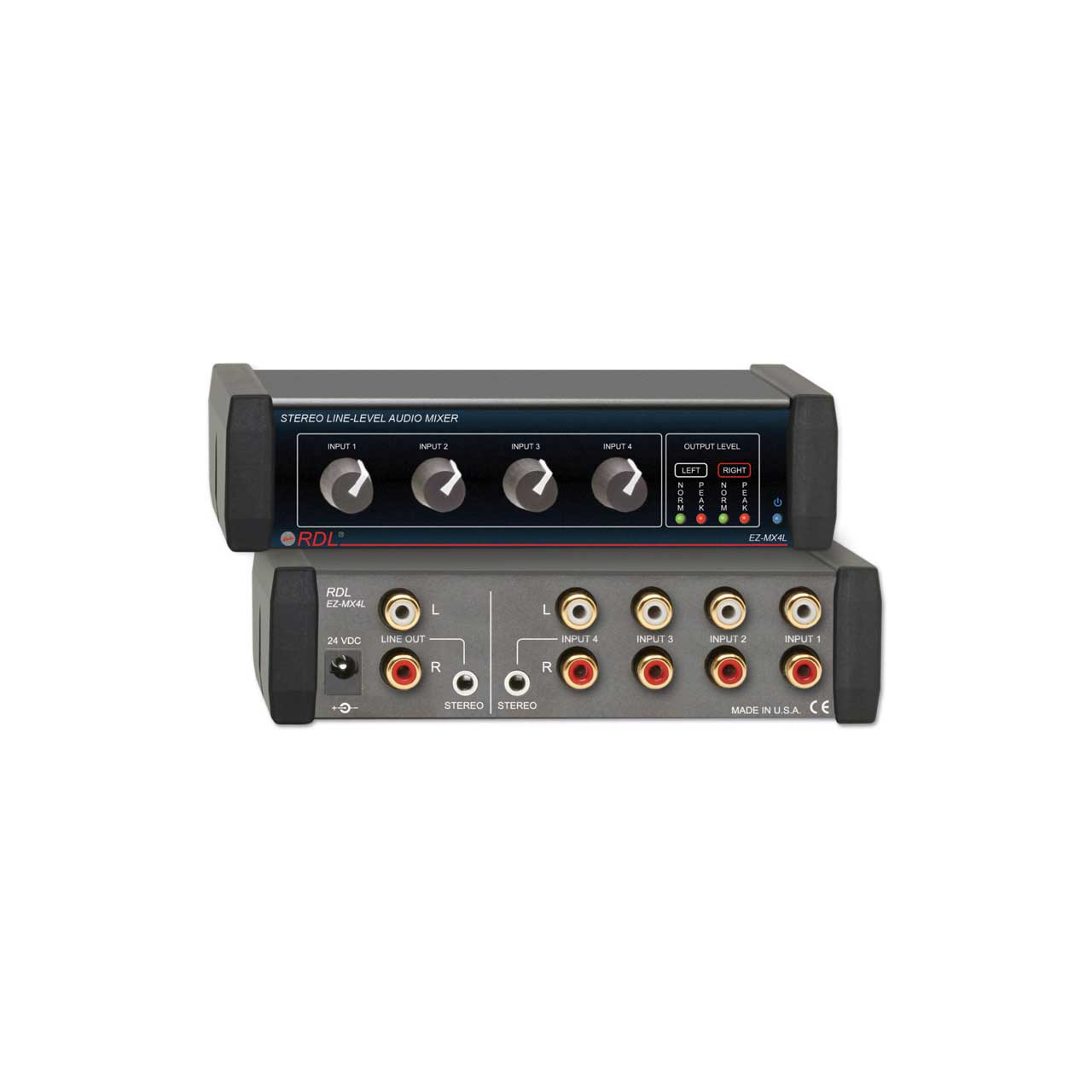

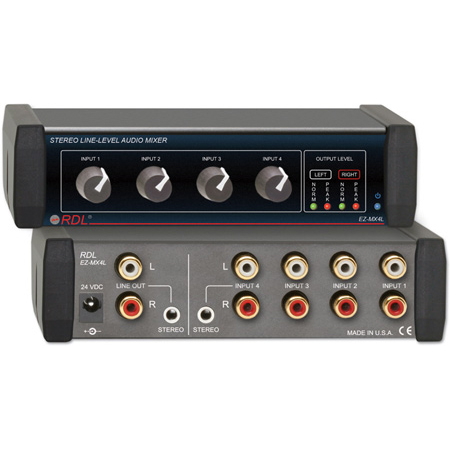

RDL EZ-MX4L 4x1 Stereo Line-Level Audio Mixer


Primary Image
Free Shipping with $49 Minimum Order

List Price:


Our Price:


Availability: In Stock
iAvailability Description Popup

    EZ-MX4L - Overview

    The EZ series offers unparalleled flexibility. Each unit is fully labeled on the front and rear for use either as a finished product or as a utility module. Installation of multiple products is quick and easy using the comprehensive range of EZ rack mounts, chassis, bezels, drawers and accessories. High quality full-size switches, long life controls, quality connectors, solid-state audio and video switching, gold plating and superior engineering combine to make EZ the best value in the industry. EZ products are attractive, reliable, packed with features and are simple to install and operate. When long-term performance, quality and value matter, the choice is EZ.

    • Features:

      • Four Channel Line-Level Audio Mixer
      • Three Unbalanced Line Inputs on RCA Jacks
      • One Line Input on MINI or RCA Jacks
      • Unbalanced Output on MINI or RCA Jacks
      • Dual-LED VU Meter for Each Channel
      • Headroom Accommodates High Input Level
      • Exceptional Headroom for an Unbalanced Mixer
      • Gold Plated RCA Input and Output Jacks
      • Audio VU Metering Facilitates Adjustment
    • Specifications:

      • Inputs (5): > 10 k Ohm, -10 dBV nominal on RCA jacks (4) or Mini Jack (1), +20 dBV max.
      • Level controls (4): Off to 12 dB gain
      • Outputs (2): -10 dBV nominal on RCA jacks (1) or Mini jack (1, stereo), +16 dBV max.
      • Frequency Response: 10 Hz to 20 kHz (±0.01 dB, line)
      • THD+N: < 0.05%
      • Crosstalk: < -72 dB (1 kHz)
      • Metering: Dual-LED VU Meter for Left and Right, calibrated to -10 dBV output
      • Noise: < -85 dB (below -10 dBV output)
      • 24 Vdc power supply current: 30 mA (idle), 60 mA (max.)
      • Case dimensions: 5.75" (14.6 cm)W x 3" (7.6 cm)D
      • Mounting size: 1/3 rack width.
      • Power supply included
    • GTIN:
