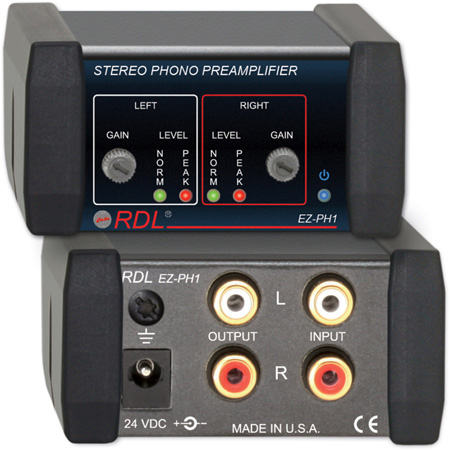

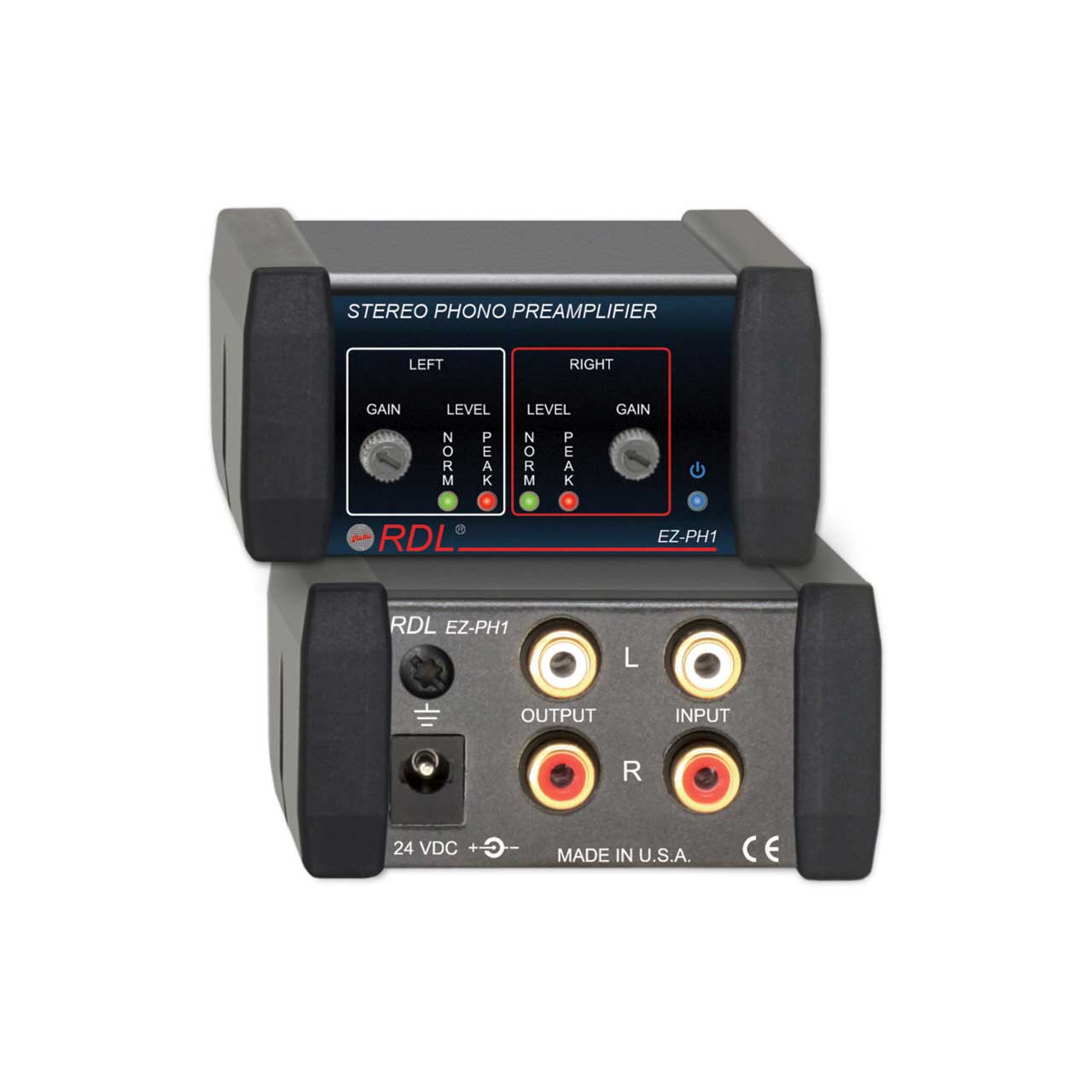

RDL EZ-PH1 Stereo Phono Preamplifier

ITEM #: EZ-PH1 MFG #: EZ-PH1

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$191.48

Our Price:

$143.61

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    EZ-PH1 - Overview

    The EZ series offers unparalleled flexibility. Each unit is fully labeled on the front and rear for use either as a finished product or as a utility module. Installation of multiple products is quick and easy using the comprehensive range of EZ rack mounts, chassis, bezels, drawers and accessories. High quality full-size switches, long life controls, quality connectors, solid-state audio and video switching, gold plating and superior engineering combine to make EZ the best value in the industry. EZ products are attractive, reliable, packed with features and are simple to install and operate. When long-term performance, quality and value matter, the choice is EZ.

    • Features:

      • Phono Input on Gold-Plated RCA Jacks
      • Line Output on Gold-Plated RCA Jacks
      • Front-Panel GAIN Trimmer for Each Channel
      • Dual-LED VU Meter for Each Channel
      • RIAA Equalization
      • Turntable Grounding Screw Provided
      • Gold Plated RCA Jacks
      • Adapt Turntable to an Amplifier Line Input
      • Feed a Turntable into a CD Recorder

    • Specifications:

      • Input: 47 k Ohm on stereo RCA jacks
      • Input Level: -18 dBV max.
      • Gain: OFF to +55 dB (1 kHz)
      • Output: -10 dBV nominal on stereo RCA jacks
      • Equalization: RIAA
      • Frequency Response: 20 to 20 kHz (±0.75 dB referred to RIAA curve)
      • Crosstalk: < -75 dB (1 kHz)
      • THD+N: < 0.05% (20 to 20 kHz, 36 dB gain)
      • Noise: < -74 dB (36 dB gain, 1 kHz), < -80 dB (36 dB gain, 1 kHz, "A-weighted")
      • 24 Vdc power supply current: 30 mA (idle), 45 mA (max.)
      • Case dimensions: 2.9" (7.4 cm)W x 3" (7.6 cm)D
      • Mounting size: 1/6 rack width.
      • Power supply included

    • GTIN:

      0813721010131
