Rolls RM85 Two Zone Mic/Line Mixer

ITEM #: RLS-RM85 MFG #: RM85

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$459.00

Our Price:

$409.00

Availability: In Stock
iAvailability Description Popup


    RM85 - Overview

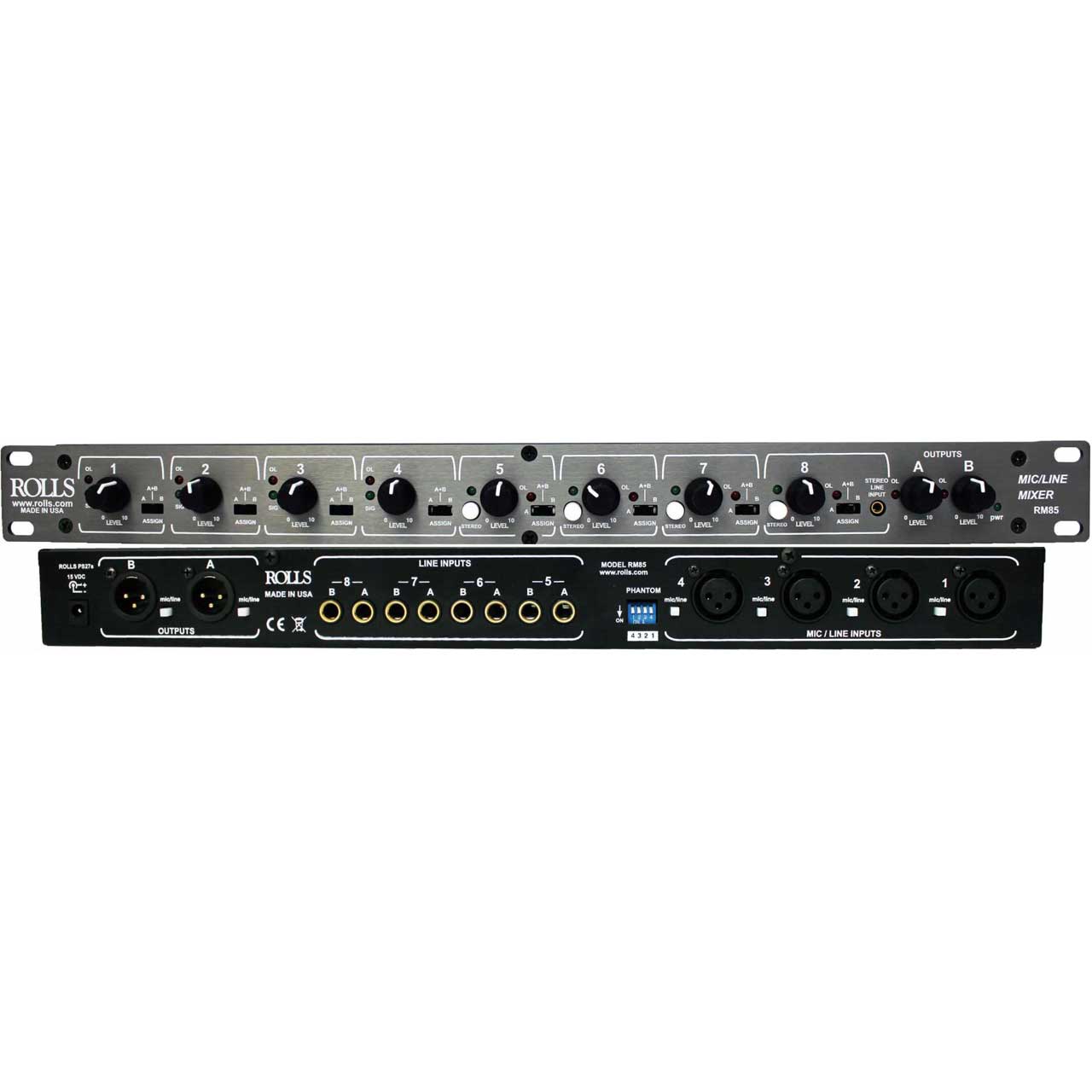

    The RM85 is an 8 channel two zone mixer. Channels 1-4 will accommodate XLR microphone or XLR line level inputs. Channels 5-8 are 1/4" inputs. All 8 channels can be sent to the two XLR outputs in three configurations; A, B or both A+B. The separate A and B outputs are XLR and either can be selected to be Line or Microphone level output. Channel 8 also has a stereo 3.5mm (1/8") input on the front of the RM85.

    • Features:

      • Four XLR balanced inputs with +48 V phantom power
      • Four stereo Source inputs, including a front panel 3.5mm input
      • Master Output Level control for each channel
      • Low noise, efficient operation
      • All in a single rack space

    • Specifications:

      • Input Impedance: Mic: 600 Ohms XLR balanced; Line: 22K Ohms RCA
      • Max Input Level: Mic: -14 dBV Mic level; Line: +24 dBV
      • Total input Connectors: 4 XLR, 4 Stereo 1/4", 1 3.5mm
      • Phantom Power: +48 VDC
      • RCA Output Level: +17 dBV max (impedance 1K Ohm)
      • Max Gain: Mic: 70 dB Source: 30 dB
      • Noise Floor: - 80 dB, THD: <.025%
      • S/N Ratio: 96 dB
      • Voltage Gain: 32 dB
      • Nominal Supply Voltage: 15 VDC
      • Bandwidth: 20Hz - 25 kHz
      • Dimensions: 19" x 1.75" x 4"
      • Weight: 7 lbs.
      • Power supply: Rolls PS27s power supply 15 VDC 500 mA TIP NEGATIVE.

    • GTIN:

      0675889008517
