Thor Fiber F-8XLR-HIFI-TXRX 3-PIN XLR Analog Audio over Fiber TX/Rx Kit - Singlemode/Multimode - ST/PC - 12 Mile Range

ITEM #: F-8XLR-HIFI-TXRX MFG #: F-8XLR-HIFI-TXRX

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$4,794.00

Our Price:

$3,995.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


F-8XLR-HIFI-TXRX - Overview

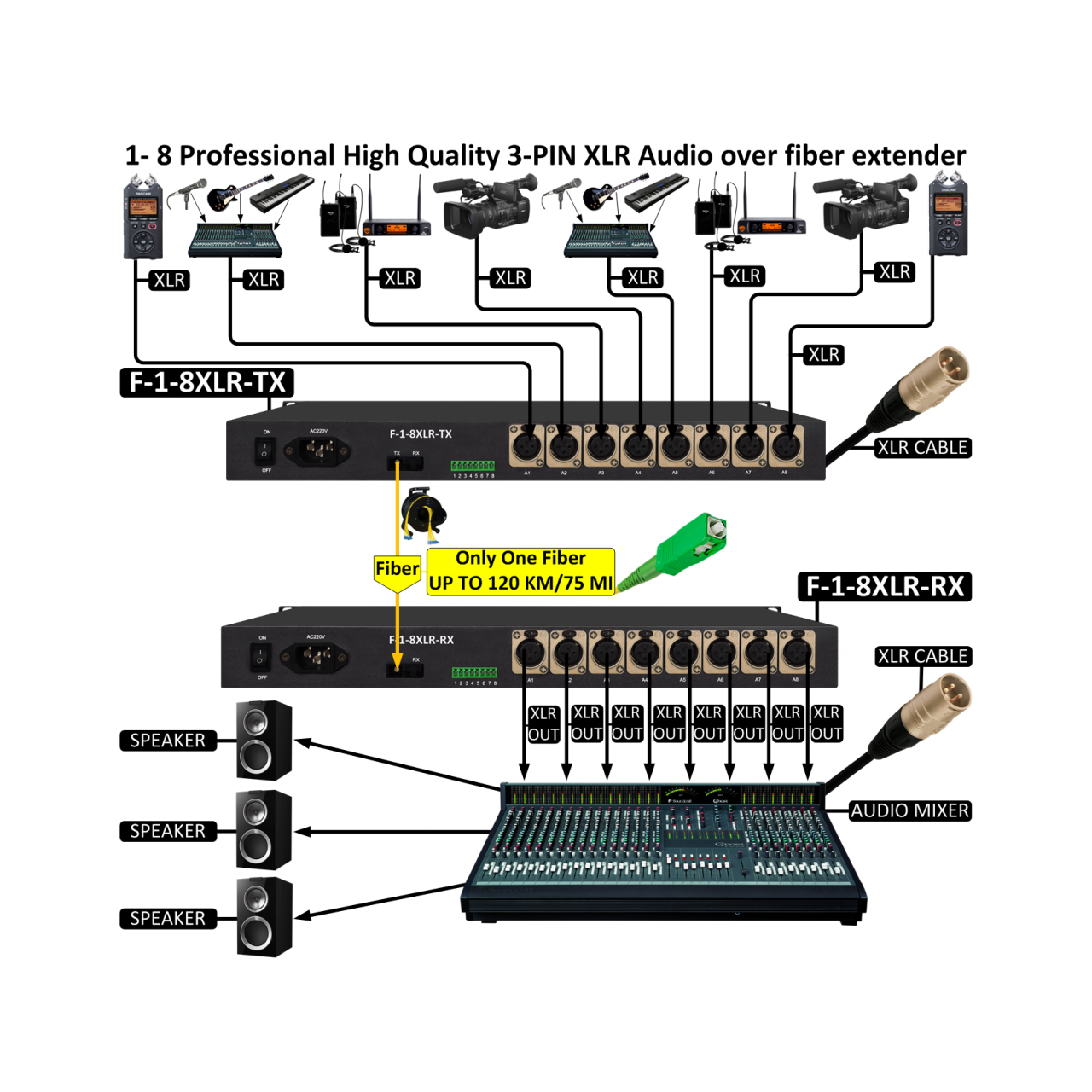

The Thor Fiber F-8XLR-HiFi-TX/RX is the HIFI professional Multichannel audio over fiber optical transceiver with 3-PIN XLR interface, performs high-quality 1~8 Channel HIFI audio transmission over an optical line. Fiber Optic Transmitter High Quality audio signals are converted to digital signals and then converted to optical signals for transmission. The Fiber Optic Receiver does the photoelectric conversion from modulated light signal to the Analog XLR signal to transfer over fiber.

The Balanced Audio to Fiber Optic Converter/Extender is used for professional and extremely high-quality audio transmission over the fiber with such a low signal to noice ratio that you'll be blown away by the sound you get from analog sources.

  • Features:

    • Compact design with 1U height, 19 inch, which can be installed on standard rack
    • Supports optical signal loss indication

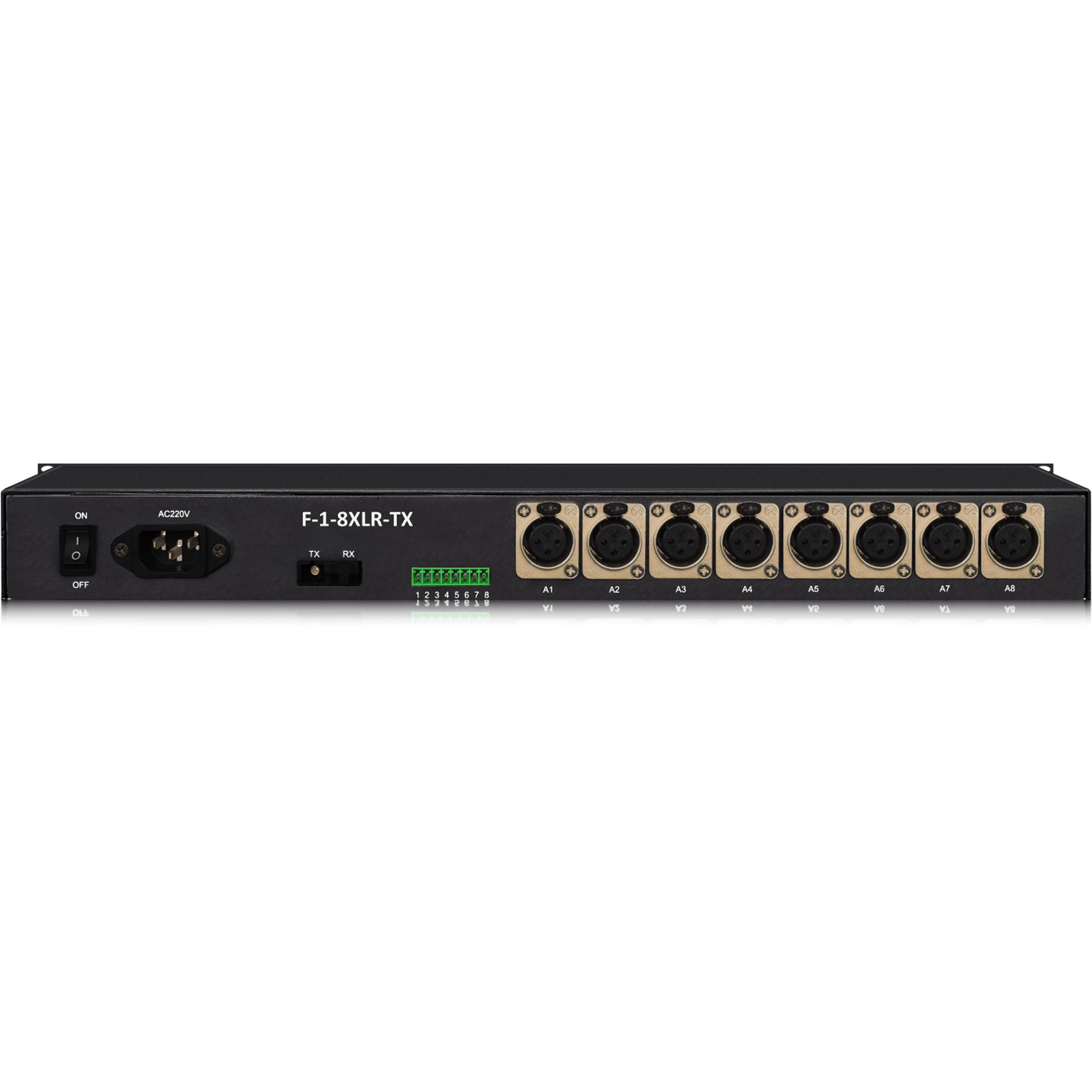

    • The optical transmitter provides up to 8 XLR interfaces for balanced audio input
    • The optical receiver provides up to 8 XLR interfaces for balanced audio output
    • 24 bit quantized accuracy, 192K sampling frequency
    • SNR is better than 98dB
    • THD (Total Harmonic Distortion) <0.03%

  • Specifications:

      Optical Interface
    • Connector: ST/PC
    • Distance: 0-12.42 Miles (20km)(singlemode fiber) 2000ft (multimode fiber)
    • Receiving Sensitivity: -23dBm
    • Overload Optical Power: -3dbm
    • Output Optical Power: Wavelength
    • Wavelength: 1310nm

      XLR Interface
    • Connector: XLR
    • The Maximum Differential Input Level: 5.6Vp-p
    • The maximum Differential Output Level: 6.2Vp-p
    • Power Consumption: 6W for both Transmitting and receiving
    • Frequency Bandwidth: 20Hz - 50kHz @ -3dB
    • Adjacent Channel Isolation: >94dB @ 1kHz (1.228Vrms)
    • Impedance:
      - Input Impedance: 200KΩ
      - Output Impedance: 600Ω
    • Receiving Sensitivity: 0.11Vp-p
    • SNR: >98dB @ 1kHz (1.228Vrms)
    • THD (Total Harmonic Distortion): <0.03% @ 1kHz

      Power Supply
    • Power Supply: AC 110V - AC 220V (50Hz - 60Hz)
    • Input Voltage Range: 100V - 230V AC

      Physical
    • Working Temperature: 32°F - 149°F (0°C - 65°C)
    • Storage Temperature: -40°C - 185°F (-40°C - 85°C)
    • Relative Humidity ≤203°F, no condensation
    • Dimensions (LxWxH): 18.97" x 1.73" x 9.84" (482mm x 44mm x 250mm)

  • Item Includes:

    • 1x Thor Fiber F-16HD-1D-TVI-TXRX 16 HD-TVI Video over Fiber Tranmsitter
    • 1x Thor Fiber F-16HD-1D-TVI-TXRX 16 HD-TVI Video over Fiber Receiver
    • 2x US Power Cord

  • Warranty:

    • 5 Year Limited Warranty
