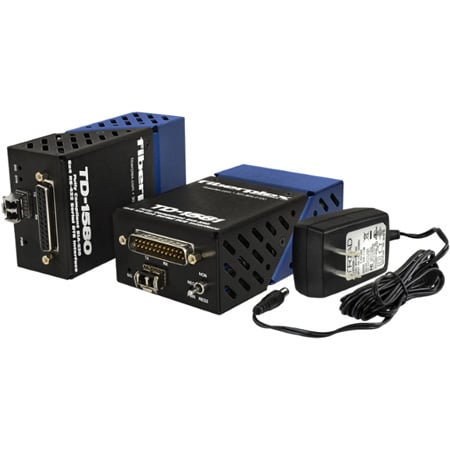

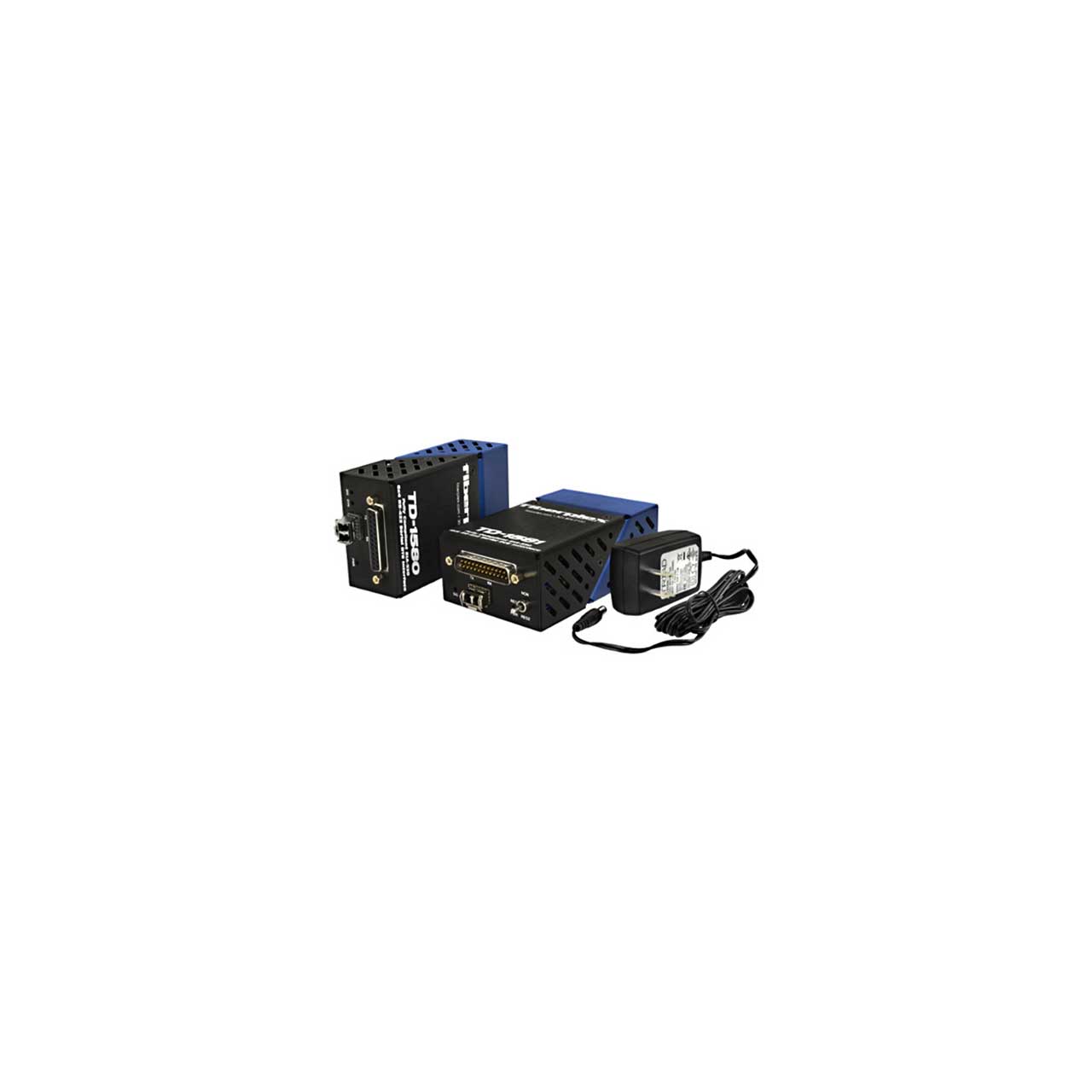

Fiberplex TD-1581-L22 Fully Compatible EIA-530/6x4 RS-422 Serial Interface with 1x2 RS-232 DMX DCE TD Package
  • Fiberplex TD-1581-L22 Fully Compatible EIA-530/6x4 RS-422 Serial Interface with 1x2 RS-232 DMX DCE TD Package
  • Fiberplex TD-1581-L22 Fully Compatible EIA-530/6x4 RS-422 Serial Interface with 1x2 RS-232 DMX DCE TD Package

Questions? Ask a Markertek Expert:
800-522-2025 Email

Fiberplex TD-1581-L22 Fully Compatible EIA-530/6x4 RS-422 Serial Interface with 1x2 RS-232 DMX DCE TD Package

Item #: TD-1581-L22   •   MFG #: TD-1581-L22



List Price:$969.00
Our Price:$813.95

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.


  • Special Order Item: non-cancelable, non-returnable, non-refundable.


Share!

California Residents:
8pt-triangleWARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov





The TD-1580 and TD-1581-L22 pair together to form a powerful balanced serial data transport solution. The DB-25 connectors are pinned out to directly support an EIA-530 serial link. However due to the transparency and flexibility of the design, the TD-1580/81 can be used as 6x4 independent 6 Mbps RS-422 channels and 2x1 independent 256 Kbps RS-232 channels.

This incredible versatility can solve a myriad of serial data communications problems. Your once limited serial links can not only be consolidated but extended to over 20 Km on a single fiber pair. SCADA (supervisory control and data acquisition), Telecommunications, Facility Automation and Control, even DMX Lighting control applications can all benefit from the TD-1581.

For more advanced systems, a 'Regeneration' switch on the TD-1581 allows users to toggle between synchronous applications that require Send Timing (ST) and asynchronous or synchronous applications that require Terminal Timing (TT).


  • Features

    • Compatible With:
    • TIA/EIA-530 (RS-530)
    • MIL-STD-188-114A balanced Type 1 and Type 2
    • FED STD 1030A

    • Can alternatively be used for 6 x 4 RS-422 and 1 x 2 RS-232
    • EIS-530 and RS-422 channels support data rates from DC to 6.144 Mbps
    • Can be used for up to 6 universes of DMX lighting control

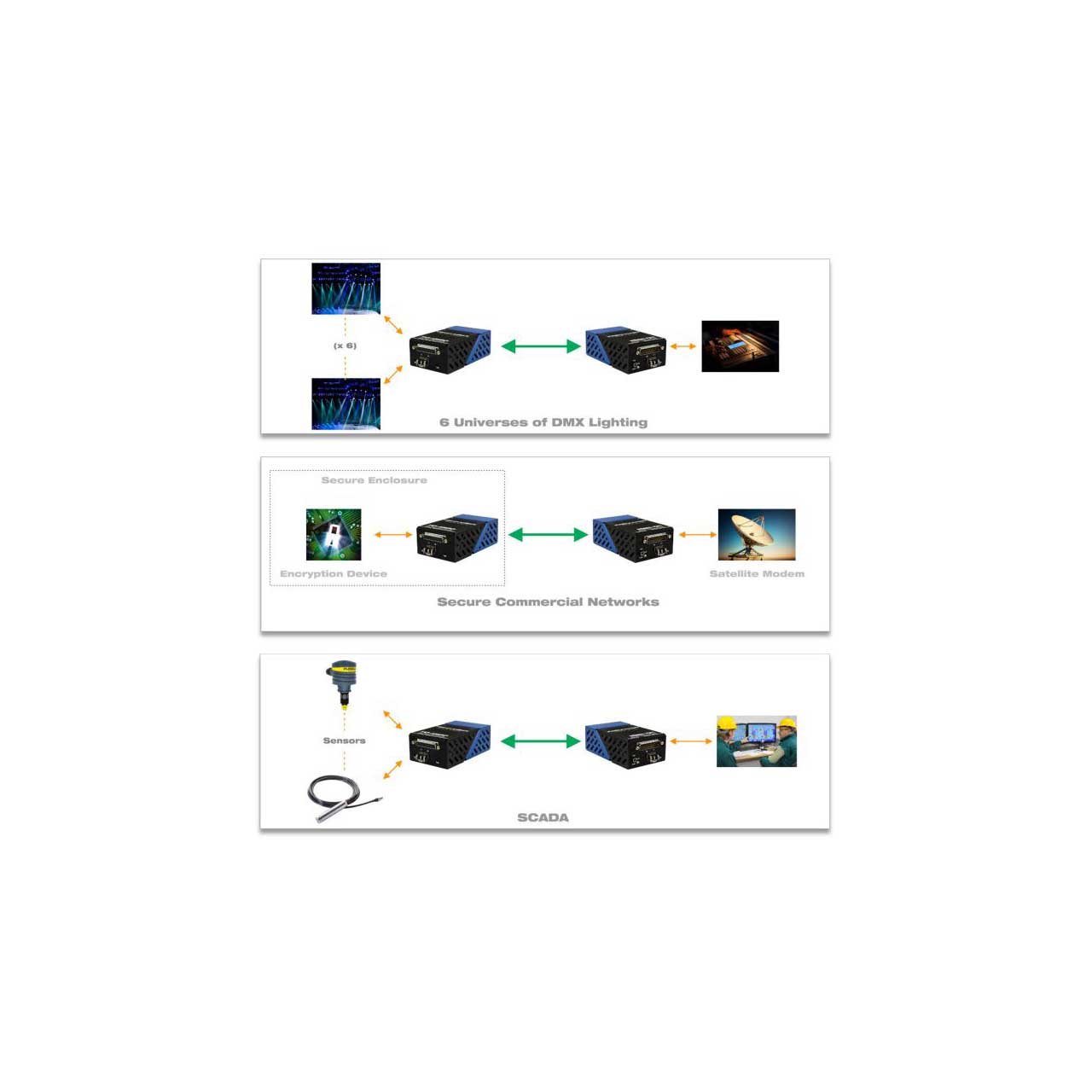

      Applications
    • SCADA
    • Oil and Gas
    • Hamoe/Facility Automation
    • Telecommunications
    • Industrial Controls
    • DMX Lighting

  • Specifications

    • External SFP Interface
    • Data Rate: 270Mbps
    • Recommended Jitter: 40Psec
    • Operating Voltage: 3.3VDC
    • Max. Current: 500mA
    • Optical Modules: SFP MSA (SFF-8431, SFF-8432, SFF-8433) compliant slot, data rate 266 - 1.25 Gpbs

      Balanced Differential Signals
    • Data Rate: DC - 6.144Mbps
    • Sampling Jitter: 0% - 23%
    • Input Load: 100Ω
    • Common-Mode Input Voltage: ±7V
    • Common-Mode Output Voltage (100Ω load): 1.8V - 3V

      Unbalanced Single-Ended Signals
    • Data Rate: DC - 120kbps
    • Sampling Jitter: 0% - 0.4%
    • Input Load: 3 - 7kΩ
    • Input Voltage Range: -25V - 25V
    • Output Voltage Range (5kΩ load): ±5V

      Power & Physical
    • Voltage Range: 7V - 32V
    • Supply Current: 625mA
    • Interface Connector: DB-25 male
    • Storage Temperature: -40°F - 185°F
    • Operating Temperature: 32°F - 122°F
    • Dimensions (HxWxD): 1.66" x 2.75" x 4.5"
    • Weight: 0.4lbs

  • Item Includes

    • Power adapter
    • 3-position Phoenix
