Atlas Sound FA62T-8MB Strategy II 6 Inch 30W @ 70.7V/100V Motor Board Assembly

ITEM #: FA62T-8MB MFG #: FA62T-8MB

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$92.99

Our Price:

$75.99

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    FA62T-8MB - Overview

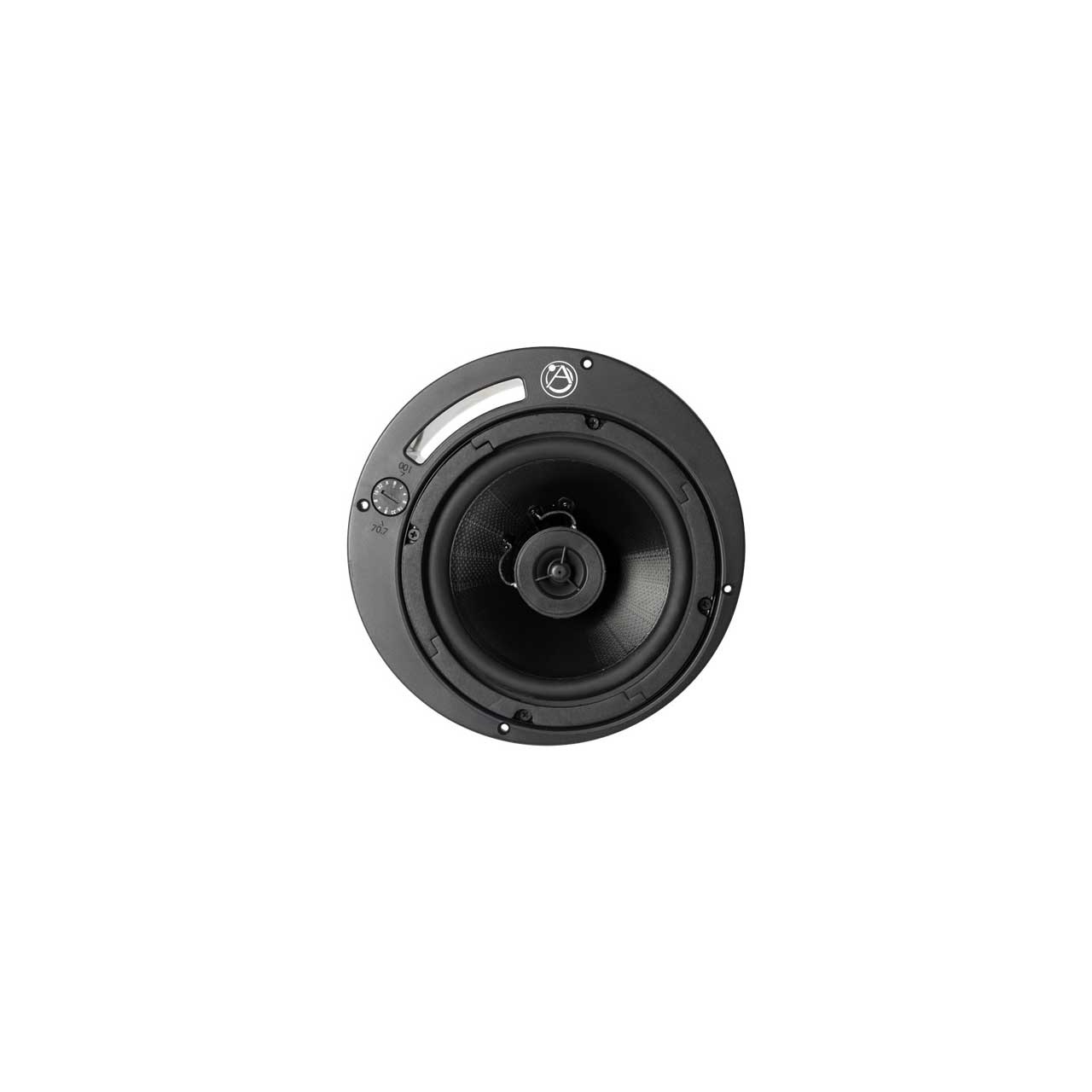

    Model FA62T-8MB is the entire 6" speaker/transformer/selector switch/front plate assembly found in the FAP62T assembly. The footprint of the FA62T-8MB is identical to a standard FA series 8" speaker component. This footprint allows the motor board to fit into all original Strategy Series 8" enclosures in the exact same manner as a regular 8" FA speaker (FA138Txx).

    • Features:

      • 6" Speaker installs into 8" Strategy enclosure
      • Designed for division of labor installations when enclosures need to be installed before speakers
      • Enhanced quality 70.7V/100V internal transformers minimize insertion loss and maintain low frequency response while providing increased output for higher SPL applications
      • Front mounted tap selector switch for easy system tuning adjustments includes transformer bypass setting for 8 ohm direct coupled operation
      • Tuned port maximizes low frequency response from FA97-8 & FA95-8 enclosure
      • UL1480 for General Signaling Listed file UEAY.S1824

    • Specifications:

      • Depth 5 1/2" (13.97 cm)
      • Diameter 8 1/2" (21.59 cm)
      • Shipping Weight 6.00 lbs (2.72 kgs)
      • Frequency Response 63Hz-20kHz
      • Power Taps 2, 4, 8, 16, 32, 8 Ohm direct
      • Speaker Type Coaxial
      • Dispersion 110°
      • Sensitivity 88dB Average
      • UL Listed/Standard 1480

    • GTIN:

      0612079179817
