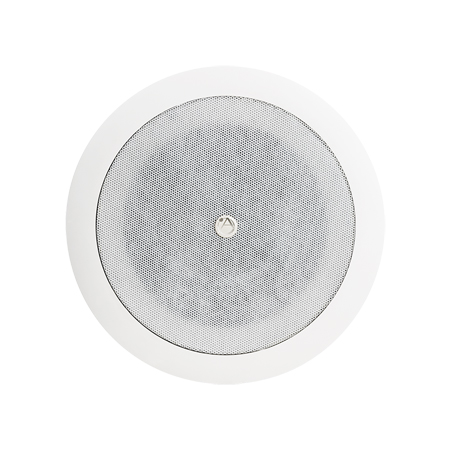

Atlas FAP42T-UL2043 4-Inch 2-Way Weather Resistant Speaker

ITEM #: FAP42T-UL2043 MFG #: FAP42T-UL2043

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
AtlasIED
Free Shipping with $49 Minimum Order

List Price:

$223.99

Our Price:

$181.99

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

FAP42T-UL2043 - Overview

The FAP42T-UL2043 from AtlasIED meets requirements of UL 2043 for speakers used in air handling (true plenum) spaces. FAP42T-UL2043 combines superior coaxial speaker performance with wide dispersion and easy installation.

A low profile enclosure and wide coverage make the FAP42T-UL2043 a perfect choice for low ceilings.

The FAP42T-UL2043 will satisfy the needs of owners, architects, contractors, and consultants by delivering true, high fidelity sound reproduction in an attractive and easy-to-install system.

The FAP42T-UL2043 is ideal for high-intelligibility voice, music, and signal reproduction in commercial, industrial, and institutional applications.

The FAP42T-UL2043 combines superior coaxial loudspeaker performance with wide dispersion and easy installation. A low profile enclosure and wide coverage make the FAP42T-UL2043 a perfect choice for low ceilings. The FAP42T-UL2043 will satisfy the needs of owners, architects, contractors, and consultants by delivering true, high fidelity sound reproduction in an attractive and easy-to-install system. The FAP42T-UL2043 is ideal for high-intelligibility voice, music, and signal reproduction in commercial, industrial, and institutional applications. The FAP42T-UL2043 is UL1480 and UL2043 listed allowing for installation in true plenum air spaces.

  • Features:

    • 4 Pole Detachable "Phoenix" Style Connector Allows Easy Pre-Wiring and is Convenient for Daisy Chaining Additional Strategy Full Range Speakers or Subwoofers
    • Easy Installation in Drop Tile or Sheetrock Ceilings via C-ring/V-rail Tile Bridge and "Dog Leg" Mounting System (Included)
    • Enhanced Quality 70.7V/100V Internal Transformers Minimize Insertion Loss and Maintain Low Frequency Response While Providing increased Output for Higher SPL Applications
    • Extended Low Frequency Response from the 285 Cubic Inch Optimally Tuned and Ported Deep Drawn Galvanized Steel Enclosure
    • Front Mounted Tap Selector Switch for Easy System Tuning Adjustments Includes Transformer Bypass Setting for 8 ohm Direct Coupled Operation
    • Perfect Companion with the FAPSUB Subwoofer System When Sub Bass is Required
    • Press-Fit Grille Blends Perfectly into Contemporary Architecture


  • Specifications:

    • Speaker Type: Coaxial
    • Sensitivity: 88dB Average
    • Frequency Response: 75Hz - 20kHz (±7dB)
    • Power Taps: 1, 2, 4, 8, 16 Watts & 8Ω
    • Dispersion: 130°
    • Depth: 8⅞" (22.5cm)
    • Shipping Weight: 12.00lbs (5.44kgs)
    • Certified to Safety Listing: UL 1480 & UL 2043


  • Item Includes:

    • 1x Atlas FAP42T-UL2043 4-Inch 2-Way Weather Resistant Speaker


  • GTIN:

    0612079186242
