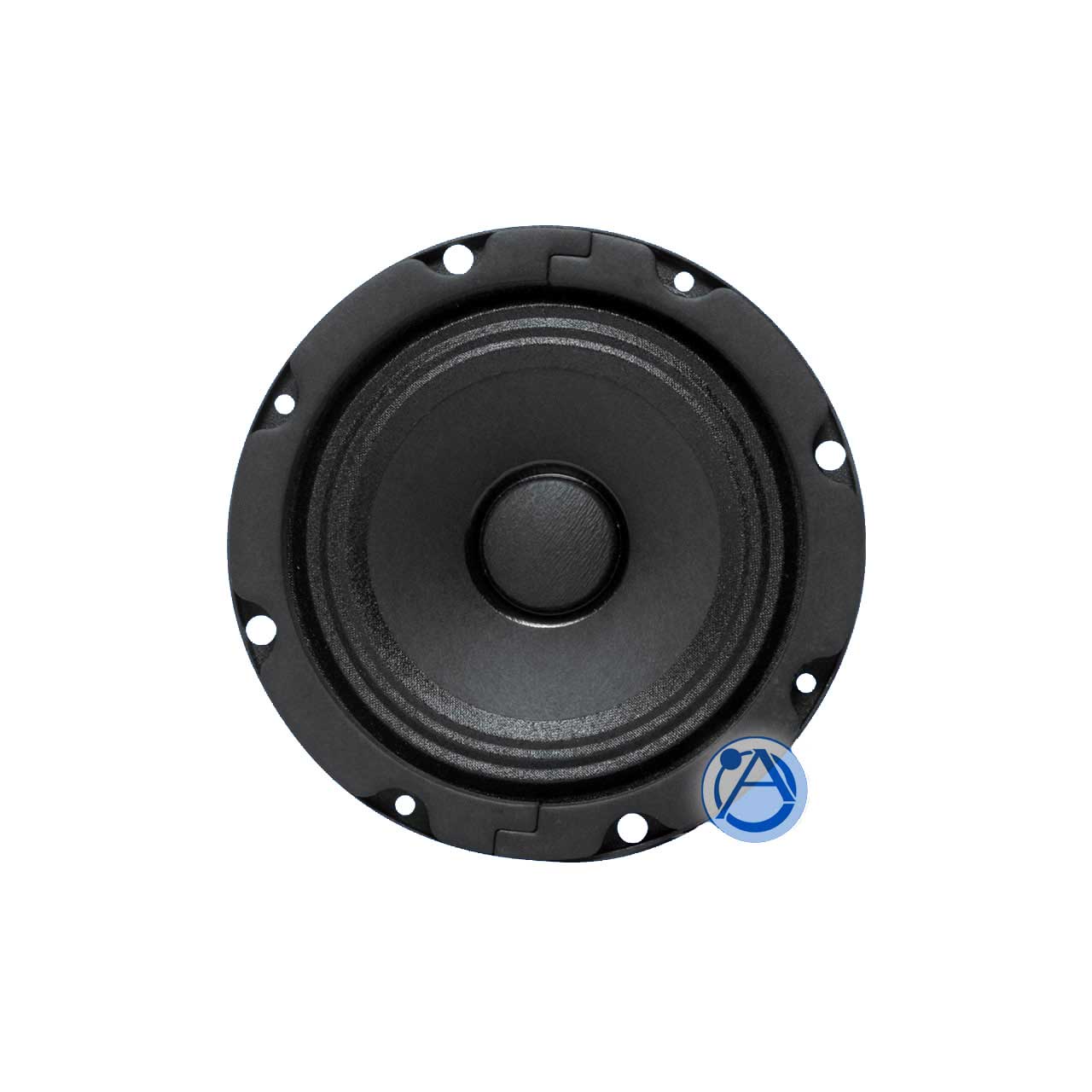

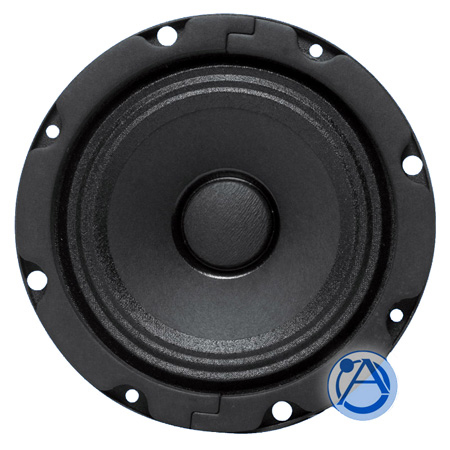

Atlas FC104 4 Inch Standard Loudspeakers (UL Listed) 10W 8 Ohm

ITEM #: FC104 MFG #: FC104

Primary Image

This item is no longer available.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the FC104

FC104 - Overview

This compact, full-range, 4" (127mm) loudspeaker is equipped with a damped, high-compliance cone which provides excellent low frequency reproduction and smooth extended response. Model FC104 also offers a wide dispersion angle which reduces the number of loudspeakers necessary to achieve total coverage in low-level distribution systems. The 10-watt, 8-ohm model (without transformer) offers a frequency response range of 150 Hz to 17 kHz, sensitivity of 94dB (at 1 watt, 1 meter) and a dispersion angle of 135° (-6dB, 2 kHz octave band). The unit contains a 10 oz. (283g) ceramic magnet with a flux density of 10,500 gauss.

  • Features:

    • Available in 8O, 25V, 70.7V, 70.7/25V and 100V Versions
    • Efficient Wide-Range Frequency Response
    • Ideal for Public Address and Background Music
    • installations
    • Industry Standard, 10-Watt, 4" High-Compliance Loudspeaker
    • Mounts a Large Selection of Atlas Sound 4" Grilles
    • Offers Proven Performance with Wide-Angle Sound Dispersion

  • GTIN:

    0612079113637
