ALPHA50 - Overview

Focal Alpha 50 (FOPRO-A50), the most compact of the line, is equipped with a 1" (25mm) tweeter and a 5" (13cm) woofer. It features a 20W amplifier for the tweeter and a 35W amplifier for the woofer, and has a frequency response of 45Hz to 22kHz (±3dB). It is perfectly adapted for confined spaces.

  • Features:

    • Low Directivity: keeps the same sound throughout the room
    • Damping and rigidity: neutrality, no distortion
    • Tonal balance is identical at low and high volumes; low sensitivity to the wall effects
    • Connect up to 2 audio sources
    • Optimal acoustic integration
    • Reduced power consumption

  • Specifications:

    • General
    • Frequency Response (±3dB): 45Hz - 22kHz
    • Power: 55W (35W+20W)
    • Maximum SPL: 103dB SPL (pic @1m)

      Electronics
    • Inputs Connectors:
      XLR: Balanced 10kΩ
      RCA: Unbalanced 10kΩ with sensitivity compensation
    • LF Amplifier Stage: 35W, class AB
    • HF Amplifier Stage: 20W, class AB
    • Standby Mode: After about 30 minutes without using the monitor
    • Activation of the Monitor: By signal detection >3mV
    • Power Supply (The voltage can not be modified):
      220-240V (fuse T500mAL/250V)
      100-120V (fuse T1AL/250V)
    • Connection: IEC inlet and detachable power cord

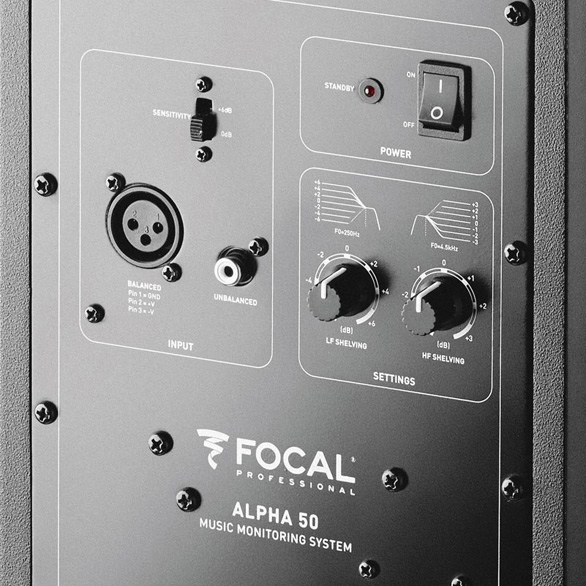

      User Controls
    • Sensitivity: Adjustable, 0 or +6dB
    • LF Shelving (0 - 300Hz): Adjustable, ±6dB
    • HF Shelving (4.5 - 22kHz): Adjustable, ±3dB
    • Power: ON/OFF Switch on rear panel
    • Standby Mode Power Consumption: < 0.5W
    • Indicators: Power ON/OFF LED - Standby LED

      Transducers
    • Woofer: 5" (13cm) drive unit - Polyglass cone
    • Tweeter: 1" (25mm) drive unit, Aluminum inverted dome

      Cabinet
    • Construction: 0.6" (15mm) MDF
    • Finish: Vinyl and Black painting

      Dimensions
    • With 4 rubber pads (HxWxD): 12.3" x 8.7" x 10.2" (313mm x 220mm x 258mm)
    • Weight: 16.1lbs (7.3kg)

  • GTIN:

    3544055710028
