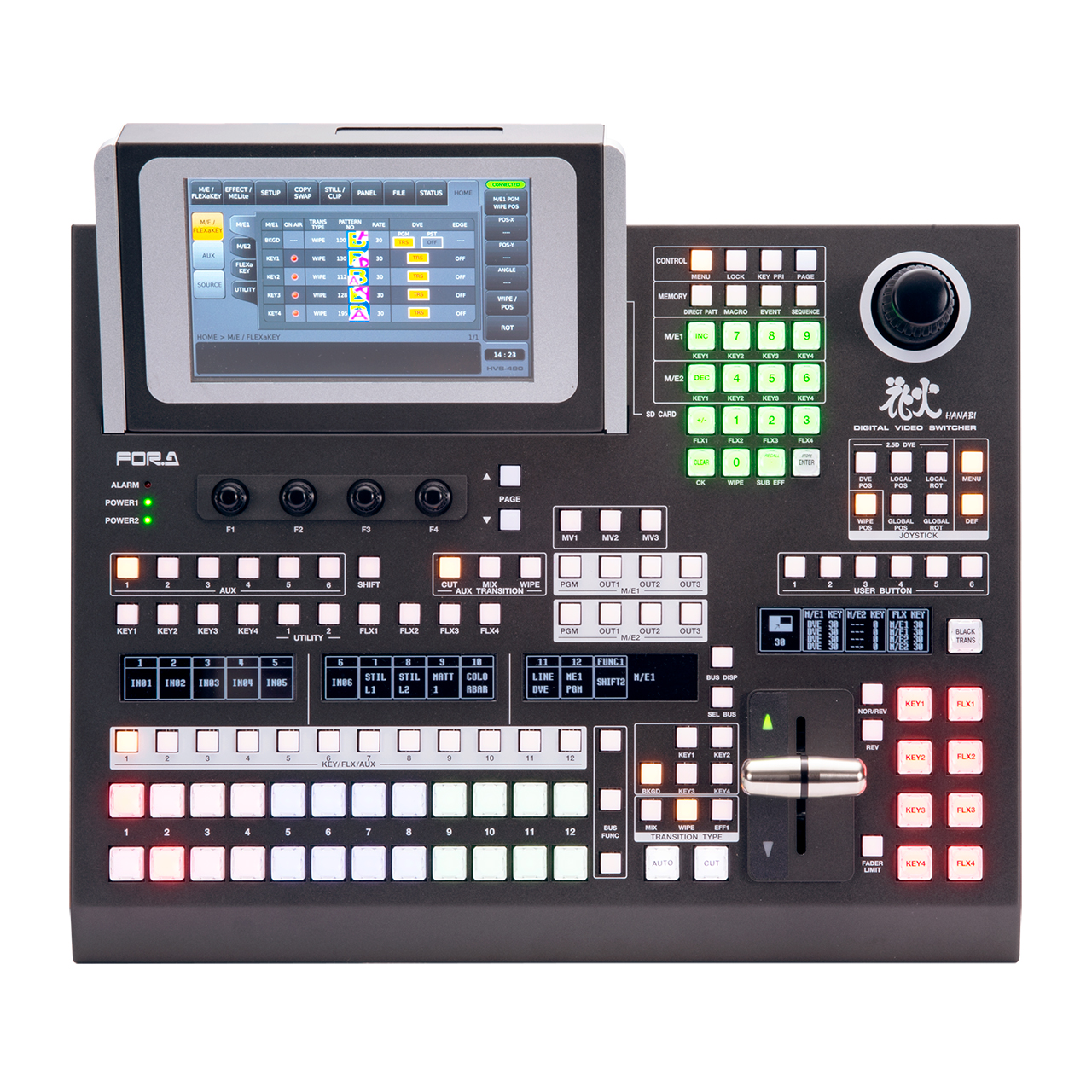

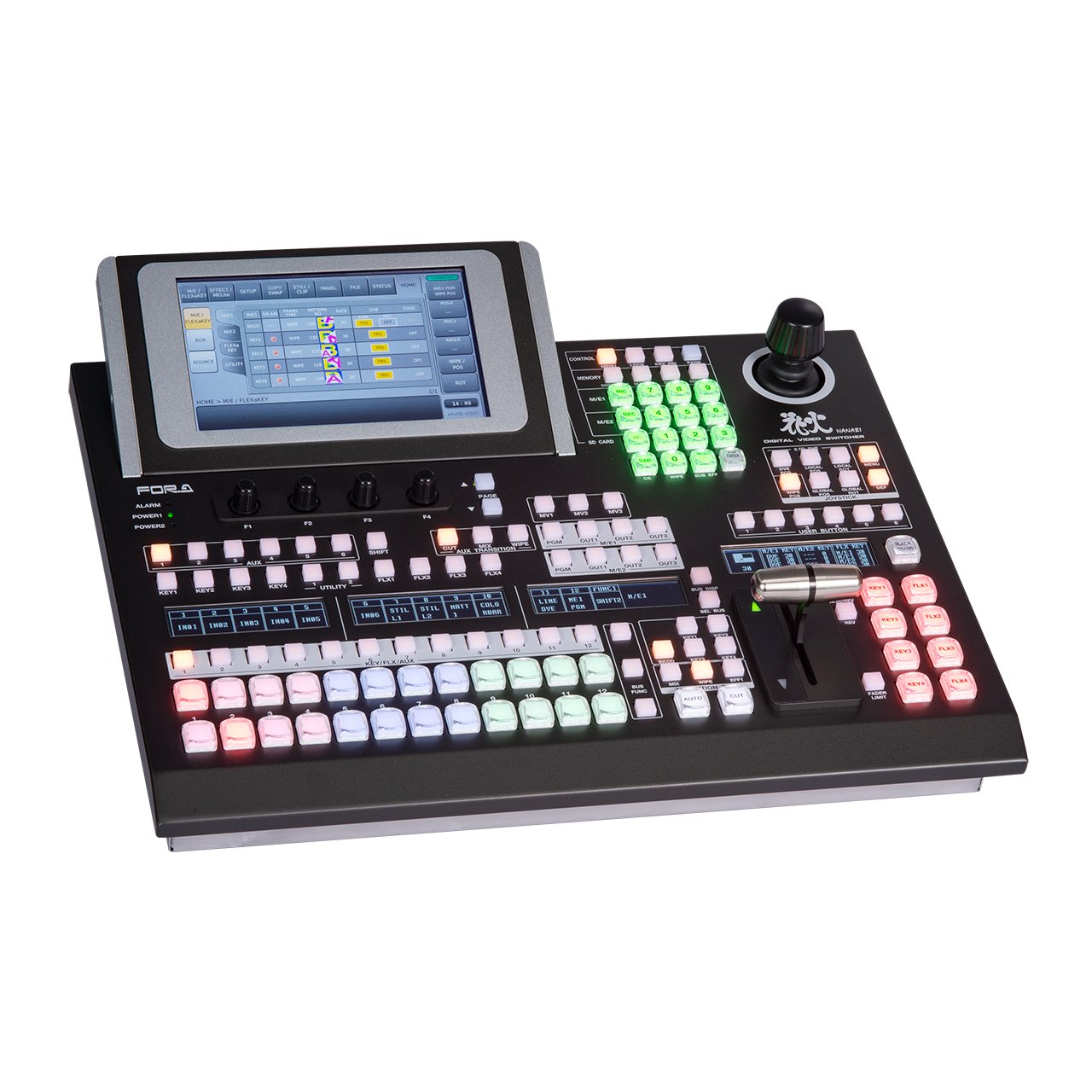

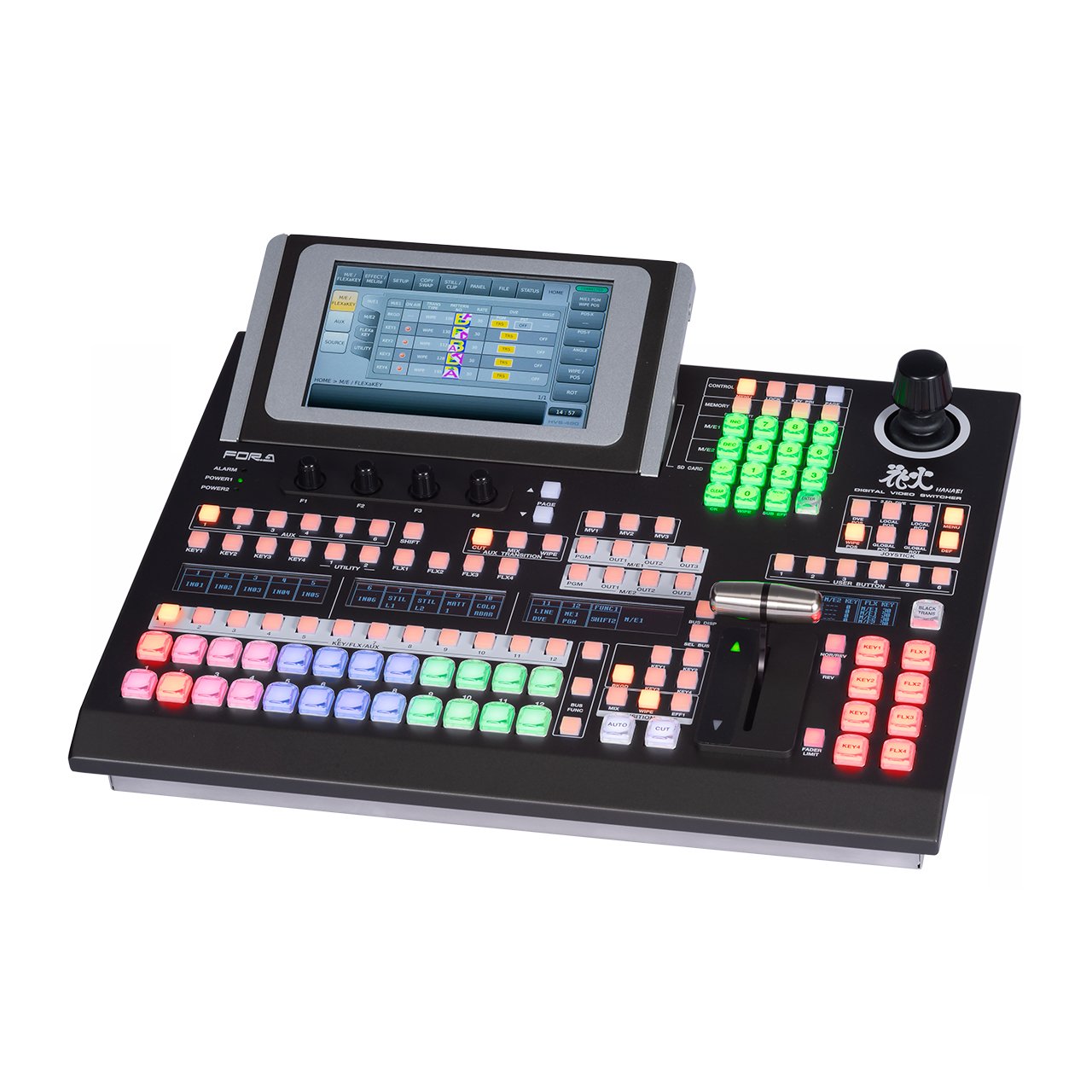

Introducing FOR-A HVS-190S TYPE B, a portable 1 M/E video switcher HVS-491OU with 12-button operation unit that builds on the features of the capable and popular HVS-490. Take advantage of remote control for off-site event management, and add an HVS-NIF card for NDI connectivity in a highly reliable mixed SDI/IP system. Includes frame synchronization, resizing, 2.5D wipes and other DVEs, chroma keying, FLEXaKEY™, and more.
The HVS-190S also has a built-in Web server that lets you change settings from a PC or a tablet. A clip memory feature has been added to the still store to support playback of video or animations and enhances productions through the use of CG wipes, while the multi-viewer meets a diverse range of monitoring needs. The equipment can be used in all types of locations, including live events, sports, news studios, OB vans, editorial offices and presentation venues, making it the ideal tool for shaping the imaginative your ideas. NDI is a registered trademark of Vizrt.
PTZ Camera Control
Control multiple PTZ cameras-pan, tilt, or zoom, activate tally lights, set or apply presets, or use stored macros for video switching coordinated by bus buttons. Connect to up to 16 cameras.
Support to Build SDI/NDI Mixed System
Easily add devices or computer content compatible with NDI output (such as videos, videoconferencing streams, presentations, or computer graphics) to SDI systems. Reliable baseband switchers can also be added to your NDI system.
SDI/IP Conversion and Routing
Add PTZ camera output, computer content, or other sources to SDI equipment, and freely convert between SDI and MoIP while routing video/audio from a single switcher to multiple devices. SDI/IP sources and output can be arranged side by side with the built-in multi-viewer for monitoring over MoIP.
2-Way Transfer of Many Signals Using only LAN Cables
Beneficial for broadcasting, live production, corporate events, or other applications, regardless of the market.
HDMI Output

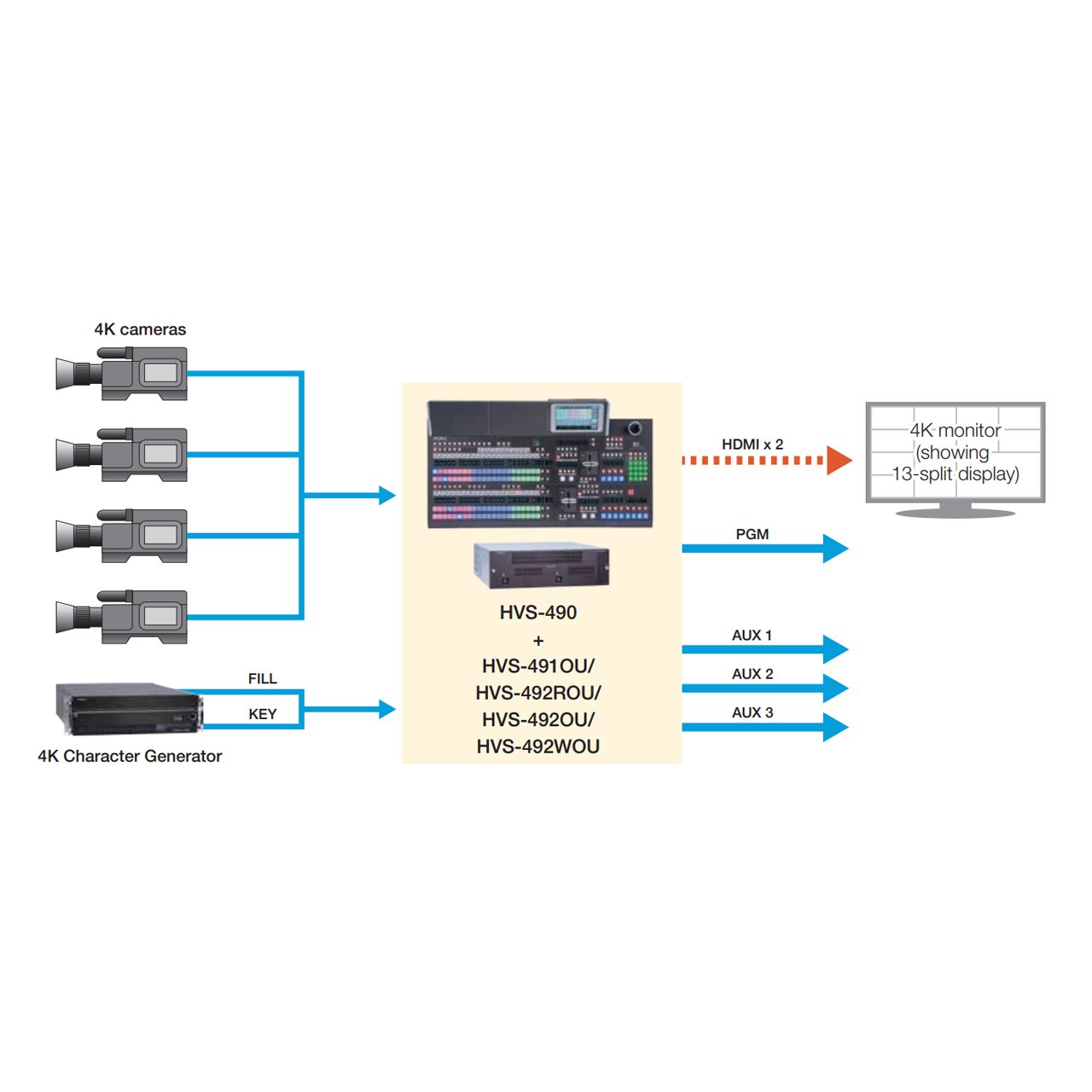

4K resolution is supported in HDMI 2.0 Level-B output. Can be used to monitor 4 images on 1 screen.
Audio Playback Support
Play back clips with audio. Sound effects can be mixed on switched videos using CG-Wipe effects. To utilize this function, download the audio data to the HVS-190S in advance.
Digital Audio Interface
Add the HVS-49AES Digital Audio I/O Card for 4 AES inputs and 4 outputs. Mux audio to PGM output, or demux audio from any input.
DVE
Provides 4 freely assignable 2.5D DVEs.* Configure enlargement, reduction, rotation, borders, and other settings for each channel composited. Also available for background transitions. * Up to 2 DVEs when using 3G-SDI.
