Blackmagic Design ATEM 4 M/E Constellation HD Production Switcher - 40x 3G-SDI Inputs/24x 3G-SDI Outputs/4 DVEs

ITEM #: BMD-ATEM4MECONHD MFG #: SWATEMSCN2/1ME4/HD

  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with Minimum Order Banner

Our Price:

$3,695.00

Availability: In Stock
iAvailability Description Popup


    SWATEMSCN2/1ME4/HD - Overview

    Introducing ATEM Constellation HD, the world's most powerful HD live production switchers! These incredibly powerful HD switchers are available in 3 great models, including a 1 M/E model with 10 inputs, a 2 M/E model with 20 inputs and a massive 4 M/E model with 40 inputs! Plus each SDI input features a full standards converter! ATEM Constellation includes advanced features such as DVEs, ATEM advanced chroma keyers, media players, multiviews, and SuperSource processors! Plus the built in Fairlight audio mixer includes a compressor, limiter, 6 band parametric EQ and expander on each input. The free ATEM Software Control is included, or you can add a 1 M/E, 2 M/E or 4 M/E ATEM Advanced Panel!

    Seriously Advanced Broadcast Power

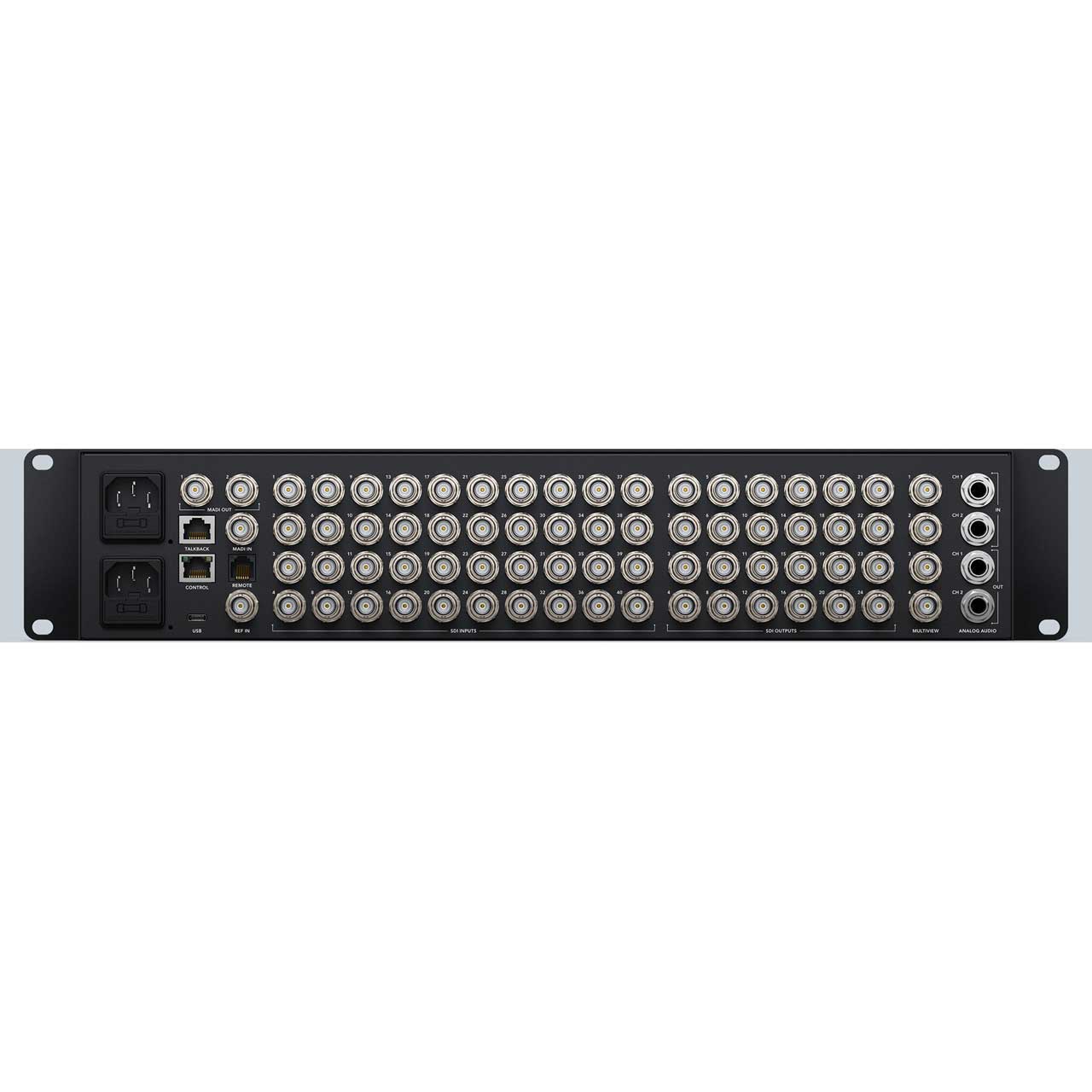

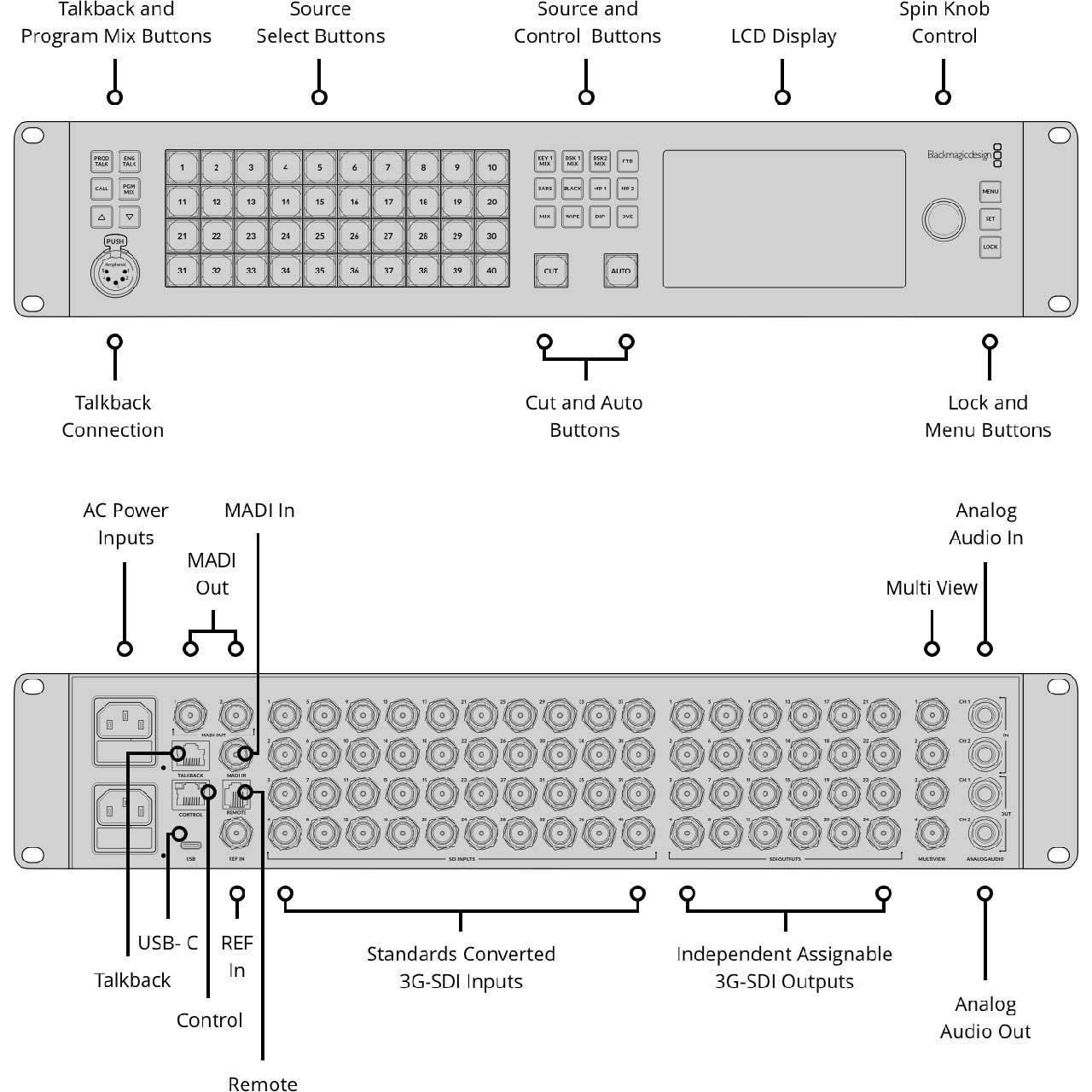

    ATEM Constellation HD switchers feature a compact rack mount design with a built in control panel. This allows operation of the switcher, critical during setup or for emergency use. Also included is a large LCD so you can see program output and change switcher settings via on screen menus. The compact design is perfect for portable live production, with the rear of the switcher including the connections for 3G-SDI inputs, 3G-SDI aux outputs, balanced audio and Ethernet for control. The top 4 M/E model even includes RS-422 for serial control and MADI digital audio connections. Even with all this power, ATEM Constellation is extremely quiet with its innovative high efficiency thermal system.

    Designed for Massive Live Events!
    With 3 powerful models, ATEM Constellation HD switchers are ideal for concerts and music festivals because you can place cameras on all areas of the stage for amazing coverage! Even live sports benefit from the huge number of inputs and DVEs let you build multi-layer compositions to cover the action. The fastest way to produce programming is live! With powerful internal graphics and lots of ATEM advanced chroma keyers, you get everything you need for complex program production.

    True Broadcast Style Mix Effects Switching
    ATEM Constellation HD uses a professional "program/preview" style operation, which is the exact same way large broadcasters use live production switchers. This means you are using the same type of switcher used by the television industry. Both the free ATEM Software Control and the optional hardware ATEM Advanced Panels will allow program/preview style switching. This means you can select a source on the preview bus to ensure it's correct before pushing the CUT or AUTO button to switch it on air. This 2 step program/preview process means far fewer mistakes!

    • Specifications:

      • Connections
      • Total Video Inputs: 40
      • Total Video Outputs: 24
      • SDI Rates: 1.5G, 3G
      • Total Audio Inputs: 2x balanced 1/4 inch Jack, 1x 32 stereo channel BNC MADI in, 1x 5 pin XLR Talkback
      • Total Audio Outputs: 2x balanced 1/4 inch Jack, 2x 32 stereo channel BNC MADI out. 1x 5 pin XLR Talkback
      • SDI Audio Inputs: 2 Ch embedded audio on all SDI inputs
      • SDI Audio Outputs: 2 Ch embedded audio on all SDI outputs
      • Timecode Connections: None
      • Reference Input: Tri-Sync or Black Burst
      • Video Input Re-Sync: On all 40 inputs
      • Frame Rate and Format Converters: On all 40 inputs
      • SDI Aux Outputs: Any of the 24 SDI outputs
      • SDI Preview Outputs: Any of the 24 SDI outputs
      • SDI Program Outputs: Any of the 24 SDI outputs
      • Down Converted SDI Program Output: None
      • Webcam Output: 1x USB-C supporting 720p or 1080p at PGM frame rate
      • Total Multi Views: 4 x 3G-SDI
      • Remote: RJ12 supports RS-422
      • Control Panel Connection: Ethernet. Direct connection between panel and chassis, or via network
      • Internal Timecode Generator: Yes
      • Talkback: RJ45 for 3rd party talkback systems
      • Tally Output: Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included)
      • Ethernet: Supports 10/100/1000 BASE-T
      • Computer Interface: 1x USB-C supports USB 3.1 Gen 1 (5Gb/s)

        Standards
      • SD Video Standards: None
      • HD Video Standards: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
      • SDI Compliance: SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B
      • Video Sampling: 4:2:2
      • Color Precision: 10-bit
      • Color Space: REC 709
      • SDI Auto Switching: Automatically detects between 1.5G-SDI and level A or level B 3G-SDI

        Product Specifics
      • Upstream Keyers: 16
      • Downstream Keyers: 4
      • Advanced Chroma Keyers: 16
      • SuperSource: 2
      • Talkback Support: Yes
      • Mix Minus Support: Yes
      • Linear/Luma Keyers: 21
      • Transition Keyer (Stinger/DVE): 4 Stinger, 4 DVE.
      • Total Number of Layers: 28
      • Pattern Generators: 21
      • Color Generators: 2
      • Control Panel: Front fascia emergency switching, software or optional hardware panel.
      • Routable Windows: 64
      • Tally: Red for program and green for preview indication.
      • Windows Source Labels: Yes

        Multi View Monitoring
      • Multi View Monitoring: 4 x multi views each configurable to 16, 13, 10, 7 or 4 up views. Includes monitoring of Program, Preview, Inputs, Media Players, M/Es, DSKs, SuperSource, Clean Feed with optional labels and audio meters.
      • Multi View Video Standard: HD
      • Display Minimum Resolution: 1366 x 768

        Media Player
      • Media Players: 4
      • Channels: Fill and key for each media player
      • Media Pool Still Image Capacity: 60
      • Media Pool Clip Capacity: 4 x up to 1080p60.
      • Media Player Clip Length in 720 HD: 1200 frames
      • Media Player Clip Length in 1080 HD: 600 frames
      • Media Pool Still Image Format: PNG, TGA, BMP, GIF, JPEG and TIFF
      • Media Pool Video File Format: TGA Sequence
      • Media Pool Audio File Format: WAV, MP3 and AIFF

        Display

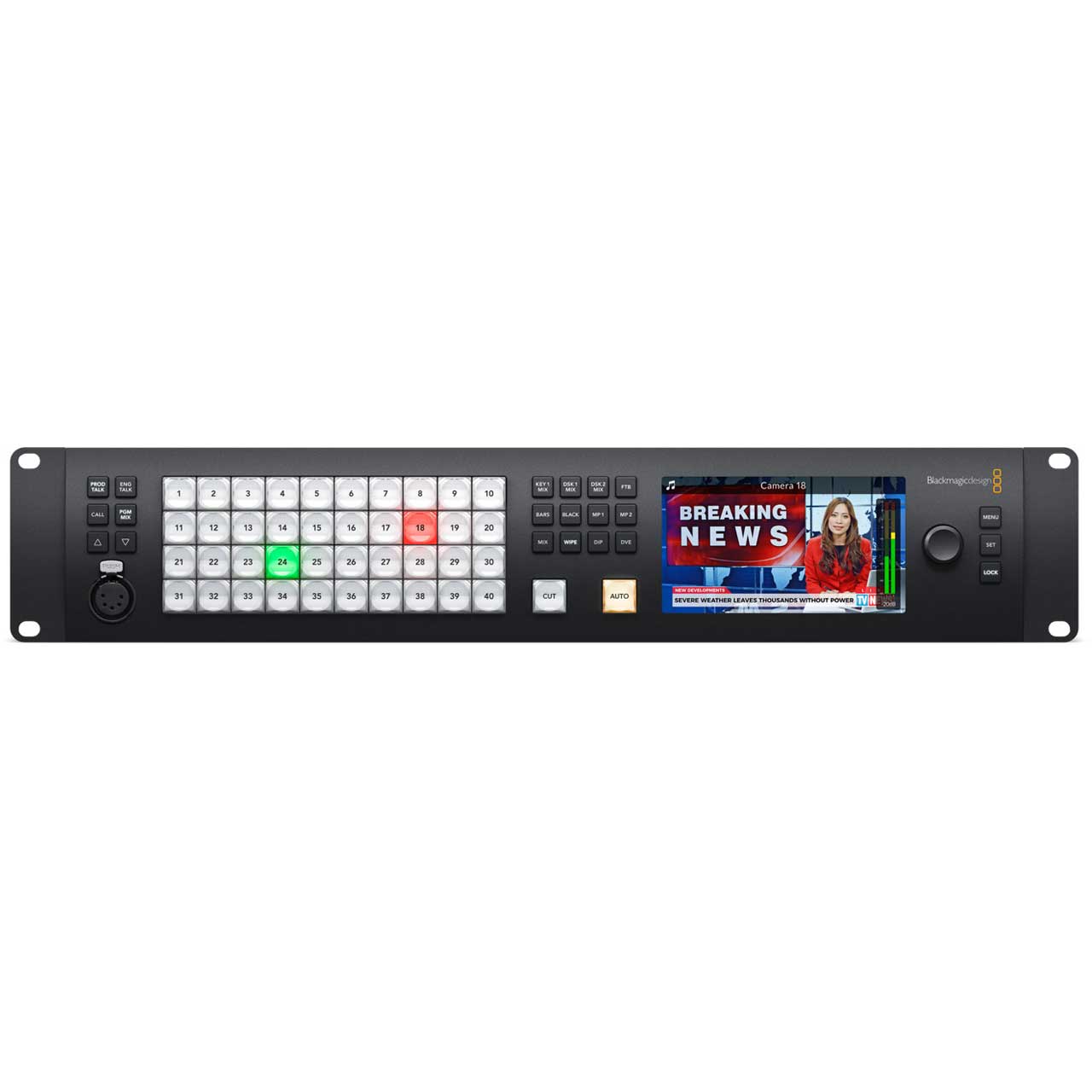

      • Front panel: Built in 5 inch HD LCD monitor for video, 42 LED buttons for setup and emergency switching, 8 source buttons, 4 transition buttons, 6 talkback selection and mix buttons, menu control knob and set button, front panel lock button

        Power Requirements
      • Power Supply: 2x Internal 100 - 240 AC.
      • Power Usage: 147W estimated

        Environmental Specifications
      • Operating Temperature: 32° to 104° F
      • Storage Temperature: -4° to 140° F
      • Relative Humidity: 0% to 90% non-condensing

    • Item Includes:

      • 1x ATEM 4 M/E Constellation HD

    • Warranty:

      • 12 Month Limited

    • GTIN:

      9338716007848
