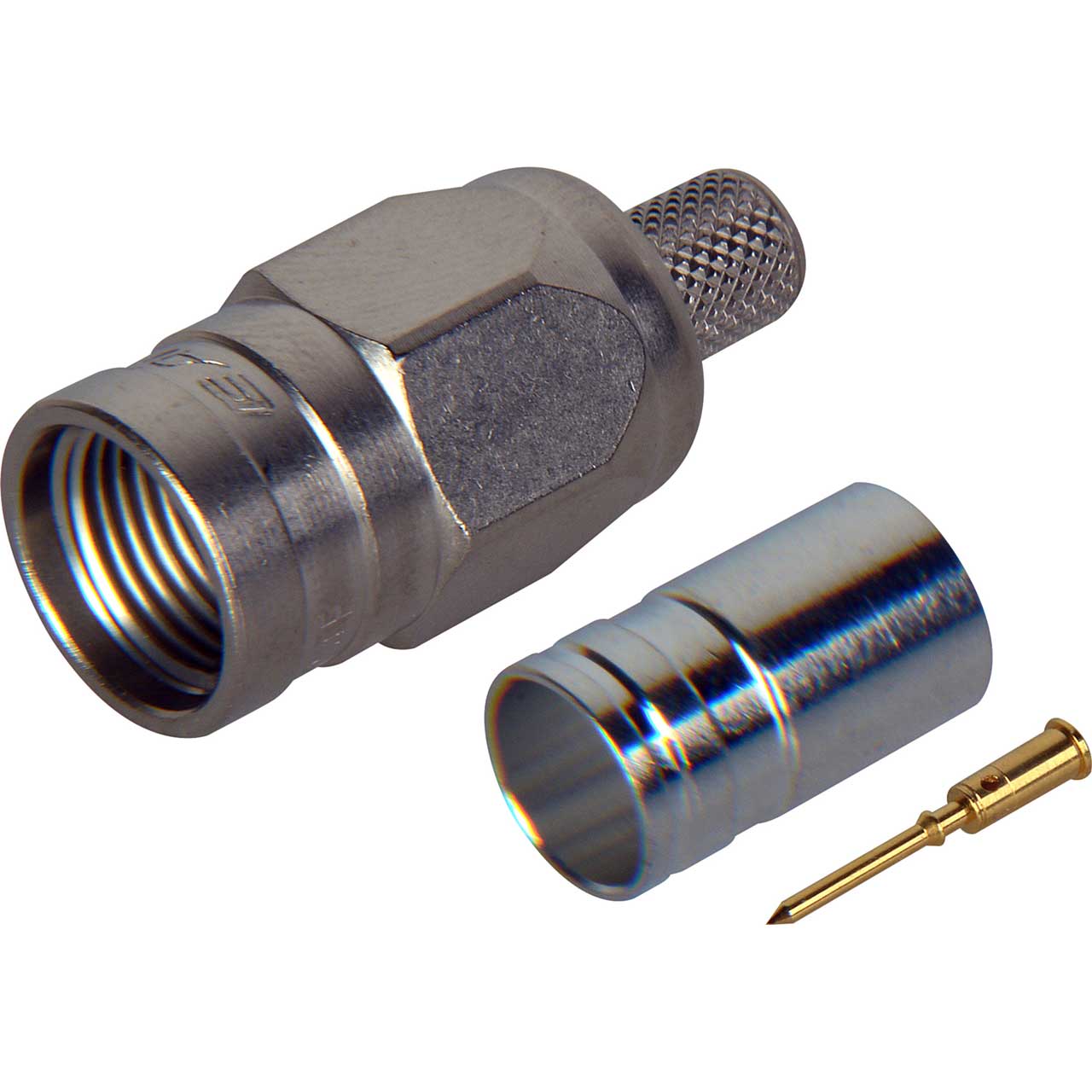

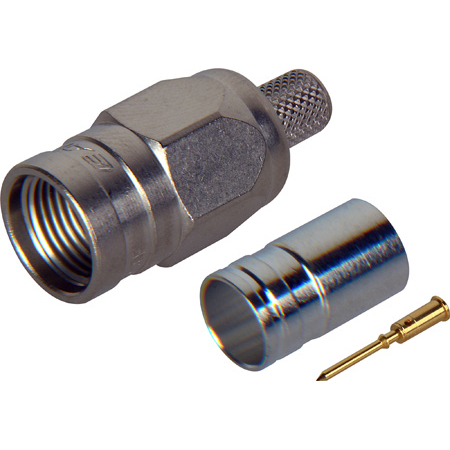

Canare FP-C53A F Connector for Belden 1694A or RG-6 Coax

ITEM #: FP-C53 MFG #: FP-C53A

Primary Image
Free Shipping with $49 Minimum Order

List Price:


Our Price:


Availability: In Stock
iAvailability Description Popup

    FP-C53A - Overview

    Canare true 75-Ohm FP-C series 3-Piece Crimp F connectors are widely recognized as the world standard for both analog and digital video formats with outstanding electrical and mechanical performance. The Canarea FP-C53A F connector exceeds 3.0Gbps HD-SDI requirements specified in SMPTE424M and is designed to fit snug on Belden 1694A or RG6 coaxial cable. It is hands down the highest quality F Connector on the market.

    A unique feature of the Canare FP-C53A F Connector is a lock mechanism of the center crimp pin to improve reliability and prevent shifting or detaching. The tools and cable stripper required for the FP-C series are the same used for Canare F crimp plugs which helps save on tooling costs. VSWR of 1.1 or less up to 2GHz. Compatible with broadcast satellite (BS) and communications satellite (CS) signals.

    • Features:

      • True 75 ohm construction Crimp Pin & Sleeve DC to 2.0 GHz >26dB Return Loss (<1.1 VSWR) Use with Solid or Stranded Center 75 ohm Coax Elongated Body for better finger grip Superior cable pull strength Gold plated center pins 'snap lock' in place Easy Assembly using Canare Strip & Crimp Tools
    • Applications


      • Digital Broadband Satellite System RF Equipment Cable Modems Satellite Headends TELCOM

    FP-C53A - Required Accessories
