FSR DR-EDID - EDID Manager/Learner/Emulator Designed to Manipulate EDID Information Connected to a HDMI Source

ITEM #: FSR-DR-EDID MFG #: DR-EDID

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$152.00

Our Price:

$122.00

Availability: In Stock
iAvailability Description Popup


    DR-EDID - Overview

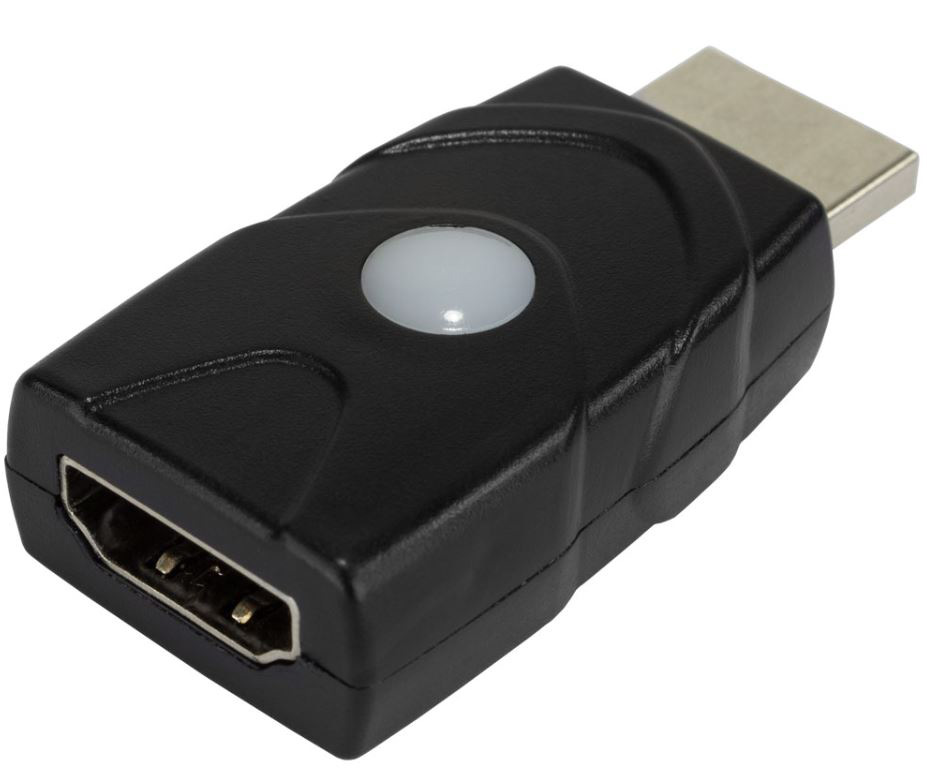

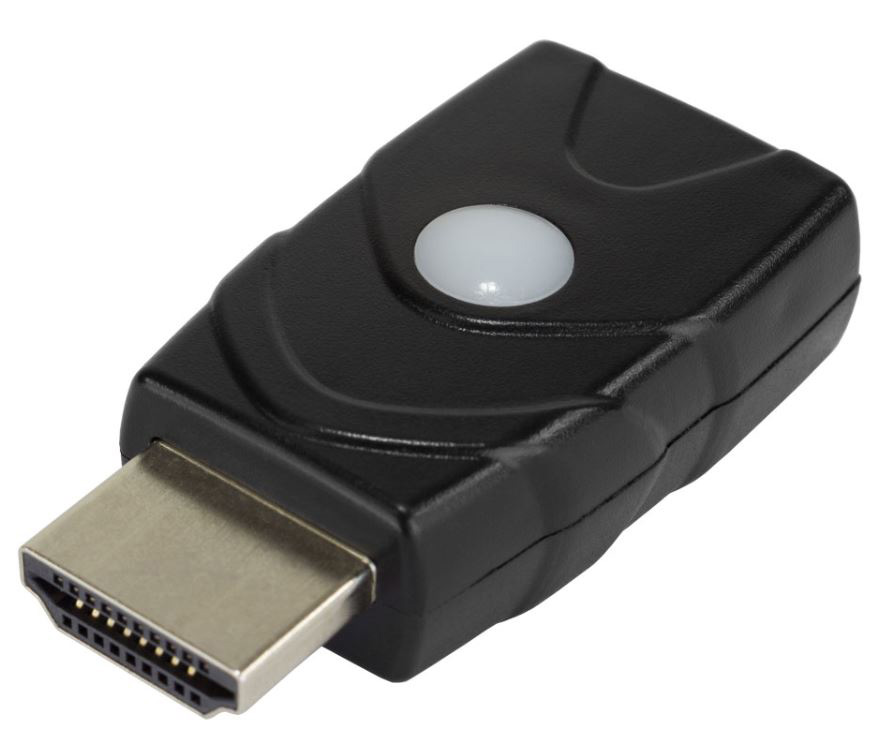

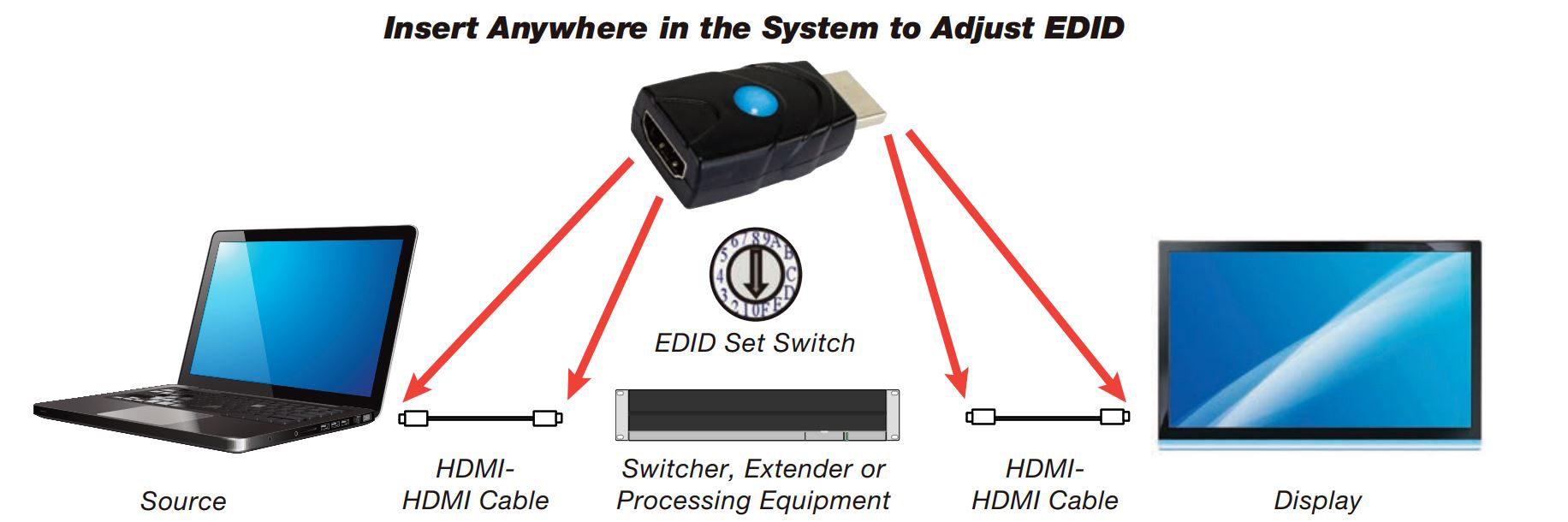

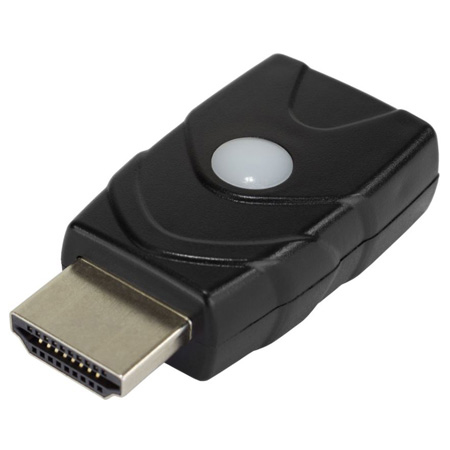

    The FSR DR-EDID Emulator is designed to manipulate the EDID information provided to a connected HDMI source or any device connected prior to the unit in the HDMI chain. The DR-EDID is a unique self-powered bidirectional device that can be inserted onto either end of any HDMI cable.

    EDID refers to a block of information that is passed from the far end of your signal chain, normally the display, to the first device or source. This EDID contains critical information about the capabilities of the connected display, including audio and video format support, HDMI feature support, etc.

    This device allows the installer to simply and quickly modify the information with a rotary switch to select between 16 pre-installed settings or test the EDID from any device.

    This will simplify troubleshooting the technical complications that often arise when performing video system integration or when left in place, permanently alter the EDID of the system.

    • Features:

      • 16 preinstalled EDID
      • Passive inline device - No external power needed
      • Bi-directional (bi-gender). It can be used in either direction
      • HDCP 1.4/2.2 Compatible
      • Hot pluggable
      • Supports HDMI 1.3/1.4/2.0
      • Supports up to 4K/UHD @ 60Hz
      • Learn and test the EDID from any Display

    • Specifications:

      • Connectors and Switches
      • Side A: HDMI Type A Male
      • Side B: HDMI Type A Female
      • Switch: Rotary Switch for selecting EDID settings

        LED Indicator
      • Flashing Red - learning mode
      • Purple - learning mode
      • Blue - emulation mode, ready to use
