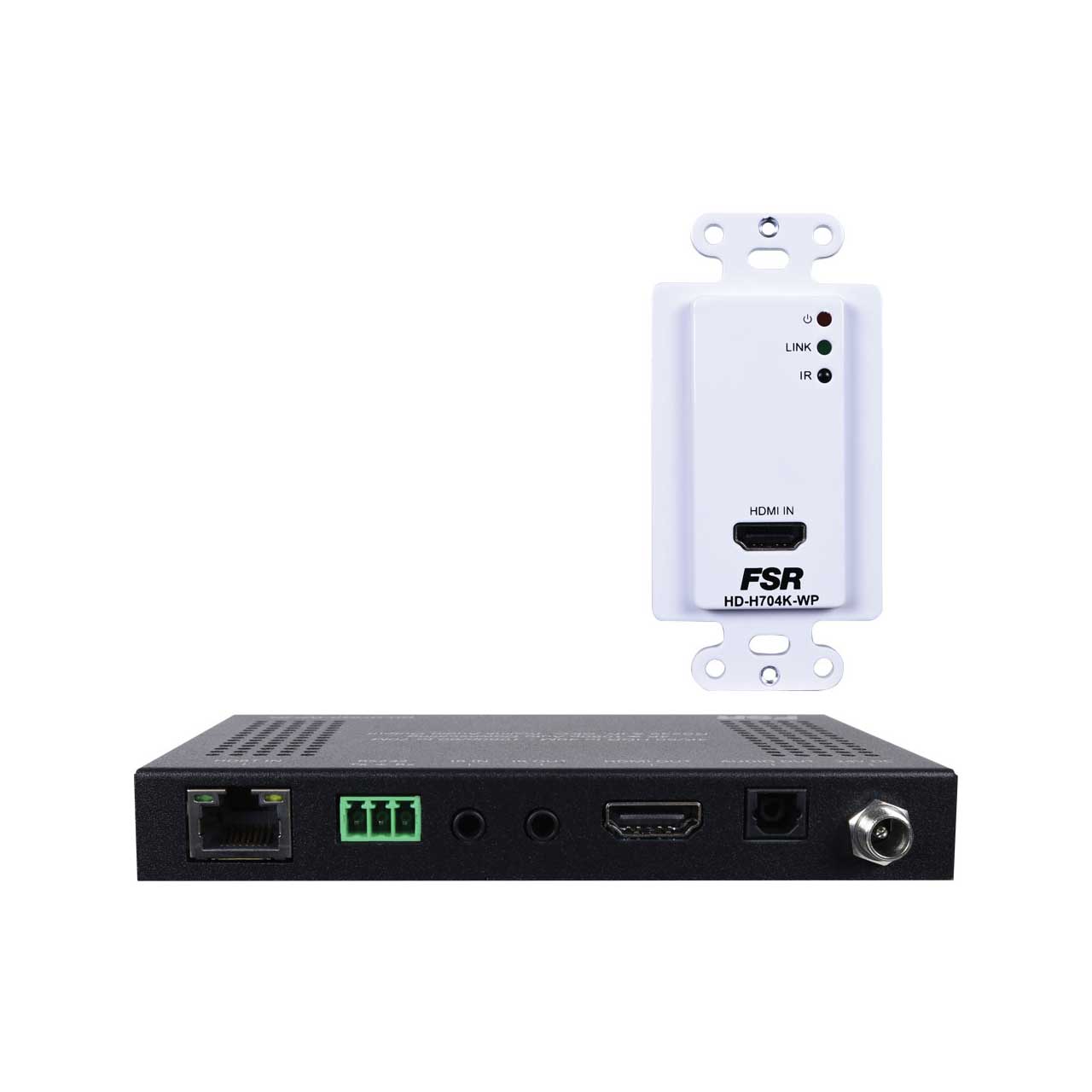

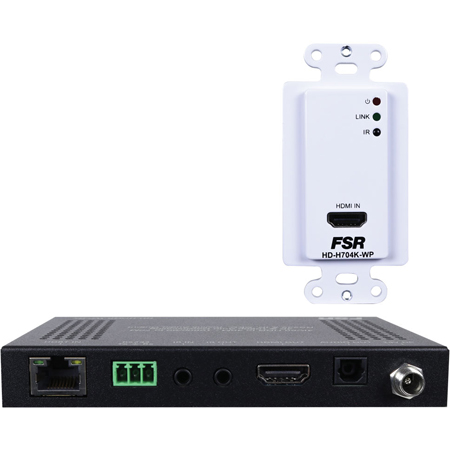

FSR HD-H704K-WP 18G HDMI HDBaseT Wall Plate to Brick Extender Set - 4K@60Hz 4:4:4 up to 131Ft/1080p@60Hz up to 230Ft

HD-H704K-WP - Overview

• Features:

  • Supports HDMI® 2.0, HDR, HDCP 2.2 compliant
  • Transmission distance up to 4K/40m or 1080p/70m
  • S/PDIF output for audio de embedded
  • Supports video resolution down scaling to output 1080p for compatibility with 1080p display
  • Bi-directional RS-232 control
  • IR pass through, sensor on the front of the wallplate and a provided emitter cable
  • Transmitter is powered by receiver via 24V PoC


• Specifications:

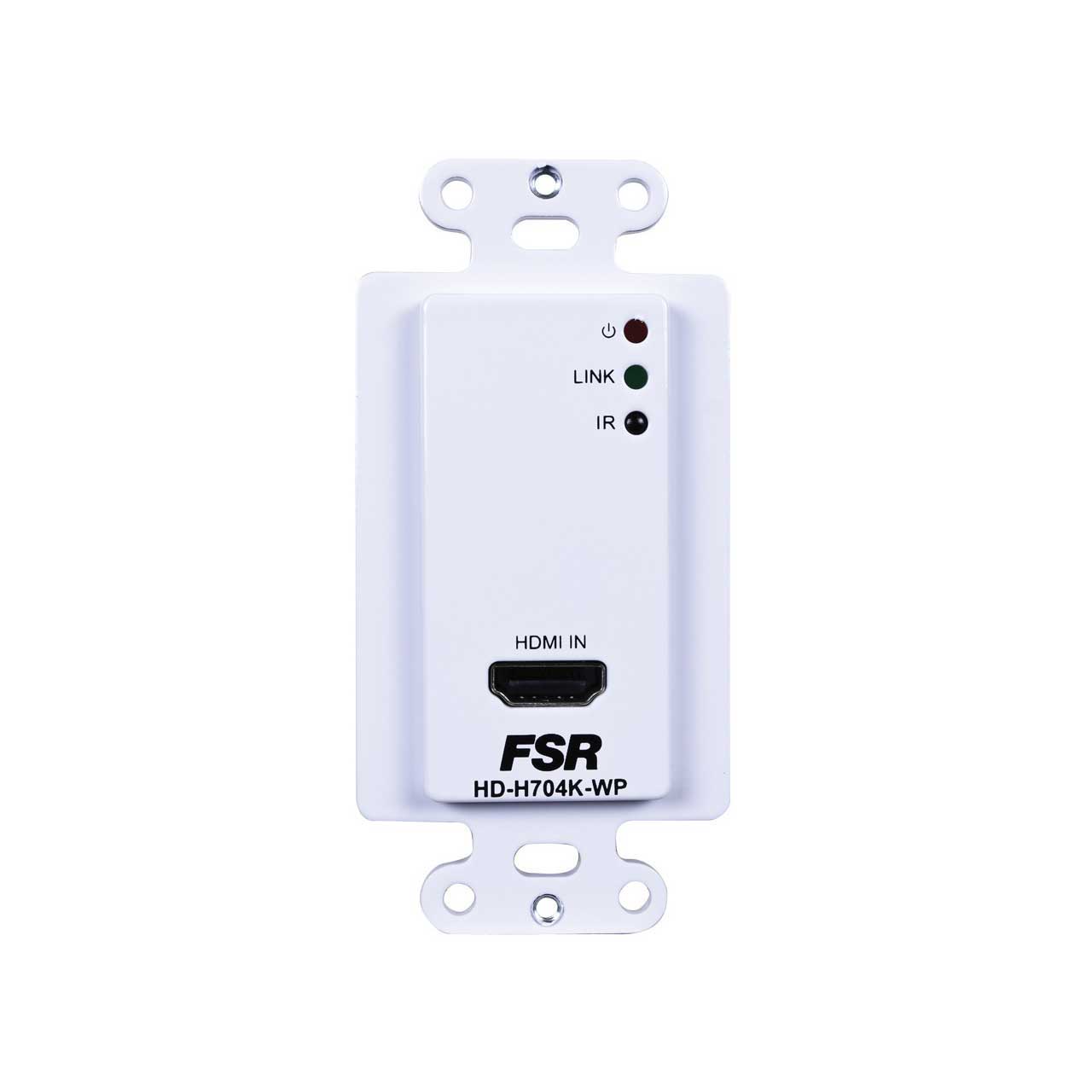

  • TPUH703T
  • Input: (1) HDMI
  • Input Connector: (1) Type-A female HDMI
  • Output: (1) HDBT
  • Output Connector: (1) RJ45

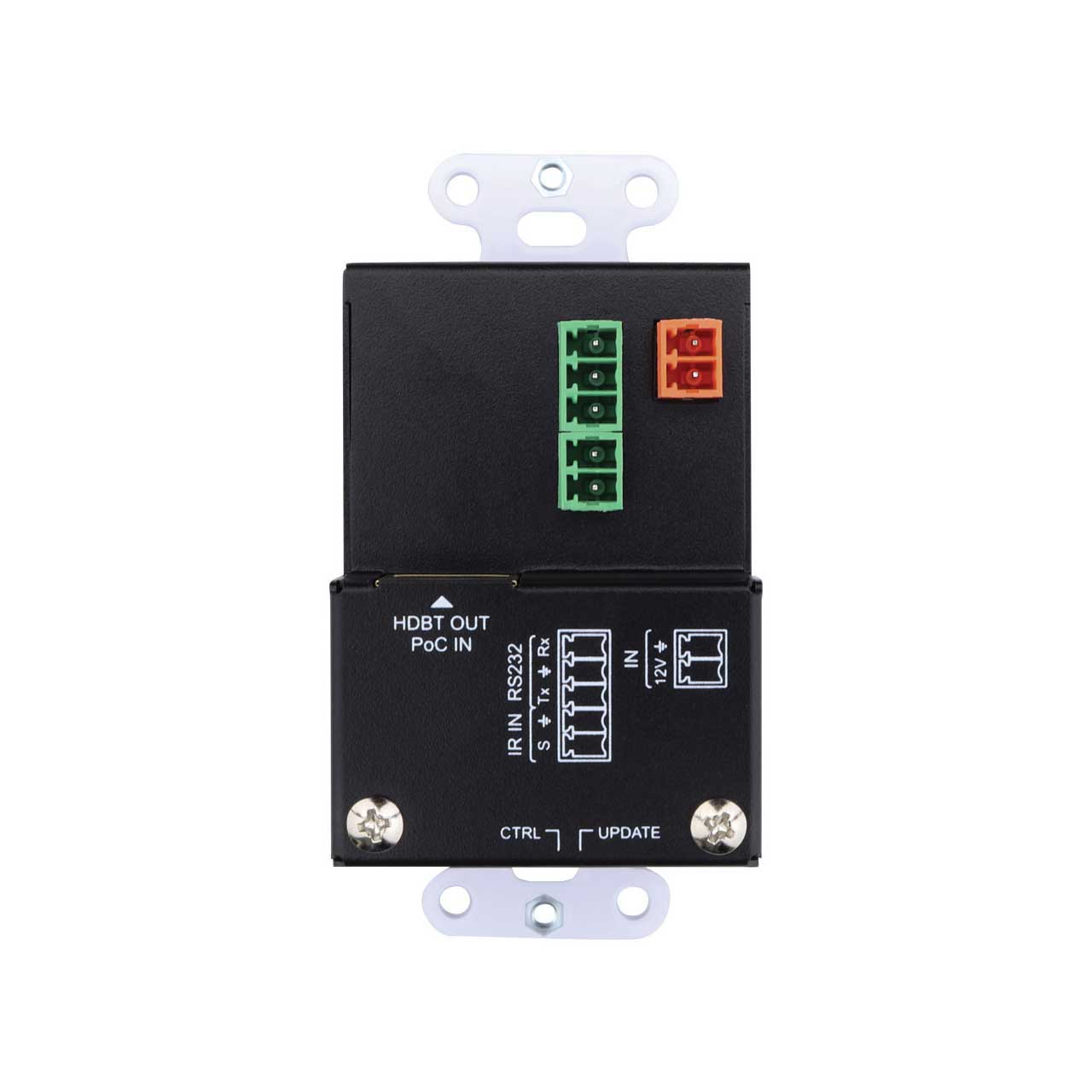

  • Control: (1) RS232, (1) IR In (1) Built-in IR Receiver
  • Control Connector: (1) 3-pin terminal block, (1) 2-pin terminal block

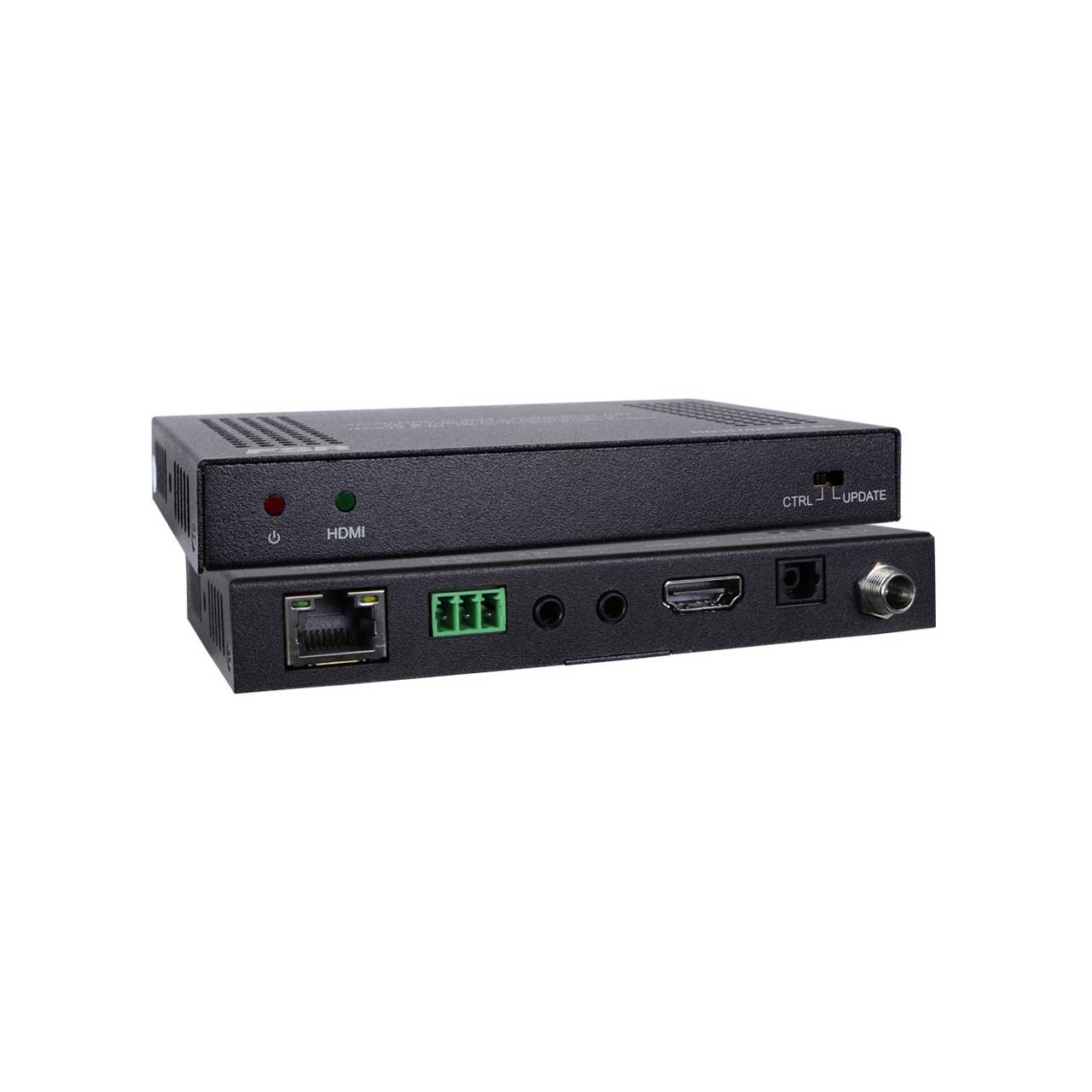

    TPUH703R
  • Input: (1) HDBT
  • Input Connector: (1) RJ45
  • Output: (1) HDMI
  • Output Connector: (1) Type-A female HDMI
  • Control: (1) RS232, (1) IR In (1) IR Out
  • Control Connector: (1) 3-pin terminal block, (2) 3.5mm mini jacks
  • Audio Output: (1) AUDIO Out
  • Audio Output Connector: (1) SPDIF
  • Output level: ±0.05dBFS
  • Frequency Response: 20 Hz to 20 kHz, ±1dB
  • THD+N: < 0.05%, 20 Hz - 20 kHz bandwidth, 1 kHz sine at 0 dBFS level (or max level)
  • SNR: > 90dB, 20Hz-20 kHz bandwidth
  • Noise: -90dB

    General
  • Video Resolution: Up to 4K@60Hz 4:4:4, HDR
  • HDMI Audio Format: LPCM 7.1 audio, Dolby Atmos®, Dolby®TrueHD, Dolby Digital® Plus, DTS:X™, and DTS-HD® Master Audio™ pass-through
  • Bandwidth: 18Gbps
  • Color Space Supports RGB, Rec. 601, and rec. 709 BT2020
  • HDMI Standard: 2.0
  • HDCP Version 2.2, 1.4 compliant, follows the display
  • CEC: Pass-through
  • EDID: Pass-through
  • Transmission Standard: HDBaseT
  • Transmission Distance: 4K@60Hz 4:4:4 ≤ 40 meters (131 feet), 1080p@60Hz ≤ 70 meters (230 feet)
  • Operation Temperature: 0~ +55°C
  • Storage Temperature: -25 ~ +70°C
  • Relative Humidity: 10%-90%
  • Power Supply Input:100V~240V AC; Output: 24V DC 1.25A
  • Power Consumption TX&RX: 11.5W (Max)
  • Dimension (W*H*D): TX: 2" x 4" x 2" / RX: 5.1" x .7" x 3.3"
  • Net Weight TX: 6.3 oz / RX: 9 oz


• Item Includes:

  • 1x FSR HD-H704K-WP 18G HDMI HDBaseT Wall Plate to Brick Extender Set - 4K@60Hz 4:4:4 up to 131Ft/1080p@60Hz up to 230Ft
