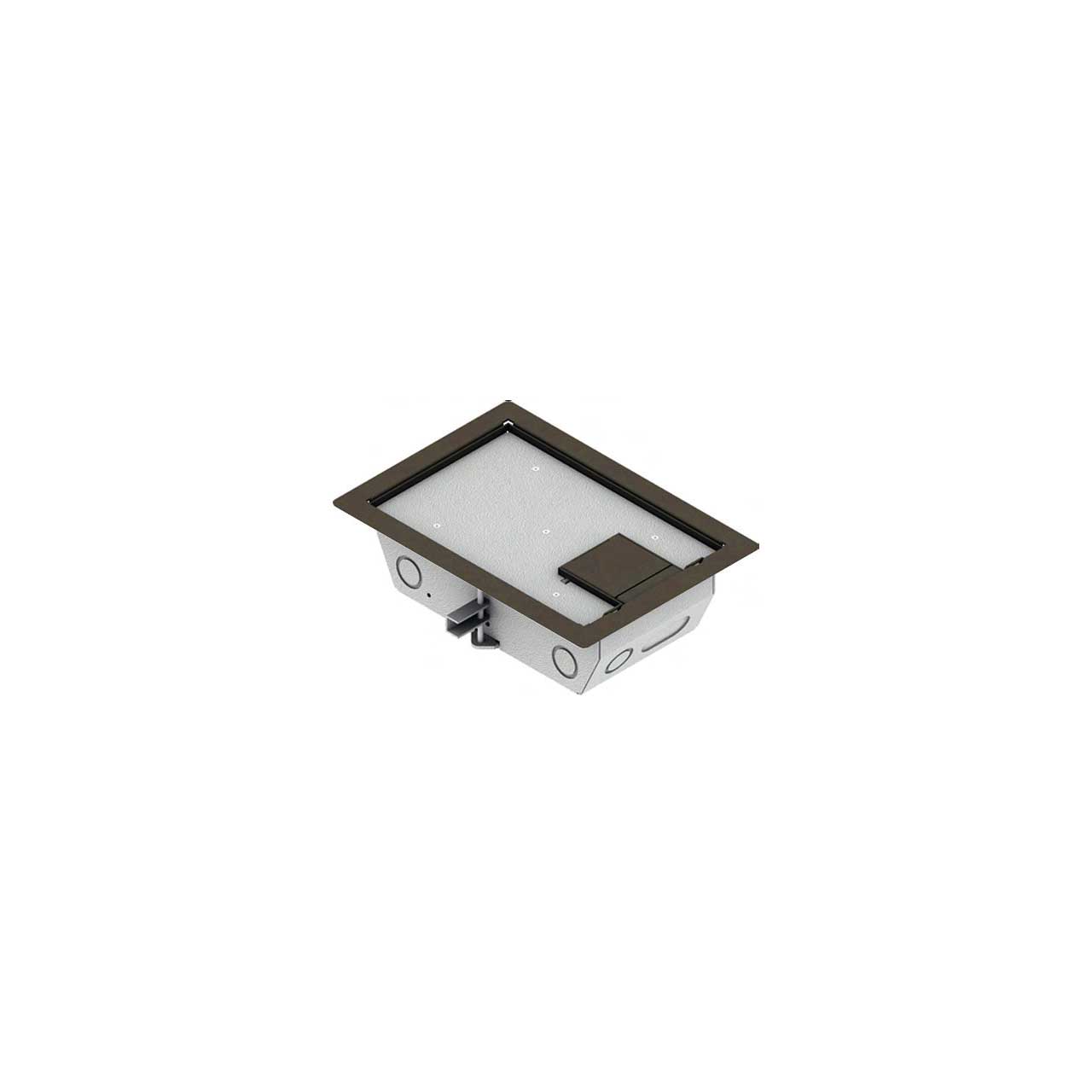

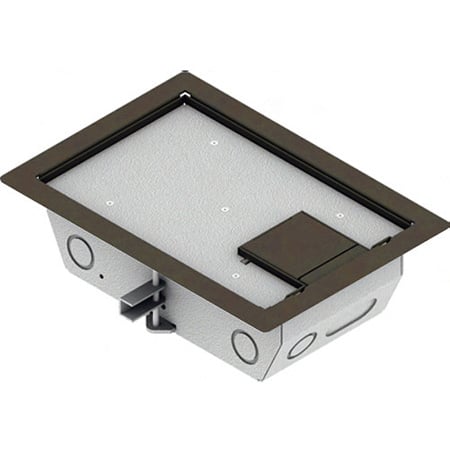

FSR RFL3-Q1G-CLY 3 Inch Deep Back Box with 4 1-Gang Plates Carpet Inlay - Clay Trim

RFL3-Q1G-CLY - Overview

• Features:

  • Patented epoxy wrinkle powder finish, available in gray
  • Oversize cable door(s)
  • Standard electrical plate openings
  • Superior mounting clamp design to handle a wide variety of floor thicknesses
  • Listed by UL to meet US and Canadian safety standards
  • Large multi-compartment boxes for power,audio, video, data and more
  • 14-gauge steel construction.
  • 3 1/4-inch deep floor box
  • 4 standard single gang opening
  • 3/16-inch cover thickness


• Specifications:

  • Box Volume (Less Panels): 210 cu in.
  • Device Compartment Volume: 46 cu in.
  • Number and Size of Knockout: 4 - 1/2" on the bottom; 8 - 1/2" - 3/4" on the sides; 4 - 1" x 2" oval on the sides
  • Cover Material: 16/14 ga Steel; under 11 ga Steel Support
  • Support flange Material: 14 ga galvanized steel
  • Body Material: 14 ga galvanized steel
  • Max No of Device Panels: 2 dual single gang (Provided)
  • Product Dimensions (W x H): 10.91 x 12.16 inches
  • Overall Box Depth: 3.23 inches (From Carpet Surface)
  • Inside Depth: 2.61 inches
  • Inside Width: 9.41 inches
