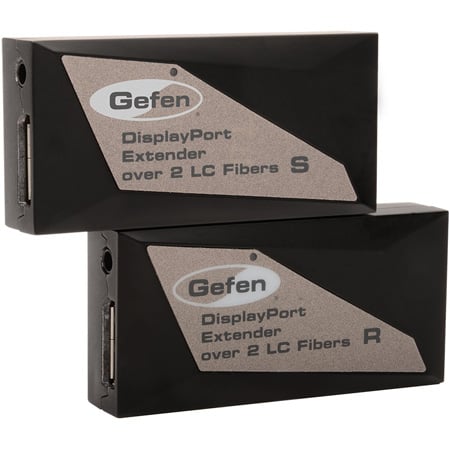

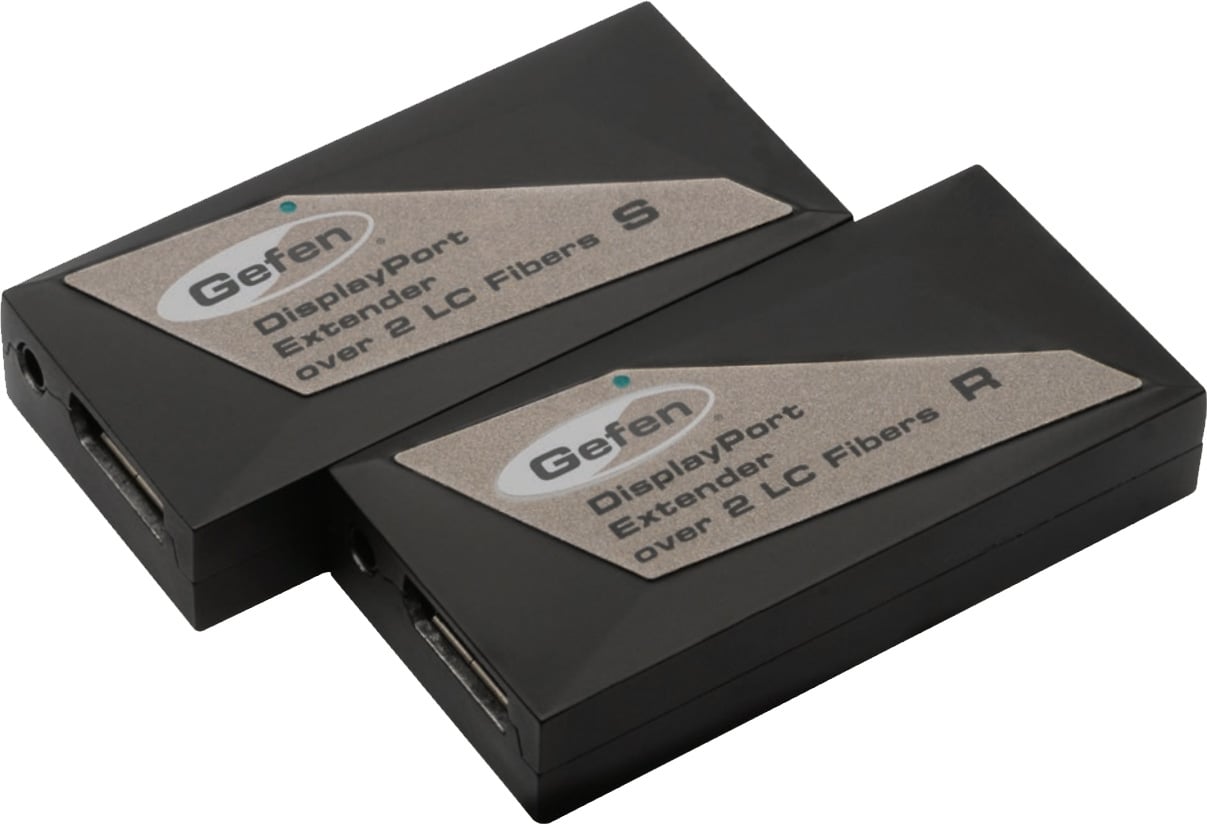

Gefen EXT-DP-CP-2FO DisplayPort Extender over Fiber Optic Cable

ITEM #: GEF-DP-CP-2FO MFG #: EXT-DP-CP-2FO

  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
free ship

List Price:

$1,852.00

Our Price:

$1,195.00

Special Price:

$1,079.00

Availability: In Stock
iAvailability Description Popup


    EXT-DP-CP-2FO - Overview

    Extend DisplayPort with HDCP and DPCP support over dual LC-terminated multi-mode fiber optic cables

    The Gefen EXT-DP-CP-2FO extends DisplayPort up to 1000 feet (300 meters) using two strands of 50/125æm multi-mode (OM2/OM3) LC-terminated fiber optic cable. Resolutions up to 2560 x 1600 (WQXGA) are supported. 62.5/125æm (OM1) fiber may also be used for a maximum range of up to 500 feet (150 meters).

    Compared to similar copper-based solutions, optical signal transmission provides galvanic isolation and much better resistance to electromagnetic interference. Sender and Receiver modules feature cast Aluminum enclosures, providing further immunity to radiated noise.

    Female connectors allow optimized lengths of DisplayPort cables to be used, preventing stress on source and display connectors. This, along with the compact size of the modules help create a clean and trouble-free installation by reducing clutter around the connector panels.

    How It Works
    Using the included DisplayPort cables, connect the computer to the Sender module and the Receiver module to a Hi-Def display. Connect up to 1000 feet (300 meters) of duplex 50/125æm multimode (OM2/OM3) LC-terminated fiber optic cable from the Sender to the Receiver unit. 62.5/125æm (OM1) fiber may also be used at a reduced maximum range of up to 500 feet (150 meters). Plug the included power supplies into the Sender and Receiver modules and to available electrical outlets. Alternately, you power the Sender and/or the Receiver unit by using the included USB Type A to DC plug cables, and connecting them between the Sender or Receiver and a USB device that is capable of supplying 5V at 500mA. Power on all associated equipment. A vibrant Hi-Def picture will appear on your display.

    • Features:

      • Extends DisplayPort up to 1000 feet (300 meters) over 2 strands of 50/125æm multi-mode (OM2/OM3) LC-terminated fiber optic cable
      • Extends DisplayPort up to 500 feet (150 meters) over 2 strands of 62.5/125æm multi-mode (OM1) LC-terminated fiber optic cable
      • Supports resolutions up to 2560 x 1600 (WQXGA)
      • Compliant with DisplayPort 1.1a standard
      • Supports Dual-Mode DP (DP++)
      • Supports auxiliary/l²C channel over fiber
      • Cast Aluminum enclosures and Fiber optic transmission eliminate susceptibility to electromagnetic interference (EMI)
      • HDCP and DPCP-compliant
      • Compact Sender and Receiver modules and female DisplayPort connectors provide clean and easy installation
      • FCC and CE compliant for RFI (radio frequency interference) and EMI (electromagnetic immunity)

    • Specifications:

      • Video bandwidth: 10.8Gbps (2.7Gbps per lane, 4 lanes)
      • Video Input Connector (Sender): (1) DP-20-pin, female
      • Video Output Connector (Receiver): (1) DP-20-pin, female
      • Link Connector (Sender/Receiver): (2) Type LC
      • Power Supply (Sender/Receiver): 5V DC
      • Power Consumption (Sender/Receiver): 2.1W max. (each)
      • Optical Power Budget: 9.4 dB
      • Operating Temperature: 0° to + 50° C
      • Storage Temperature: - 30° to + 70° C
      • Operating Humidity: 10 to 85% RH, non-condensing
      • Storage Humidity: 5 to 90% RH, non-condensing
      • Dimensions (W x H x D): 1.4" x 0.6" x 2.8" (35mm x 16mm x 72mm)
      • Shipping Weight: 1.8 lbs (0.8 kg)

    • Item Includes:

      • (1) DisplayPort Extender over 2 LC Fibers (Sender Module)
      • (1) DisplayPort Extender over 2 LC Fibers (Receiver Module)
      • (2) 2 ft. DisplayPort Cable (CAB-DP-02MM)
      • (2) USB Type A to DC Cable (CAB-USB2DC-3MM)
      • (2) 5V DC Power Supplies (EXT-PS51AIP-1.3)
      • (1) Quick-Start Guide (QSG-DP-CP-2FO)

    • GTIN:

      0845344058139
