The Gefen GF-EXT-DP5-SC Optical DisplayPort 2.1 Extender delivers flawless 8K@60Hz video and audio signals up to 656ft (200m) over a single OM3/OM4 fiber optic cable. With 40Gbps bandwidth and zero latency, it's ideal for broadcast, medical imaging, and high-resolution visualization. Its compact metal housing ensures noise-immune, reliable connectivity, supporting DPCD and HDCP compliance for secure AV workflows. Includes all necessary cables for easy setup.
Long-Distance Optical Transmission
Extends DisplayPort 2.1 signals up to 656ft (200m) using a single OM3/OM4 multimode fiber optic cable, ensuring stable and noise-immune connectivity in professional settings.
Robust Metal Housing
Compact and durable build provides reliability in demanding environments, protecting against interference and physical damage.
Compliance with Standards
Supports DPCD (DisplayPort Configuration Data) and HDCP (High-bandwidth Digital Content Protection) for secure, standards-based operation compatible with modern AV workflows.
Plug-and-Play Installation
Includes all necessary cables, enabling quick and straightforward deployment with SC-terminated single-core optical cables for fast setup.
How It Works:

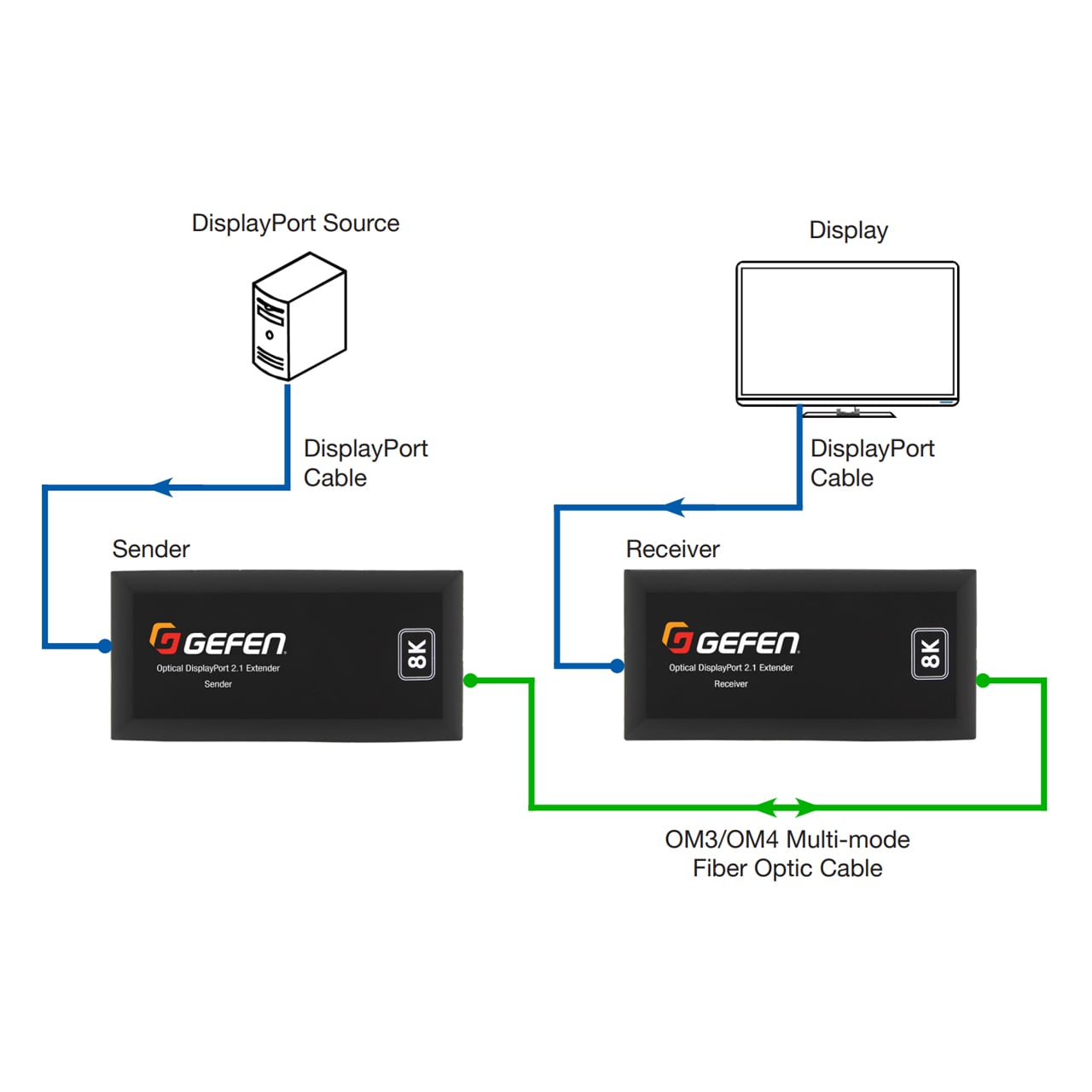

• The Gefen GF-EXT-DP5-SC converts high-definition DisplayPort 2.1 video and audio signals into optical signals transmitted via fiber optic cables. This method allows signals to travel long distances (up to 656ft (200m)) without degradation, maintaining the highest fidelity required for 8K resolution at 60Hz.
• Upon reaching the receiver unit, the optical signals are converted back into high-bandwidth DisplayPort signals with zero compression or latency, ensuring critical visual data remains intact for applications such as medical imaging and broadcast control.
• The compact, noise-immune design with metal housing protects the signal integrity from interference. Compliance with HDCP and DPCD ensures security and compatibility with the latest content protection and display protocols, making it ideal for professional audiovisual environments.
Ideal for:
• Broadcast & Media Production
• Medical Imaging
• Corporate & Commercial AV
• Simulation & Visualization
• Industrial Automation
