Gepco XB401.41 Single-Pair X-Band Ultra-Flexible Low- Noise and Durable Balance Cable - 1000 Ft

ITEM #: GEP-XB401-41 MFG #: XB401.41

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the GEP-XB401-41

XB401.41 - Overview

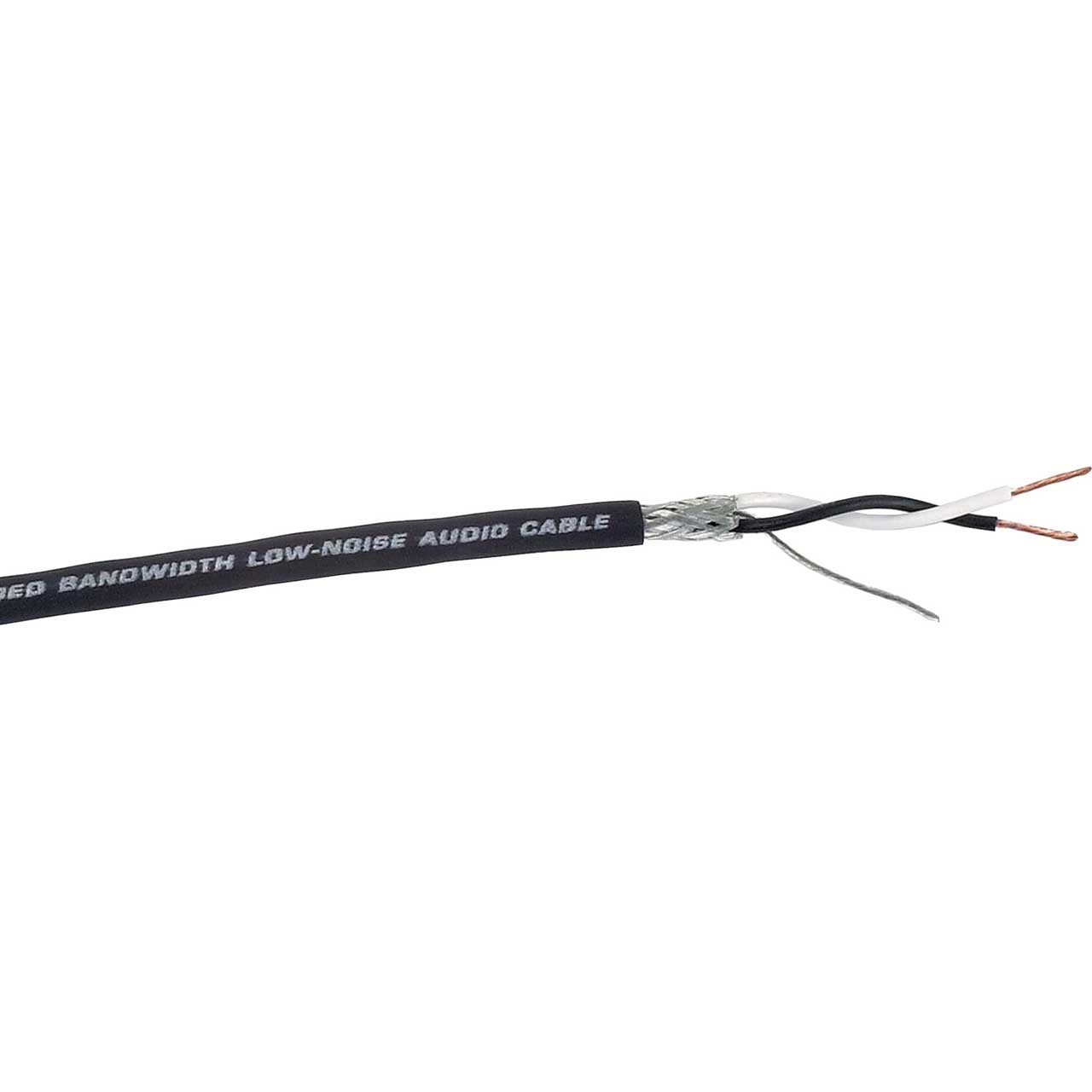

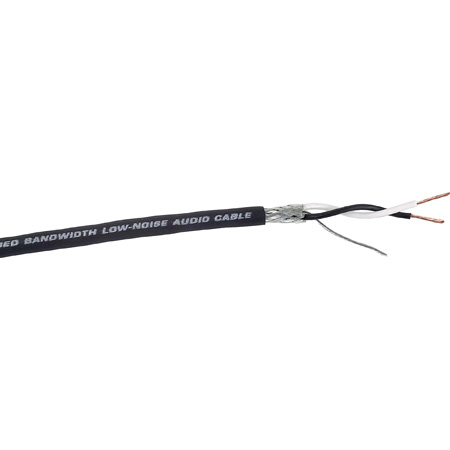

The X-Band series is an ultra-flexible, sonically transparent, low-noise, and durable balanced audio cable for use in critical recording studio facilities or live sound venues. X-Band single-pair is both extremely flexible and flaccid, yet maintains a high degree of durability. Each oxygen-free copper conductor is insulated with a unique low k constant, foam polypropylene dielectric that lowers the capacitance and extends the bandwidth of the cable. Low noise is achieved through tight and precision pair twisting with a durable 95% braid shield. In addition, X-Band also remains easy to prep and terminate. The insulation and jacket are both easy to score, break, and strip; the tight weave braided shield is easy to trim and terminate via the drain wire.

APPLICATIONS
Microphone or Line Level Balanced Analog Audio
Studio Interconnect, Rack or Patchbay Wiring

  • Features:

    • Ultra-flexible
    • Oxygen-free, Finely Stranded Conductors
    • High Bandwidth Dielectric
    • Braid Shield with Drain Wire
    • Superior Noise Rejection
    • Easy to Terminate

  • Specifications:

    • # of Pairs: 1
    • Nominal OD: .145"
    • Conductors: 24 AWG (40x40) Stranded Oxygen-free BC
    • Insulation (type, wall thick)/ Color Code: Foam Polypropylene, .012"/ One White, One Black
    • Shield: 95% TC Braid
    • Drain Wire: 24 AWG (41x40) Stranded TC
    • Jacket: Ultra-flexible G-Flex PVC
    • Approx. Weight 15 lbs/Mft

  • GTIN:

    0612825390756


XB401.41 - Required Accessories
