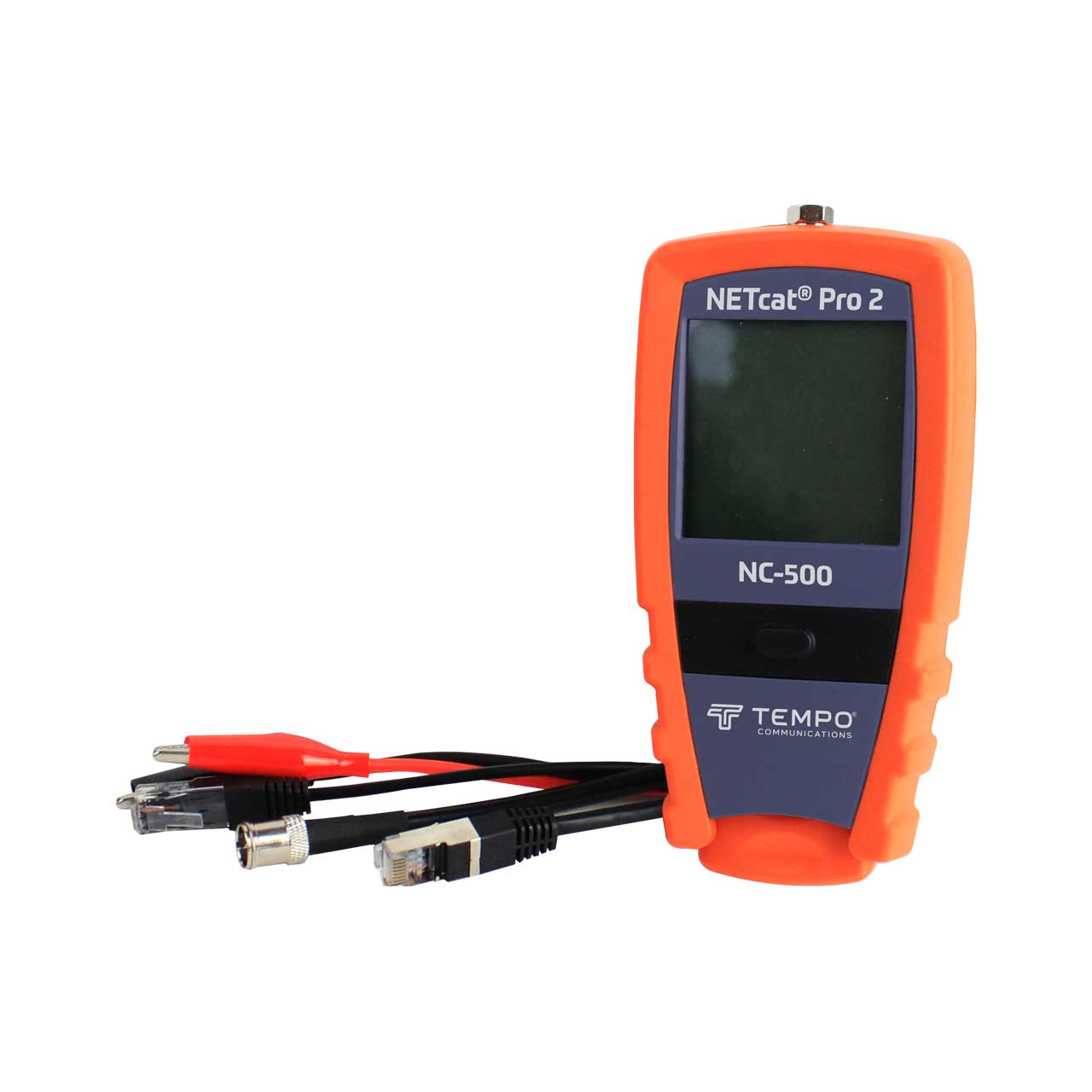

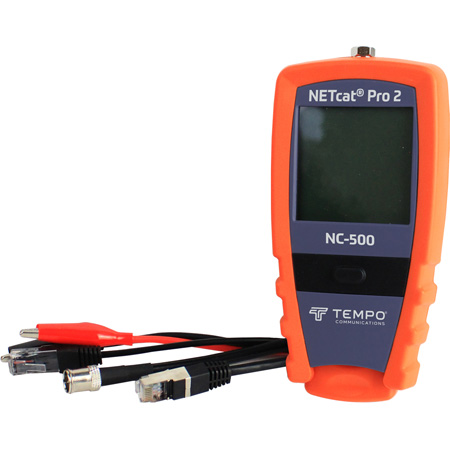

Paladin NC-500 NETcat PRO VDV Wiring Tester

ITEM #: GRL-NC-500 MFG #: NC-500

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$413.23

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    NC-500 - Overview

    Paladin has been going strong for more than 145 years and continues to be the preferred brand of tools and equipment for the electrical contractor. Their focus, as always, has been to deliver customer-focused innovation in the form of high-quality tools that contractors rely on daily. The Paladin NC-500 NETcat Pro NC-500 Structured Wiring Troubleshooter has a touch screen display with contrast adjustment and a backlight. It includes the tests shielded twisted pair, unshielded twisted pair and the coaxial cables. It is capable of generating four distinct, precision tones for tracing low-loss cables like Cat 5 and it identifies active network devices on 10/100 Base-T networks. It also displays network device capabilities, detects shorts, opens, reversed, crossed and split pairs, troubleshoots and verifies a wide range of networks and operates on a single 9V battery. The pulsed time domain reflect meter shows the length of all the pairs and it is compatible with the Paladin precision digital probes

    • Features:

      • Test and troubleshoot telephone, data and coax wiring
      • NETcat Pro 2 New Features:- Gigabit device capability detection (still detects 10baseT and 100baseT too), - Cable type, velocity of propagation library, user editable, - Powerover Ethernet (PoE) detection, - Memo pad
      • Detect split pairs, short circuits, broken and crossed wires
      • Step TDR technology shows length to open or short of all pairs
      • Test shielded twisted-pair(STP), unshielded twisted-pair (UTP) & coaxial cables
      • Test patch cords and remote jacks
      • Touch-screen control, included stylus slots into main unit
      • Large icons ensure easy use with your finger too
      • Large 3 IN (76mm) backlit high-contrast (user adjustable) monochrome display is highly visible in dark or brightly lit areas
      • Remote test and ID unit stores in base of main unit
      • Can identify up to 8 remote test ID units (7 extra available in NC-510 accessory kit along with carrying case)
      • Tone generator with four selectable precision frequency tones, compatible with Greenlee advanced digital signal processing probes
      • Operates on single 9V battery with low battery indication

    • Specifications:

      • Accessory : NC-510 NETcat Pro 2 AccessoryKit W/Carry Case
      • Accuracy to OpenShort : Plus Or Minus 4 PCT Or 2.000 FT (0.600 MR) Whichever Is Greater
      • Application : To Test And Troubleshoot Telephone, Data And Coax Wiring
      • Backlight : White LED
      • Battery : 9 V Alkaline Battery (PP3)
      • Buttons : LCD Touch-Screen, Single Momentary Contact Push Button
      • Depth : 6.700 IN
      • Display LCD : Dot Pixels: 128 X 128 Dots
      • Interface Connections : RJ45 Shielded Jacks F-Type Threaded Female Coaxial Connectors
      • Length : 3.300 IN
      • Remote Identifier : 2000.000 FT
      • Resolution : 1.000 FT (0.300 MR)
      • Storage/Operating Temperature : -20 To 70 DEG C0 - 50 DEG C
      • Sub Brand : NETcat
      • TDR Calibration :
      • User Selectable Based On A Known Cable Length
      • 40 PCT To 100 PCT In StepsOf 1 PCT
      • TDR Range : 0 - 2000 FT
      • Type : 2 Digital VDV Wiring
      • Weight : 0.450 LB (200.000 GM)
      • Width : 1.400 IN
      • Wiremap : 358.000 FT (100.000 MR)

    • Item Includes:

      • Netcat Pro 2 Main Unit WithStylus
      • Removable Remote Jack And Patch Lead Test And Id Unit
      • Twisted-Pair (Modular Rj45), Coax (F) And Alligator ClipTest Cords
      • 9V Alkaline Battery

    • GTIN:

      0783310236399
