Simply45 ST-17100 SecuriTEST IP CCTV Tester

ITEM #: S45-ST-171000 MFG #: ST-171000

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$842.15

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    ST-171000 - Overview

    Simply45 ST-17100 is s SecuriTEST IP installation and troubleshooting tester for digital/IP, HD coax and analog CCTV camera systems. With a single tester that can power, configure and document, SecuriTEST IP increases productivity from start to finish. Supply power to cameras via PoE/PoE+ (Power over Ethernet) or standard 12V DC power using its internal Li-Ion battery, eliminating the need for external power adapters and injectors.

    The QuickIP™ feature allows installers who are new to IP camera systems to quickly and easily connect to cameras without being network experts. Create professional test reports including video screen shots to verify the job has been completed successfully and reduce unpaid call backs.

    • Features:

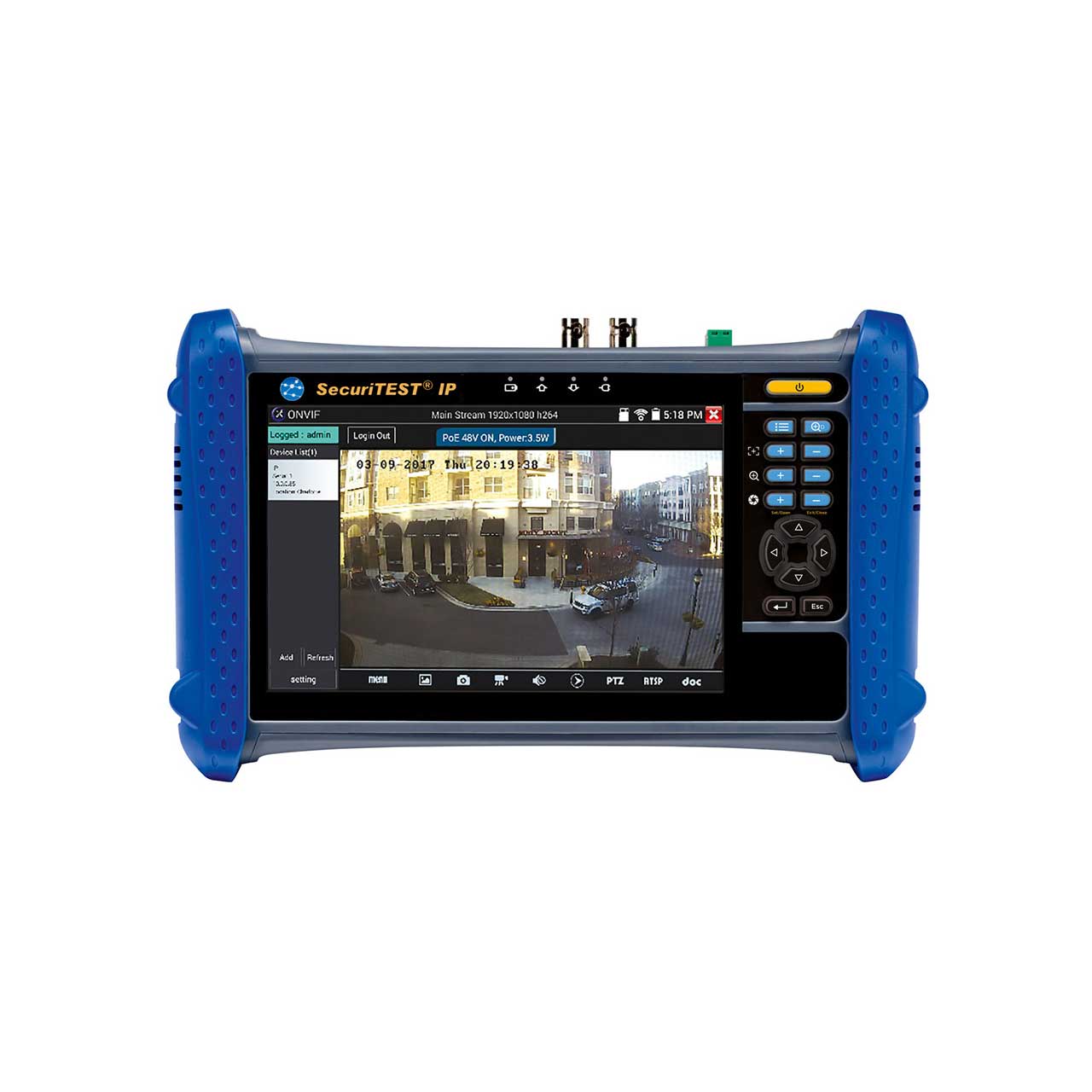

      • Accurate Setup of 4k Cameras: Digital zoom displays full detail of high resolution video on the 7" touchscreen
      • Fast Access to Key Features: Short cut menu to instantly launch your most used tools.
      • One Hand Operation: Pan/Tilt/Zoon (PTZ) the camera using either the touchscreen or the hard keys.
      • Long Battery Life: Up to 10 hours continuours usage with a lithium polymer battery.
      • Ease of Use: High resolution 7" caoacitive touchscreen with 1920 x 1200 resolution display.
      • PoE Troubleshooting: Display the PoE+ consumption of the attached camera in real-time using the power monitor tool. Displays voltage by pair and total wattage drawn.
      • Analog/AHD/CVI/TVI Video Input: Connect to all common analog and HD-over-coax cameras for maximum versatility.
      • Setup Security Monitors: Use the analog Video Out port on the tester with the test pattern generator function to setup security monitors.
      • RS-485 Input/Out: Control and program Pan/Tilt/Zoom (PTZ) cameras and monitor incoming PTZ cameras and monitor incoming PTZ control signals to assist in troubleshooting.
      • Troubleshooting HDMI: Use the ZHDMI in port connect to any HDMI source to isolate Network Video Recorder (NVR) vs monitor problems.
      • HDMI In: Eliminates the need for a separate monitor.
      • Power Up Camera with PoE+: RJ-45 network port provides PoE+ (up to 24 watts) to the camera using the internal battery when network power is unavailable.
      • 12V DC Power Supply: Power any camera using the built-in 12V/2A DC power supply.
      • Flashlight: Bright LED flashlight with 5/10/30/60 minute auto-off options.
      • Camera Audio Testing Using Audio In Port: Test microphone equipped cameras using the tester's internal speaker.
      • Camera Audio Testing Using Audio Out Port: Listen to the camera audio through the tester using external headphones/earbuds. Usually in noisy environments.
      • Data Cable Testing: RJ45 port to perform wiremap testing of unshielded pair (UTP) data cabling. Automatically identify cross over cables and common wiremap faults using the Tracer/Remote.
      • USB Charging: High power 2A USB port to quickly charge devices such as mobile phones and tablets (Please note this port does not support data transfer).
      • MicroSD Slot: Transfer test reports or import software updates using microSD cards.
      • HDMI Output: Display tester screen on a larger monitor using HDMI for greater clarity.

    • Specifications:

      • Internal Memory: 10GB
      • Maximum Cable Length: 328 foot
      • Battery Life: 10 hours (dependant on the load being drawn)
      • Dimension: 6.3 x 9.9 x 1.9"
      • Weight: 2.2 lbs
      • Operation Temperature: -14°F to 122°F
      • Operation Humidity: 30-90 percent

        Display
      • Panel Type: LCD
      • Size: 7"
      • Resolution: 1920 x 1200
      • Touchscreen: Yes

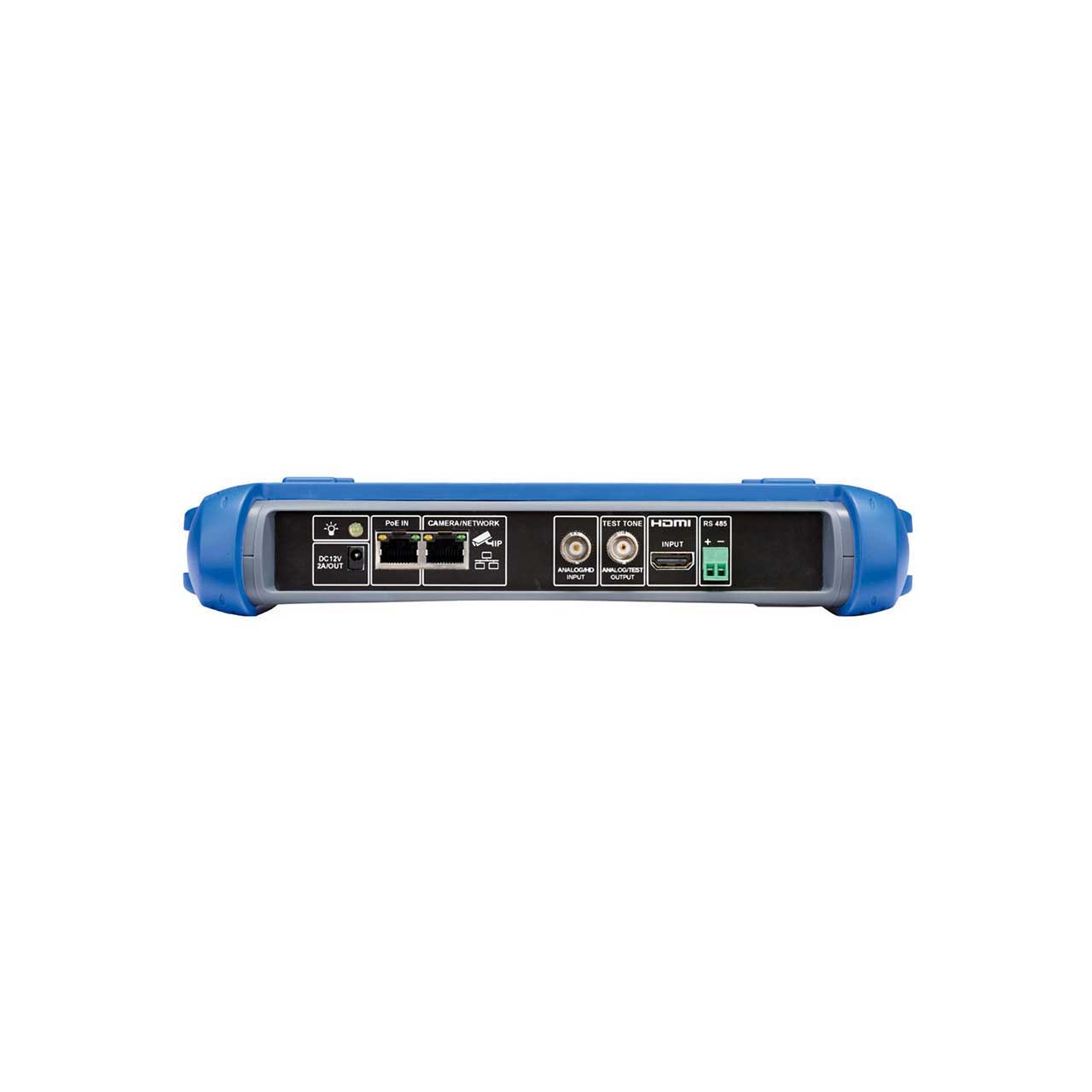

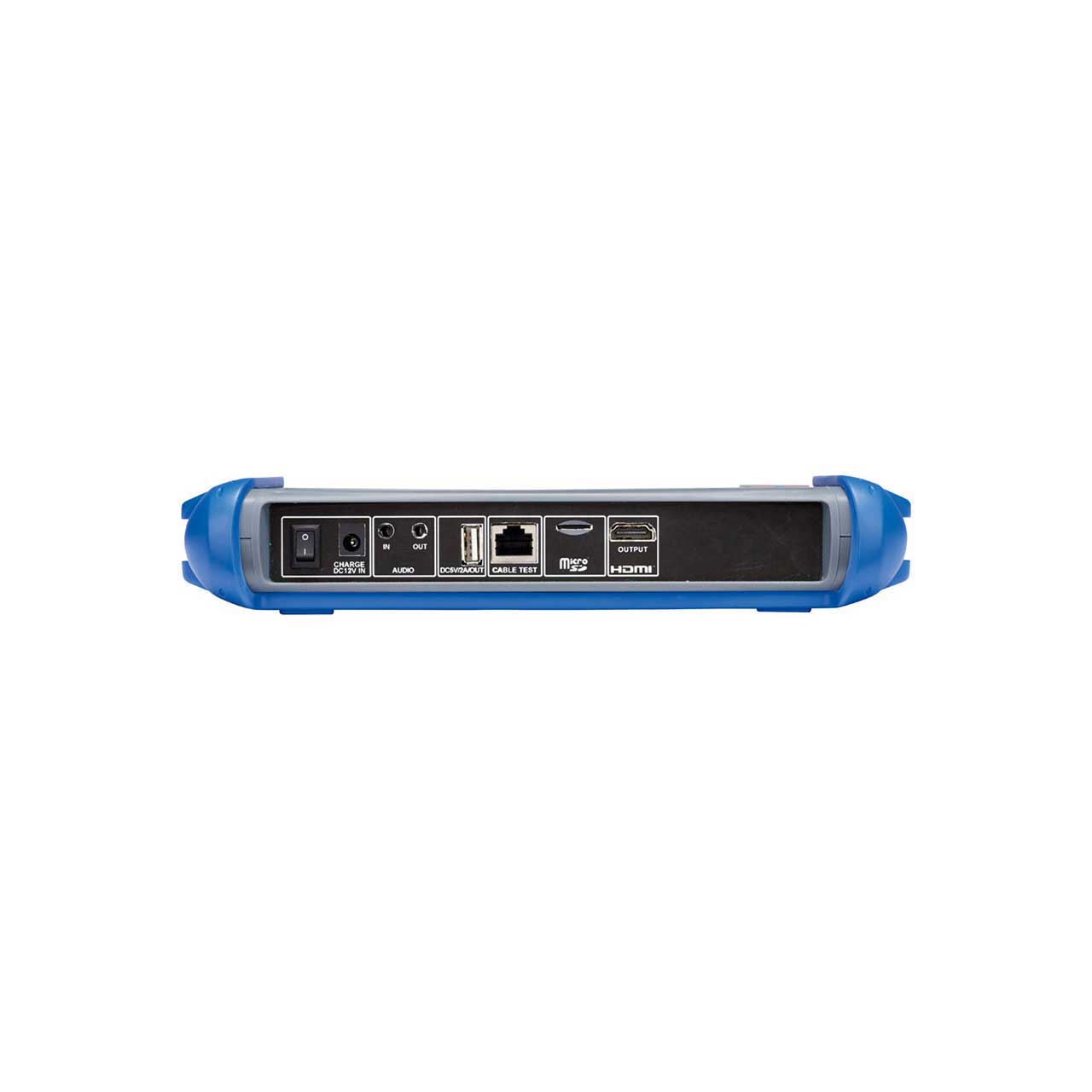

        Inputs/Outputs
      • USB: 1 x USB Type-A (Charging Only) Female Output

        Video
      • HDMI Type A Input
      • BNC Input
      • BNC Output
      • HDMI Type A Output

        Audio I/O
      • 1/8" (3.5 mm) Mic/Monitor/Speaker Input
      • 1/8" (3.5 mm) Headphone Output
      • Media/Memory Card Slot: Single Slot: microSD/microSDHC [10 GB Maximum]

        Power
      • Power Source: Proprietary Interface, Battery (Included)
      • Battery Type: Internal Rechargeable Lithium-Ion
      • DC Input Power: 12 VDC

        Physical
      • Weight: 5.415 lb
      • Dimensions (LxWxH): 12.6 x 12 x 3.8"

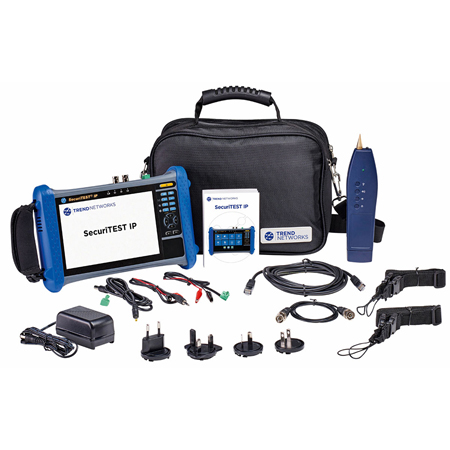

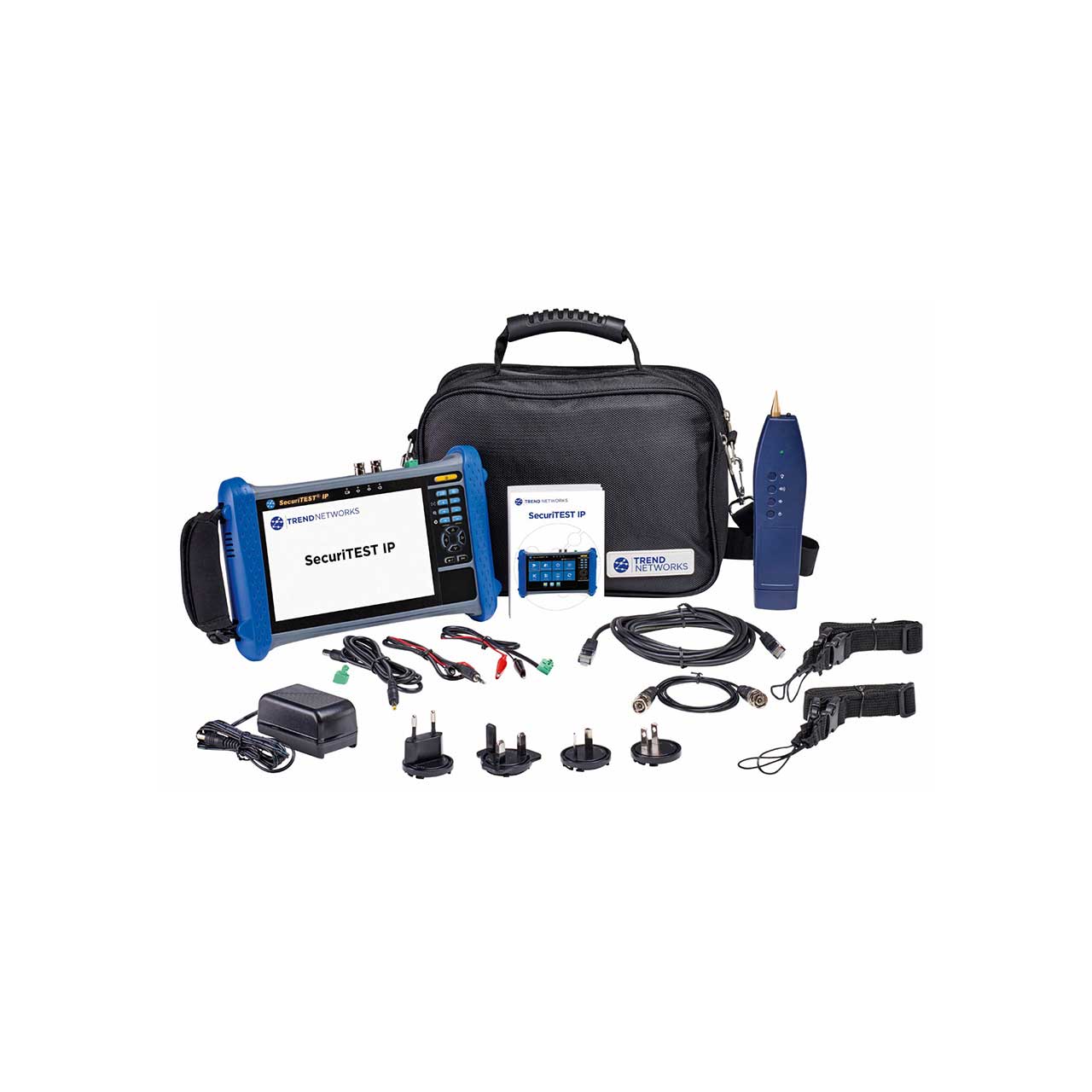

    • Item Includes:

      • 1x SecuriTEST IP CCTV Tester

    • GTIN:

      0810093721191
